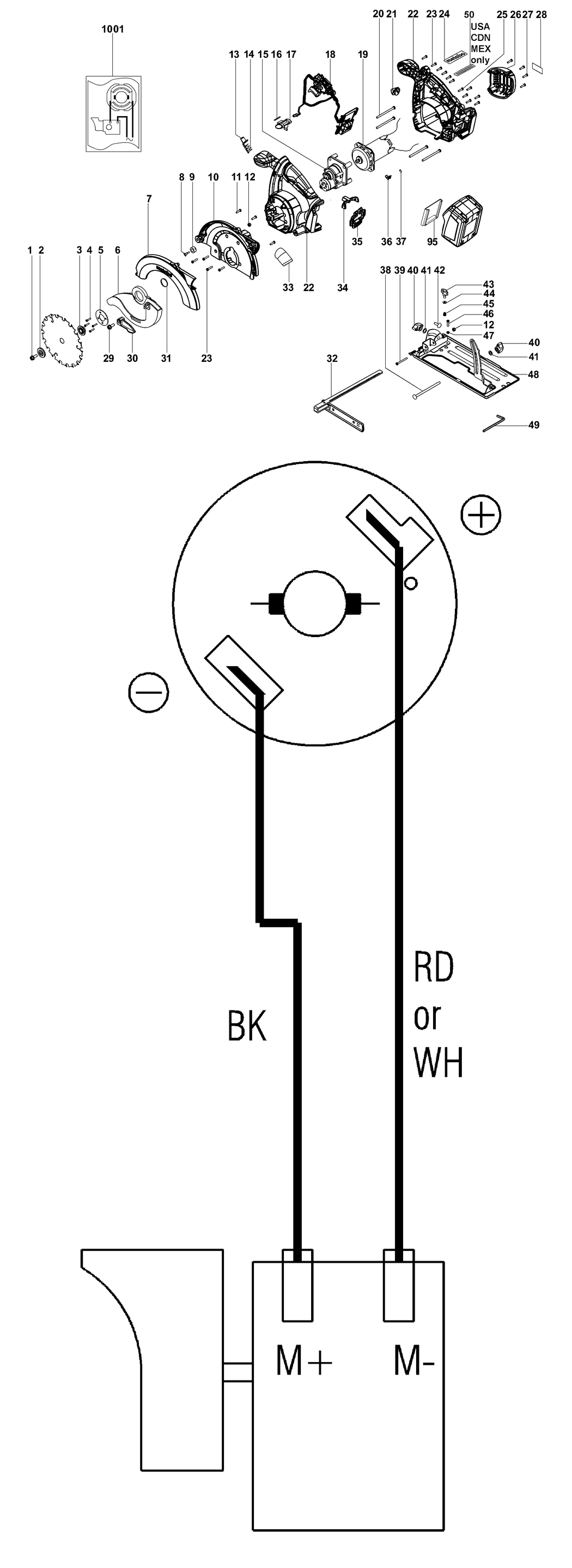

1 - CAP SCREW
MET-341703790.A4
341703790
|
£3.82
|
£4.59
|
|
|
2 - CLAMPING FLANGE
MET-341031860.A4
341031860
|
£8.37
|
£10.04
|
|
|
3 - CLAMPING FLANGE
MET-341031870.A0
341031870
|
£7.36
|
£8.83
|
|
|
4 - TAP TITE SCREW M 3 X 8
MET-341703840.A0
341703840
|
£1.50
|
£1.80
|
|
|
5 - RETRAINING SHEET
MET-339132120.A2
339132120
|
£5.62
|
£6.75
|
|
|
6 - PENDULUM GUARD
MET-315417280.A3
315417280
|
£30.06
|
£36.07
|
|
|
7 - SAW HOUSING
MET-315417270.A0
315417270
|
£22.96
|
£27.55
|
|
|
8 - COUNTERSUNK SCREW
MET-341703810.A2
341703810
|
£2.94
|
£3.53
|
|
|
9 - RUBBER RING
MET-339040870.A2
339040870
|
£1.50
|
£1.80
|
|
|
10 - SAW HOUSING
MET-315417130.A1
315417130
|
£36.59
|
£43.91
|
|
|
11 - FILL. HEAD SCREW
MET-141120070.A126
141120070
|
£1.50
|
£1.80
|
|
|
12 - HEXAGONAL LOCK NUT
MET-141130650.A109
141130650
|
£3.20
|
£3.84
|
|
|
13 - SPINDLE LOCK
MET-316044990.A2
316044990
|
£4.76
|
£5.71
|
|
|
14 - PRESSURE SPRING
MET-342003230.A5
342003230
|
£1.50
|
£1.80
|
|
|
15 - GEAR-BOX CPL.
MET-316038050.A4
316038050
|
£71.39
|
£85.67
|
|
|
16 - PRESSURE SPRING
MET-342003310.A4
342003310
|
£1.50
|
£1.80
|
|
|
17 - SWITCH-ON LOCK
MET-343397750.A0
343397750
|
£1.50
|
£1.80
|
|
|
18 - ELECTRONIC SWITCH DC 18V
MET-343408810.A3
343408810
|
£76.70
|
£92.04
|
|
|
19 - MOTOR COMPL. 18 V
MET-316038060.A0
316038060
|
£86.42
|
£103.71
|
|
|
20 - SELF-TAP. FILL. H. SCREW
MET-141116990.A122
141116990
|
£3.20
|
£3.84
|
|
|
21 - LED
MET-343397740.A2
343397740
|
£1.50
|
£1.80
|
|
|
22 - MOTOR HOUSING
MET-315013380.A1
315013380
|
£61.08
|
£73.30
|
|
|
23 - SELF-TAP. FILL. H. SCREW
MET-141118730.A109
141118730
|
£1.50
|
£1.80
|
|
|
24 - METABO LABEL 40X14 ULA 14.4-18
MET-338121830.A2
338121830
|
-
|
|
|
|
25 - SCREW
MET-141120340.A2
141120340
|
-
|
|
|
|
26 - MOTOR COVER
MET-343398010.A2
343398010
|
£4.76
|
£5.71
|
|
|
27 - SELF-TAP. FILL. H. SCREW
MET-141120470.A2
141120470
|
£1.50
|
£1.80
|
|
|
28 - RATING PLATE
MET-338052190.A2
338052190
|
-
|
|
|
|
29 - FILL. HEAD SCREW(DIN 7985)
MET-141119480.A3
141119480
|
£1.50
|
£1.80
|
|
|
30 - GUARD LEVER
MET-343398020.A1
343398020
|
£1.50
|
£1.80
|
|
|
31 - TORSION SPRING
MET-342021920.A2
342021920
|
£3.82
|
£4.59
|
|
|
32 - PARALLEL GUIDE
MET-331050820.A2
331050820
|
£13.63
|
£16.36
|
|
|
33 - EXHAUST NOZZLE
MET-343396920.A2
343396920
|
£5.62
|
£6.75
|
|
|
34 - PRESSURE PLATE
MET-343394770.A18
343394770
|
£1.50
|
£1.80
|
|
|
35 - SWITCH SLIDE
MET-343394790.A53
343394790
|
£1.50
|
£1.80
|
|
|
36 - SPRING CLIP
MET-342021670.A19
342021670
|
£1.50
|
£1.80
|
|
|
37 - RUBBER PLUG
MET-344097060.A2
344097060
|
£1.50
|
£1.80
|
|
|
38 - TRUSS HEAD SCREW
MET-141119960.A4
141119960
|
£3.20
|
£3.84
|
|
|
39 - FILLISTER HEAD SCREW M 6X40
MET-341703830.A1
341703830
|
£2.94
|
£3.53
|
|
|
40 - THUMB-NUT
MET-341100970.A0
341100970
|
-
|
|
|
|
41 - WASHER
MET-141150960.A2
141150960
|
£1.50
|
£1.80
|
|
|
42 - TRUSS HEAD SCREW
MET-141116050.A15
141116050
|
£3.20
|
£3.84
|
|
|
43 - THUMBSCREW
MET-341111920.A17
341111920
|
£3.82
|
£4.59
|
|
|
44 - WASHER
MET-141150020.A93
141150020
|
£1.50
|
£1.80
|
|
|
45 - PRESSURE SPRING
MET-342003240.A2
342003240
|
£1.50
|
£1.80
|
|
|
46 - FILLISTER HEAD SCREW
MET-141113200.A9
141113200
|
£1.50
|
£1.80
|
|
|
47 - HEXAGONAL NUT
MET-141130070.A6
141130070
|
£1.50
|
£1.80
|
|
|
48 - GUIDE PLATE CPL.
MET-316037290.A4
316037290
|
£42.65
|
£51.18
|
|
|
49 - HEXAGONAL KEY
MET-344161530.A21
344161530
|
£3.20
|
£3.84
|
|
|
50 - PART NOT NEEDED
MET-399999990.A1421
399999990
|
-
|
|
|
|
1001 - WIRING DIAGRAM
MET-338504870.A19
338504870
|
-
|
|
|
