Metabo MAG 28 LTX 32 / 21028000 / 99 Spare Parts

Home Details Reviews Delivery

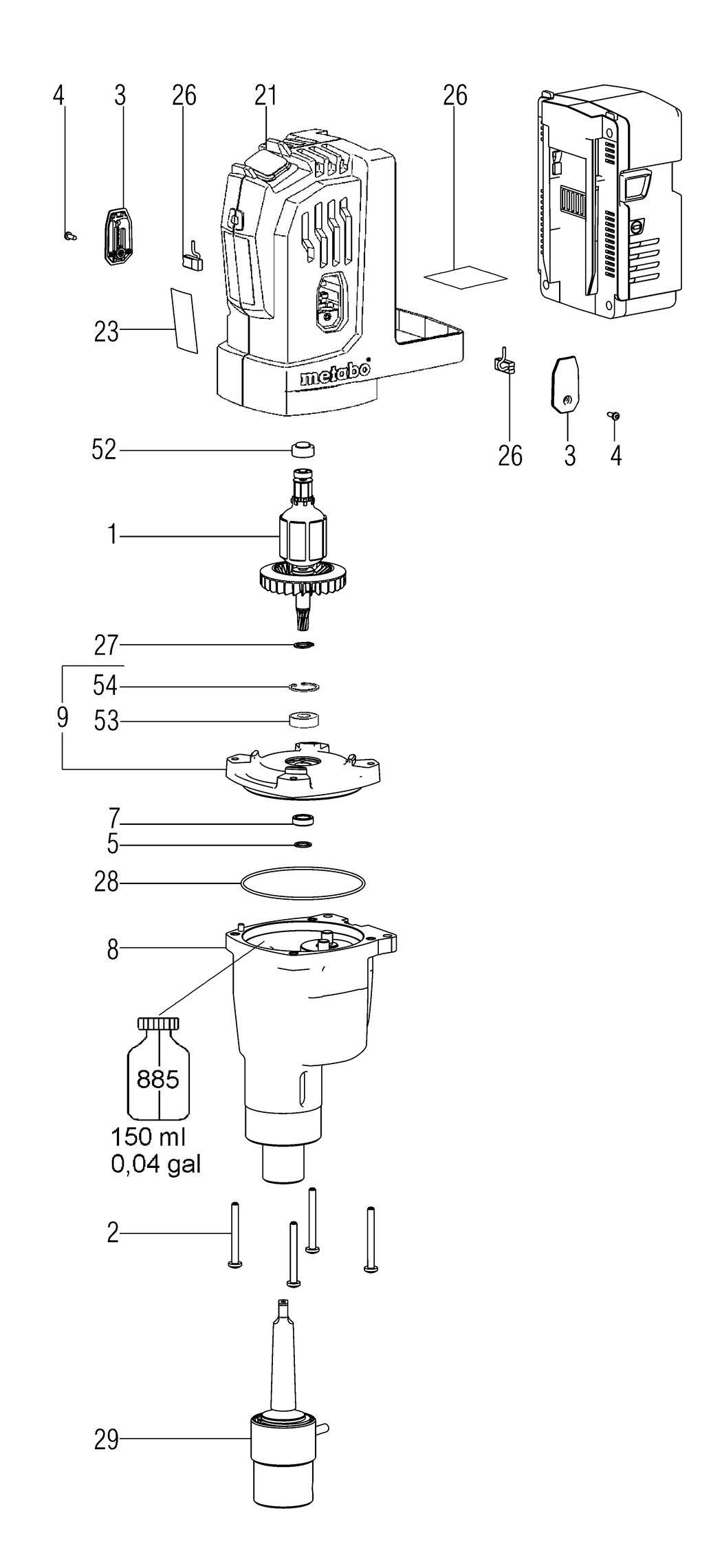

An exploded diagram and spare parts listing for the Metabo MAG 28 LTX 32 / 21028000 / 99

	Ex VAT	Inc VAT
1 - ARMATURE COMPL. MET-310010240.A3 310010240	£68.35	£82.02
2 - SELF-TAP. FILL. H. SCREW MET-141119370.A41 141119370	£1.50	£1.80
3 - BRUSH COVER MET-343398600.A14 343398600	£2.94	£3.53
4 - SELF-TAPP. FILL. H. SCREW MET-141119900.A0 141119900	£1.50	£1.80
5 - CIRCLIP MET-342022150.A7 342022150	£3.20	£3.84
7 - BUSH MET-341005780.A8 341005780	£19.18	£23.02
8 - GEAR-BOX COMPL. MET-316048310.A2 316048310	£266.93	£320.32
9 - GEAR COVER COMPL. MET-316048960.A3 316048960	£63.44	£76.13
21 - MOTOR HOUSING COMPL. MET-316048290.A1 316048290	£128.14	£153.77
22 - RATING PLATE MET-338062470.A1 338062470	-
23 - INDICATION LABEL MET-338123200.A3 338123200	£2.94	£3.53
26 - CARBON BRUSH SET MET-316060540.A8 316060540	£13.63	£16.36
27 - RETAINING RING MET-141180040.A61 141180040	£1.50	£1.80
28 - O-RING MET-143195370.A0 143195370	£3.20	£3.84
29 - INDUSTRIAL ARBORS MK2 MET-316046240.A8 316046240	£214.12	£256.95
49 - DRIFT KEY MET-339030120.A3 339030120	-
52 - BEARING BUSHING MET-341006020.A2 341006020	£3.20	£3.84
53 - BALL BEARING 10X26X8 MET-143111120.A41 143111120	£22.61	£27.13
54 - RETAINING RING MET-141180350.A6 141180350	£3.20	£3.84
55 - CRANKED WRENCH KEY MET-344163620.A2 344163620	£11.78	£14.13
885 - OIL MET-344131190.A11 344131190	£64.30	£77.16
1 - ARMATURE COMPL. MET-310010240.A1 310010240	£68.35	£82.02
2 - SELF-TAP. FILL. H. SCREW MET-141119370.A43 141119370	£1.50	£1.80
3 - BRUSH COVER MET-343398600.A6 343398600	£2.94	£3.53
4 - SELF-TAPP. FILL. H. SCREW MET-141119900.A5 141119900	£1.50	£1.80
5 - CIRCLIP MET-342022150.A9 342022150	£3.20	£3.84
7 - BUSH MET-341005780.A9 341005780	£19.18	£23.02
8 - GEAR-BOX COMPL. MET-316048310.A0 316048310	£266.93	£320.32
9 - GEAR COVER COMPL. MET-316048960.A1 316048960	£63.44	£76.13
21 - MOTOR HOUSING COMPL. MET-316048290.A3 316048290	£128.14	£153.77
22 - RATING PLATE MET-338062470.A0 338062470	-
23 - INDICATION LABEL MET-338123200.A0 338123200	£2.94	£3.53
26 - CARBON BRUSH SET MET-316060540.A21 316060540	£13.63	£16.36
27 - RETAINING RING MET-141180040.A63 141180040	£1.50	£1.80
28 - O-RING MET-143195370.A2 143195370	£3.20	£3.84
29 - INDUSTRIAL ARBORS MK2 MET-316046240.A10 316046240	£214.12	£256.95
49 - DRIFT KEY MET-339030120.A0 339030120	-
52 - BEARING BUSHING MET-341006020.A0 341006020	£3.20	£3.84
53 - BALL BEARING 10X26X8 MET-143111120.A40 143111120	£22.61	£27.13
54 - RETAINING RING MET-141180350.A4 141180350	£3.20	£3.84
55 - CRANKED WRENCH KEY MET-344163620.A0 344163620	£11.78	£14.13
885 - OIL MET-344131190.A13 344131190	£64.30	£77.16

Attribute Name	Value
Brand	Metabo
