Metabo SB 14.4 LTX Impuls / 02146001 / - Spare Parts

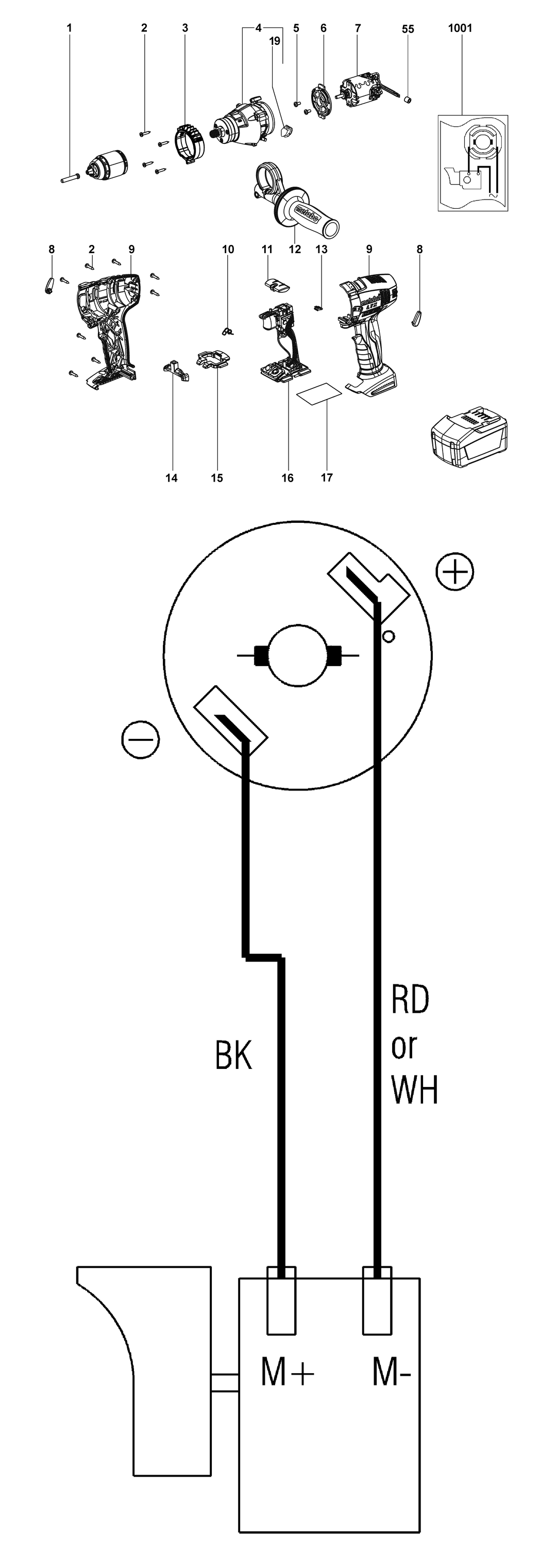

An exploded diagram and spare parts listing for the Metabo SB 14.4 LTX Impuls / 02146001 / -

	Ex VAT	Inc VAT
1 - CHEESE-HEAD SCREW MET-341701940.A142 341701940	£3.20	£3.84
2 - SELF-TAP. FILL. H. SCREW MET-141113180.A58 141113180	£1.50	£1.80
3 - SCREWDRIBER-BIT DEPOT MET-343396590.A6 343396590	£3.20	£3.84
4 - GEAR-BOX COMPL. MET-316047290.A3 316047290	£64.30	£77.16
5 - FILLISTER HEAD SCREW MET-141119850.A51 141119850	£1.50	£1.80
6 - MOTOR FLANGE MET-343393960.A3 343393960	£2.94	£3.53
7 - DC-MOTOR MET-317003680.A0 317003680	£50.13	£60.16
8 - SHIFT ELEMENT MET-343394150.A0 343394150	£1.50	£1.80
9 - HOUSING W.COVER MET-343394810.A11 343394810	£36.59	£43.91
10 - SPRING CLIP MET-342021670.A11 342021670	£1.50	£1.80
11 - SWITCH SLIDE MET-343394800.A9 343394800	£1.50	£1.80
12 - SIDE SUPPORT HANDLE COMPL. MET-314001140.A6 314001140	£17.55	£21.06
13 - FLAT SPRING MET-342050860.A28 342050860	£1.50	£1.80
14 - PRESSURE PLATE MET-343394770.A12 343394770	£1.50	£1.80
15 - SWITCH SLIDE MET-343394790.A63 343394790	£1.50	£1.80
16 - ELECTRONIC SWITCH 14 4 V IMPULS MET-343408670.A0 343408670	£55.90	£67.08
17 - RATING PLATE MET-338051760.A0 338051760	-
19 - ELECTRONIC UNIT 6-20V MET-343081780.A0 343081780	£26.35	£31.62
55 - FERRITE BEAD MET-143160070.A14 143160070	£3.82	£4.59
1001 - WIRING DIAGRAM MET-338504870.A8 338504870	-

Attribute Name	Value
Brand	Metabo
