1 - ARMATURE COMPL.
MET-310011270.A5
310011270
|
£30.06
|
£36.07
|
|
|
2 - FIELD COIL COMPL. 2 POL.
MET-311011880.A10
311011880
|
£61.08
|
£73.30
|
|
|
3 - BRUSH HOLDER COMPL. 18 V
MET-316053210.A9
316053210
|
£16.66
|
£19.99
|
|
|
4 - ELECTRONIC UNIT 18V
MET-343082750.A7
343082750
|
£67.04
|
£80.45
|
|
|
5 - MOTOR TOP PRINTED
MET-343435970.A1
343435970
|
£22.61
|
£27.13
|
|
|
6 - RUBBER BUSHING
MET-344098740.A52
344098740
|
£1.50
|
£1.80
|
|
|
7 - BALL BEARING 8X22X7
MET-143114880.A149
143114880
|
£9.62
|
£11.54
|
|
|
8 - HOUSING
MET-343430690.A1
343430690
|
£11.78
|
£14.13
|
|
|
9 - SELF-TAP. FILL. H. SCREW
MET-141113180.A158
141113180
|
£1.50
|
£1.80
|
|
|
10 - BRUSH COVER
MET-343398600.A47
343398600
|
£2.94
|
£3.53
|
|
|
11 - SELF-TAPP. FILL. H. SCREW
MET-141119900.A70
141119900
|
£1.50
|
£1.80
|
|
|
12 - PADDLE SWITCH COMPL.
MET-343410500.A2
343410500
|
£8.37
|
£10.04
|
|
|
14 - INDEX BOLT
MET-343398620.A3
343398620
|
£2.94
|
£3.53
|
|
|
15 - PRESSURE SPRING
MET-342003030.A62
342003030
|
£1.50
|
£1.80
|
|
|
16 - LOCKING PIECE
MET-343430520.A75
343430520
|
£2.94
|
£3.53
|
|
|
17 - SWITCH SLIDE
MET-343430530.A7
343430530
|
£3.20
|
£3.84
|
|
|
18 - SELF-TAP FILL H SCREW
MET-141116020.A1188
141116020
|
£3.20
|
£3.84
|
|
|
19 - WASHER
MET-141152720.A8
141152720
|
£3.20
|
£3.84
|
|
|
20 - CARRIER
MET-341071110.A16
341071110
|
£19.18
|
£23.02
|
|
|
21 - BUFFER
MET-344099140.A13
344099140
|
£3.82
|
£4.59
|
|
|
22 - BEARING FLANGE
MET-315202620.A9
315202620
|
£22.61
|
£27.13
|
|
|
23 - RATING PLATE
MET-338061920.A0
338061920
|
-
|
|
|
|
24 - CARBON BRUSH SET
MET-316060540.A0
316060540
|
£13.63
|
£16.36
|
|
|
30 - FILTER
MET-343398890.A5
343398890
|
£8.37
|
£10.04
|
|
|
31 - OPEN-END SPANNER
MET-344161300.A5
344161300
|
£8.37
|
£10.04
|
|
|
32 - HANDLE
MET-344099150.A30
344099150
|
£9.62
|
£11.54
|
|
|
33 - SPINDLE HEAD COMPL.
MET-316051730.A1
316051730
|
£51.54
|
£61.85
|
|
|
34 - COLLET 6 MM WITH FLANGE NUT (HEXAGON)
MET-631945000.A23
631945000
|
£16.66
|
£19.99
|
|
|
35 - INDICATION LABEL
MET-338129940.A12
338129940
|
£3.20
|
£3.84
|
|
|
36 - PART NOT NEEDED
MET-399999990.A1151
399999990
|
-
|
|
|
|
55 - MOTORCAP BOTTOM
MET-343437300.A0
343437300
|
£13.63
|
£16.36
|
|
|
61 - SPINDLE HEAD COMPL.
MET-316065220.A15
316065220
|
£54.94
|
£65.93
|
|
|
62 - BALL BEARING
MET-143115930.A18
143115930
|
£9.62
|
£11.54
|
|
|
63 - BALL BEARING 10X30X9
MET-143111090.A36
143111090
|
£19.18
|
£23.02
|
|
|
64 - RETAINING RING
MET-141180370.A6
141180370
|
£1.50
|
£1.80
|
|
|
65 - COMPENSATING WASHER
MET-143115490.A26
143115490
|
£1.50
|
£1.80
|
|
|
66 - COUPLING
MET-341071300.A0
341071300
|
£8.37
|
£10.04
|
|
|
70 - COMPENSATING WASHER
MET-143115470.A25
143115470
|
£1.50
|
£1.80
|
|
|
75 - SPINDLE LOCK
MET-316059800.A18
316059800
|
£13.63
|
£16.36
|
|
|

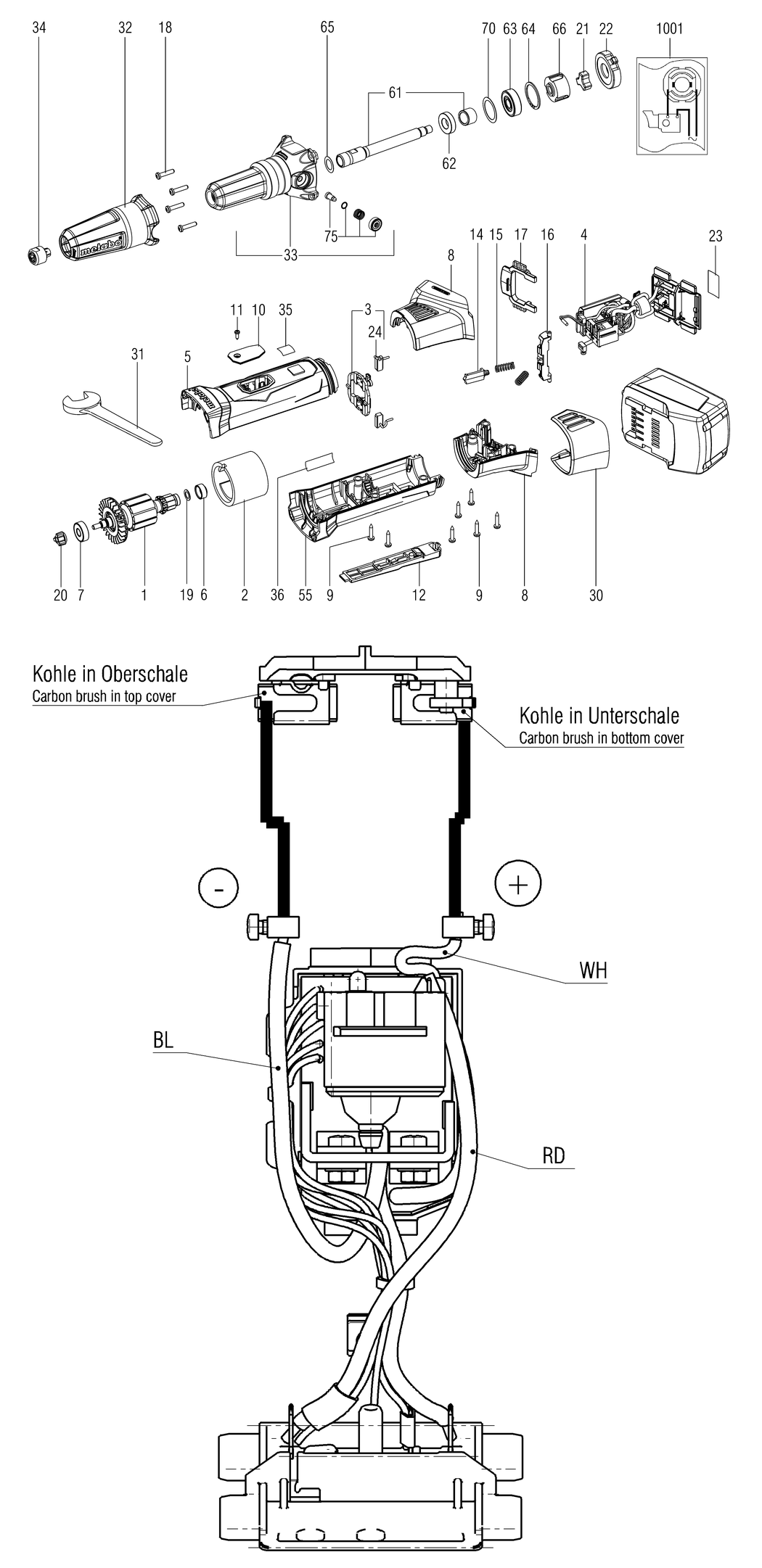

1001 - DIAGRAM
MET-338505280.A39
338505280
|
-
|
|
|
