Stanley SGC-13000N Type 1 Compactor Spare Parts

Home Details Reviews Delivery

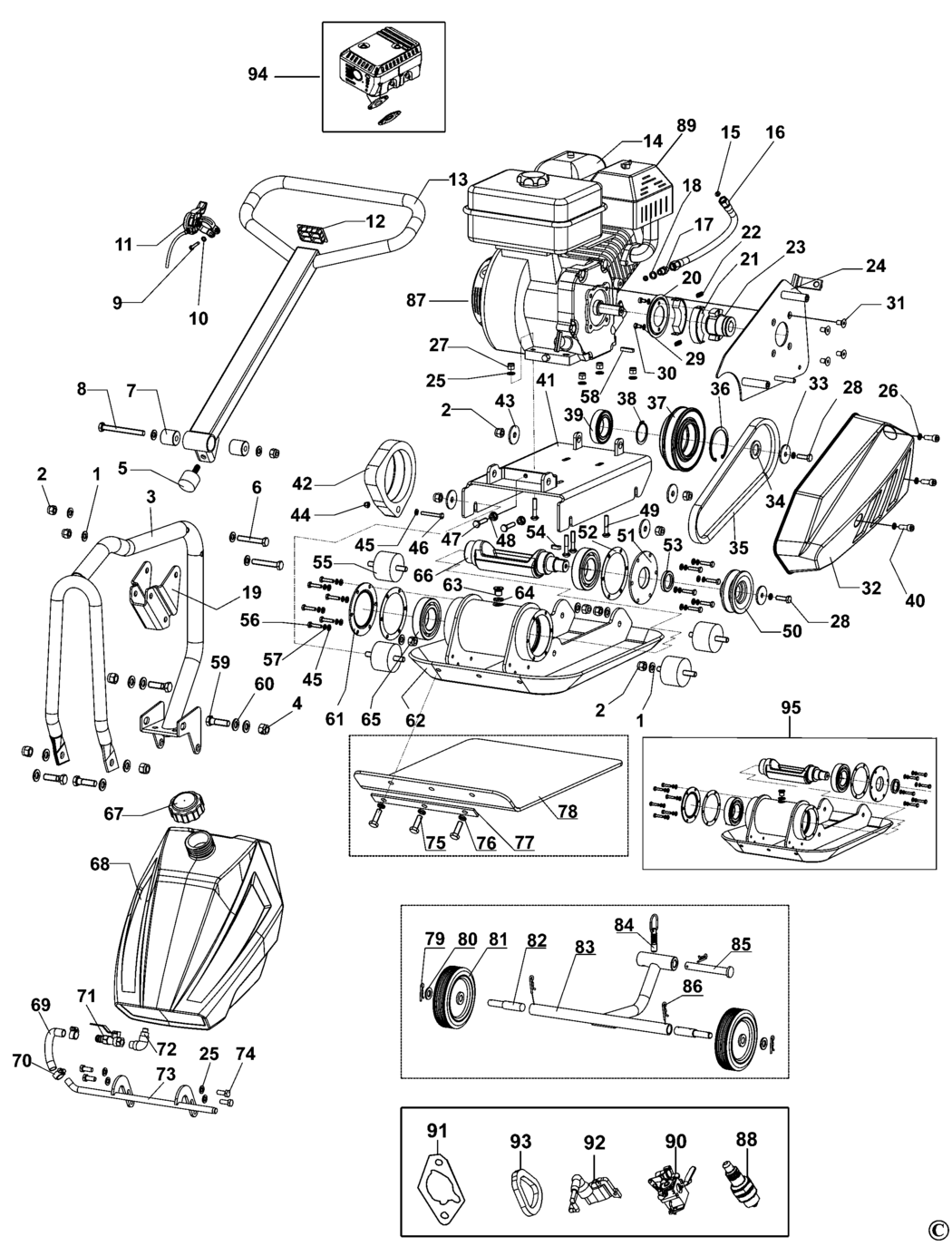

An exploded drawing and spare parts listing for the Stanley SGC-13000N Type 1 Compactor

	Ex VAT	Inc VAT
1 - WASHER BDE-E6043000101 E6043000101	£1.50	£1.80
2 - NUT BDE-E6043000102 E6043000102	£1.50	£1.80
3 - HANDLE SA BDE-E6043000103 E6043000103	£41.24	£49.49
4 - NUT BDE-E6043000104 E6043000104	£1.50	£1.80
5 - SHOCK ABSORBER BDE-E6043000105 E6043000105	-
6 - BOLT BDE-E6043000106 E6043000106	£1.50	£1.80
7 - SLEEVE BDE-E6043000107 E6043000107	-
8 - BOLT BDE-E6043000108 E6043000108	£1.50	£1.80
9 - BOLT BDE-E6043000109 E6043000109	£1.50	£1.80
10 - WASHER BDE-E60430001010 E60430001010	£1.50	£1.80
11 - LEVER BDE-E60430001011 E60430001011	-
12 - PLUG BDE-E60430001012 E60430001012	£1.50	£1.80
13 - HANDLE UPPER BDE-E60430001013 E60430001013	£25.70	£30.84
15 - O RING BDE-E60430001015 E60430001015	£1.50	£1.80
16 - HOSE BDE-E60430001016 E60430001016	£1.50	£1.80
17 - COUPLING BDE-E60430001017 E60430001017	-
18 - RING GASKET BDE-E60430001018 E60430001018	£1.50	£1.80
19 - CONNECTOR BDE-E60430001019 E60430001019	£7.18	£8.62
20 - COVER SA BDE-E60430001020 E60430001020	£1.50	£1.80
21 - DISCS BDE-E60430001021 E60430001021	£7.18	£8.62
22 - SPRING BDE-E60430001022 E60430001022	£1.42	£1.70
23 - SHAFT BDE-E60430001023 E60430001023	£12.17	£14.60
24 - BELT COVER BDE-E60430001024 E60430001024	£18.91	£22.69
25 - WASHER BDE-E60430001025 E60430001025	£1.42	£1.70
26 - WASHER BDE-E60430001026 E60430001026	£1.50	£1.80
27 - NUT BDE-E60430001027 E60430001027	£1.50	£1.80
28 - BOLT BDE-E60430001028 E60430001028	£1.50	£1.80
29 - WASHER BDE-E60430001029 E60430001029	£1.50	£1.80
30 - SCREW BDE-E60430001030 E60430001030	£1.50	£1.80
31 - SCREW BDE-E60430001031 E60430001031	£1.50	£1.80
32 - BELT COVER BDE-E60430001032 E60430001032	£14.57	£17.48
33 - PLATE BDE-E60430001033 E60430001033	£1.50	£1.80
34 - WASHER BDE-E60430001034 E60430001034	£1.50	£1.80
35 - V-BELT BDE-E60430001035 E60430001035	£12.17	£14.60
36 - CIRCLIP BDE-E60430001036 E60430001036	£1.50	£1.80
37 - PULLEY BDE-E60430001037 E60430001037	£24.39	£29.27
38 - CIRCLIP BDE-E60430001038 E60430001038	£1.50	£1.80
39 - BEARING BDE-E60430001039 E60430001039	£7.85	£9.42
40 - SCREW BDE-E60430001040 E60430001040	£1.50	£1.80
41 - CHASSIS BDE-E60430001041 E60430001041	£108.20	£129.84
42 - PAD BDE-E60430001042 E60430001042	£7.18	£8.62
43 - WASHER BDE-E60430001043 E60430001043	£1.50	£1.80
44 - NUT M6 BDE-E60430001044 E60430001044	£1.50	£1.80
45 - WASHER BDE-E60430001045 E60430001045	£1.50	£1.80
46 - BOLT BDE-E60430001046 E60430001046	£1.50	£1.80
47 - BOLT BDE-E60430001047 E60430001047	£1.50	£1.80
48 - NUT M8 BDE-E60430001048 E60430001048	£1.50	£1.80
49 - BOLT BDE-E60430001049 E60430001049	£1.50	£1.80
50 - PULLEY BDE-E60430001050 E60430001050	£14.57	£17.48
51 - COVER BEARING BDE-E60430001051 E60430001051	£10.85	£13.02
52 - WASHER BDE-E60430001052 E60430001052	£1.50	£1.80
53 - RING BDE-E60430001053 E60430001053	£3.30	£3.96
54 - KEY BDE-E60430001054 E60430001054	£1.50	£1.80
55 - SHOCK ABSORBER BDE-E60430001055 E60430001055	£7.18	£8.62
56 - BOLT BDE-E60430001056 E60430001056	£1.50	£1.80
57 - WASHER BDE-E60430001057 E60430001057	£1.50	£1.80
58 - KEY BDE-E60430001058 E60430001058	£1.50	£1.80
59 - BOLT BDE-E60430001059 E60430001059	£1.50	£1.80
60 - WASHER BDE-E60430001060 E60430001060	£1.50	£1.80
61 - COVER BEARING BDE-E60430001061 E60430001061	£9.41	£11.29
62 - PLATE BDE-E60430001062 E60430001062	£414.90	£497.88
63 - PLUG BDE-E60430001063 E60430001063	£1.50	£1.80
64 - SEAL BDE-E60430001064 E60430001064	£1.42	£1.70
65 - BEARING BDE-E60430001065 E60430001065	£24.39	£29.27
66 - SHAFT BDE-E60430001066 E60430001066	£51.90	£62.28
67 - CAP BDE-E60430001067 E60430001067	£1.50	£1.80
68 - TANK Water BDE-E60430001068 E60430001068	£96.55	£115.86
69 - PIPE BDE-E60430001069 E60430001069	£5.88	£7.06
70 - CLAMP BDE-E60430001070 E60430001070	£1.50	£1.80
71 - VALVE BDE-E60430001071 E60430001071	£3.30	£3.96
72 - ELBOW TUBE BDE-E60430001072 E60430001072	£3.30	£3.96
73 - OUTLET BDE-E60430001073 E60430001073	£9.41	£11.29
74 - BOLT BDE-E60430001074 E60430001074	£1.50	£1.80
75 - BOLT BDE-1004720-74 1004720-74	£1.50	£1.80
76 - WASHER BDE-1004720-75 1004720-75	£1.50	£1.80
77 - PLATE BDE-1004720-76 1004720-76	£3.80	£4.56
78 - PAD BDE-1004720-77 1004720-77	£47.08	£56.49
79 - SPRING BDE-1004720-78 1004720-78	£1.50	£1.80
80 - WASHER BDE-1004720-79 1004720-79	£1.42	£1.70
81 - WHEEL BDE-1004720-80 1004720-80	£4.69	£5.63
82 - SHAFT BDE-1004720-81 1004720-81	£5.88	£7.06
83 - BRACKET BDE-1004720-82 1004720-82	£19.90	£23.88
84 - BOLT BDE-1004720-83 1004720-83	£1.42	£1.70
85 - SHAFT BDE-1004720-84 1004720-84	£1.50	£1.80
86 - SPRING BDE-1004720-85 1004720-85	£1.42	£1.70
87 - STARTER SA BDE-E604300010E1 E604300010E1	£34.00	£40.80
88 - SPARK PLUG BDE-E604300010E2 E604300010E2	£9.41	£11.29
89 - FILTER SA Air Filter BDE-E604300010E3 E604300010E3	£7.18	£8.62
90 - CARBURETTOR SA BDE-E604300010E4 E604300010E4	£24.39	£29.27
91 - SEAL Carburettor BDE-E604300010E5 E604300010E5	£2.78	£3.34
92 - COIL SA BDE-E604300010E6 E604300010E6	£17.48	£20.97
93 - GASKET Cylinder Head BDE-E604300010E7 E604300010E7	£7.18	£8.62
94 - MUFFLER BDE-E604300010E8 E604300010E8	£34.00	£40.80
95 - PLATE SA BDE-E604300010P1 E604300010P1	£336.69	£404.03

Attribute Name	Value
Brand	Stanley
