Stanley SXPW19E Type 1 Pressure Washer Spare Parts

Stanley SXPW19E Type 1 Pressure Washer Spare Parts
Home Details Reviews Delivery

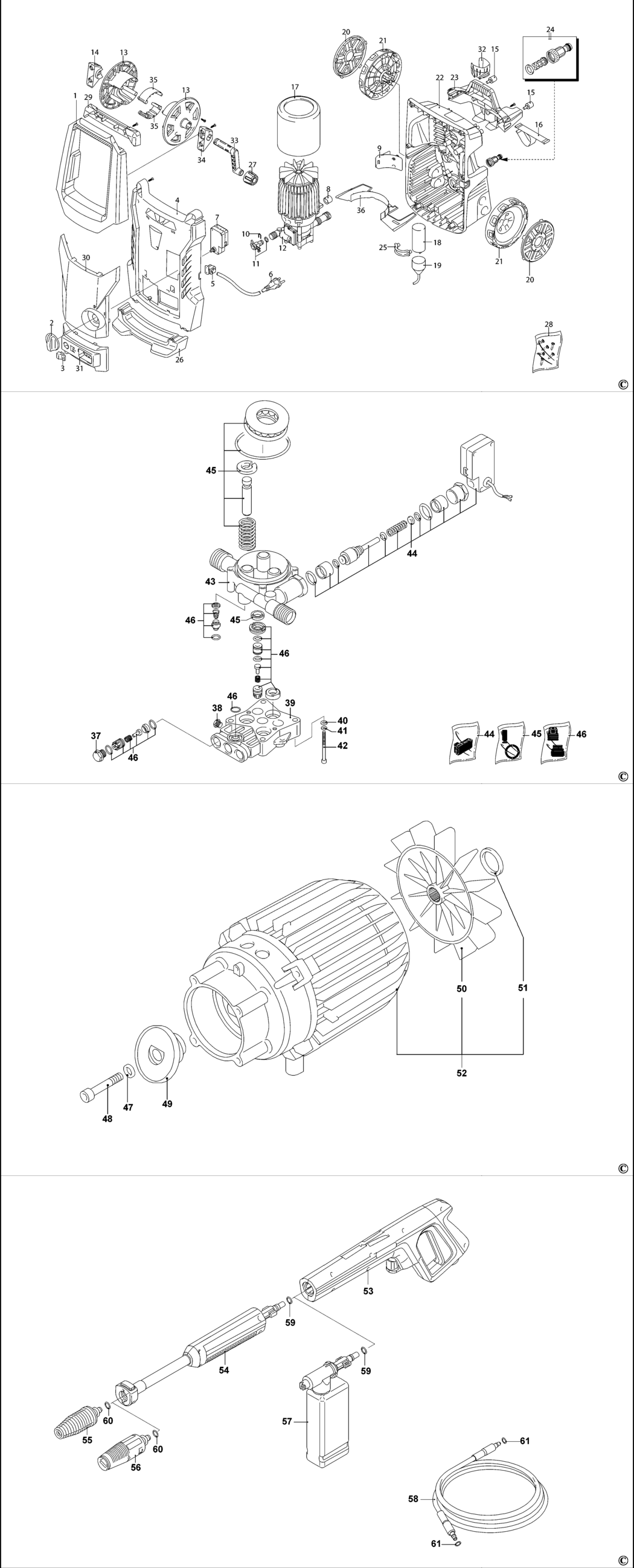

An exploded drawing and spare parts listing for the Stanley SXPW19E Type 1 Pressure Washer
Ex VAT Inc VAT
1 - HANDLE SA BDE-4380640.A1 4380640 £24.39 £29.27
2 - KNOB BDE-4381361.A1 4381361 £2.78 £3.34
3 - LEVER BDE-4380391.A0 4380391 £1.82 £2.19
4 - COVER BDE-4381320.A3 4381320 £30.08 £36.10
5 - GLAND BDE-3080580.A26 3080580 £1.50 £1.80
7 - SWITCHBOX BDE-4381740.A8 4381740 £17.48 £20.97
8 - FOOT BDE-4381890.A7 4381890 £7.18 £8.62
9 - GUARD BDE-4380800.A0 4380800 £7.18 £8.62
10 - FORK BDE-1004512-08.A9 1004512-08 £5.95 £7.14
11 - KIT BDE-4382200.A4 4382200 £24.39 £29.27
13 - PLATE BDE-3080200.A6 3080200 £14.57 £17.48
14 - BRACKET BDE-4380470.A6 4380470 £5.88 £7.06
15 - FOOT BDE-1004712-16.A12 1004712-16 £7.18 £8.62
16 - HOOK SA BDE-4380810.A17 4380810 £3.30 £3.96
17 - FAN COVER BDE-3440130.A10 3440130 £12.17 £14.60
18 - CAPACITOR BDE-3081620.A1 3081620 £24.39 £29.27
19 - CONNECTOR BDE-4101080.A6 4101080 £2.26 £2.71
20 - GUARD BDE-4380630.A11 4380630 £7.18 £8.62
21 - WHEEL BDE-4380610.A20 4380610 £14.57 £17.48
22 - BASE SA BDE-4380960.A8 4380960 £47.08 £56.49
23 - CARRIER SA BDE-4380990.A9 4380990 £16.03 £19.24
24 - COUPLING SA BDE-1004712-93.A16 1004712-93 £7.88 £9.45
25 - BRACKET BDE-1004721-16.A4 1004721-16 £1.50 £1.80
26 - FOOT BDE-4380680.A1 4380680 £14.57 £17.48
27 - KNOB BDE-4380451.A2 4380451 £2.26 £2.71
28 - SCREW KIT BDE-4382180.A4 4382180 £7.18 £8.62
29 - HANDLE BDE-4380690.A11 4380690 £7.85 £9.42
30 - GUARD BDE-4381330.A1 4381330 £18.91 £22.69
31 - GUARD BDE-4381340.A3 4381340 £9.41 £11.29
32 - CLIP SA BDE-4381280.A9 4381280 £3.80 £4.56
33 - LEVER BDE-4380560.A17 4380560 £7.18 £8.62
34 - BRACKET BDE-4380460.A16 4380460 £5.88 £7.06
35 - SHIM BDE-4380550.A4 4380550 £3.30 £3.96
36 - GUARD BDE-4381880.A1 4381880 £9.41 £11.29
37 - PLUG BDE-3083210.A11 3083210 £5.88 £7.06
38 - SCREW BDE-3081730.A2 3081730 £1.50 £1.80
39 - HEAD SA BDE-3083220.A0 3083220 £14.57 £17.48
40 - WASHER BDE-3081760.A9 3081760 £1.50 £1.80
41 - WASHER BDE-3081750.A8 3081750 £1.50 £1.80
42 - SCREW BDE-3081740.A9 3081740 £3.30 £3.96
43 - PUMP SA BDE-3083230.A9 3083230 £18.91 £22.69
44 - KIT BDE-3440560.A10 3440560 £25.70 £30.84
45 - PISTONS & SEALS KIT BDE-3440570.A0 3440570 £19.90 £23.88
46 - VALVES & SEALS KIT BDE-3081290.A16 3081290 -
47 - WASHER BDE-3081750.A7 3081750 £1.50 £1.80
48 - SCREW BDE-3081950.A3 3081950 £1.50 £1.80
49 - PLATE BDE-4382080.A1 4382080 £10.85 £13.02
50 - FAN BDE-3440370.A0 3440370 £1.50 £1.80
51 - RING BDE-3441000.A5 3441000 £1.50 £1.80
52 - MOTOR 220/240 BDE-4382120.A0 4382120 £218.32 £261.98
53 - HANDLE SA BDE-4381480.A3 4381480 £34.00 £40.80
54 - EXTENSION BDE-4381490.A3 4381490 £25.70 £30.84
55 - HEAD SA BDE-4100800.A29 4100800 £24.39 £29.27
56 - HEAD SA BDE-4381810.A7 4381810 £17.48 £20.97
57 - TANK BDE-4381500.A9 4381500 £7.85 £9.42
58 - HOSE SA BDE-4581030.A5 4581030 £47.08 £56.49
59 - O RING BDE-5140193-41.A29 5140193-41 £1.50 £1.80
60 - O RING BDE-3083370.A21 3083370 £1.50 £1.80
61 - O RING BDE-3083400.A24 3083400 £1.50 £1.80
