Stanley SHR263K Type 1 Rotary Hammer Spare Parts

Home Details Reviews Delivery

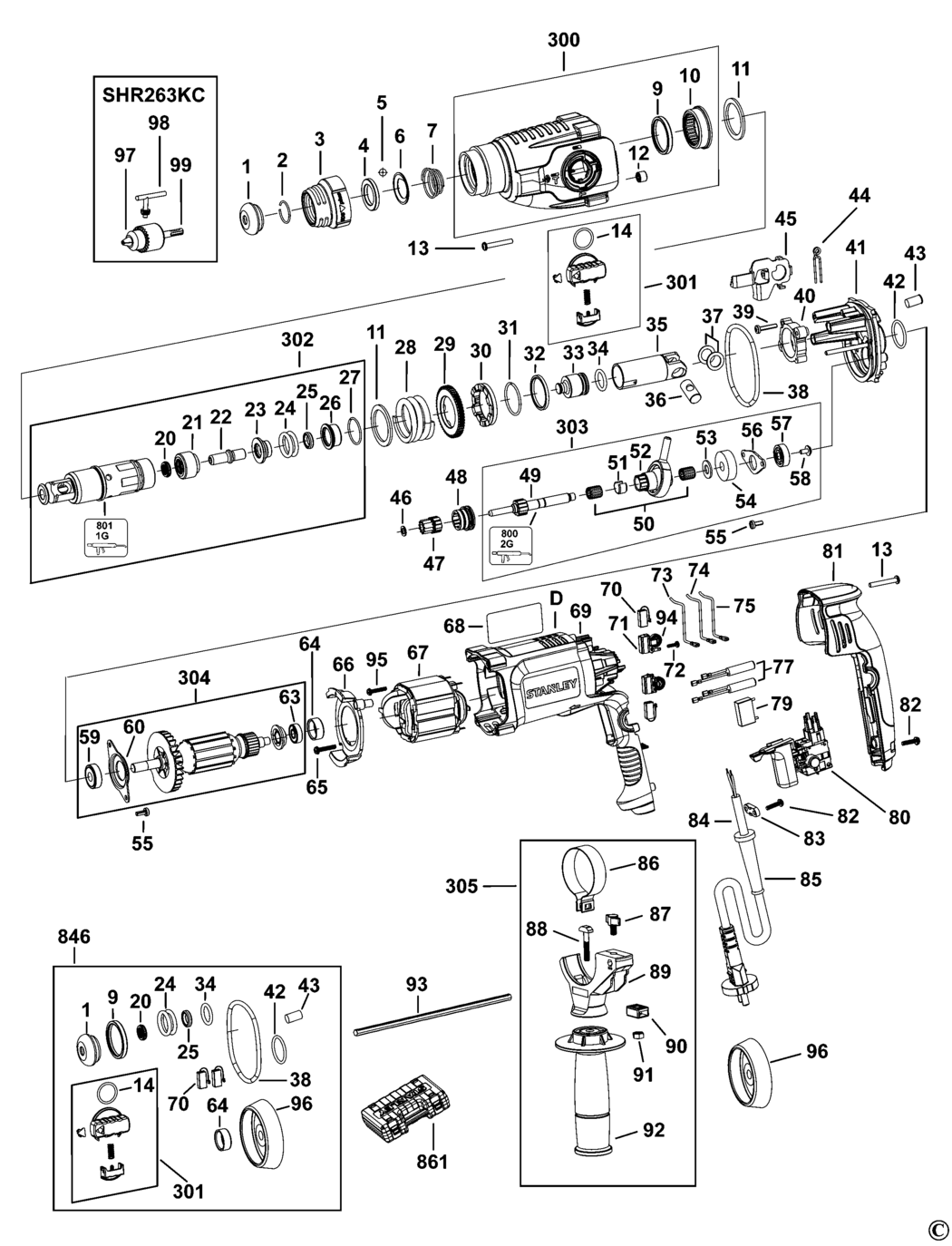

An exploded drawing and spare parts listing for the Stanley SHR263K Type 1 Rotary Hammer

	Ex VAT	Inc VAT
1 - RUBBER BOOT BDE-N465557.A2 N465557	£1.66	£1.99
2 - CIRCLIP BDE-4030104010.A0 4030104010	£1.66	£1.99
3 - TUBE BDE-N465555.A0 N465555	£1.66	£1.99
4 - WASHER. CUP BDE-4030104020.A1 4030104020	£1.66	£1.99
5 - BALL STEEL BDE-4030304014.A2 4030304014	£1.66	£1.99
6 - RETAINER BDE-4030104006.A8 4030104006	£1.66	£1.99
7 - SPRING COMPRESSION BDE-4030108003.A1 4030108003	£1.66	£1.99
9 - SEAL BDE-N465532.A0 N465532	£1.66	£1.99
10 - BEARING NEEDLE BDE-577813-00.A13 577813-00	£8.08	£9.70
11 - WASHER BDE-N465552.A2 N465552	£1.66	£1.99
12 - BEARING BDE-N465533.A2 N465533	£1.66	£1.99
13 - SCREW BDE-N468888.A2 N468888	£1.66	£1.99
14 - O RING BDE-4030303002.A5 4030303002	£1.66	£1.99
20 - RING BDE-N465542.A1 N465542	£1.66	£1.99
21 - BEARING BDE-N465543.A0 N465543	£3.39	£4.07
22 - BEAT PIECE BDE-N465541.A0 N465541	£3.39	£4.07
23 - DAMPER BDE-N465545.A0 N465545	£3.92	£4.70
24 - O RING BDE-N465544.A2 N465544	£1.66	£1.99
25 - RING BDE-N465547.A0 N465547	£1.66	£1.99
26 - RAM BDE-N465546.A2 N465546	£3.39	£4.07
27 - RING BDE-N465548.A2 N465548	£1.66	£1.99
28 - SPRING BDE-N465551.A0 N465551	£3.92	£4.70
29 - GEAR BDE-N465550.A1 N465550	£8.08	£9.70
30 - RING BDE-N465549.A0 N465549	£7.40	£8.88
31 - RING BDE-N465553.A0 N465553	£1.66	£1.99
32 - RING BDE-N465554.A2 N465554	£1.66	£1.99
33 - RAM BDE-N465560.A2 N465560	£4.83	£5.80
34 - O RING BDE-N465561.A0 N465561	£1.66	£1.99
35 - PISTON BDE-N465559.A0 N465559	£9.69	£11.63
36 - BEARING SPINDLE BDE-N465562.A2 N465562	£2.87	£3.44
37 - WASHER BDE-N465563.A0 N465563	£1.66	£1.99
38 - O RING BDE-N465535.A2 N465535	£1.66	£1.99
39 - SCREW BDE-N465538.A0 N465538	£1.66	£1.99
40 - BEARING BDE-N465537.A2 N465537	£4.83	£5.80
41 - HOUSING BEARING BDE-N465534.A0 N465534	£9.69	£11.63
42 - O RING BDE-4030103003.A6 4030103003	£1.66	£1.99
43 - FELT BDE-N465536.A0 N465536	£1.66	£1.99
44 - SPRING BDE-N465523.A2 N465523	£1.66	£1.99
45 - PLATE BDE-N465521.A0 N465521	£1.66	£1.99
46 - WASHER BDE-N465566.A2 N465566	£1.66	£1.99
47 - GEAR BDE-N465567.A0 N465567	£9.69	£11.63
48 - COLLAR BDE-N465568.A2 N465568	£3.92	£4.70
49 - INTER SHAFT BDE-N465565.A0 N465565	£9.69	£11.63
50 - BEARING CAGE BDE-577818-00.A2 577818-00	£2.32	£2.78
51 - SPACER BDE-N465570.A2 N465570	£1.66	£1.99
52 - BEARING BDE-N465569.A0 N465569	£16.52	£19.82
53 - WASHER BDE-N465574.A2 N465574	£1.66	£1.99
54 - GEAR BDE-N465573.A0 N465573	£7.40	£8.88
55 - SCREW BDE-N468881.A2 N468881	£1.66	£1.99
56 - BEARING PLATE BDE-N465576.A0 N465576	£1.66	£1.99
57 - BEARING BDE-49106007.A2 49106007	£1.66	£1.99
58 - SCREW BDE-N468882.A0 N468882	£1.66	£1.99
59 - BEARING BDE-49111014.A5 49111014	£3.39	£4.07
60 - BEARING PLATE BDE-N465516.A2 N465516	£1.66	£1.99
63 - BEARING BDE-49111011.A11 49111011	£1.66	£1.99
64 - SLEEVE BEARING BDE-4140303002.A7 4140303002	£1.66	£1.99
65 - SCREW BDE-N496704.A2 N496704	£1.66	£1.99
66 - GUIDE BDE-N465511.A2 N465511	£1.66	£1.99
67 - FIELD SA 230V BDE-N465512.A0 N465512	£19.48	£23.37
69 - HOUSING MOTOR BDE-N465509.A1 N465509	£10.85	£13.02
70 - BRUSH PAIR 230V BDE-N465518.A2 N465518	£1.66	£1.99
71 - BRUSH HOLDER BDE-N465517.A0 N465517	£2.32	£2.78
72 - SCREW BDE-49206001.A8 49206001	£1.66	£1.99
73 - WIRE BDE-N469365.A2 N469365	£1.66	£1.99
74 - LEADWIRE BDE-4030101006.A4 4030101006	£1.66	£1.99
75 - LEADWIRE BDE-4030101614.A4 4030101614	£1.66	£1.99
77 - INDUCTOR BDE-4020404607.A3 4020404607	£1.66	£1.99
79 - CAPACITOR BDE-N510278.A2 N510278	£2.32	£2.78
80 - SWITCH BDE-N468884.A2 N468884	£12.53	£15.04
81 - HANDLE SA BDE-N465510.A0 N465510	£6.06	£7.27
82 - SCREW BDE-N468889.A0 N468889	£1.66	£1.99
83 - CORD CLAMP BDE-4100301008.A9 4100301008	£1.66	£1.99
85 - CORD PROTECTOR BDE-49303607.A2 49303607	£1.66	£1.99
86 - COLLAR BDE-4030204012.A0 4030204012	£1.66	£1.99
87 - SCREW BDE-4030101008.A2 4030101008	£1.66	£1.99
88 - SCREW BDE-4030104001.A2 4030104001	£1.66	£1.99
89 - PAD BDE-4030101026.A2 4030101026	£1.66	£1.99
90 - NUT BDE-4030101022.A2 4030101022	£1.66	£1.99
91 - NUT BDE-49205013.A0 49205013	£1.66	£1.99
92 - HANDLE BDE-4030301001.A2 4030301001	£1.66	£1.99
93 - DEPTH ROD BDE-4030101019.A0 4030101019	£1.66	£1.99
94 - SPRING BRUSH BDE-4030108002.A10 4030108002	£1.66	£1.99
95 - SCREW BDE-N468887.A0 N468887	£1.66	£1.99
96 - DUST GUARD BDE-4030303010.A1 4030303010	£1.66	£1.99
300 - GEARCASE SA BDE-N465530.A1 N465530	£18.00	£21.60
301 - BUTTON SA BDE-N465524.A0 N465524	£4.83	£5.80
302 - SPINDLE SA BDE-N465539.A1 N465539	£38.48	£46.17
303 - INTER SHAFT SA BDE-N465564.A2 N465564	£39.97	£47.96
304 - ARMATURE 230V BDE-N505287 N505287	£35.02	£42.02
305 - SIDE HANDLE BDE-4030131003.A3 4030131003	£6.06	£7.27
800 - GREASE 10 GMS BDE-487130-04.A143 487130-04	£3.92	£4.70
800 - GREASE 10 GMS 2G BDE-487130-04.A144 487130-04	£3.92	£4.70
801 - GREASE 1G BDE-N505291.A0 N505291	£48.48	£58.17
846 - SERVICE KIT BDE-N510826.A0 N510826	£20.50	£24.60
861 - KIT BOX BDE-N469697.A0 N469697	£25.12	£30.15

Attribute Name	Value
Brand	Stanley
