Stanley FMC792 Type 1 Finish Nailer 16 Gauge Spare Parts

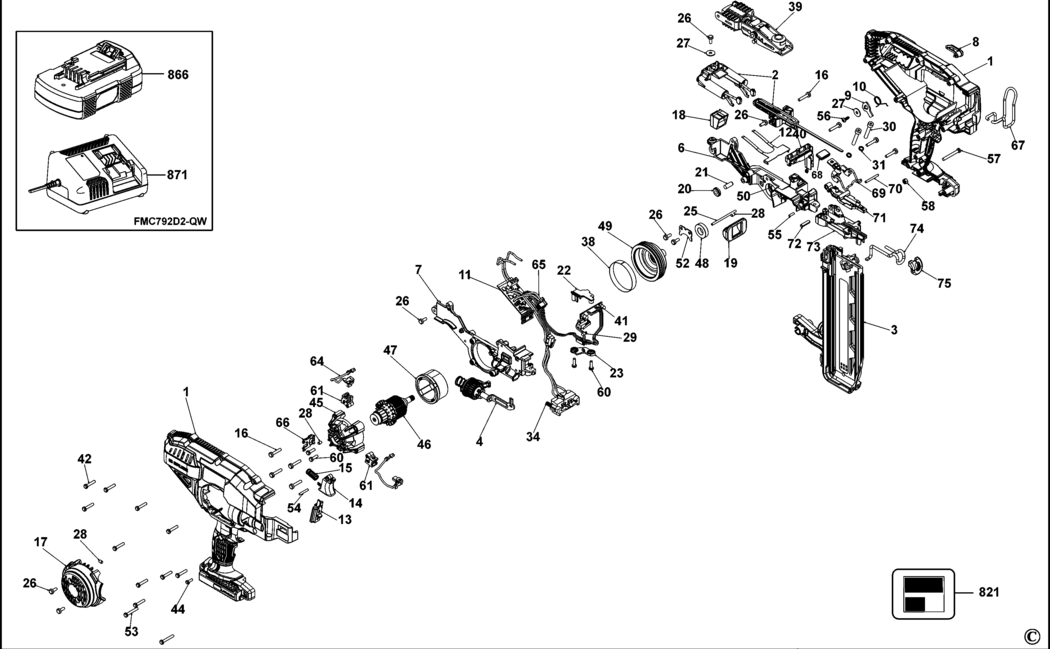

An exploded drawing and spare parts listing for the Stanley FMC792 Type 1 Finish Nailer 16 Gauge

	Ex VAT	Inc VAT
1 - HOUSING SA BDE-90626024-01 90626024-01	£34.00	£40.80
2 - DRIVER SA BDE-90641718.A0 90641718	£80.98	£97.18
3 - MAGAZINE SA BDE-90617387-01.A0 90617387-01	£131.46	£157.75
4 - DEPTH STOP SA BDE-90641721.A1 90641721	£12.17	£14.60
6 - FRAME SA BDE-90616825.A0 90616825	£18.91	£22.69
7 - COVER BDE-90616826.A1 90616826	£24.39	£29.27
8 - LEVER BDE-90623653-01.A1 90623653-01	£1.50	£1.80
9 - PIVOT BDE-90629863.A0 90629863	£1.50	£1.80
10 - SPRING BDE-90624129.A0 90624129	£1.50	£1.80
11 - PCB SA BDE-90626617.A0 90626617	£60.94	£73.13
12 - LEAF SPRING BDE-90617917.A0 90617917	£1.50	£1.80
13 - TRIGGER BDE-90620174-01.A0 90620174-01	£1.50	£1.80
14 - TRIGGER BDE-90615767-01.A0 90615767-01	£1.50	£1.80
15 - SPRING BDE-90551259.A4 90551259	£1.50	£1.80
16 - SCREW BDE-330045-07.A44 330045-07	£1.50	£1.80
17 - COVER HOUSING BDE-90624433.A1 90624433	£1.82	£2.19
18 - BUMPER BDE-90641723.A1 90641723	£12.17	£14.60
19 - BUMPER BDE-638469-00.A3 638469-00	£9.41	£11.29
20 - SKID BDE-90633321.A0 90633321	£1.50	£1.80
21 - PIN M6X16MM BDE-N082403.A0 N082403	£1.50	£1.80
22 - HOUSING SWITCH BDE-90616223 90616223	£1.50	£1.80
23 - SWITCH COVER BDE-90616224 90616224	£1.50	£1.80
25 - ROLLER SPINDLE BDE-330041-61.A1 330041-61	£1.50	£1.80
26 - SCREW BDE-330045-05.A223 330045-05	£1.50	£1.80
27 - WASHER M4x14 BDE-90621828.A1 90621828	£1.50	£1.80
28 - PLUG BDE-90621610.A6 90621610	£1.50	£1.80
29 - DETENT BDE-N403227.A69 N403227	£1.50	£1.80
30 - SCREW BDE-395441-00.A0 395441-00	£1.50	£1.80
31 - WASHER LOCK BDE-488808-00.A0 488808-00	£1.50	£1.80
34 - SPRING BDE-90516498.A8 90516498	£1.50	£1.80
38 - DAMPER BDE-90618959.A0 90618959	-
38 - DAMPER BDE-90635366.A1 90635366	-
39 - CARRIAGE SA BDE-90641722.A0 90641722	£96.55	£115.86
40 - SUPPORT BDE-90624199.A1 90624199	£1.50	£1.80
41 - PCB BDE-90626619.A1 90626619	£10.85	£13.02
42 - SCREW BDE-90626630.A0 90626630	£1.50	£1.80
44 - SCREW BDE-330019-41.A12 330019-41	£1.50	£1.80
45 - BRIDGE BDE-90624621.A1 90624621	£10.85	£13.02
46 - ARMATURE SA BDE-90624714.A0 90624714	£24.39	£29.27
47 - MAGNET BDE-90623216.A1 90623216	£9.41	£11.29
48 - BEARING BDE-90559833.A6 90559833	£1.82	£2.19
49 - FLYWHEEL BDE-90616323.A0 90616323	£44.14	£52.97
50 - RING BDE-90615722.A0 90615722	£1.50	£1.80
52 - PLATE BDE-90622035.A0 90622035	£1.50	£1.80
53 - SCREW BDE-90626633.A1 90626633	£1.50	£1.80
54 - PIN BDE-098185-20.A0 098185-20	£1.50	£1.80
55 - PIN BDE-588470-00.A1 588470-00	£1.50	£1.80
56 - SCREW BDE-582193-00.A3 582193-00	£1.50	£1.80
57 - SCREW BDE-90626342.A0 90626342	£1.50	£1.80
58 - NUT M4 BDE-90610773.A3 90610773	£1.50	£1.80
60 - SCREW BDE-330019-38.A4 330019-38	£1.50	£1.80
61 - BRUSHBOX BDE-90624386.A1 90624386	£1.50	£1.80
64 - BRUSH SA BDE-90626058.A1 90626058	£9.41	£11.29
65 - TUBE BDE-90631918.A2 90631918	£1.50	£1.80
66 - HOLDER BDE-90621006.A0 90621006	£1.50	£1.80
67 - HOOK BDE-90626069.A0 90626069	£1.50	£1.80
68 - GRIP BDE-395093-00.A5 395093-00	£1.50	£1.80
69 - LATCH BDE-90623575-01.A0 90623575-01	£5.88	£7.06
70 - SPIROL PIN BDE-650156-00.A5 650156-00	£1.50	£1.80
71 - DOOR BDE-90617332.A1 90617332	£17.48	£20.97
72 - ROLL PIN BDE-330036-03.A1 330036-03	£1.50	£1.80
73 - NOSE BDE-90617339.A1 90617339	£41.24	£49.49
74 - CONTACT BDE-90617334.A0 90617334	£4.69	£5.63
75 - TIP BDE-90617821-01.A0 90617821-01	£3.22	£3.86

Attribute Name	Value
Brand	Stanley
