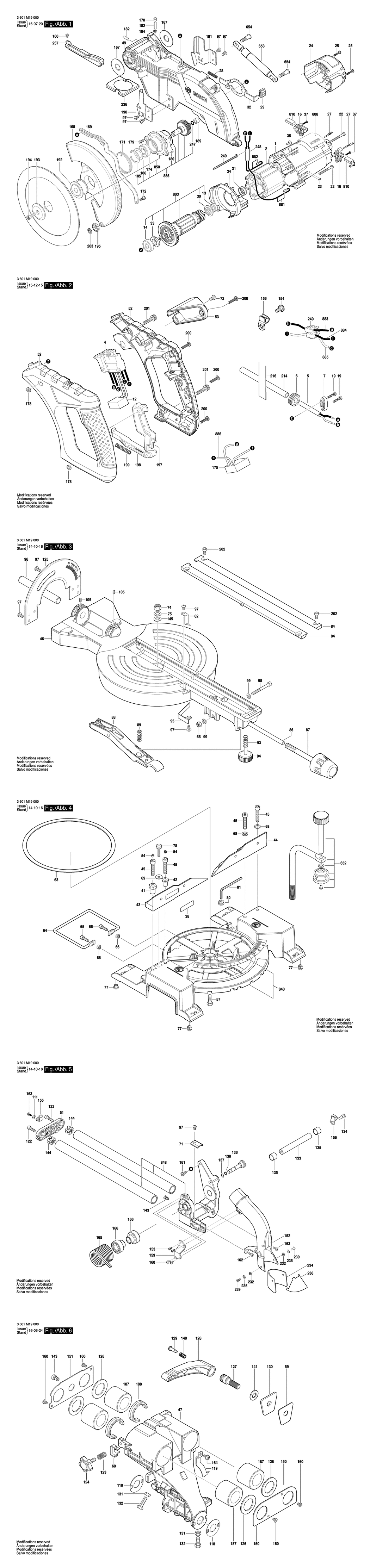

An exploded drawing and listing for the Bosch GCM 8000 SJ / 3601M19002 / EU 230 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-1619P06205.A12 1619P06205 £21.42 £25.71
2 - FIELD 230V BSD-1619P04474.A2 1619P04474 £33.74 £40.49
4 - ON-OFF SWITCH BSD-1609B04211.A9 1609B04211 £12.04 £14.45
5 - POWER SUPPLY CORD EU BSD-1609B04245.A2 1609B04245 £13.12 £15.75
6 - CORD GUARD BSD-1609B01533.A6 1609B01533 £1.75 £2.10
7 - CABLE CLIP BSD-1609B00821.A15 1609B00821 £1.75 £2.10
12 - SUPPRESSION CAPACITOR BSD-1609B02210.A10 1609B02210 £1.75 £2.10
13 - BALL BEARING BSD-1609B04083.A4 1609B04083 £2.61 £3.13
14 - BEARING COVER PLATE BSD-1619P06374.A8 1619P06374 £8.67 £10.41
16 - BRUSH HOLDER BSD-1619P06212.A8 1619P06212 £8.67 £10.41
19 - SCREW ECO-SYN St 3.5x16 BSD-1619P03833.A20 1619P03833 £1.75 £2.10
22 - SCREW BSD-1609B04117.A18 1609B04117 £1.75 £2.10
23 - BALL BSD-1619P00291.A5 1619P00291 -
24 - END CAP BSD-1609B04008.A6 1609B04008 £6.52 £7.83
25 - SPECIAL SCREW BSD-1609B00921.A25 1609B00921 £1.75 £2.10
27 - RIGHT ANGLE PLUG BSD-1619P06213.A14 1619P06213 £2.40 £2.88
28 - COMPRESSION SPRING BSD-1619P01642.A50 1619P01642 £1.75 £2.10
29 - CAP BSD-1609B04070.A18 1609B04070 £1.75 £2.10
30 - SEALING WASHER BSD-1609B04071.A0 1609B04071 £1.75 £2.10
31 - RUBBER RING BSD-1609B04072.A20 1609B04072 £1.75 £2.10
32 - GUIDE BRACKET BSD-1609B04073.A0 1609B04073 £5.58 £6.70
33 - LOCK NUT BSD-1609B04074.A10 1609B04074 £1.75 £2.10
34 - BAFFLE BSD-1609B04075.A0 1609B04075 £1.75 £2.10
35 - COVER BSD-1609B04200.A18 1609B04200 £1.75 £2.10
37 - SCREW BSD-1609B04208.A8 1609B04208 £1.75 £2.10
38 - WARNING LABEL BSD-1609B02218.A0 1609B02218 £2.61 £3.13
41 - BUSHING BSD-1609B02204.A10 1609B02204 £2.80 £3.36
42 - BUSHING BSD-1609B02205.A0 1609B02205 £1.75 £2.10
43 - MITRE FENCE BSD-1609B04242.A4 1609B04242 £18.96 £22.75
44 - MITRE FENCE BSD-1609B04243.A6 1609B04243 £18.96 £22.75
45 - SCREW BSD-1609B02206.A10 1609B02206 £1.75 £2.10
46 - TABLE BSD-1609B05238.A4 1609B05238 £98.11 £117.73
47 - PIVOT BSD-1609B02202.A10 1609B02202 £48.38 £58.06
49 - ARM BSD-1609B02223.A0 1609B02223 £51.22 £61.47
51 - END CAP BSD-1609B03746.A20 1609B03746 £6.52 £7.83
52 - SWITCH HANDLE BSD-1609B05243.A4 1609B05243 £13.12 £15.75
53 - COVER BSD-1609B02200.A10 1609B02200 £2.61 £3.13
54 - COVER BSD-1609B02214.A0 1609B02214 £1.75 £2.10
57 - BOLT BSD-1609B05203.A4 1609B05203 £1.75 £2.10
59 - PLATE BSD-1609B05296.A10 1609B05296 £1.75 £2.10
60 - COVER BSD-1609B05298.A2 1609B05298 £1.75 £2.10
62 - POINTER BSD-1609B00717.A22 1609B00717 £1.75 £2.10
63 - WEAR PLATE BSD-1609B03714.A14 1609B03714 £4.26 £5.11
64 - CLAMPING BAR BSD-1609B05236.A5 1609B05236 £2.80 £3.36
65 - SCREW BSD-1609B05268.A8 1609B05268 £1.75 £2.10
66 - NUT BSD-1609B01949.A18 1609B01949 £1.75 £2.10
68 - PLAIN WASHER BSD-1609B00703.A7 1609B00703 £1.75 £2.10
69 - WASHER BSD-1609B00662.A29 1609B00662 £1.75 £2.10
71 - STOP PLATE BSD-1609B04244.A4 1609B04244 £1.75 £2.10
72 - SCREW BSD-1609B02220.A9 1609B02220 £1.75 £2.10
74 - LOCK NUT BSD-1609B00704.A10 1609B00704 £1.75 £2.10
75 - WASHER BSD-1609B00670.A16 1609B00670 £1.75 £2.10
77 - RUBBER BUSHING BSD-1609B00705.A17 1609B00705 £1.75 £2.10
78 - SCREW BSD-1609B03722.A19 1609B03722 £1.75 £2.10
80 - RUBBER RING BSD-1609BP7098.A12 1609BP7098 £1.75 £2.10
81 - HEXAGON SOCKET SCREW KEY BSD-1609BP7026.A26 1609BP7026 £2.80 £3.36
84 - SUPPORT PLATE BSD-1609B05242.A6 1609B05242 -
86 - ROD BSD-1609B05240.A6 1609B05240 £2.16 £2.59
87 - KNOB BSD-1609B04079.A12 1609B04079 £7.36 £8.83
88 - LEVER BSD-1609B05241.A4 1609B05241 £2.16 £2.59
89 - SPRING BSD-1609B02211.A1 1609B02211 £1.75 £2.10
93 - CONTACT STRAP BSD-1609BP7341.A11 1609BP7341 £1.75 £2.10
94 - SUPPORTING FOOT BSD-1609B03727.A11 1609B03727 £2.16 £2.59
95 - WEAR PLATE BSD-1609B03729.A9 1609B03729 £1.75 £2.10
96 - PIVOT SHAFT BSD-1609B04108.A7 1609B04108 £4.26 £5.11
97 - SCREW BSD-1609B04086.A13 1609B04086 £2.16 £2.59
98 - SCREW BSD-1609B03723.A1 1609B03723 £1.75 £2.10
99 - PLAIN WASHER BSD-1609B01324.A12 1609B01324 £1.75 £2.10
105 - SET SCREW BSD-1609BP7143.A12 1609BP7143 £1.75 £2.10
111 - WASHER BSD-1609B01668.A15 1609B01668 £1.75 £2.10
118 - WEAR PLATE BSD-1609B01457.A8 1609B01457 £1.75 £2.10
119 - POINTER BSD-1609B03758.A0 1609B03758 £1.75 £2.10
122 - HEX SOCKET HEAD CAP SCREW BSD-1609B03749.A15 1609B03749 £1.75 £2.10
123 - CONTACT STRAP BSD-1609BP7343.A9 1609BP7343 £1.75 £2.10
124 - KNOB BSD-1609B03755.A0 1609B03755 £1.75 £2.10
125 - ROTOR BSD-1609B03762.A10 1609B03762 £7.36 £8.83
126 - FELT WASHER BSD-1609B03763.A0 1609B03763 £1.75 £2.10
127 - BOLT BSD-1609B03769.A10 1609B03769 £3.72 £4.47
128 - LEVER BSD-1609B02215.A9 1609B02215 £1.75 £2.10
129 - SCREW BSD-1609BP7081.A6 1609BP7081 £1.75 £2.10
130 - FRICTION PLATE BSD-1609B03773.A20 1609B03773 £7.36 £8.83
131 - HEX NUT BSD-1609B01041.A16 1609B01041 £1.75 £2.10
132 - STOP BOLT BSD-1609B03776.A0 1609B03776 £1.75 £2.10
133 - PIVOT PIN BSD-1609B03771.A15 1609B03771 £6.52 £7.83
134 - SHOULDER SCREW BSD-1609B03779.A4 1609B03779 £1.75 £2.10
135 - BUSHING BSD-1609B03754.A10 1609B03754 £1.75 £2.10
136 - DETENT PIN BSD-1609B03767.A8 1609B03767 £2.80 £3.36
137 - CLIP BSD-1609B03757.A20 1609B03757 £1.75 £2.10
138 - O-RING BSD-1609B00601.A39 1609B00601 £1.75 £2.10
140 - COMPRESSION SPRING BSD-1609BP7053.A6 1609BP7053 £1.75 £2.10
141 - PLAIN WASHER BSD-1609BP7045.A6 1609BP7045 £1.75 £2.10
143 - SLIDE STOP BSD-1609B03753.A8 1609B03753 £1.75 £2.10
144 - SPECIAL NUT BSD-1609B03752.A12 1609B03752 £3.72 £4.47
145 - SPRING WASHER BSD-1609B00660.A4 1609B00660 £1.75 £2.10
150 - RETAINING PLATE BSD-1609B02203.A0 1609B02203 £1.75 £2.10
151 - RETAINING PLATE BSD-1609B03766.A12 1609B03766 £1.75 £2.10
152 - DUST EXTRACTION BSD-1609B03775.A5 1609B03775 £7.36 £8.83
153 - SET SCREW BSD-1609B03777.A22 1609B03777 £1.75 £2.10
154 - SHOULDER SCREW BSD-1609B02213.A9 1609B02213 £1.75 £2.10
155 - CABLE CLIP BSD-1609B01512.A34 1609B01512 £1.75 £2.10
156 - CABLE CLIP BSD-1609B00339.A22 1609B00339 £2.16 £2.59
159 - SUPPORT BRACKET BSD-1609B04204.A4 1609B04204 £1.75 £2.10
160 - SCREW BSD-1609B01561.A2 1609B01561 £1.75 £2.10
161 - SHOULDER SCREW BSD-1609B05201.A16 1609B05201 £1.75 £2.10
162 - SCREW BSD-1609B00623.A7 1609B00623 £1.75 £2.10
163 - THREAD-FORMING SCREW BSD-1609B01168.A11 1609B01168 £1.75 £2.10
164 - SCREW BSD-1609B01690.A7 1609B01690 £1.75 £2.10
165 - TORSION SPRING BSD-1609B02209.A1 1609B02209 £13.12 £15.75
166 - SLEEVE BSD-1609B02222.A9 1609B02222 £1.75 £2.10
167 - WEAR PLATE BSD-1609B01602.A22 1609B01602 £1.75 £2.10
168 - LOWER GUARD BSD-1609B04188.A15 1609B04188 £14.91 £17.89
169 - LINKAGE BSD-1609B04001.A14 1609B04001 £12.04 £14.45
170 - COVER BSD-1609B04002.A6 1609B04002 £1.75 £2.10
171 - SPRING BSD-1609B04004.A14 1609B04004 £1.75 £2.10
172 - SCREW BSD-1609BP7145.A7 1609BP7145 £1.75 £2.10
174 - BALL BEARING BSD-1609B01255.A9 1609B01255 £5.58 £6.70
175 - SOFT START-UP MODULE BSD-1609B02201.A0 1609B02201 £27.23 £32.68
178 - LOCK NUT BSD-1609B00974.A11 1609B00974 £1.75 £2.10
179 - TAPPING SCREW BSD-1609BP7134.A7 1609BP7134 £1.75 £2.10
180 - SEAL BSD-1609B04248.A4 1609B04248 £1.75 £2.10
182 - SET SCREW BSD-1609B04205.A3 1609B04205 £1.75 £2.10
184 - NUT BSD-1609BT4033.A9 1609BT4033 £1.75 £2.10
185 - SPRING RETAINING RING BSD-1609BP7068.A4 1609BP7068 £1.75 £2.10
186 - WASHER BSD-1609BP7050.A4 1609BP7050 £2.61 £3.13
187 - BALL BEARING BSD-1609B03774.A0 1609B03774 £12.04 £14.45
188 - SPACER BSD-1609B03780.A20 1609B03780 £1.75 £2.10
189 - PLAIN BEARING BSD-1600200029.A139 1600200029 £4.26 £5.11
190 - DEFLECTOR BSD-1609B04017.A20 1609B04017 £4.26 £5.11
191 - DEFLECTOR BSD-1609B04028.A11 1609B04028 £6.52 £7.83
192 - CLAMPING FLANGE BSD-1609B04018.A0 1609B04018 £7.36 £8.83
193 - CLAMPING FLANGE BSD-1609B06289.A20 1609B06289 £8.49 £10.19
194 - FLANGE BOLT BSD-1609BP7061.A10 1609BP7061 £2.16 £2.59
195 - WHEEL BSD-1609B04020.A0 1609B04020 £1.75 £2.10
197 - TRIGGER BSD-1609B04029.A5 1609B04029 £1.75 £2.10
198 - LOCKING BAR BSD-1609B04021.A16 1609B04021 £1.75 £2.10
199 - COMPRESSION SPRING BSD-1609B04022.A0 1609B04022 £1.75 £2.10
200 - TAPPING SCREW BSD-1609B00637.A51 1609B00637 £1.75 £2.10
201 - SCREW BSD-1609B00973.A9 1609B00973 £1.75 £2.10
202 - SCREW BSD-1609B00627.A40 1609B00627 £2.16 £2.59
203 - QUICK-LOCK BSD-1609B00458.A36 1609B00458 £1.75 £2.10
214 - SHRINKABLE TUBE BSD-1609B00583.A12 1609B00583 £1.75 £2.10
216 - CABLE TAPE BSD-1609B01538.A20 1609B01538 £1.75 £2.10
232 - NUT BSD-1609B00691.A19 1609B00691 £2.16 £2.59
234 - RUBBER LIP BSD-1609B03791.A15 1609B03791 £2.38 £2.85
235 - PLAIN WASHER BSD-1609B04225.A12 1609B04225 £1.75 £2.10
236 - RUBBER STRIP BSD-1609B04220.A8 1609B04220 £2.02 £2.42
237 - COVER BSD-1609B02221.A1 1609B02221 £1.75 £2.10
238 - RUBBER STRIP BSD-1609B04222.A12 1609B04222 £2.38 £2.85
239 - SCREW BSD-1609B00633.A19 1609B00633 £1.75 £2.10
240 - CONNECTION BLOCK BSD-1609BP7059.A4 1609BP7059 £1.75 £2.10
247 - O-RING BSD-1609B04228.A12 1609B04228 £4.26 £5.11
248 - BUSHING BSD-1609B00799.A12 1609B00799 £1.75 £2.10
249 - CLIP BSD-1609B05329.A10 1609B05329 £1.75 £2.10
652 - CLAMP BSD-1609B04224.A8 1609B04224 £18.96 £22.75
653 - DAMPER BSD-1609B02225.A4 1609B02225 £18.96 £22.75
654 - SHOULDER SCREW BSD-1609B02418.A4 1609B02418 £1.75 £2.10
803 - ARMATURE ASSEMBLY 230V BSD-1609B03793.A14 1609B03793 £103.14 £123.77
808 - NAMEPLATE BSD-1609B02491.A0 1609B02491 £2.61 £3.13
810 - CARBON-BRUSH SET BSD-1609B06661.A5 1609B06661 £16.41 £19.69
840 - ASSEMBLY BASE BSD-1609B02472.A1 1609B02472 £81.81 £98.17
848 - YOKE BSD-1609B02471.A3 1609B02471 -
850 - GEAR COVER BSD-1609B05349.A8 1609B05349 £12.04 £14.45
855 - OUTPUT SHAFT BSD-1609B03789.A17 1609B03789 £41.62 £49.95
881 - CONNECTING WIRE BSD-1609B02207.A5 1609B02207 -
882 - CONNECTING WIRE BSD-1609B02208.A5 1609B02208 -
