Bosch GTS 10 / 0601B30042 / GB 230 Volt Spare Parts

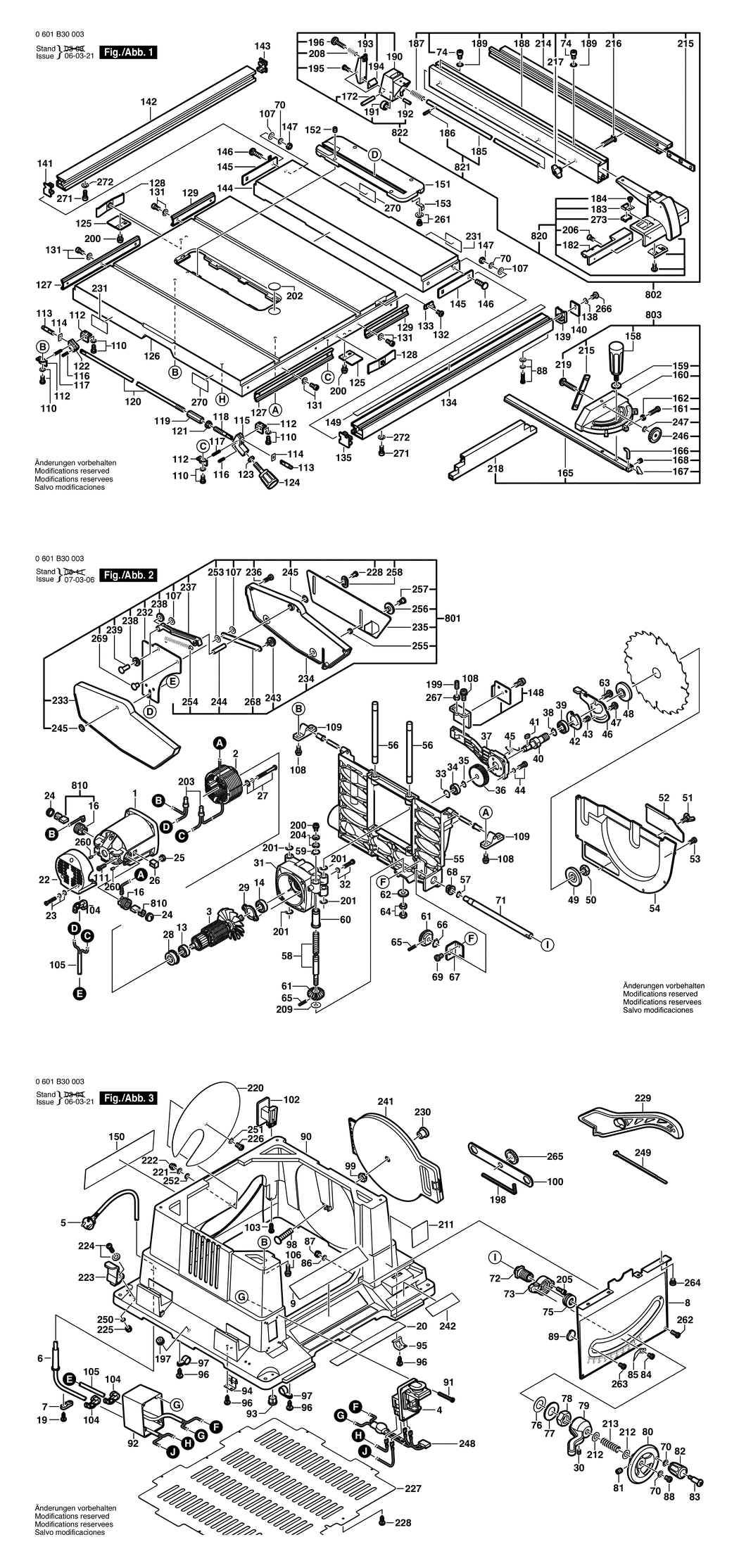

An exploded drawing and listing for the Bosch GTS 10 / 0601B30042 / GB 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-2610996864.A1 2610996864	£48.38	£58.06
2 - FIELD 230V BSD-1609203K86.A12 1609203K86	£59.53	£71.44
3 - ARMATURE 230V BSD-1619P03278.A11 1619P03278	£120.11	£144.13
4 - SWITCH BSD-1609203K88.A1 1609203K88	£51.22	£61.47
5 - POWER SUPPLY CORD BSD-1609203L53.A0 1609203L53	£14.91	£17.89
6 - CORD GUARD BSD-1609203K90.A1 1609203K90	£1.66	£1.99
7 - CLAMP BSD-2610358842.A15 2610358842	£1.75	£2.10
8 - FRONT PANEL BSD-1609203K91.A7 1609203K91	£45.67	£54.80
9 - STICKER BSD-2610997806.A4 2610997806	£1.95	£2.34
13 - BALL BEARING BSD-2610004595.A22 2610004595	£12.04	£14.45
14 - BALL BEARING BSD-2610911927.A11 2610911927	£23.86	£28.63
16 - BRUSH HOLDER BSD-2610911858.A7 2610911858	£16.41	£19.69
19 - SCREW BSD-2610358844.A1 2610358844	£1.75	£2.10
20 - MANUFACTURER'S NAMEPLATE BSD-1609902557.A4 1609902557	£2.16	£2.59
21 - MANUFACTURER'S NAMEPLATE BSD-1609902563.A0 1609902563	-
22 - COVER BSD-2610996865.A15 2610996865	£14.91	£17.89
23 - SCREW BSD-2610998571.A4 2610998571	£1.75	£2.10
24 - BRUSH-COVER dia 20mm BSD-2610911859.A21 2610911859	£2.16	£2.59
25 - NUT BSD-2610327868.A10 2610327868	£1.75	£2.10
26 - INSERT BSD-2610911569.A15 2610911569	£2.61	£3.13
27 - SCREW BSD-2610911929.A17 2610911929	£1.75	£2.10
28 - RUBBER RING BSD-2610996948.A27 2610996948	£1.75	£2.10
29 - BEARING COVER BSD-2610911566.A25 2610911566	£2.80	£3.36
30 - SCREW BSD-2610355295.A5 2610355295	£2.16	£2.59
31 - GEAR HOUSING BSD-2610996863.A6 2610996863	-
32 - SCREW BSD-1609902670.A15 1609902670	£1.75	£2.10
33 - SPRING WASHER BSD-2610911924.A7 2610911924	£3.72	£4.47
34 - BALL BEARING BSD-2610996949.A1 2610996949	£14.91	£17.89
35 - SPRING RETAINING RING BSD-2610997281.A0 2610997281	£1.75	£2.10
36 - TOOTHED GEAR BSD-2610997208.A0 2610997208	£37.27	£44.72
37 - GEAR COVER BSD-2610996869.A5 2610996869	£23.86	£28.63
38 - SPRING RETAINING RING BSD-2610997282.A27 2610997282	£1.75	£2.10
39 - BALL BEARING BSD-2610997210.A27 2610997210	£14.91	£17.89
40 - OUTPUT SHAFT BSD-2610997211.A0 2610997211	£31.64	£37.97
41 - WOODRUFF KEY BSD-2610993102.A2 2610993102	£2.16	£2.59
42 - BEARING SLEEVE BSD-2610996932.A26 2610996932	£2.61	£3.13
43 - SCREW BSD-2610355293.A11 2610355293	£2.33	£2.80
44 - SCREW BSD-1609902679.A7 1609902679	£1.75	£2.10
45 - TORSION SPRING BSD-2610996875.A3 2610996875	£1.75	£2.10
46 - LOCKING LEVER BSD-2610996874.A24 2610996874	£11.30	£13.56
47 - SHOULDER SCREW BSD-2610996876.A24 2610996876	£1.75	£2.10
48 - CLAMPING FLANGE BSD-1609203K93.A0 1609203K93	£12.04	£14.45
49 - CLAMPING FLANGE BSD-2610996871.A3 2610996871	-
50 - NUT BSD-2610358858.A3 2610358858	£2.61	£3.13
51 - WING SCREW BSD-2610996879.A3 2610996879	£2.33	£2.80
52 - COVER PLATE BSD-2610996878.A5 2610996878	£5.01	£6.01
53 - SCREW BSD-1609902699.A3 1609902699	£1.75	£2.10
54 - COVER PLATE BSD-2610996877.A3 2610996877	-
55 - HOLDING PLATE BSD-2610996861.A6 2610996861	-
56 - GUIDING BOLT BSD-2610996862.A2 2610996862	£6.61	£7.93
57 - SPRING RETAINING RING BSD-2610997276.A0 2610997276	£1.75	£2.10
58 - THREADED ROD BSD-2610996895.A7 2610996895	£8.49	£10.19
59 - SPRING RETAINING RING BSD-2610998573.A23 2610998573	£1.75	£2.10
60 - BUSHING BSD-2610997221.A4 2610997221	£5.30	£6.36
61 - TOOTHED GEAR BSD-2610996896.A1 2610996896	£5.58	£6.70
62 - SPRING WASHER BSD-1609902672.A1 1609902672	£1.75	£2.10
63 - SCREW BSD-2610998588.A4 2610998588	£1.75	£2.10
64 - NUT BSD-2610358149.A0 2610358149	£1.75	£2.10
65 - BOLT BSD-2610910796.A17 2610910796	£2.80	£3.36
66 - SPRING RETAINING RING BSD-2610997277.A18 2610997277	£1.75	£2.10
67 - MOUNTING BRACKET BSD-2610997212.A18 2610997212	£2.80	£3.36
68 - BUSHING BSD-2610997222.A14 2610997222	£1.32	£1.58
69 - SCREW BSD-2615297323.A13 2615297323	£1.75	£2.10
70 - SPRING WASHER BSD-2610355325.A32 2610355325	£1.75	£2.10
71 - SHAFT BSD-2610996897.A7 2610996897	£11.30	£13.56
72 - THREADED BUSHING BSD-2610996933.A1 2610996933	£14.91	£17.89
73 - BUSHING BSD-2610996938.A17 2610996938	£8.67	£10.41
74 - SCREW BSD-2610303023.A1 2610303023	£1.75	£2.10
75 - SPRING BSD-2610997271.A0 2610997271	£1.75	£2.10
76 - PLAIN WASHER BSD-2610998550.A15 2610998550	£1.75	£2.10
77 - PLAIN WASHER BSD-2610997299.A4 2610997299	£1.75	£2.10
78 - NUT BSD-2610997298.A14 2610997298	£5.30	£6.36
79 - CLAMPING LEVER BSD-2610996898.A1 2610996898	-
80 - HANDWHEEL BSD-1609203K94.A8 1609203K94	£10.82	£12.99
81 - SET SCREW BSD-1609902669.A2 1609902669	£1.75	£2.10
82 - KNOB BSD-2610996925.A1 2610996925	£1.32	£1.58
83 - SHOULDER SCREW BSD-2610997270.A18 2610997270	£2.16	£2.59
84 - SCREW BSD-1609902696.A3 1609902696	£1.75	£2.10
85 - POINTER BSD-2610996927.A1 2610996927	£1.75	£2.10
86 - WASHER BSD-2610355570.A16 2610355570	£3.72	£4.47
87 - NUT BSD-2610356706.A3 2610356706	£2.61	£3.13
88 - SCREW BSD-2610997286.A8 2610997286	£1.75	£2.10
89 - END STOP BSD-2610996929.A1 2610996929	£1.75	£2.10
90 - HOUSING BSD-1609203L32.A0 1609203L32	-
91 - SCREW BSD-2610997294.A4 2610997294	£1.75	£2.10
92 - SWITCH HOUSING BSD-1609203K95.A0 1609203K95	£11.30	£13.56
93 - RUBBER BUSHING BSD-2610358846.A18 2610358846	£1.75	£2.10
94 - PICKUP CLIP BSD-2610996930.A17 2610996930	£2.52	£3.02
95 - PICKUP CLIP BSD-2610996931.A1 2610996931	£1.75	£2.10
96 - SCREW BSD-2610910047.A18 2610910047	£1.75	£2.10
97 - CABLE CLIP BSD-2610990504.A20 2610990504	£1.75	£2.10
98 - SCREW BSD-2610997273.A8 2610997273	-
99 - NUT BSD-2610997246.A4 2610997246	£1.75	£2.10
100 - BOX WRENCH BSD-2610996880.A15 2610996880	£5.30	£6.36
102 - HOLDER BSD-2610996922.A1 2610996922	£2.52	£3.02
103 - SCREW BSD-2610998574.A4 2610998574	£1.75	£2.10
104 - CABLE CLIP BSD-1609203K96.A32 1609203K96	£1.75	£2.10
105 - CONNECTING CABLE BSD-1609203L33.A7 1609203L33	£10.10	£12.12
106 - SCREW BSD-2610997297.A4 2610997297	£1.75	£2.10
107 - WASHER BSD-2610910013.A16 2610910013	£2.16	£2.59
108 - SCREW BSD-2610998575.A14 2610998575	£1.75	£2.10
109 - BEARING PEDESTAL BSD-2610996894.A1 2610996894	£5.87	£7.04
110 - TAPPING SCREW BSD-2610908271.A15 2610908271	£1.75	£2.10
111 - SCREW BSD-2610998587.A23 2610998587	£1.75	£2.10
112 - HOLDING BRACKET BSD-2610996921.A17 2610996921	£1.75	£2.10
113 - PIN BSD-2610996913.A1 2610996913	£4.26	£5.11
114 - PLATE BSD-2610996917.A1 2610996917	£1.75	£2.10
115 - GUSSET BSD-2610996914.A13 2610996914	-
116 - PIN BSD-2610997275.A18 2610997275	£1.75	£2.10
117 - PIN BSD-2610997274.A0 2610997274	£1.75	£2.10
118 - SET SCREW BSD-2610996918.A17 2610996918	£2.16	£2.59
119 - CONNECTING NUT BSD-2610996920.A1 2610996920	£5.01	£6.01
120 - ROD BSD-1609203L34.A0 1609203L34	£4.75	£5.70
121 - CLAMP BSD-2610994262.A2 2610994262	£2.16	£2.59
122 - CLAMPING PIECE BSD-2610996915.A1 2610996915	£11.30	£13.56
123 - NUT BSD-2610355272.A2 2610355272	£3.72	£4.47
124 - TOMMY SCREW BSD-2610996916.A3 2610996916	£3.72	£4.47
125 - END STOP BSD-2610997217.A4 2610997217	£2.16	£2.59
126 - TABLE TOP BSD-1609203L35.A4 1609203L35	-
127 - MOUNTING RAIL BSD-2610996855.A6 2610996855	£5.01	£6.01
128 - FIXING PLATE BSD-2610996912.A26 2610996912	£5.58	£6.70
129 - MOUNTING RAIL BSD-2610996856.A2 2610996856	£3.34	£4.01
131 - SCREW BSD-2610303029.A1 2610303029	£1.75	£2.10
132 - SCREW BSD-2610320339.A2 2610320339	£1.75	£2.10
133 - POINTER BSD-2610996941.A1 2610996941	£1.75	£2.10
134 - PROFILE RAIL BSD-2610996853.A6 2610996853	£41.62	£49.95
135 - COVER BSD-2610996923.A7 2610996923	£1.75	£2.10
138 - WASHER BSD-2610908270.A5 2610908270	£1.75	£2.10
139 - COVER BSD-2610997244.A4 2610997244	£2.16	£2.59
140 - END STOP BSD-2610996926.A7 2610996926	£1.75	£2.10
141 - COVER BSD-2610997218.A14 2610997218	£1.75	£2.10
142 - PROFILE RAIL BSD-2610996854.A2 2610996854	£30.28	£36.33
143 - COVER BSD-2610997216.A14 2610997216	£1.75	£2.10
144 - TABLE TOP BSD-1609203L36.A0 1609203L36	£80.61	£96.73
145 - RETAINING PLATE BSD-2610996928.A7 2610996928	£1.95	£2.34
146 - TRUNNION BSD-1619P01539.A7 1619P01539	£1.75	£2.10
147 - NUT BSD-2610304772.A17 2610304772	£1.75	£2.10
148 - PROTECTIVE COVER BSD-2610998577.A4 2610998577	£8.49	£10.19
149 - RULE BSD-1609203K97.A0 1609203K97	£7.78	£9.33
150 - STICKER BSD-2610997807.A3 2610997807	£2.16	£2.59
151 - INSERT BSD-1609203L37.A8 1609203L37	-
152 - STUD BSD-2610997283.A0 2610997283	£1.75	£2.10
153 - HOLDING SPRING BSD-2610011716.A16 2610011716	£1.75	£2.10
158 - CLAMP HANDLE BSD-2610998579.A4 2610998579	£6.52	£7.83
159 - PLAIN WASHER BSD-2610909178.A15 2610909178	£1.75	£2.10
160 - END STOP BSD-1609203L38.A0 1609203L38	-
161 - SCREW BSD-1609902697.A5 1609902697	£1.75	£2.10
162 - NUT BSD-2610908272.A3 2610908272	£1.75	£2.10
165 - GUIDE BAR BSD-1609203L39.A8 1609203L39	-
166 - POINTER BSD-2610997214.A4 2610997214	£2.16	£2.59
167 - END STOP BSD-2610997215.A4 2610997215	£1.75	£2.10
168 - SCREW BSD-2610296243.A7 2610296243	-
172 - PIN BSD-2610997291.A4 2610997291	£1.75	£2.10
182 - SLIDE RAIL BSD-2610996891.A7 2610996891	£6.52	£7.83
183 - BRACKET BSD-2610998570.A5 2610998570	-
184 - COVER BSD-2610358892.A1 2610358892	£2.16	£2.59
185 - ROD BSD-1609203K99.A8 1609203K99	£6.52	£7.83
186 - RETAINING PIN BSD-1609902703.A5 1609902703	£1.75	£2.10
187 - SPRING BSD-2610996888.A16 2610996888	£1.75	£2.10
188 - PROFILE RAIL BSD-1609203L40.A0 1609203L40	£51.22	£61.47
189 - WASHER BSD-2610358802.A3 2610358802	£1.75	£2.10
190 - HOUSING BSD-2610996884.A2 2610996884	£16.74	£20.09
191 - ROLLER BSD-2610996886.A2 2610996886	£1.75	£2.10
192 - PIN BSD-2610997292.A4 2610997292	£1.75	£2.10
193 - CLAMPING PLATE BSD-2610996885.A6 2610996885	£5.30	£6.36
194 - CLAMPING PIECE BSD-2610997240.A4 2610997240	£2.16	£2.59
195 - SCREW BSD-2610997293.A14 2610997293	£1.75	£2.10
196 - ADJUSTING SCREW BSD-2610997245.A4 2610997245	£2.61	£3.13
197 - RUBBER BUSHING BSD-2610911920.A8 2610911920	£1.32	£1.58
198 - HEXAGON SOCKET SCREW KEY BSD-2610998551.A3 2610998551	£2.61	£3.13
199 - SCREW BSD-2610998580.A4 2610998580	£1.75	£2.10
200 - SCREW BSD-2610328617.A0 2610328617	£1.75	£2.10
201 - SPRING RETAINING RING BSD-2610992380.A15 2610992380	£1.75	£2.10
202 - STICKER BSD-1609203L00.A0 1609203L00	£11.30	£13.56
203 - CONNECTOR BSD-2610358932.A3 2610358932	£1.75	£2.10
204 - PLAIN WASHER BSD-2610303020.A17 2610303020	-
205 - SCREW BSD-2610303026.A17 2610303026	£1.75	£2.10
206 - SCREW BSD-2610967422.A16 2610967422	£1.75	£2.10
208 - SPRING BSD-2610998593.A14 2610998593	£1.75	£2.10
209 - PLAIN WASHER BSD-2610912588.A3 2610912588	£1.75	£2.10
211 - STICKER BSD-1609203L01.A8 1609203L01	£1.95	£2.34
212 - WASHER BSD-2610341465.A9 2610341465	£2.16	£2.59
213 - COMPRESSION SPRING BSD-2610913192.A0 2610913192	£1.95	£2.34
214 - END STOP BSD-1609203L03.A4 1609203L03	£30.28	£36.33
215 - CLAMPING PLATE BSD-1609203L04.A14 1609203L04	£2.16	£2.59
216 - SCREW BSD-1609203L05.A4 1609203L05	£1.75	£2.10
217 - KNOB BSD-1609203L06.A14 1609203L06	£3.72	£4.47
218 - PROFILE RAIL BSD-1609203L07.A4 1609203L07	£21.52	£25.83
219 - BOLT BSD-1609203L08.A14 1609203L08	£1.75	£2.10
220 - GUARD PLATE BSD-1609203L09.A4 1609203L09	£10.10	£12.12
221 - PLAIN WASHER BSD-1609203L10.A14 1609203L10	£1.75	£2.10
222 - NUT BSD-1609203L11.A4 1609203L11	£1.75	£2.10
223 - HOLDING PLATE BSD-1609203L12.A4 1609203L12	£4.75	£5.70
224 - SCREW BSD-1609203L13.A4 1609203L13	£1.75	£2.10
225 - NUT BSD-1609203L14.A4 1609203L14	£1.75	£2.10
226 - SCREW BSD-1609203L15.A4 1609203L15	£1.32	£1.58
227 - GUARD PLATE BSD-1609203L16.A4 1609203L16	-
228 - SCREW BSD-1609902044.A6 1609902044	£1.75	£2.10
229 - PUSHER BSD-1609203L18.A4 1609203L18	£11.30	£13.56
230 - NUT BSD-1609203L19.A4 1609203L19	£2.16	£2.59
231 - STICKER BSD-1609203L20.A4 1609203L20	£2.33	£2.80
232 - RIVING KNIFE BSD-1609902027.A5 1609902027	-
233 - FLAP GUARD BSD-1609902025.A5 1609902025	£16.74	£20.09
234 - FLAP GUARD BSD-1609902026.A3 1609902026	£16.74	£20.09
235 - COVER PLATE BSD-1609902045.A2 1609902045	-
236 - SCREW BSD-1609902040.A6 1609902040	£1.75	£2.10
237 - GUARD HOLDER BSD-1609902030.A3 1609902030	£5.30	£6.36
238 - SPACER BSD-1609902029.A5 1609902029	£1.32	£1.58
239 - SCREW BSD-1609902028.A3 1609902028	£1.66	£1.99
241 - CONTAINER BSD-1609203L30.A4 1609203L30	-
242 - STICKER BSD-1609203L31.A4 1609203L31	-
243 - SCREW BSD-1609902033.A5 1609902033	£1.75	£2.10
246 - ROUND NUT BSD-1609902047.A2 1609902047	£2.61	£3.13
247 - PLAIN WASHER BSD-2610993221.A20 2610993221	£1.75	£2.10
248 - COIL BSD-1609902048.A5 1609902048	£13.12	£15.75
249 - CABLE STRAP BSD-1609902050.A15 1609902050	£1.75	£2.10
250 - CUPPED WASHER BSD-1609902051.A3 1609902051	£5.87	£7.04
251 - SPRING WASHER BSD-1609902052.A15 1609902052	£1.75	£2.10
252 - PLAIN WASHER BSD-1609902053.A3 1609902053	£1.75	£2.10
253 - CUPPED WASHER BSD-1609902032.A3 1609902032	£1.75	£2.10
254 - EXTENSION SPRING BSD-1609902031.A5 1609902031	£1.75	£2.10
255 - SPACER BSD-1609902041.A1 1609902041	£1.75	£2.10
256 - SCREW BSD-1609902046.A6 1609902046	£1.75	£2.10
257 - WASHER BSD-1609902043.A1 1609902043	£1.75	£2.10
258 - WASHER BSD-1609902042.A17 1609902042	£1.75	£2.10
260 - SET SCREW BSD-1609902054.A24 1609902054	£1.75	£2.10
261 - SCREW BSD-1609902055.A3 1609902055	£1.75	£2.10
262 - SCREW BSD-1609902056.A5 1609902056	£1.75	£2.10
263 - SCREW BSD-1609902057.A3 1609902057	£1.75	£2.10
266 - NUT BSD-2610911896.A2 2610911896	-
267 - NUT BSD-1609902058.A15 1609902058	£1.75	£2.10
268 - LINKAGE PART BSD-1609902039.A1 1609902039	£2.16	£2.59
269 - SCREW BSD-1609902059.A3 1609902059	£1.75	£2.10
270 - LABEL BSD-1609902060.A5 1609902060	£1.75	£2.10
271 - SCREW BSD-2610997296.A5 2610997296	£1.75	£2.10
272 - WASHER BSD-2610358936.A5 2610358936	£1.75	£2.10
273 - LENS BSD-1609902063.A3 1609902063	£1.32	£1.58
274 - WASHER BSD-1609902616.A2 1609902616	£1.75	£2.10
670 - FITTING BSD-2610919255.A2 2610919255	-
801 - PROTECTIVE COVER BSD-1609203L41.A7 1609203L41	-
802 - EDGE GUIDE BSD-1609203L42.A1 1609203L42	-
803 - MITRE FENCE BSD-1609203L43.A7 1609203L43	-
810 - CARBON-BRUSH SET BSD-1609203L02.A0 1609203L02	£14.91	£17.89
820 - CLAMP HANDLE BSD-1609902076.A5 1609902076	£51.22	£61.47
821 - ROD BSD-1609902077.A3 1609902077	£7.78	£9.33
822 - LOCKING CLAMPS BSD-1609902078.A5 1609902078	£27.23	£32.68

Attribute Name	Value
Brand	Bosch

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Bosch GTS 10 / 0601B30042 / GB 230 Volt Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
