Bosch GTS 10 / 3601L30270 / GB 230 Volt Spare Parts

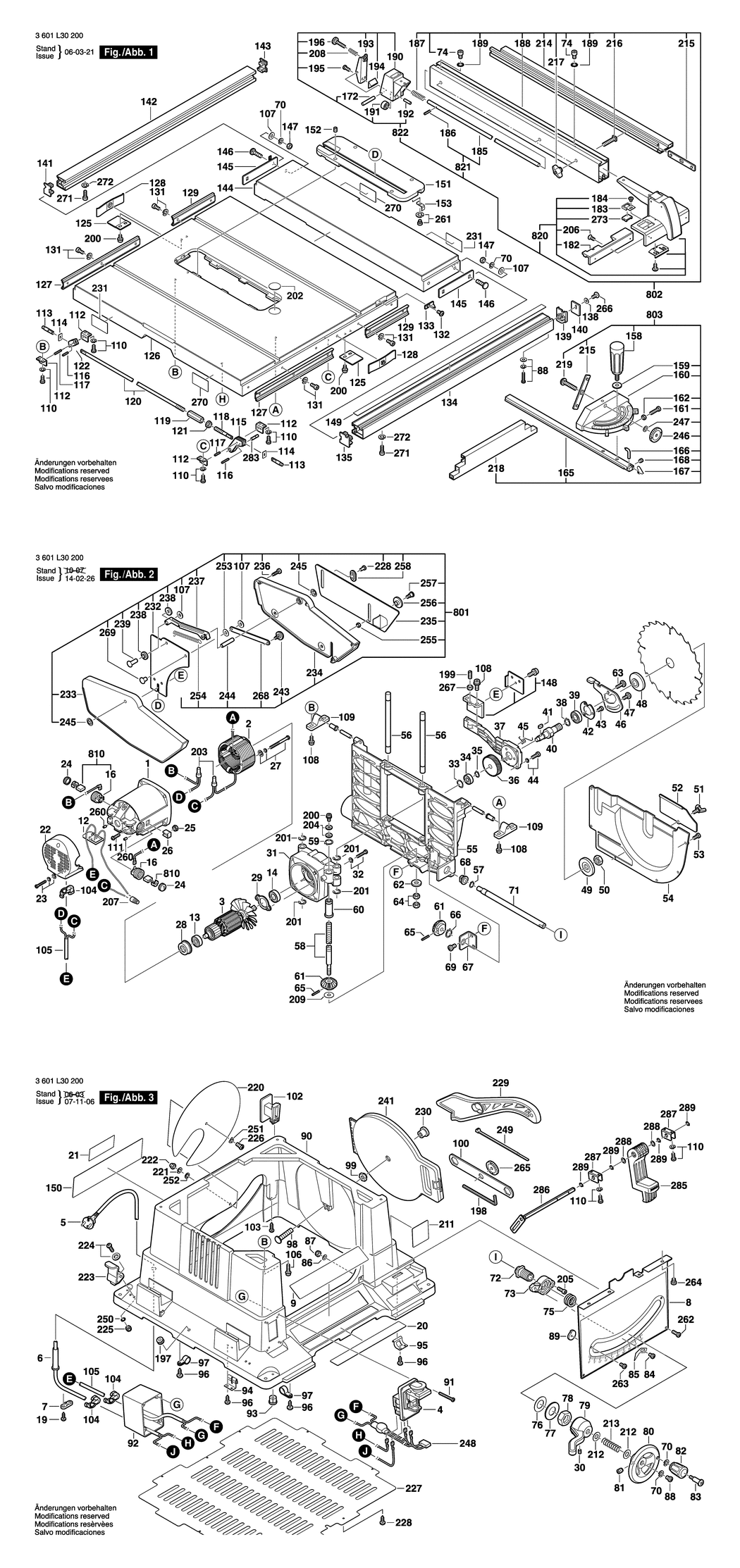

An exploded drawing and listing for the Bosch GTS 10 / 3601L30270 / GB 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-2610996864.A6 2610996864	£48.38	£58.06
2 - FIELD 230V BSD-1609203K86.A2 1609203K86	£59.53	£71.44
3 - ARMATURE 230V BSD-1619P03278.A0 1619P03278	£120.11	£144.13
4 - SWITCH BSD-1609203K88.A4 1609203K88	£51.22	£61.47
5 - POWER SUPPLY CORD BSD-1609203L53.A1 1609203L53	£14.91	£17.89
6 - CORD GUARD BSD-1609203K90.A7 1609203K90	£1.66	£1.99
7 - CLAMP BSD-2610358842.A4 2610358842	£1.75	£2.10
8 - FRONT PANEL BSD-1609203K91.A1 1609203K91	£45.67	£54.80
9 - STICKER BSD-2610997806.A1 2610997806	£1.95	£2.34
12 - SPEED GOVERNOR BSD-2610008062.A0 2610008062	£41.62	£49.95
13 - BALL BEARING BSD-2610911928.A0 2610911928	£12.04	£14.45
14 - BALL BEARING BSD-2610911927.A40 2610911927	£23.86	£28.63
16 - BRUSH HOLDER BSD-2610911858.A19 2610911858	£16.41	£19.69
19 - SCREW BSD-2610358844.A11 2610358844	£1.75	£2.10
20 - MANUFACTURER'S NAMEPLATE BSD-1609902557.A6 1609902557	£2.16	£2.59
21 - NAMEPLATE BSD-1619P03462.A0 1619P03462	£3.72	£4.47
22 - COVER BSD-2610996865.A3 2610996865	£14.91	£17.89
23 - SCREW BSD-2610998571.A8 2610998571	£1.75	£2.10
24 - BRUSH-COVER dia 20mm BSD-2610911859.A6 2610911859	£2.16	£2.59
25 - NUT BSD-2610327868.A25 2610327868	£1.75	£2.10
26 - INSERT BSD-2610911569.A33 2610911569	£2.61	£3.13
27 - SCREW BSD-2610911929.A24 2610911929	£1.75	£2.10
28 - RUBBER RING BSD-2610996948.A19 2610996948	£1.75	£2.10
29 - BEARING COVER BSD-2610911566.A12 2610911566	£2.80	£3.36
30 - SCREW BSD-2610355295.A18 2610355295	£2.16	£2.59
31 - GEAR HOUSING BSD-2610996863.A3 2610996863	-
32 - SCREW BSD-1609902670.A12 1609902670	£1.75	£2.10
33 - SPRING WASHER BSD-2610911924.A13 2610911924	£3.72	£4.47
34 - BALL BEARING BSD-2610996949.A7 2610996949	£14.91	£17.89
35 - SPRING RETAINING RING BSD-2610997281.A14 2610997281	£1.75	£2.10
36 - TOOTHED GEAR BSD-2610997208.A6 2610997208	£37.27	£44.72
37 - GEAR COVER BSD-2610996869.A0 2610996869	£23.86	£28.63
38 - SPRING RETAINING RING BSD-2610997282.A19 2610997282	£1.75	£2.10
39 - BALL BEARING BSD-2610997210.A21 2610997210	£14.91	£17.89
40 - OUTPUT SHAFT BSD-2610997211.A6 2610997211	£31.64	£37.97
41 - WOODRUFF KEY BSD-2610993102.A18 2610993102	£2.16	£2.59
42 - BEARING SLEEVE BSD-2610996932.A1 2610996932	£2.61	£3.13
43 - SCREW BSD-2610355293.A4 2610355293	£2.33	£2.80
44 - SCREW BSD-1609902679.A3 1609902679	£1.75	£2.10
45 - TORSION SPRING BSD-2610996875.A27 2610996875	£1.75	£2.10
46 - LOCKING LEVER BSD-2610996874.A0 2610996874	£11.30	£13.56
47 - SHOULDER SCREW BSD-2610996876.A0 2610996876	£1.75	£2.10
48 - CLAMPING FLANGE BSD-1609203K93.A8 1609203K93	£12.04	£14.45
49 - CLAMPING FLANGE BSD-2610996871.A8 2610996871	-
50 - NUT BSD-2610358858.A11 2610358858	£2.61	£3.13
51 - WING SCREW BSD-2610996879.A8 2610996879	£2.33	£2.80
52 - COVER PLATE BSD-2610996878.A0 2610996878	£5.01	£6.01
53 - SCREW BSD-1609902699.A5 1609902699	£1.75	£2.10
54 - COVER PLATE BSD-2610996877.A8 2610996877	-
55 - HOLDING PLATE BSD-2610996861.A3 2610996861	-
56 - GUIDING BOLT BSD-2610996862.A5 2610996862	£6.61	£7.93
57 - SPRING RETAINING RING BSD-2610997276.A8 2610997276	£1.75	£2.10
58 - THREADED ROD BSD-2610996895.A1 2610996895	£8.49	£10.19
59 - SPRING RETAINING RING BSD-2610998573.A19 2610998573	£1.75	£2.10
60 - BUSHING BSD-2610997221.A7 2610997221	£5.30	£6.36
61 - TOOTHED GEAR BSD-2610996896.A7 2610996896	£5.58	£6.70
62 - SPRING WASHER BSD-1609902672.A5 1609902672	£1.75	£2.10
63 - SCREW BSD-2610998588.A25 2610998588	£1.75	£2.10
64 - NUT BSD-2610358149.A13 2610358149	£1.75	£2.10
65 - BOLT BSD-2610910796.A5 2610910796	£2.80	£3.36
66 - SPRING RETAINING RING BSD-2610997277.A10 2610997277	£1.75	£2.10
67 - MOUNTING BRACKET BSD-2610997212.A2 2610997212	£2.80	£3.36
68 - BUSHING BSD-2610997222.A1 2610997222	£1.32	£1.58
69 - SCREW BSD-2615297323.A29 2615297323	£1.75	£2.10
70 - SPRING WASHER BSD-2610355325.A4 2610355325	£1.75	£2.10
71 - SHAFT BSD-2610996897.A1 2610996897	£11.30	£13.56
72 - THREADED BUSHING BSD-2610996933.A16 2610996933	£14.91	£17.89
73 - BUSHING BSD-2610996938.A2 2610996938	£8.67	£10.41
74 - SCREW BSD-2610303023.A8 2610303023	£1.75	£2.10
75 - SPRING BSD-2610997271.A8 2610997271	£1.75	£2.10
76 - PLAIN WASHER BSD-2610998550.A0 2610998550	£1.75	£2.10
77 - PLAIN WASHER BSD-2610997299.A7 2610997299	£1.75	£2.10
78 - NUT BSD-2610997298.A11 2610997298	£5.30	£6.36
79 - CLAMPING LEVER BSD-2610996898.A7 2610996898	-
80 - HANDWHEEL BSD-1609203K94.A0 1609203K94	£10.82	£12.99
81 - SET SCREW BSD-1609902669.A11 1609902669	£1.75	£2.10
82 - KNOB BSD-2610996925.A7 2610996925	£1.32	£1.58
83 - SHOULDER SCREW BSD-2610997270.A10 2610997270	£2.16	£2.59
84 - SCREW BSD-1609902696.A5 1609902696	£1.75	£2.10
85 - POINTER BSD-2610996927.A7 2610996927	£1.75	£2.10
86 - WASHER BSD-2610355570.A9 2610355570	£3.72	£4.47
87 - NUT BSD-2610356706.A10 2610356706	£2.61	£3.13
88 - SCREW BSD-2610997286.A0 2610997286	£1.75	£2.10
89 - END STOP BSD-2610996929.A7 2610996929	£1.75	£2.10
90 - HOUSING BSD-1609203L32.A8 1609203L32	-
91 - SCREW BSD-2610997294.A7 2610997294	£1.75	£2.10
92 - SWITCH HOUSING BSD-1609203K95.A8 1609203K95	£11.30	£13.56
93 - RUBBER BUSHING BSD-2610358846.A7 2610358846	£1.75	£2.10
94 - PICKUP CLIP BSD-2610996930.A1 2610996930	£2.52	£3.02
95 - PICKUP CLIP BSD-2610996931.A7 2610996931	£1.75	£2.10
96 - SCREW BSD-2610910047.A10 2610910047	£1.75	£2.10
97 - CABLE CLIP BSD-2610990504.A8 2610990504	£1.75	£2.10
98 - SCREW BSD-2610997273.A0 2610997273	-
99 - NUT BSD-2610997246.A1 2610997246	£1.75	£2.10
100 - BOX WRENCH BSD-2610996880.A0 2610996880	£5.30	£6.36
102 - HOLDER BSD-2610996922.A7 2610996922	£2.52	£3.02
103 - SCREW BSD-2610998574.A8 2610998574	£1.75	£2.10
104 - CABLE CLIP BSD-1609203K96.A0 1609203K96	£1.75	£2.10
105 - CONNECTING CABLE BSD-1609203L33.A0 1609203L33	£10.10	£12.12
106 - SCREW BSD-2610997297.A7 2610997297	£1.75	£2.10
107 - WASHER BSD-2610910013.A9 2610910013	£2.16	£2.59
108 - SCREW BSD-2610998575.A9 2610998575	£1.75	£2.10
109 - BEARING PEDESTAL BSD-2610996894.A7 2610996894	£5.87	£7.04
110 - TAPPING SCREW BSD-2610908271.A1 2610908271	£1.75	£2.10
111 - SCREW BSD-2610998587.A2 2610998587	£1.75	£2.10
112 - HOLDING BRACKET BSD-2610996921.A11 2610996921	£1.75	£2.10
113 - PIN BSD-2610996913.A9 2610996913	£4.26	£5.11
114 - PLATE BSD-2610996917.A7 2610996917	£1.75	£2.10
115 - CAM BSD-2610937294.A3 2610937294	£10.10	£12.12
116 - PIN BSD-2610997275.A10 2610997275	£1.75	£2.10
117 - PIN BSD-2610997274.A13 2610997274	£1.75	£2.10
118 - SET SCREW BSD-2610996918.A11 2610996918	£2.16	£2.59
119 - CONNECTING NUT BSD-2610996920.A7 2610996920	£5.01	£6.01
120 - ROD BSD-1609203L34.A8 1609203L34	£4.75	£5.70
121 - NUT BSD-1619P03453.A1 1619P03453	£1.75	£2.10
122 - CLAMPING PIECE BSD-2610996915.A16 2610996915	£11.30	£13.56
125 - END STOP BSD-2610997217.A7 2610997217	£2.16	£2.59
126 - TABLE TOP BSD-1619P03470.A0 1619P03470	£251.67	£302.00
127 - MOUNTING RAIL BSD-2610996855.A3 2610996855	£5.01	£6.01
128 - FIXING PLATE BSD-2610996912.A1 2610996912	£5.58	£6.70
129 - MOUNTING RAIL BSD-2610996856.A5 2610996856	£3.34	£4.01
131 - SCREW BSD-2610303029.A9 2610303029	£1.75	£2.10
132 - SCREW BSD-2610320339.A12 2610320339	£1.75	£2.10
133 - POINTER BSD-2610996941.A7 2610996941	£1.75	£2.10
134 - PROFILE RAIL BSD-2610996853.A3 2610996853	£41.62	£49.95
135 - COVER BSD-2610996923.A1 2610996923	£1.75	£2.10
138 - WASHER BSD-2610908270.A12 2610908270	£1.75	£2.10
139 - COVER BSD-2610997244.A1 2610997244	£2.16	£2.59
140 - END STOP BSD-2610996926.A1 2610996926	£1.75	£2.10
141 - COVER BSD-2610997218.A1 2610997218	£1.75	£2.10
142 - PROFILE RAIL BSD-2610996854.A5 2610996854	£30.28	£36.33
143 - COVER BSD-2610997216.A11 2610997216	£1.75	£2.10
144 - TABLE TOP BSD-1609203L36.A5 1609203L36	£80.61	£96.73
145 - RETAINING PLATE BSD-2610996928.A1 2610996928	£1.95	£2.34
146 - TRUNNION BSD-1619P01539.A2 1619P01539	£1.75	£2.10
147 - NUT BSD-2610304772.A10 2610304772	£1.75	£2.10
148 - PROTECTIVE COVER BSD-2610998577.A8 2610998577	£8.49	£10.19
149 - RULE BSD-1609203K97.A8 1609203K97	£7.78	£9.33
150 - STICKER BSD-2610997807.A8 2610997807	£2.16	£2.59
151 - INSERT BSD-1609203L37.A3 1609203L37	-
152 - STUD BSD-2610997283.A8 2610997283	£1.75	£2.10
153 - HOLDING SPRING BSD-2610011716.A9 2610011716	£1.75	£2.10
158 - CLAMP HANDLE BSD-2610998579.A0 2610998579	£6.52	£7.83
159 - PLAIN WASHER BSD-2610909178.A4 2610909178	£1.75	£2.10
160 - END STOP BSD-1609203L38.A5 1609203L38	-
161 - SCREW BSD-1609902697.A3 1609902697	£1.75	£2.10
162 - NUT BSD-2610908272.A17 2610908272	£1.75	£2.10
165 - GUIDE BAR BSD-1609203L39.A3 1609203L39	-
166 - POINTER BSD-2610997214.A1 2610997214	£2.16	£2.59
167 - END STOP BSD-2610997215.A7 2610997215	£1.75	£2.10
168 - SCREW BSD-2610296243.A0 2610296243	-
172 - PIN BSD-2610997291.A1 2610997291	£1.75	£2.10
182 - SLIDE RAIL BSD-2610996891.A1 2610996891	£6.52	£7.83
183 - BRACKET BSD-2610998570.A0 2610998570	-
184 - COVER BSD-2610358892.A6 2610358892	£2.16	£2.59
185 - ROD BSD-1609203K99.A0 1609203K99	£6.52	£7.83
186 - RETAINING PIN BSD-1609902703.A3 1609902703	£1.75	£2.10
187 - SPRING BSD-2610996888.A0 2610996888	£1.75	£2.10
188 - PROFILE RAIL BSD-1609203L40.A5 1609203L40	£51.22	£61.47
189 - WASHER BSD-2610358802.A11 2610358802	£1.75	£2.10
190 - HOUSING BSD-2610996884.A8 2610996884	£16.74	£20.09
191 - ROLLER BSD-2610996886.A8 2610996886	£1.75	£2.10
192 - PIN BSD-2610997292.A7 2610997292	£1.75	£2.10
193 - CLAMPING PLATE BSD-2610996885.A0 2610996885	£5.30	£6.36
194 - CLAMPING PIECE BSD-2610997240.A17 2610997240	£2.16	£2.59
195 - SCREW BSD-2610997293.A1 2610997293	£1.75	£2.10
196 - ADJUSTING SCREW BSD-2610997245.A7 2610997245	£2.61	£3.13
197 - RUBBER BUSHING BSD-2610911920.A29 2610911920	£1.32	£1.58
198 - HEXAGON SOCKET SCREW KEY BSD-2610998551.A8 2610998551	£2.61	£3.13
199 - SCREW BSD-2610998580.A8 2610998580	£1.75	£2.10
200 - SCREW BSD-2610328617.A12 2610328617	£1.75	£2.10
201 - SPRING RETAINING RING BSD-2610992380.A5 2610992380	£1.75	£2.10
202 - STICKER BSD-1609203L00.A8 1609203L00	£11.30	£13.56
203 - CONNECTOR BSD-2610358932.A7 2610358932	£1.75	£2.10
204 - PLAIN WASHER BSD-2610303020.A10 2610303020	-
205 - SCREW BSD-2610303026.A9 2610303026	£1.75	£2.10
206 - SCREW BSD-2610967422.A7 2610967422	£1.75	£2.10
207 - CONNECTOR BSD-2610911933.A15 2610911933	£1.75	£2.10
208 - SPRING BSD-2610998593.A2 2610998593	£1.75	£2.10
209 - PLAIN WASHER BSD-2610912588.A7 2610912588	£1.75	£2.10
211 - STICKER BSD-1609203L01.A0 1609203L01	£1.95	£2.34
212 - WASHER BSD-2610341465.A17 2610341465	£2.16	£2.59
213 - COMPRESSION SPRING BSD-2610913192.A6 2610913192	£1.95	£2.34
214 - END STOP BSD-1609203L03.A8 1609203L03	£30.28	£36.33
215 - CLAMPING PLATE BSD-1609203L04.A0 1609203L04	£2.16	£2.59
216 - SCREW BSD-1609203L05.A18 1609203L05	£1.75	£2.10
217 - KNOB BSD-1609203L06.A0 1609203L06	£3.72	£4.47
218 - PROFILE RAIL BSD-1609203L07.A18 1609203L07	£21.52	£25.83
219 - BOLT BSD-1609203L08.A0 1609203L08	£1.75	£2.10
220 - GUARD PLATE BSD-1609203L09.A18 1609203L09	£10.10	£12.12
221 - PLAIN WASHER BSD-1609203L10.A0 1609203L10	£1.75	£2.10
222 - NUT BSD-1609203L11.A18 1609203L11	£1.75	£2.10
223 - HOLDING PLATE BSD-1609203L12.A0 1609203L12	£4.75	£5.70
224 - SCREW BSD-1609203L13.A8 1609203L13	£1.75	£2.10
225 - NUT BSD-1609203L14.A0 1609203L14	£1.75	£2.10
226 - SCREW BSD-1609203L15.A8 1609203L15	£1.32	£1.58
227 - GUARD PLATE BSD-1609203L16.A0 1609203L16	-
228 - SCREW BSD-1609902044.A0 1609902044	£1.75	£2.10
229 - PUSHER BSD-1609203L18.A8 1609203L18	£11.30	£13.56
230 - NUT BSD-1609203L19.A0 1609203L19	£2.16	£2.59
231 - STICKER BSD-1609203L20.A8 1609203L20	£2.33	£2.80
232 - RIVING KNIFE BSD-1609902027.A0 1609902027	-
233 - FLAP GUARD BSD-1609902025.A0 1609902025	£16.74	£20.09
234 - FLAP GUARD BSD-1609902026.A8 1609902026	£16.74	£20.09
235 - COVER PLATE BSD-1609902045.A8 1609902045	-
236 - SCREW BSD-1609902040.A0 1609902040	£1.75	£2.10
237 - GUARD HOLDER BSD-1609902030.A8 1609902030	£5.30	£6.36
238 - SPACER BSD-1609902029.A0 1609902029	£1.32	£1.58
239 - SCREW BSD-1609902028.A8 1609902028	£1.66	£1.99
241 - CONTAINER BSD-1609203L30.A0 1609203L30	-
243 - SCREW BSD-1609902033.A0 1609902033	£1.75	£2.10
244 - PIN BSD-1609902023.A0 1609902023	£2.16	£2.59
245 - NUT BSD-1609902024.A4 1609902024	£1.66	£1.99
246 - ROUND NUT BSD-1609902047.A8 1609902047	£2.61	£3.13
247 - PLAIN WASHER BSD-2610993221.A11 2610993221	£1.75	£2.10
248 - COIL BSD-1609902048.A0 1609902048	£13.12	£15.75
249 - CABLE STRAP BSD-1609902050.A1 1609902050	£1.75	£2.10
250 - CUPPED WASHER BSD-1609902051.A7 1609902051	£5.87	£7.04
251 - SPRING WASHER BSD-1609902052.A1 1609902052	£1.75	£2.10
252 - PLAIN WASHER BSD-1609902053.A17 1609902053	£1.75	£2.10
253 - CUPPED WASHER BSD-1609902032.A8 1609902032	£1.75	£2.10
254 - EXTENSION SPRING BSD-1609902031.A0 1609902031	£1.75	£2.10
255 - SPACER BSD-1609902041.A8 1609902041	£1.75	£2.10
256 - SCREW BSD-1609902046.A0 1609902046	£1.75	£2.10
257 - WASHER BSD-1609902043.A8 1609902043	£1.75	£2.10
258 - WASHER BSD-1609902042.A0 1609902042	£1.75	£2.10
260 - SET SCREW BSD-1609902054.A1 1609902054	£1.75	£2.10
261 - SCREW BSD-1609902055.A17 1609902055	£1.75	£2.10
262 - SCREW BSD-1609902056.A1 1609902056	£1.75	£2.10
263 - SCREW BSD-1609902057.A7 1609902057	£1.75	£2.10
264 - SCREW BSD-2610355278.A9 2610355278	£5.30	£6.36
265 - ROUND NUT BSD-1609902022.A5 1609902022	£1.75	£2.10
266 - NUT BSD-2610911896.A13 2610911896	-
267 - NUT BSD-1609902058.A2 1609902058	£1.75	£2.10
268 - LINKAGE PART BSD-1609902039.A8 1609902039	£2.16	£2.59
269 - SCREW BSD-1609902059.A6 1609902059	£1.75	£2.10
270 - LABEL BSD-1609902060.A2 1609902060	£1.75	£2.10
271 - SCREW BSD-2610997296.A2 2610997296	£1.75	£2.10
272 - WASHER BSD-2610358936.A2 2610358936	£1.75	£2.10
273 - LENS BSD-1609902063.A6 1609902063	£1.32	£1.58
283 - GUIDE PIN BSD-2610937292.A5 2610937292	£1.75	£2.10
285 - ROTARY HANDLE BSD-2610937289.A0 2610937289	-
286 - AXLE BSD-2610937290.A3 2610937290	£13.12	£15.75
287 - MOUNTING BRACKET BSD-2610937291.A0 2610937291	£2.80	£3.36
288 - WASHER BSD-1619P03473.A3 1619P03473	£1.75	£2.10
289 - RETAINING RING BSD-2610937293.A0 2610937293	£1.75	£2.10
801 - PROTECTIVE COVER BSD-1609203L41.A3 1609203L41	-
802 - EDGE GUIDE BSD-1609203L42.A5 1609203L42	-
803 - MITRE FENCE BSD-1609203L43.A3 1609203L43	-
810 - CARBON-BRUSH SET BSD-2610018332.A2 2610018332	£21.68	£26.01
820 - CLAMP HANDLE BSD-1609902076.A2 1609902076	£51.22	£61.47
821 - ROD BSD-1609902077.A6 1609902077	£7.78	£9.33
822 - LOCKING CLAMPS BSD-1609902078.A2 1609902078	£27.23	£32.68

Attribute Name	Value
Brand	Bosch

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Bosch GTS 10 / 3601L30270 / GB 230 Volt Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Bosch GTS 10 / 3601L30270 / GB 230 Volt Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Bosch GTS 10 / 3601L30270 / GB 230 Volt Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
