Bosch GTS 10 J / 3601M30561 / GB 110 Volt Spare Parts

Home Details Reviews Delivery

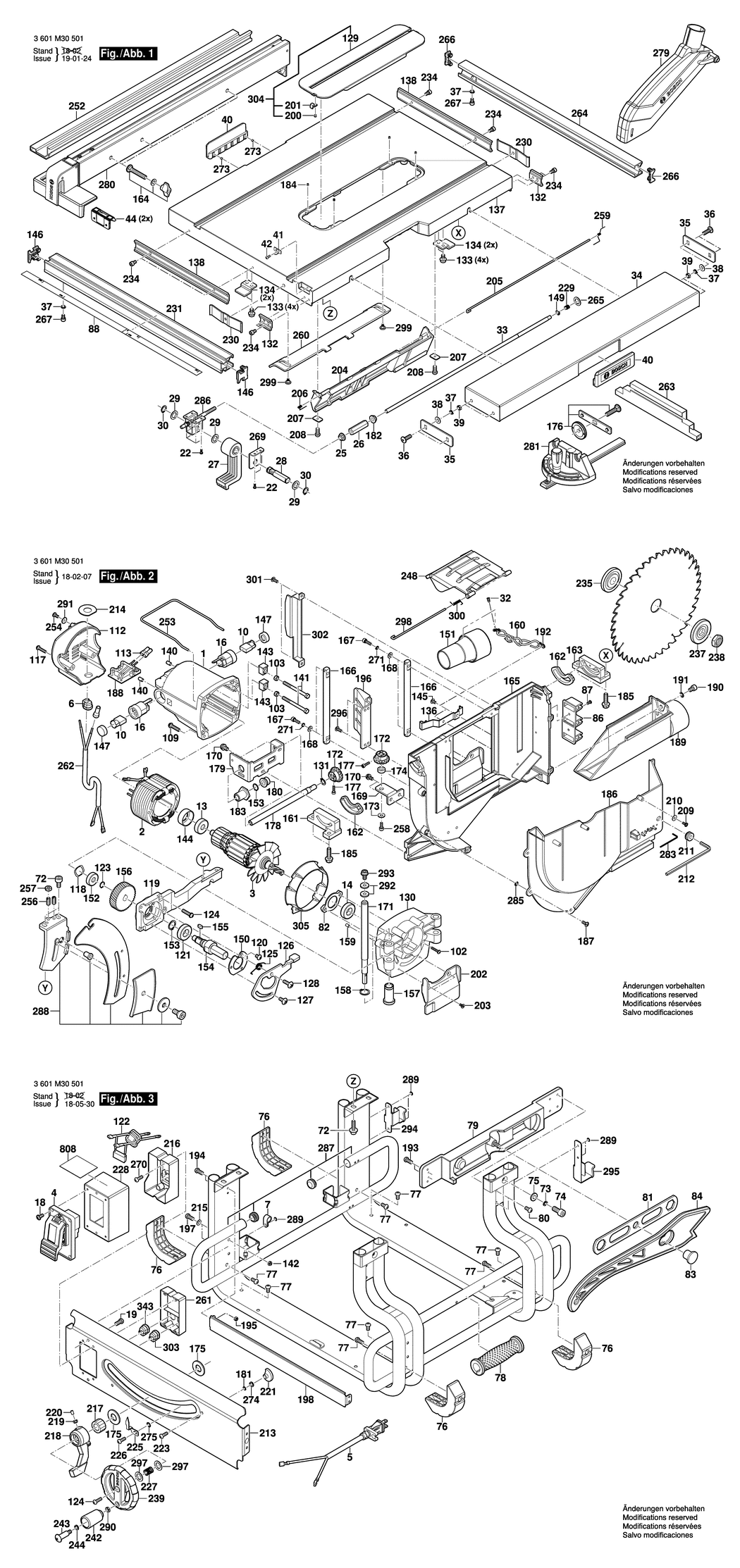

An exploded drawing and listing for the Bosch GTS 10 J / 3601M30561 / GB 110 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1619PB2487.A2 1619PB2487	-
2 - FIELD 110V BSD-2610017112.A1 2610017112	£72.18	£86.62
3 - ARMATURE 110V BSD-2610996866.A0 2610996866	-
4 - SWITCH BSD-2610017113.A0 2610017113	£48.38	£58.06
5 - POWER SUPPLY CORD BSD-2610017118.A0 2610017118	£59.53	£71.44
6 - CABLE CLIP BSD-1609203K96.A20 1609203K96	£1.75	£2.10
7 - CABLE CLIP BSD-2610014693.A6 2610014693	£1.75	£2.10
10 - CARBON-BRUSH SET BSD-2610018379.A2 2610018379	£13.12	£15.75
13 - BALL BEARING BSD-2610004595.A10 2610004595	£12.04	£14.45
14 - BALL BEARING BSD-2610911927.A28 2610911927	£23.86	£28.63
16 - BRUSH HOLDER BSD-2610013003.A2 2610013003	£7.36	£8.83
18 - SCREW BSD-2610015078.A0 2610015078	£1.75	£2.10
19 - SCREW BSD-2610017002.A5 2610017002	£1.75	£2.10
22 - SCREW BSD-2610014697.A2 2610014697	£1.75	£2.10
25 - NUT BSD-2610014698.A6 2610014698	£1.75	£2.10
26 - CONNECTING NUT BSD-2610996920.A21 2610996920	£5.01	£6.01
27 - HANDLE BSD-2610014699.A2 2610014699	£6.52	£7.83
28 - CAM BSD-2610015000.A6 2610015000	£11.30	£13.56
29 - WASHER BSD-2610015001.A4 2610015001	£1.75	£2.10
30 - SPRING RETAINING RING BSD-2610015002.A6 2610015002	£1.75	£2.10
32 - PIN BSD-2610017003.A3 2610017003	£1.75	£2.10
33 - ROD BSD-2610017004.A5 2610017004	£7.36	£8.83
34 - EXTENSION STAND BSD-2610017005.A3 2610017005	£40.80	£48.96
35 - RETAINING PLATE BSD-2610015006.A2 2610015006	£2.16	£2.59
36 - COLLAR BOLT BSD-2610910015.A4 2610910015	£2.80	£3.36
37 - SPRING WASHER BSD-2610355325.A18 2610355325	£1.75	£2.10
38 - WASHER BSD-2610910013.A4 2610910013	£2.16	£2.59
39 - NUT BSD-2610015008.A6 2610015008	£1.75	£2.10
40 - HANDLE BSD-2610015009.A2 2610015009	£5.58	£6.70
41 - POINTER BSD-2610015010.A6 2610015010	£1.75	£2.10
42 - SCREW BSD-2610950077.A5 2610950077	£1.75	£2.10
44 - PAD BSD-2610023173.A5 2610023173	£2.16	£2.59
72 - SCREW BSD-2610950069.A5 2610950069	£1.75	£2.10
73 - WASHER BSD-2610015011.A2 2610015011	£1.75	£2.10
74 - BOLT BSD-2610015012.A6 2610015012	£1.75	£2.10
75 - WASHER BSD-2610925438.A3 2610925438	£1.75	£2.10
76 - SUPPORTING FOOT BSD-2610015014.A2 2610015014	£5.30	£6.36
77 - SCREW BSD-2610015015.A6 2610015015	£1.75	£2.10
78 - HANDLE BSD-2610015016.A2 2610015016	£12.04	£14.45
79 - HOLDING PLATE BSD-2610015017.A6 2610015017	£13.12	£15.75
80 - SCREW BSD-2610015018.A2 2610015018	£1.66	£1.99
81 - KEY BSD-2610015019.A6 2610015019	£8.67	£10.41
82 - BEARING COVER BSD-2610911566.A17 2610911566	£2.80	£3.36
83 - NUT BSD-2610015021.A2 2610015021	£1.75	£2.10
84 - WORKPIECE PUSHER BSD-2610015022.A10 2610015022	£6.52	£7.83
86 - SUPPORT BRACKET BSD-2610017007.A5 2610017007	£2.61	£3.13
87 - SCREW BSD-2610010404.A6 2610010404	£1.75	£2.10
88 - SCALE BSD-2610017009.A5 2610017009	£2.61	£3.13
102 - SCREW BSD-1609902670.A3 1609902670	£1.75	£2.10
103 - NUT BSD-2610327868.A19 2610327868	£1.75	£2.10
109 - SCREW BSD-2610998587.A17 2610998587	£1.75	£2.10
112 - END CAP BSD-2610017013.A3 2610017013	£8.67	£10.41
113 - CONNECTOR BSD-2610911933.A8 2610911933	£1.75	£2.10
117 - SCREW BSD-2610018983.A9 2610018983	-
118 - SPRING WASHER BSD-2610950042.A5 2610950042	£1.75	£2.10
119 - COVER BSD-2610017014.A5 2610017014	£16.41	£19.69
120 - SCREW BSD-2610950044.A3 2610950044	£1.75	£2.10
121 - BALL BEARING BSD-2610996949.A21 2610996949	£14.91	£17.89
122 - FILTER BSD-2610017115.A1 2610017115	£21.52	£25.83
123 - SPRING RETAINING RING BSD-2610997281.A28 2610997281	£1.75	£2.10
124 - SCREW BSD-2610998572.A5 2610998572	£1.75	£2.10
125 - TORSION SPRING BSD-2610996875.A16 2610996875	£1.75	£2.10
126 - LOCKING LEVER BSD-2610996874.A11 2610996874	£11.30	£13.56
127 - SHOULDER SCREW BSD-2610996876.A11 2610996876	£1.75	£2.10
128 - SCREW BSD-2610998588.A10 2610998588	£1.75	£2.10
129 - INSERT BSD-2610017111.A3 2610017111	£31.64	£37.97
130 - GEAR HOUSING BSD-2610017017.A6 2610017017	£59.53	£71.44
131 - RETAINING RING BSD-2610937293.A19 2610937293	£1.75	£2.10
132 - SLIDING PLATE BSD-1600A00726.A3 1600A00726	£1.75	£2.10
133 - SCREW BSD-2610950108.A8 2610950108	£1.75	£2.10
134 - SUPPORT PLATE BSD-2610015027.A8 2610015027	£1.75	£2.10
136 - RETAINING CLIP BSD-2610017008.A2 2610017008	£3.72	£4.47
137 - TABLE BSD-2610017019.A6 2610017019	£306.65	£367.98
138 - MOUNTING RAIL BSD-1600A00724.A12 1600A00724	£2.16	£2.59
140 - SET SCREW BSD-1609902054.A21 1609902054	£1.75	£2.10
141 - SCREW BSD-2610911929.A34 2610911929	£1.75	£2.10
142 - SELF-LOCKING NUT BSD-2610911901.A18 2610911901	£1.75	£2.10
143 - INSERT BSD-2610911569.A24 2610911569	£2.61	£3.13
144 - RUBBER RING BSD-2610996948.A6 2610996948	£1.75	£2.10
145 - SCREW BSD-2610950071.A4 2610950071	£1.75	£2.10
146 - END CAP BSD-2610015030.A0 2610015030	£1.75	£2.10
147 - BRUSH-COVER dia 20mm BSD-2610911859.A14 2610911859	£2.16	£2.59
149 - SPRING RETAINING RING BSD-2610015031.A8 2610015031	£1.75	£2.10
150 - BEARING SLEEVE BSD-2610996932.A21 2610996932	£2.61	£3.13
151 - VACUUM CONNECTION BSD-2610017001.A2 2610017001	£5.58	£6.70
152 - BALL BEARING BSD-2610997210.A5 2610997210	£14.91	£17.89
153 - SPRING RETAINING RING BSD-2610997282.A6 2610997282	£1.75	£2.10
154 - SPINDLE BSD-2610017021.A6 2610017021	£31.64	£37.97
155 - WOODRUFF KEY BSD-2610012984.A7 2610012984	£1.75	£2.10
156 - TOOTHED GEAR BSD-2610997208.A22 2610997208	£37.27	£44.72
157 - BUSHING BSD-2610017018.A2 2610017018	£3.72	£4.47
158 - SPRING RETAINING RING BSD-2610998573.A6 2610998573	£1.75	£2.10
159 - SET SCREW BSD-2610950427.A3 2610950427	£1.75	£2.10
160 - CHAIN BSD-2610017022.A2 2610017022	£1.75	£2.10
161 - MOUNTING BRACKET BSD-2610950126.A8 2610950126	£8.67	£10.41
162 - BUSHING BSD-2610950070.A4 2610950070	£1.75	£2.10
163 - SUPPORT BRACKET BSD-2610015035.A0 2610015035	£8.67	£10.41
164 - FASTENING PARTS KIT BSD-2610017023.A6 2610017023	£14.91	£17.89
165 - HOLDING PLATE BSD-2610017024.A2 2610017024	£68.42	£82.10
166 - ROD BSD-2610017025.A6 2610017025	£13.12	£15.75
167 - BOLT BSD-2610015038.A8 2610015038	£1.75	£2.10
168 - WASHER BSD-2610015039.A0 2610015039	£1.75	£2.10
169 - SUPPORT PLATE BSD-2610015040.A8 2610015040	£4.26	£5.11
170 - SCREW BSD-2610950055.A5 2610950055	£1.75	£2.10
171 - ROD BSD-2610017026.A2 2610017026	£8.67	£10.41
172 - BEVEL GEAR BSD-2610015042.A0 2610015042	£3.23	£3.88
173 - WASHER BSD-2610013162.A7 2610013162	£1.75	£2.10
174 - BUSHING BSD-2610015043.A8 2610015043	£1.75	£2.10
175 - WASHER BSD-2610015044.A0 2610015044	£1.75	£2.10
176 - FASTENING PARTS KIT BSD-2610017020.A2 2610017020	£21.68	£26.01
177 - SCREW BSD-2610015045.A8 2610015045	£1.75	£2.10
178 - SHAFT BSD-2610017027.A6 2610017027	£8.67	£10.41
179 - SUPPORT PLATE BSD-2610015047.A0 2610015047	£5.30	£6.36
180 - BUSHING BSD-2610015048.A8 2610015048	£1.75	£2.10
181 - WASHER BSD-2610016557.A2 2610016557	£1.75	£2.10
182 - NUT BSD-2610016558.A6 2610016558	£1.75	£2.10
183 - BUSHING BSD-2610015049.A0 2610015049	£7.36	£8.83
184 - SET SCREW BSD-2610013053.A8 2610013053	£1.75	£2.10
185 - SCREW BSD-2610016559.A2 2610016559	£1.75	£2.10
186 - COVER BSD-2610015050.A8 2610015050	-
187 - SCREW BSD-2610950049.A7 2610950049	£1.75	£2.10
188 - SPEED GOVERNOR 115-120V BSD-2610997306.A2 2610997306	£63.50	£76.20
189 - DUST-COVER HOLDER BSD-2610015051.A0 2610015051	£10.10	£12.12
190 - SCREW BSD-2610015052.A8 2610015052	£1.75	£2.10
191 - SPRING RETAINING RING BSD-2610015053.A0 2610015053	£1.75	£2.10
192 - RETAINING CLIP BSD-2610017028.A2 2610017028	£1.75	£2.10
193 - STUD BOLT BSD-2610016560.A6 2610016560	£1.75	£2.10
194 - SCREW BSD-2610016561.A2 2610016561	£1.75	£2.10
195 - NUT BSD-2610925187.A4 2610925187	£1.75	£2.10
196 - GUARD PLATE BSD-2610015055.A0 2610015055	£1.75	£2.10
197 - SCREW BSD-2610950132.A5 2610950132	£1.75	£2.10
198 - PLATE BSD-2610015073.A7 2610015073	£8.67	£10.41
200 - SCREW BSD-2610017029.A6 2610017029	£1.75	£2.10
201 - SPRING CLIP BSD-2610017030.A2 2610017030	£1.75	£2.10
202 - SAFETY GUARD BSD-2610017033.A6 2610017033	£3.72	£4.47
203 - SCREW BSD-2610950439.A5 2610950439	£1.75	£2.10
204 - GUARD PLATE BSD-2610015054.A8 2610015054	£8.67	£10.41
205 - ROD BSD-2610016562.A6 2610016562	£1.75	£2.10
206 - CONTACT STRAP BSD-2610016563.A2 2610016563	£1.75	£2.10
207 - PLATE BSD-2610923830.A4 2610923830	£1.75	£2.10
208 - SCREW BSD-2610010404.A4 2610010404	£1.75	£2.10
209 - SCREW BSD-2610017031.A6 2610017031	£1.75	£2.10
210 - WASHER BSD-2610015058.A8 2610015058	£1.75	£2.10
211 - RUBBER BUSHING BSD-2610911920.A13 2610911920	£1.32	£1.58
212 - WRENCH SOCKET BSD-2610015059.A0 2610015059	£1.75	£2.10
213 - HOLDING PLATE BSD-2610017032.A2 2610017032	£40.80	£48.96
214 - WASHER BSD-2610017110.A6 2610017110	£2.16	£2.59
215 - PLAIN WASHER BSD-2610347092.A9 2610347092	£1.75	£2.10
216 - INSULATOR BSD-2610017046.A2 2610017046	£3.72	£4.47
217 - BUSHING BSD-2610015061.A8 2610015061	£2.61	£3.13
218 - HANDLE BSD-2610015062.A0 2610015062	£7.36	£8.83
219 - NUT BSD-2610924961.A4 2610924961	£1.75	£2.10
220 - SCREW BSD-2610015359.A1 2610015359	£1.75	£2.10
221 - CAM BSD-1600A00725.A0 1600A00725	£1.95	£2.34
223 - SCREW BSD-2610950049.A6 2610950049	£1.75	£2.10
225 - POINTER BSD-2610015064.A1 2610015064	£2.16	£2.59
226 - SCREW BSD-2610015065.A23 2610015065	£1.75	£2.10
227 - CONTACT STRAP BSD-2610013054.A0 2610013054	£1.75	£2.10
228 - SWITCH HOUSING BSD-2610015066.A1 2610015066	£5.58	£6.70
229 - SPRING BSD-2610015067.A7 2610015067	£1.75	£2.10
230 - FIXING PLATE BSD-2610996912.A21 2610996912	£5.58	£6.70
231 - SLIDING RAIL BSD-2610015091.A1 2610015091	£45.67	£54.80
234 - SCREW BSD-2610951945.A3 2610951945	£1.75	£2.10
235 - CLAMPING FLANGE BSD-1609203K93.A15 1609203K93	£12.04	£14.45
237 - WASHER BSD-2610950046.A9 2610950046	£12.04	£14.45
238 - NUT BSD-2610358858.A23 2610358858	£2.61	£3.13
239 - HANDWHEEL BSD-2610015069.A1 2610015069	£10.10	£12.12
242 - HANDLE BSD-2610950059.A8 2610950059	£1.75	£2.10
243 - SCREW BSD-2610950060.A4 2610950060	£1.95	£2.34
244 - WASHER BSD-2610950389.A11 2610950389	£1.75	£2.10
248 - SAFETY COVER BSD-2610017034.A2 2610017034	£3.72	£4.47
252 - MITRE FENCE BSD-2610017035.A6 2610017035	£23.86	£28.63
253 - ROD BSD-2610017036.A2 2610017036	£1.75	£2.10
254 - SCREW BSD-2610017052.A2 2610017052	£1.75	£2.10
256 - SCREW BSD-2610998580.A27 2610998580	£1.75	£2.10
257 - NUT BSD-2610017038.A1 2610017038	£1.75	£2.10
258 - SCREW BSD-2610015070.A7 2610015070	£1.75	£2.10
259 - CONTACT STRAP BSD-2610016565.A6 2610016565	£1.75	£2.10
260 - SAFETY COVER BSD-2610017039.A7 2610017039	£11.30	£13.56
261 - SWITCH HOUSING BSD-2610015071.A1 2610015071	£2.61	£3.13
262 - CONNECTING CABLE BSD-2610017040.A1 2610017040	£6.61	£7.93
263 - MITRE FENCE BSD-2610017041.A6 2610017041	£27.23	£32.68
264 - RAIL BSD-2610015074.A1 2610015074	£40.80	£48.96
265 - WASHER BSD-2610015075.A7 2610015075	£1.75	£2.10
266 - DEVICE CAP BSD-2610015076.A1 2610015076	£1.75	£2.10
267 - BOLT BSD-2610950134.A15 2610950134	£1.75	£2.10
269 - PLATE BSD-2610015077.A7 2610015077	£3.72	£4.47
270 - SCREW BSD-2610950117.A4 2610950117	£1.75	£2.10
271 - SPRING WASHER BSD-2610013365.A0 2610013365	£1.75	£2.10
273 - SCREW BSD-2610015080.A7 2610015080	£1.75	£2.10
274 - WASHER BSD-2610950135.A3 2610950135	£1.75	£2.10
275 - WASHER BSD-2610016566.A2 2610016566	£1.75	£2.10
279 - PROTECTIVE COVER BSD-2610018328.A6 2610018328	£23.86	£28.63
280 - MITRE FENCE BSD-2610017047.A6 2610017047	£102.57	£123.08
281 - MITRE GAUGE BSD-2610015507.A7 2610015507	£27.23	£32.68
283 - HEXAGON SOCKET WRENCH BSD-2610016567.A6 2610016567	£1.75	£2.10
285 - SERRATED LOCK-WASHER BSD-2610023174.A3 2610023174	£1.75	£2.10
286 - LOCK BSD-2610015093.A7 2610015093	£33.74	£40.49
287 - BASE BSD-2610017048.A2 2610017048	£179.37	£215.24
288 - RIVING KNIFE BSD-2610017049.A6 2610017049	£59.53	£71.44
289 - ROD BSD-2610017050.A2 2610017050	£1.75	£2.10
290 - WASHER BSD-2610950389.A10 2610950389	£1.75	£2.10
291 - WASHER BSD-2610017051.A6 2610017051	£1.75	£2.10
292 - WASHER BSD-2610950109.A4 2610950109	£1.75	£2.10
293 - SCREW BSD-2610950108.A9 2610950108	£1.75	£2.10
294 - HOLDER BSD-2610017053.A5 2610017053	£10.10	£12.12
295 - HOLDER BSD-2610017054.A3 2610017054	£10.10	£12.12
296 - SCREW BSD-2610015065.A24 2610015065	£1.75	£2.10
297 - WASHER BSD-2610015001.A1 2610015001	£1.75	£2.10
298 - ROD BSD-2610017056.A5 2610017056	£1.75	£2.10
299 - SCREW BSD-2610017057.A3 2610017057	£1.75	£2.10
300 - TORSION SPRING BSD-2610017058.A5 2610017058	£1.75	£2.10
301 - SCREW BSD-2610015065.A25 2610015065	£1.75	£2.10
302 - SAFETY GUARD BSD-2610017060.A3 2610017060	£2.61	£3.13
303 - CABLE CLIP BSD-1609203K96.A23 1609203K96	£1.75	£2.10
305 - BAFFLE BSD-2610020858.A6 2610020858	£2.61	£3.13
343 - CABLE CLIP BSD-2610020856.A3 2610020856	£1.75	£2.10
344 - CABLE CLIP BSD-2610020859.A2 2610020859	£1.75	£2.10
808 - NAMEPLATE BSD-1619PB2519.A0 1619PB2519	-

Attribute Name	Value
Brand	Bosch

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Bosch GTS 10 J / 3601M30561 / GB 110 Volt Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Bosch GTS 10 J / 3601M30561 / GB 110 Volt Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Bosch GTS 10 J / 3601M30561 / GB 110 Volt Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
