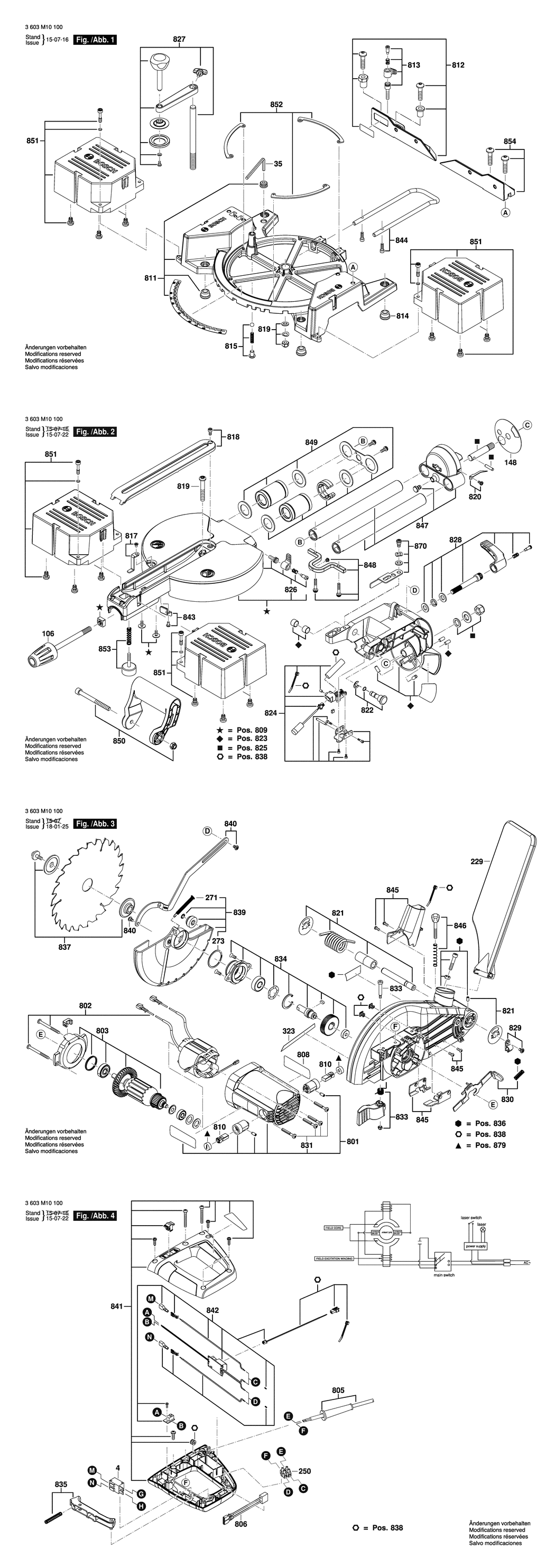

An exploded drawing and listing for the Bosch PCM 8 S / 3603M10170 / GB 230 Volt
Ex VAT Inc VAT
4 - SWITCH BSD-2609007299.A2 2609007299 £10.10 £12.12
35 - HEXAGON SOCKET SCREW KEY BSD-1609BP7026.A11 1609BP7026 £2.80 £3.36
106 - KNOB BSD-1609B01840.A3 1609B01840 £5.58 £6.70
148 - WEAR PLATE BSD-1609BP7351.A5 1609BP7351 £1.75 £2.10
229 - DUST BAG BSD-1609BP7021.A4 1609BP7021 £13.12 £15.75
250 - CONNECTION BLOCK BSD-1609BP7059.A66 1609BP7059 £1.75 £2.10
271 - CONTACT STRAP BSD-1609B02674.A6 1609B02674 £1.75 £2.10
273 - SPRING RETAINING RING BSD-1609BP7049.A1 1609BP7049 £1.75 £2.10
323 - LABEL BSD-1609B02651.A0 1609B02651 £2.61 £3.13
801 - MOTOR HOUSING BSD-1609B02531.A2 1609B02531 £14.91 £17.89
802 - STATOR 230V BSD-1609BP7171.A7 1609BP7171 £40.80 £48.96
803 - ARMATURE BSD-1609B02194.A0 1609B02194 £48.38 £58.06
805 - POWER SUPPLY CORD BSD-1609BP7206.A2 1609BP7206 £18.96 £22.75
806 - SUPPRESSION CAPACITOR BSD-1609B02703.A6 1609B02703 £1.75 £2.10
808 - NAMEPLATE BSD-1609BN0152.A0 1609BN0152 £2.61 £3.13
809 - TABLE BSD-1609B02735.A0 1609B02735 £59.53 £71.44
810 - CARBON-BRUSH SET BSD-1609BP7209.A12 1609BP7209 £11.30 £13.56
811 - BASE UNIT BSD-1609B02734.A3 1609B02734 £54.42 £65.30
812 - MITRE FENCE BSD-1609B02705.A6 1609B02705 £18.96 £22.75
813 - KNOB BSD-1609B02706.A0 1609B02706 £2.61 £3.13
814 - RUBBER BUSHING BSD-1609B02707.A6 1609B02707 £2.16 £2.59
815 - BALL BSD-1609B02708.A0 1609B02708 £1.75 £2.10
817 - POINTER BSD-1609B02737.A3 1609B02737 £1.75 £2.10
818 - INSERT BSD-1609B02764.A0 1609B02764 £2.16 £2.59
819 - FASTENING PARTS KIT BSD-1609B02738.A3 1609B02738 £1.75 £2.10
820 - POINTER BSD-1609B02745.A0 1609B02745 £1.75 £2.10
821 - TORSION SPRING BSD-1609B02714.A6 1609B02714 £12.04 £14.45
822 - KNOB BSD-1609B02715.A0 1609B02715 £1.75 £2.10
823 - SUPPORT ELEMENT BSD-1609B02739.A0 1609B02739 -
824 - LASER MODULE BSD-1609B02251.A3 1609B02251 £14.91 £17.89
825 - SHAFT BSD-1609BP7383.A6 1609BP7383 £2.52 £3.02
826 - KNOB BSD-1609B02618.A0 1609B02618 £2.61 £3.13
827 - CLAMP BSD-1609B02603.A0 1609B02603 £10.10 £12.12
828 - LOCKING LEVER BSD-1609B02661.A0 1609B02661 £6.52 £7.83
829 - CLAMPING PIECE BSD-1609BP7192.A12 1609BP7192 £2.61 £3.13
830 - LOCKING DEVICE BSD-1609BP7193.A0 1609BP7193 £5.58 £6.70
831 - TAPPING SCREW BSD-1609BP7211.A6 1609BP7211 £1.75 £2.10
833 - LOCKING DEVICE BSD-1609BP7194.A12 1609BP7194 £5.58 £6.70
834 - GEAR BSD-1609BP7197.A6 1609BP7197 £21.68 £26.01
835 - TRIGGER BSD-1609BP7200.A12 1609BP7200 £1.75 £2.10
836 - HOUSING BSD-1609B02740.A3 1609B02740 £40.80 £48.96
837 - FLANGE BSD-1609B02726.A9 1609B02726 £7.36 £8.83
838 - CABLE BSD-1609B02727.A0 1609B02727 £4.26 £5.11
839 - PROTECTIVE COVER BSD-1609B02728.A6 1609B02728 £11.30 £13.56
840 - LINKAGE BSD-1609B02763.A3 1609B02763 £5.58 £6.70
841 - SET OF HANDLES BSD-1609B02730.A6 1609B02730 £8.67 £10.41
842 - POWER SUPPLY BSD-1609B02678.A6 1609B02678 £23.86 £28.63
843 - LEAF SPRING BSD-1609B02731.A0 1609B02731 £1.75 £2.10
844 - BAR BSD-1609B02732.A9 1609B02732 £5.30 £6.36
845 - CHUTE BSD-1609B02733.A0 1609B02733 £4.26 £5.11
846 - KNOB BSD-1609B02743.A0 1609B02743 £1.75 £2.10
847 - YOKE BSD-1609B02744.A3 1609B02744 £31.64 £37.97
848 - PLATE BSD-1609B02746.A3 1609B02746 £3.72 £4.47
849 - BEARING BSD-1609B02748.A0 1609B02748 £23.86 £28.63
850 - CARRYING HANDLE BSD-1609B02749.A3 1609B02749 £3.72 £4.47
851 - EXTENSION STAND BSD-1609B02750.A0 1609B02750 £10.10 £12.12
852 - SLIDING PLATE BSD-1609B02736.A3 1609B02736 £3.72 £4.47
853 - SUPPORT BSD-1609BP7393.A3 1609BP7393 £1.75 £2.10
854 - MITRE FENCE BSD-1609B02617.A6 1609B02617 £16.41 £19.69
870 - PLATE BSD-1609B02645.A0 1609B02645 £2.16 £2.59
879 - COVER BSD-1609BP7212.A6 1609BP7212 £1.75 £2.10
