Bostitch 21671B-LN-E Type Rev 1 Stapler Spare Parts

Home Details Reviews Delivery

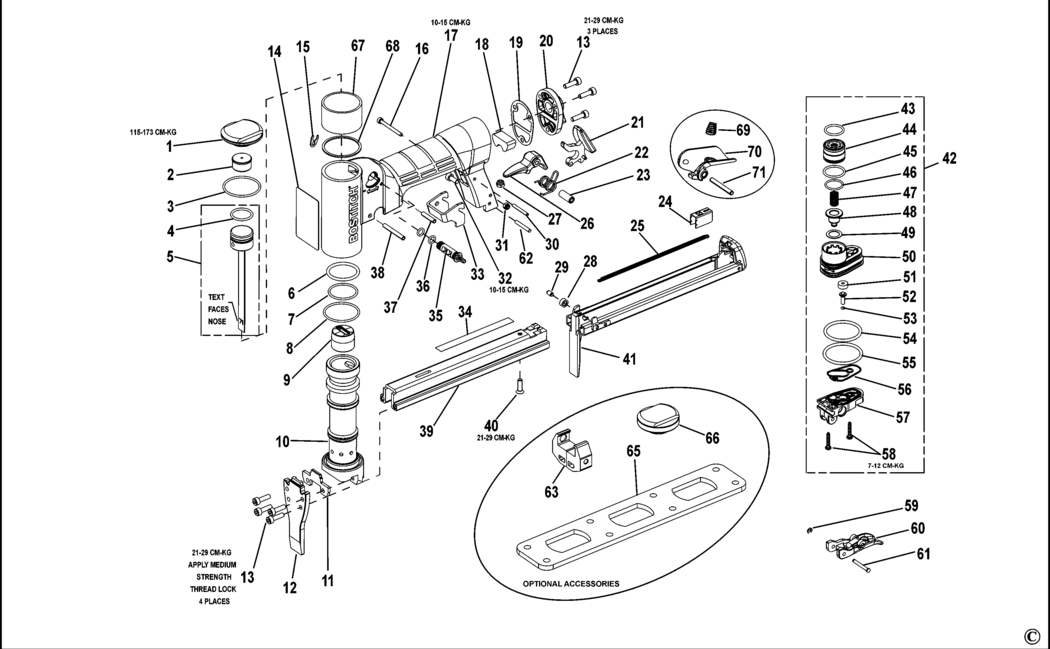

An exploded drawing and spare parts listing for the Bostitch 21671B-LN-E Type Rev 1 Stapler

	Ex VAT	Inc VAT
1 - CAP BDE-174288.A5 174288	£9.41	£11.29
2 - BUMPER BDE-174289.A14 174289	£1.50	£1.80
3 - O RING BDE-100353.A16 100353	£1.50	£1.80
4 - O RING BDE-174308.A11 174308	£1.50	£1.80
5 - DRIVER SA BDE-174327.A0 174327	£14.57	£17.48
6 - O RING BDE-174309.A1 174309	£1.50	£1.80
7 - O RING BDE-174310.A31 174310	£1.50	£1.80
8 - O RING BDE-1FA0026.A10 1FA0026	£1.50	£1.80
9 - BUMPER BDE-174100.A0 174100	£12.17	£14.60
10 - SLEEVE BDE-174324.A0 174324	£44.14	£52.97
11 - GUIDE BDE-174099.A11 174099	£1.50	£1.80
12 - NOSE BDE-174351 174351	£10.85	£13.02
13 - BOLT BDE-174306.A22 174306	£1.50	£1.80
15 - RETAINER BDE-174290.A12 174290	£1.50	£1.80
16 - HOUSING BDE-174265.A2 174265	£55.30	£66.36
17 - SCREW BDE-174274.A4 174274	£1.50	£1.80
18 - MUFFLER BDE-174266.A10 174266	£1.82	£2.19
19 - GASKET BDE-174295.A20 174295	£1.50	£1.80
20 - END CAP BDE-174296.A11 174296	£3.30	£3.96
21 - LATCH BDE-174273.A3 174273	£3.30	£3.96
22 - SPRING TORSION BDE-174301.A7 174301	£1.50	£1.80
23 - SPRING BDE-174302.A19 174302	£1.50	£1.80
24 - PUSHER BDE-174292.A2 174292	£1.50	£1.80
25 - SPRING BDE-174291.A10 174291	£1.50	£1.80
26 - LATCH BDE-174297.A17 174297	£1.50	£1.80
27 - NUT M4 BDE-MHE4070-100.A35 MHE4070-100	£1.50	£1.80
28 - ROLLER BDE-174293.A14 174293	£1.50	£1.80
29 - PIN BDE-174294.A2 174294	£1.50	£1.80
30 - PIN BDE-174303.A8 174303	£1.50	£1.80
31 - NUT BDE-MHE3050-100.A36 MHE3050-100	£1.50	£1.80
32 - SCREW BDE-MSC4070-10.A13 MSC4070-10	£1.50	£1.80
33 - STOP PLATE BDE-174264.A3 174264	£1.50	£1.80
35 - VALVE BDE-174287.A10 174287	£1.50	£1.80
36 - O RING BDE-174311.A1 174311	£1.50	£1.80
37 - PIN BDE-174304.A19 174304	£1.50	£1.80
38 - PIN BDE-174305.A8 174305	£1.50	£1.80
39 - MAGAZINE BDE-174101.A2 174101	£14.57	£17.48
40 - SCREW BDE-174307.A9 174307	£1.50	£1.80
41 - MAGAZINE SA BDE-174342 174342	£24.39	£29.27
42 - VALVE BDE-TVA13.A0 TVA13	£14.57	£17.48
43 - O RING BDE-86459.A41 86459	£1.50	£1.80
44 - VALVE BDE-174278.A8 174278	£5.88	£7.06
45 - O RING BDE-174312.A31 174312	£1.50	£1.80
46 - O RING BDE-102163.A30 102163	£12.17	£14.60
47 - SPRING COMPRESSION BDE-174280.A8 174280	£1.50	£1.80
48 - SEAL BDE-174279.A21 174279	£1.50	£1.80
49 - WASHER BDE-174281.A23 174281	£7.85	£9.42
50 - HOUSING BDE-174277.A19 174277	£3.80	£4.56
51 - SEAL BDE-174282.A5 174282	£1.50	£1.80
52 - SHAFT BDE-174283.A22 174283	£1.50	£1.80
53 - O RING BDE-174313.A2 174313	£1.50	£1.80
54 - O RING BDE-108467.A11 108467	£7.85	£9.42
55 - O RING BDE-100817.A39 100817	£1.50	£1.80
56 - SEAL BDE-174284.A6 174284	£1.50	£1.80
57 - HOUSING BDE-174276.A5 174276	£1.50	£1.80
58 - SCREW BDE-174285.A22 174285	£1.50	£1.80
59 - RETAINER BDE-174298.A2 174298	£1.50	£1.80
60 - TRIGGER BDE-174269.A48 174269	£2.26	£2.71
61 - PIN BDE-174268.A3 174268	£1.50	£1.80
62 - PIN BDE-174326.A1 174326	£1.50	£1.80
63 - GAUGE BDE-174267.A20 174267	£5.88	£7.06
65 - WRENCH SPECIAL BDE-174322.A2 174322	£7.85	£9.42
66 - CAP BDE-174323.A20 174323	£10.85	£13.02
67 - SPACER BDE-174329.A5 174329	£4.69	£5.63
68 - GASKET BDE-174328.A3 174328	-
69 - SPRING COMPRESSION BDE-174300.A12 174300	£1.50	£1.80
70 - TRIGGER BDE-9R209571.A12 9R209571	£1.50	£1.80
71 - ROLL PIN BDE-189985.A2 189985	£1.50	£1.80

Attribute Name	Value
Brand	Bostitch
