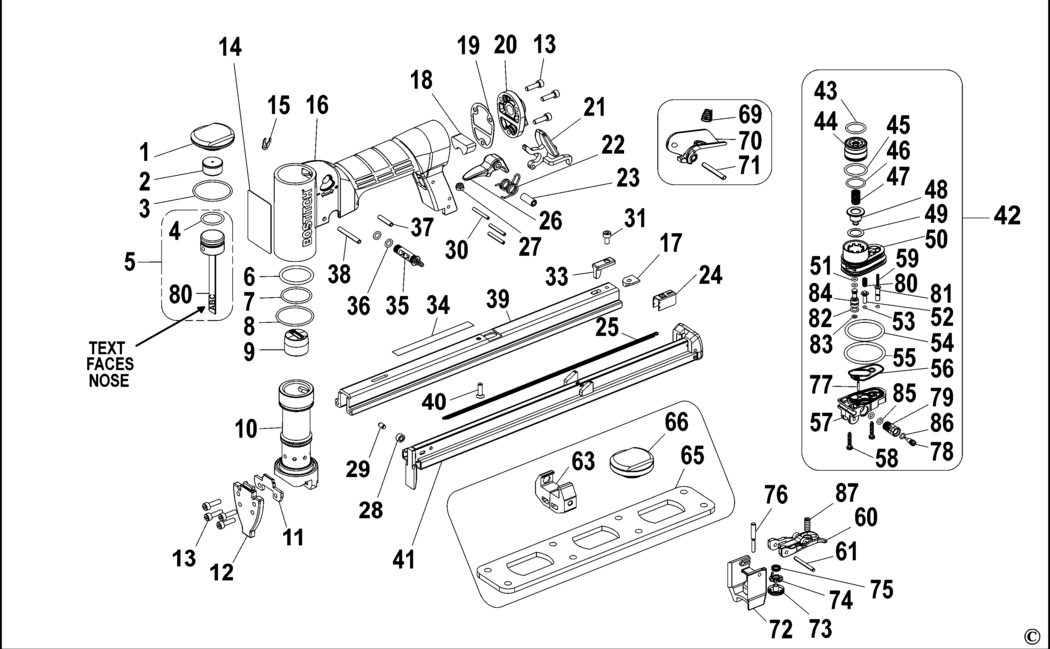

An exploded drawing and spare parts listing for the Bostitch 21680B-ALM-E Type REV A Pneumatic Stapler
Ex VAT Inc VAT
1 - CAP BDE-174288.A7 174288 £9.41 £11.29
2 - BUMPER BDE-174289.A12 174289 £1.50 £1.80
3 - O RING BDE-100353.A20 100353 £1.50 £1.80
4 - O RING BDE-174308.A7 174308 £1.50 £1.80
5 - DRIVER SA Incl. #4 BDE-177715.A5 177715 £12.17 £14.60
6 - O RING BDE-174309.A16 174309 £1.50 £1.80
7 - O RING BDE-174310.A18 174310 £1.50 £1.80
8 - O RING BDE-851349.A3 851349 £1.50 £1.80
9 - BUMPER BDE-174100.A7 174100 £12.17 £14.60
10 - SLEEVE BDE-174098.A5 174098 £38.80 £46.56
11 - GUIDE BDE-174099.A4 174099 £1.50 £1.80
12 - NOSE BDE-174263.A3 174263 £7.18 £8.62
13 - BOLT BDE-174306.A18 174306 £1.50 £1.80
14 - LABEL Warning BDE-159831.A4 159831 £1.50 £1.80
15 - RETAINER BDE-174290.A14 174290 £1.50 £1.80
17 - NUT BDE-177722.A1 177722 £1.50 £1.80
18 - MUFFLER BDE-174266.A6 174266 £1.82 £2.19
19 - GASKET BDE-174295.A18 174295 £1.50 £1.80
20 - END CAP BDE-174296.A13 174296 £3.30 £3.96
21 - LATCH BDE-174357.A5 174357 £10.85 £13.02
22 - SPRING TORSION BDE-174301.A10 174301 £1.50 £1.80
23 - SPRING BDE-174302.A16 174302 £1.50 £1.80
24 - PUSHER BDE-177723.A0 177723 £1.50 £1.80
25 - SPRING BDE-174356.A0 174356 £1.50 £1.80
26 - LATCH BDE-174297.A15 174297 £1.50 £1.80
27 - NUT M4 BDE-MHE4070-100.A1 MHE4070-100 £1.50 £1.80
28 - ROLLER BDE-174293.A12 174293 £1.50 £1.80
29 - PIN BDE-177740.A5 177740 £1.50 £1.80
30 - PIN BDE-174303.A11 174303 £1.50 £1.80
31 - SCREW BDE-MSC4070-8.A21 MSC4070-8 £1.50 £1.80
33 - STOP BDE-174355.A3 174355 £3.80 £4.56
34 - IDENTITY LABEL BDE-174317.A1 174317 £1.50 £1.80
35 - VALVE BDE-174287.A8 174287 £1.50 £1.80
36 - O RING BDE-174311.A12 174311 £1.50 £1.80
37 - PIN BDE-174304.A16 174304 £1.50 £1.80
38 - PIN BDE-174305.A11 174305 £1.50 £1.80
39 - MAGAZINE BDE-177730.A1 177730 £16.03 £19.24
40 - SCREW BDE-174307.A13 174307 £1.50 £1.80
41 - SLIDER BDE-177709.A1 177709 £30.08 £36.10
42 - TRIGGER BDE-TVA13AF.A4 TVA13AF £19.90 £23.88
43 - O RING BDE-86459.A72 86459 £1.50 £1.80
44 - VALVE BDE-174278.A4 174278 £5.88 £7.06
45 - O RING BDE-174312.A19 174312 £1.50 £1.80
46 - O RING BDE-102163.A34 102163 £12.17 £14.60
47 - SPRING COMPRESSION BDE-174280.A6 174280 £1.50 £1.80
48 - SEAL BDE-174279.A23 174279 £1.50 £1.80
49 - WASHER BDE-174281.A25 174281 £7.85 £9.42
50 - HOUSING BDE-174331.A6 174331 £10.85 £13.02
51 - O RING BDE-174332.A1 174332 £1.50 £1.80
52 - SHAFT BDE-174283.A28 174283 £1.50 £1.80
53 - O RING BDE-174313.A13 174313 £1.50 £1.80
54 - O RING BDE-108467.A21 108467 £7.85 £9.42
55 - O RING BDE-100817.A14 100817 £1.50 £1.80
56 - SEAL BDE-174284.A0 174284 £1.50 £1.80
57 - HOUSING BDE-174341.A5 174341 £1.50 £1.80
58 - SCREW BDE-174285.A28 174285 £1.50 £1.80
59 - SPRING COMPRESSION BDE-174333.A4 174333 £1.50 £1.80
60 - TRIGGER BDE-174343.A1 174343 £3.30 £3.96
61 - PIN BDE-174345.A10 174345 £1.50 £1.80
63 - GAUGE BDE-174267.A23 174267 £5.88 £7.06
65 - WRENCH SPECIAL BDE-174322.A13 174322 £7.85 £9.42
66 - CAP Heavy BDE-174323.A12 174323 £10.85 £13.02
69 - SPRING COMPRESSION 21680B-ALM-E BDE-174300.A10 174300 £1.50 £1.80
70 - TRIGGER 21680B-ALM-E BDE-9R209571.A7 9R209571 £1.50 £1.80
71 - PIN 21680B-ALM-E BDE-177685.A4 177685 £1.50 £1.80
72 - HOUSING BDE-174344.A1 174344 £7.18 £8.62
73 - WHEEL BDE-174346.A1 174346 £1.50 £1.80
74 - RING BDE-174347.A5 174347 £1.50 £1.80
75 - SPRING COMPRESSION BDE-174348.A1 174348 £1.50 £1.80
76 - ROD BDE-174349.A5 174349 £1.50 £1.80
77 - PIN BDE-S0801510000.A2 S0801510000 £1.50 £1.80
78 - VALVE BDE-174314.A2 174314 £1.50 £1.80
79 - HOUSING BDE-174315.A4 174315 £1.50 £1.80
80 - SPRING COMPRESSION BDE-174334.A1 174334 £1.50 £1.80
81 - SHAFT BDE-174335.A6 174335 £1.50 £1.80
82 - SLIDER BDE-174336.A1 174336 £1.50 £1.80
83 - O RING BDE-174337.A5 174337 £1.50 £1.80
84 - O RING BDE-174338.A1 174338 £1.50 £1.80
85 - O RING BDE-174339.A6 174339 £1.50 £1.80
86 - O RING BDE-174340.A1 174340 £1.50 £1.80
87 - SPRING COMPRESSION BDE-174350.A1 174350 £1.50 £1.80
