Bostitch 21680B-E Type Rev 1 Pneumatic Stapler Spare Parts

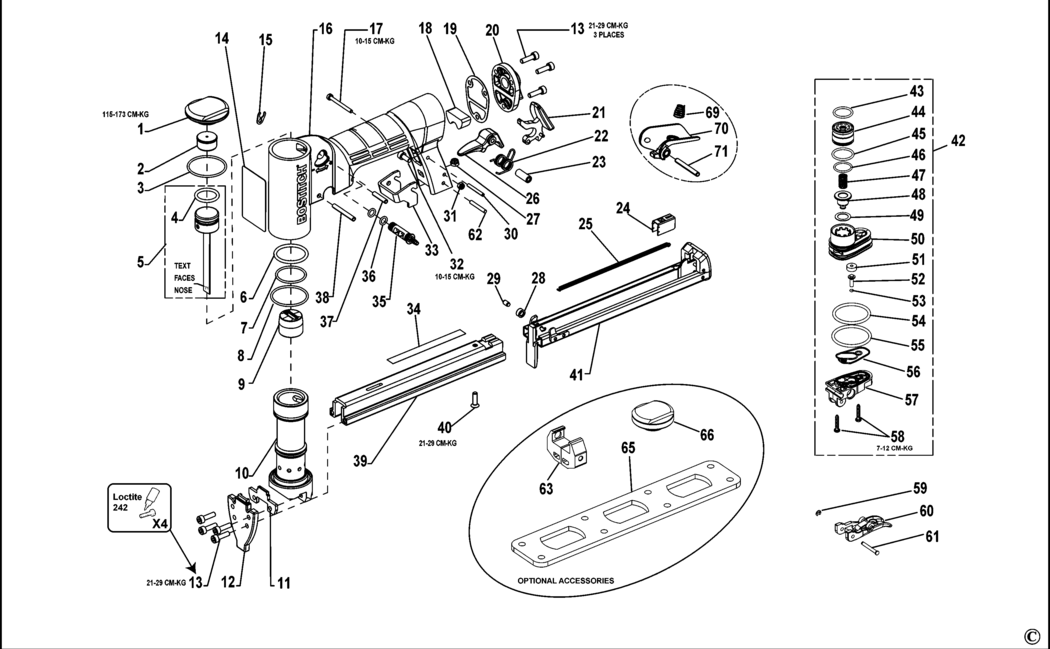

An exploded drawing and spare parts listing for the Bostitch 21680B-E Type Rev 1 Pneumatic Stapler

	Ex VAT	Inc VAT
1 - CAP BDE-174288.A2 174288	£9.41	£11.29
2 - BUMPER BDE-174289.A17 174289	£1.50	£1.80
3 - O RING BDE-100353.A13 100353	£1.50	£1.80
4 - O RING BDE-174308.A8 174308	£1.50	£1.80
5 - DRIVER SA BDE-177712.A0 177712	£12.17	£14.60
5 - DRIVER SA BDE-177715.A3 177715	£12.17	£14.60
6 - O RING BDE-174309.A4 174309	£1.50	£1.80
7 - O RING BDE-174310.A28 174310	£1.50	£1.80
8 - O RING BDE-851349.A8 851349	£1.50	£1.80
9 - BUMPER BDE-174100.A2 174100	£12.17	£14.60
10 - SLEEVE BDE-174098.A1 174098	£38.80	£46.56
11 - GUIDE BDE-174099.A9 174099	£1.50	£1.80
12 - NOSE BDE-174263.A2 174263	£7.18	£8.62
13 - BOLT BDE-174306.A19 174306	£1.50	£1.80
15 - RETAINER BDE-174290.A9 174290	£1.50	£1.80
16 - FRAME SA BDE-9R206603.A2 9R206603	£41.24	£49.49
17 - SCREW BDE-174274.A6 174274	£1.50	£1.80
18 - MUFFLER BDE-174266.A8 174266	£1.82	£2.19
19 - GASKET BDE-174295.A22 174295	£1.50	£1.80
20 - END CAP BDE-174296.A9 174296	£3.30	£3.96
21 - LATCH BDE-174273.A1 174273	£3.30	£3.96
22 - SPRING TORSION BDE-174301.A9 174301	£1.50	£1.80
23 - SPRING BDE-174302.A17 174302	£1.50	£1.80
24 - PUSHER BDE-177723.A3 177723	£1.50	£1.80
25 - SPRING BDE-174291.A11 174291	£1.50	£1.80
26 - LATCH BDE-174297.A19 174297	£1.50	£1.80
27 - NUT M4 BDE-MHE4070-100.A38 MHE4070-100	£1.50	£1.80
28 - ROLLER BDE-174293.A15 174293	£1.50	£1.80
29 - PIN BDE-177740.A7 177740	£1.50	£1.80
30 - PIN BDE-174303.A10 174303	£1.50	£1.80
31 - NUT BDE-MHE3050-100.A33 MHE3050-100	£1.50	£1.80
32 - SCREW BDE-MSC4070-10.A10 MSC4070-10	£1.50	£1.80
33 - STOP PLATE BDE-174264.A1 174264	£1.50	£1.80
35 - VALVE BDE-174287.A12 174287	£1.50	£1.80
36 - O RING BDE-174311.A3 174311	£1.50	£1.80
37 - PIN BDE-174304.A17 174304	£1.50	£1.80
38 - PIN BDE-174305.A10 174305	£1.50	£1.80
39 - MAGAZINE BDE-177729.A2 177729	£10.85	£13.02
40 - SCREW BDE-174307.A11 174307	£1.50	£1.80
41 - SLIDER SA BDE-177707.A2 177707	£19.90	£23.88
42 - VALVE BDE-TVA13.A1 TVA13	£14.57	£17.48
43 - O RING BDE-86459.A40 86459	£1.50	£1.80
44 - VALVE BDE-174278.A6 174278	£5.88	£7.06
45 - O RING BDE-174312.A29 174312	£1.50	£1.80
46 - O RING BDE-102163.A31 102163	£12.17	£14.60
47 - SPRING COMPRESSION BDE-174280.A9 174280	£1.50	£1.80
48 - SEAL BDE-174279.A20 174279	£1.50	£1.80
49 - WASHER BDE-174281.A22 174281	£7.85	£9.42
50 - HOUSING BDE-174277.A18 174277	£3.80	£4.56
51 - SEAL BDE-174282.A6 174282	£1.50	£1.80
52 - SHAFT BDE-174283.A21 174283	£1.50	£1.80
53 - O RING BDE-174313.A3 174313	£1.50	£1.80
54 - O RING BDE-108467.A12 108467	£7.85	£9.42
55 - O RING BDE-100817.A40 100817	£1.50	£1.80
56 - SEAL BDE-174284.A7 174284	£1.50	£1.80
57 - HOUSING BDE-174276.A6 174276	£1.50	£1.80
58 - SCREW BDE-174285.A21 174285	£1.50	£1.80
59 - RETAINER BDE-174298.A3 174298	£1.50	£1.80
60 - TRIGGER BDE-174269.A49 174269	£2.26	£2.71
61 - PIN BDE-174268.A2 174268	£1.50	£1.80
62 - PIN BDE-174326.A0 174326	£1.50	£1.80
63 - GAUGE BDE-174267.A21 174267	£5.88	£7.06
65 - WRENCH SPECIAL BDE-174322.A1 174322	£7.85	£9.42
66 - CAP BDE-174323.A21 174323	£10.85	£13.02
69 - SPRING COMPRESSION BDE-174300.A11 174300	£1.50	£1.80
70 - TRIGGER BDE-9R209571.A13 9R209571	£1.50	£1.80
71 - ROLL PIN BDE-189985.A3 189985	£1.50	£1.80

Attribute Name	Value
Brand	Bostitch
