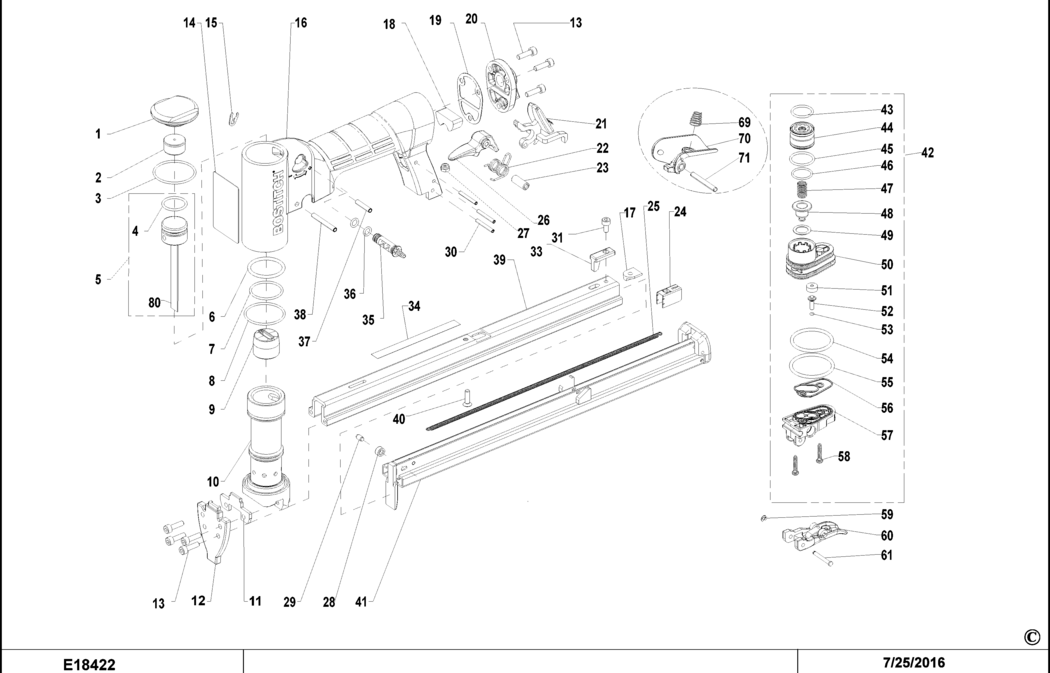

An exploded drawing and spare parts listing for the Bostitch 21680B-LM-E Type REV 0 Stapler
Ex VAT Inc VAT
1 - CAP BDE-174288.A9 174288 £9.41 £11.29
2 - BUMPER BDE-174289.A8 174289 £1.50 £1.80
3 - O RING BDE-100353.A24 100353 £1.50 £1.80
4 - O RING BDE-174308.A5 174308 £1.50 £1.80
5 - DRIVER SA BDE-177715.A4 177715 £12.17 £14.60
6 - O RING BDE-174309.A18 174309 £1.50 £1.80
7 - O RING BDE-174310.A16 174310 £1.50 £1.80
8 - O RING BDE-851349.A2 851349 £1.50 £1.80
9 - BUMPER BDE-174100.A6 174100 £12.17 £14.60
10 - SLEEVE BDE-174098.A4 174098 £38.80 £46.56
11 - GUIDE BDE-174099.A5 174099 £1.50 £1.80
12 - NOSE BDE-174263.A4 174263 £7.18 £8.62
13 - BOLT BDE-174306.A12 174306 £1.50 £1.80
14 - LABEL BDE-159831.A3 159831 £1.50 £1.80
15 - RETAINER BDE-174290.A21 174290 £1.50 £1.80
16 - HOUSING BDE-174265.A6 174265 £55.30 £66.36
17 - NUT BDE-177722.A0 177722 £1.50 £1.80
18 - MUFFLER BDE-174266.A0 174266 £1.82 £2.19
19 - GASKET BDE-174295.A14 174295 £1.50 £1.80
20 - END CAP BDE-174296.A17 174296 £3.30 £3.96
21 - LATCH BDE-174357.A4 174357 £10.85 £13.02
22 - SPRING TORSION BDE-174301.A16 174301 £1.50 £1.80
23 - SPRING BDE-174302.A10 174302 £1.50 £1.80
24 - PUSHER BDE-177723.A1 177723 £1.50 £1.80
25 - SPRING BDE-174356.A1 174356 £1.50 £1.80
26 - LATCH BDE-174297.A11 174297 £1.50 £1.80
27 - NUT M4 BDE-MHE4070-100.A16 MHE4070-100 £1.50 £1.80
28 - ROLLER BDE-174293.A9 174293 £1.50 £1.80
29 - PIN BDE-177740.A3 177740 £1.50 £1.80
30 - PIN BDE-174303.A18 174303 £1.50 £1.80
31 - SCREW BDE-MSC4070-8.A18 MSC4070-8 £1.50 £1.80
33 - STOP BDE-174355.A2 174355 £3.80 £4.56
35 - VALVE BDE-174287.A6 174287 £1.50 £1.80
36 - O RING BDE-174311.A15 174311 £1.50 £1.80
37 - PIN BDE-174304.A11 174304 £1.50 £1.80
38 - PIN BDE-174305.A16 174305 £1.50 £1.80
39 - MAGAZINE BDE-177730.A0 177730 £16.03 £19.24
40 - SCREW BDE-174307.A16 174307 £1.50 £1.80
41 - SLIDER BDE-177709.A0 177709 £30.08 £36.10
42 - VALVE BDE-TVA13.A11 TVA13 £14.57 £17.48
43 - O RING BDE-86459.A58 86459 £1.50 £1.80
44 - VALVE BDE-174278.A1 174278 £5.88 £7.06
45 - O RING BDE-174312.A16 174312 £1.50 £1.80
46 - O RING BDE-102163.A36 102163 £12.17 £14.60
47 - SPRING COMPRESSION BDE-174280.A1 174280 £1.50 £1.80
48 - SEAL BDE-174279.A25 174279 £1.50 £1.80
49 - WASHER BDE-174281.A27 174281 £7.85 £9.42
50 - HOUSING BDE-174277.A21 174277 £3.80 £4.56
51 - SEAL BDE-174282.A1 174282 £1.50 £1.80
52 - SHAFT BDE-174283.A25 174283 £1.50 £1.80
53 - O RING BDE-174313.A15 174313 £1.50 £1.80
54 - O RING BDE-108467.A19 108467 £7.85 £9.42
55 - O RING BDE-100817.A17 100817 £1.50 £1.80
56 - SEAL BDE-174284.A3 174284 £1.50 £1.80
57 - HOUSING BDE-174276.A3 174276 £1.50 £1.80
58 - SCREW BDE-174285.A25 174285 £1.50 £1.80
59 - RETAINER BDE-174298.A5 174298 £1.50 £1.80
60 - TRIGGER BDE-174269.A52 174269 £2.26 £2.71
61 - PIN BDE-174268.A0 174268 £1.50 £1.80
69 - SPRING COMPRESSION BDE-174300.A5 174300 £1.50 £1.80
70 - TRIGGER BDE-9R209571.A10 9R209571 £1.50 £1.80
71 - PIN BDE-177685.A6 177685 £1.50 £1.80
