Bostitch 438S2R-1 Type Rev J Pneumatic Stapler Spare Parts

Home Details Reviews Delivery

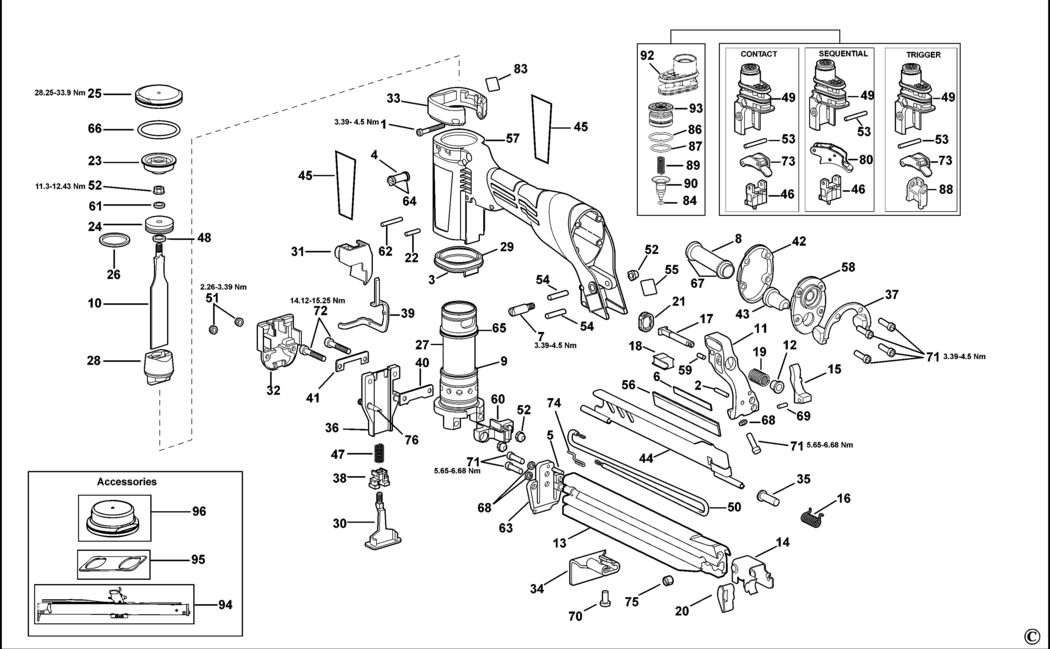

An exploded drawing and spare parts listing for the Bostitch 438S2R-1 Type Rev J Pneumatic Stapler

	Ex VAT	Inc VAT
1 - SCREW BDE-100258.A15 100258	£1.50	£1.80
2 - SPIROL PIN BDE-100263.A7 100263	£1.42	£1.70
3 - O RING BDE-100279.A0 100279	£1.50	£1.80
4 - VALVE BDE-101525.A4 101525	£9.41	£11.29
5 - SPIROL PIN BDE-102044.A3 102044	£1.50	£1.80
7 - SCREW.SPECIAL BDE-102168.A4 102168	£11.87	£14.24
8 - TUBE.EXHAUST BDE-103208.A3 103208	£14.57	£17.48
9 - SEAL BDE-103211.A5 103211	£7.85	£9.42
10 - DRIVER BDE-103214.A0 103214	£135.36	£162.43
11 - BRACKET BDE-103217.A5 103217	£44.14	£52.97
12 - BUSHING BDE-103218.A3 103218	£18.91	£22.69
13 - MAGAZINE SA BDE-103219.A1 103219	£69.63	£83.56
14 - PUSHER BDE-103222.A4 103222	£34.00	£40.80
15 - LEVER BDE-103447.A3 103447	£11.87	£14.24
16 - SPRING BDE-103549.A7 103549	£3.30	£3.96
17 - LATCH BDE-103558.A1 103558	£7.18	£8.62
18 - SLEEVE BDE-103601.A7 103601	£1.42	£1.70
19 - SPRING COMPRESSION BDE-103770.A7 103770	£2.78	£3.34
20 - HANDLE BDE-103791.A2 103791	£2.78	£3.34
21 - STOP BDE-103795.A8 103795	£2.78	£3.34
22 - PIN BDE-103858.A15 103858	£1.50	£1.80
23 - BUMPER BDE-103993.A2 103993	£5.72	£6.87
24 - PISTON BDE-103994.A3 103994	£7.85	£9.42
25 - CAP BDE-103995.A2 103995	£25.70	£30.84
26 - PISTON RING BDE-166045.A3 166045	£24.39	£29.27
27 - CYLINDER BDE-103997.A3 103997	£112.86	£135.43
28 - BUMPER BDE-103998.A1 103998	£24.39	£29.27
29 - SLEEVE BDE-103999.A2 103999	£3.30	£3.96
30 - CONTACT BDE-104025 104025	-
31 - COVER BDE-104027.A0 104027	£3.30	£3.96
32 - CASTING BDE-104931.A0 104931	£36.42	£43.70
33 - PROTECTOR BDE-104064.A4 104064	£19.90	£23.88
34 - GUIDE SA BDE-104066 104066	-
35 - BUSHING BDE-104067.A0 104067	£7.85	£9.42
36 - NOSE BDE-160198.A2 160198	£59.41	£71.29
37 - PROTECTOR BDE-104072 104072	-
38 - ADJUSTER BDE-104339.A6 104339	£17.03	£20.44
39 - ACTUATION ARM BDE-104623.A2 104623	£60.94	£73.13
40 - PLATE BDE-104974.A0 104974	£65.52	£78.62
41 - PLATE BDE-104975.A6 104975	£2.78	£3.34
42 - GASKET BDE-105057.A2 105057	£4.69	£5.63
43 - EXHAUST BDE-105070.A7 105070	£1.50	£1.80
44 - COVER BDE-105073.A0 105073	£44.14	£52.97
46 - GUIDE BDE-105932.A1 105932	-
47 - SPRING COMPRESSION BDE-105934.A7 105934	£1.50	£1.80
48 - WASHER BDE-105959.A1 105959	£14.57	£17.48
49 - KIT BDE-TVA12.A7 TVA12	-
50 - SPRING BDE-106051.A6 106051	£9.41	£11.29
51 - LOCK-NUT BDE-MHE5080-100.A25 MHE5080-100	£1.50	£1.80
52 - NUT BDE-MHE6100-100.A25 MHE6100-100	£1.50	£1.80
53 - PIN BDE-106058.A2 106058	£1.50	£1.80
54 - PIN BDE-106059.A6 106059	£1.50	£1.80
55 - LABEL BDE-106097.A1 106097	£1.42	£1.70
56 - WARNING LABEL BDE-158612.A17 158612	£1.50	£1.80
57 - FRAME BDE-166984.A4 166984	£126.63	£151.96
58 - END CAP BDE-106292.A4 106292	£12.17	£14.60
59 - SPIROL PIN BDE-106334.A7 106334	£1.50	£1.80
60 - GUIDE BDE-106474.A6 106474	£17.48	£20.97
61 - WASHER BDE-106691.A1 106691	£1.50	£1.80
62 - SPIROL PIN BDE-106871.A1 106871	£1.50	£1.80
63 - TIP BDE-107072.A1 107072	£76.16	£91.39
64 - O RING BDE-107129.A0 107129	£3.30	£3.96
65 - O RING BDE-850607.A18 850607	£1.50	£1.80
66 - O RING BDE-850628.A5 850628	£24.39	£29.27
67 - O RING BDE-851554.A29 851554	£4.69	£5.63
68 - WASHER BDE-MLW5.A0 MLW5	£1.50	£1.80
69 - PIN BDE-MPG030012.A36 MPG030012	£1.50	£1.80
70 - SCREW BDE-MSB5080-10.A5 MSB5080-10	-
71 - SCREW BDE-MSC5080-20.A10 MSC5080-20	£1.50	£1.80
72 - SCREW BDE-MSC6100-35.A23 MSC6100-35	£1.50	£1.80
73 - KIT BDE-CNTK2.A13 CNTK2	£5.88	£7.06
74 - RETAINER BDE-T50078.A5 T50078	£1.50	£1.80
75 - PIN BDE-T60024.A1 T60024	£14.57	£17.48
76 - PIN BDE-104069.A8 104069	£7.18	£8.62
80 - KIT BDE-SEQ6.A14 SEQ6	£10.85	£13.02
82 - SPRING BDE-100387.A68 100387	£1.50	£1.80
83 - LABEL BDE-110009.A7 110009	£2.26	£2.71
84 - O RING BDE-105996.A2 105996	£1.50	£1.80
86 - O RING BDE-102164.A1 102164	£10.85	£13.02
87 - O RING BDE-102163.A28 102163	£12.17	£14.60
88 - STOP BDE-106173.A9 106173	£2.26	£2.71
89 - SPRING COMPRESSION BDE-101540.A6 101540	£1.42	£1.70
90 - SEAL BDE-101533.A2 101533	£2.26	£2.71
92 - O RING BDE-108467.A9 108467	£7.85	£9.42
93 - VALVE BDE-167205.A8 167205	£18.42	£22.10
94 - NO LONGER AVAILABLE BDE-000000-00.A96708 000000-00	-
95 - WRENCH SPECIAL BDE-106427.A1 106427	£24.39	£29.27
96 - CAP BDE-112604.A4 112604	£41.24	£49.49

Attribute Name	Value
Brand	Bostitch
