Bostitch 765Q-1E Type Rev 1 Pneumatic Stapler Spare Parts

Home Details Reviews Delivery

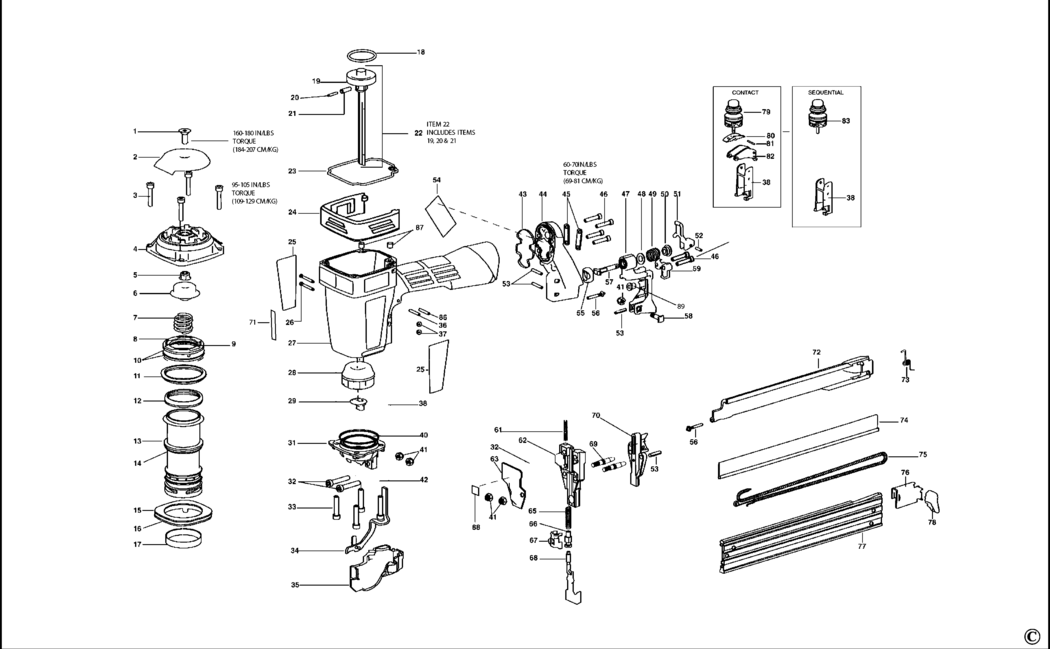

An exploded drawing and spare parts listing for the Bostitch 765Q-1E Type Rev 1 Pneumatic Stapler

	Ex VAT	Inc VAT
1 - SCREW BDE-105749.A5 105749	£1.50	£1.80
2 - DEFLECTOR BDE-103785.A0 103785	£25.70	£30.84
3 - SCREW BDE-MSC6100-30.A16 MSC6100-30	£1.50	£1.80
4 - CAP BDE-103816.A1 103816	£47.08	£56.49
5 - NUT BDE-103859.A1 103859	£1.50	£1.80
6 - BUMPER BDE-103760.A4 103760	£9.41	£11.29
7 - SPRING BDE-103767.A4 103767	£1.42	£1.70
8 - VALVE BDE-103761.A2 103761	£37.35	£44.82
9 - O RING BDE-MRG041630.A10 MRG041630	£5.88	£7.06
10 - O RING BDE-103813.A1 103813	£7.18	£8.62
11 - RETAINER BDE-103818.A5 103818	£33.13	£39.76
12 - SEAL BDE-103814.A5 103814	£7.18	£8.62
13 - O RING BDE-850006.A7 850006	£1.50	£1.80
14 - CYLINDER BDE-104597.A1 104597	£41.24	£49.49
15 - O RING BDE-851753.A6 851753	£1.50	£1.80
16 - RING BDE-104605.A3 104605	£4.69	£5.63
17 - BAND BDE-103862.A5 103862	£12.17	£14.60
18 - O RING BDE-103826.A0 103826	£5.88	£7.06
19 - PISTON BDE-103759.A0 103759	£38.80	£46.56
20 - SPIROL PIN BDE-UB2111.2.A1 UB2111.2	£1.50	£1.80
21 - SPIROL PIN BDE-UB4809.1.A6 UB4809.1	£1.50	£1.80
22 - DRIVER SA BDE-106074.A2 106074	£165.92	£199.11
23 - SEAL BDE-103802.A3 103802	£1.50	£1.80
24 - PROTECTOR BDE-107149.A3 107149	£19.90	£23.88
26 - SCREW BDE-105811.A0 105811	£1.50	£1.80
27 - FRAME BDE-107180.A1 107180	£110.62	£132.74
28 - BUMPER BDE-103758.A4 103758	£30.08	£36.10
29 - GUIDE BDE-103805.A1 103805	£10.85	£13.02
31 - FRAME BDE-103782.A6 103782	£45.14	£54.17
32 - SCREW BDE-MSC6100-35.A27 MSC6100-35	£1.50	£1.80
33 - SCREW BDE-MSC6100-30.A15 MSC6100-30	£1.50	£1.80
34 - ARM BDE-105773.A1 105773	£209.59	£251.51
35 - COVER BDE-105808.A6 105808	£14.19	£17.03
36 - PIN BDE-100298.A78 100298	£1.50	£1.80
37 - NUT BDE-MHE3050-100.A48 MHE3050-100	£1.50	£1.80
38 - GUIDE SA BDE-106953.A3 106953	£10.57	£12.68
40 - O RING BDE-RG198907-1.A11 RG198907-1	£1.50	£1.80
41 - NUT BDE-MHE6100-100.A11 MHE6100-100	£1.50	£1.80
42 - BRACE BDE-105782.A5 105782	£1.50	£1.80
43 - SEAL BDE-103808.A1 103808	£1.50	£1.80
44 - CAP BDE-104602.A3 104602	£47.08	£56.49
45 - RETAINER BDE-103819.A1 103819	£7.85	£9.42
46 - SCREW BDE-MSC5080-25.A19 MSC5080-25	£1.50	£1.80
47 - CAP BDE-103786.A6 103786	£45.14	£54.17
48 - WASHER BDE-104612.A5 104612	£2.26	£2.71
49 - SPRING BDE-105786.A5 105786	£1.50	£1.80
50 - BUSHING BDE-103806.A6 103806	£3.30	£3.96
51 - LEVER BDE-103447.A8 103447	£11.87	£14.24
52 - PIN BDE-MPG030012.A26 MPG030012	£1.50	£1.80
53 - PIN BDE-103858.A22 103858	£1.50	£1.80
55 - STOP BDE-103795.A3 103795	£2.78	£3.34
56 - PIN BDE-103768.A4 103768	£7.85	£9.42
57 - PIN BDE-105780.A1 105780	£7.18	£8.62
58 - BOLT BDE-103851.A1 103851	£7.18	£8.62
59 - STOP BDE-103776.A2 103776	£14.57	£17.48
61 - SPRING BDE-107310.A4 107310	£1.50	£1.80
62 - NOSE BDE-107220.A3 107220	£78.12	£93.74
63 - COVER BDE-103871.A1 103871	£19.90	£23.88
65 - SPRING BDE-105776.A3 105776	£1.50	£1.80
67 - ADAPTOR BDE-103864.A1 103864	£14.57	£17.48
68 - ARM BDE-103792.A3 103792	£19.90	£23.88
69 - PIN BDE-103838.A3 103838	£7.18	£8.62
70 - TIP BDE-189889 189889	£183.42	£220.10
72 - COVER BDE-104600.A5 104600	£9.41	£11.29
73 - SPRING BDE-103839.A5 103839	£1.50	£1.80
74 - COVER BDE-103812.A3 103812	£24.39	£29.27
75 - SPRING BDE-104613.A5 104613	£24.39	£29.27
76 - PUSHER BDE-103845.A3 103845	-
77 - MAGAZINE BDE-9R189886.A1 9R189886	£107.82	£129.39
78 - HANDLE BDE-103791.A6 103791	£2.78	£3.34
79 - KIT BDE-STV2.A15 STV2	£110.21	£132.25
80 - TRIGGER BDE-T55092.A5 T55092	£1.42	£1.70
81 - PIN BDE-MPD016012.A11 MPD016012	£2.78	£3.34
82 - TRIGGER BDE-100607.A16 100607	-
83 - VALVE BDE-TVA6.A14 TVA6	£16.03	£19.24
86 - PIN BDE-MPP030020.A32 MPP030020	£1.50	£1.80
87 - SLEEVE BDE-105821.A0 105821	£1.50	£1.80
88 - LABEL Trip adj BDE-851934.A8 851934	£1.50	£1.80
89 - BEARING BDE-106961.A1 106961	£3.80	£4.56

Attribute Name	Value
Brand	Bostitch
