Bostitch M90-PINS/90 Type REV 0 Stapler Spare Parts

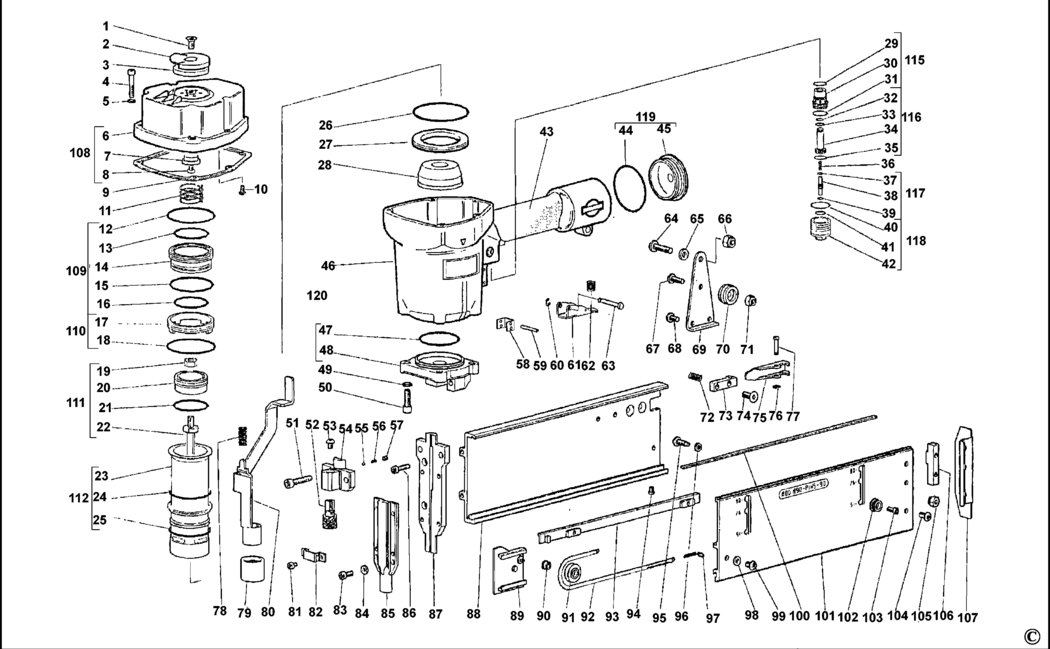

An exploded drawing and spare parts listing for the Bostitch M90-PINS/90 Type REV 0 Stapler

	Ex VAT	Inc VAT
1 - SCREW BDE-B000028A23.A0 B000028A23	£7.18	£8.62
2 - DEFLECTOR BDE-C565100A01.A1 C565100A01	£47.08	£56.49
3 - SILENCER BDE-C565103A01.A0 C565103A01	£25.70	£30.84
4 - SCREW BDE-B000028B26.A1 B000028B26	£5.88	£7.06
5 - WASHER BDE-C565180A01.A0 C565180A01	£17.48	£20.97
6 - CAP BDE-D565123A02.A3 D565123A02	£414.90	£497.88
7 - PISTON BDE-C565161A01.A1 C565161A01	£87.82	£105.39
8 - SCREW BDE-B000028A14.A1 B000028A14	£4.69	£5.63
9 - GASKET BDE-C565181A01.A1 C565181A01	£41.24	£49.49
10 - SCREW BDE-B000028E04.A1 B000028E04	£3.80	£4.56
11 - NO LONGER AVAILABLE BDE-000000-00.A64340 000000-00	-
12 - O RING BDE-B000020A49.A0 B000020A49	£3.80	£4.56
13 - O RING BDE-B000020A39.A3 B000020A39	£2.78	£3.34
14 - O RING BDE-B000020A39.A4 B000020A39	£2.78	£3.34
15 - O RING BDE-B000020A47.A1 B000020A47	£3.80	£4.56
16 - O RING BDE-B000020A44.A1 B000020A44	£3.30	£3.96
17 - HOLDER SA BDE-D565204A02.A2 D565204A02	£232.38	£278.85
18 - O RING BDE-B000020A51.A0 B000020A51	£3.80	£4.56
19 - NUT BDE-B000023B04.A2 B000023B04	£7.18	£8.62
20 - NO LONGER AVAILABLE BDE-000000-00.A64341 000000-00	-
21 - O RING BDE-B000020A66.A1 B000020A66	£3.80	£4.56
22 - NO LONGER AVAILABLE BDE-000000-00.A64342 000000-00	-
23 - NO LONGER AVAILABLE BDE-000000-00.A64343 000000-00	-
24 - O RING BDE-B000020A48.A2 B000020A48	£3.80	£4.56
25 - O RING BDE-B000020A47.A2 B000020A47	£3.80	£4.56
26 - O RING BDE-B000020A56.A1 B000020A56	£3.80	£4.56
27 - NO LONGER AVAILABLE BDE-000000-00.A64344 000000-00	-
28 - NO LONGER AVAILABLE BDE-000000-00.A64345 000000-00	-
29 - O RING BDE-B000020A67.A0 B000020A67	£3.80	£4.56
30 - NO LONGER AVAILABLE BDE-000000-00.A64346 000000-00	-
31 - O RING BDE-B000020A20.A1 B000020A20	£3.80	£4.56
32 - O RING BDE-B000020A16.A1 B000020A16	£3.80	£4.56
33 - O RING BDE-B000020A17.A0 B000020A17	£3.30	£3.96
34 - NO LONGER AVAILABLE BDE-000000-00.A64347 000000-00	-
35 - O RING BDE-B000020A63.A0 B000020A63	£3.80	£4.56
36 - SPRING BDE-C216340A01.A2 C216340A01	£7.85	£9.42
37 - O RING BDE-B000020B04.A3 B000020B04	£12.17	£14.60
38 - NO LONGER AVAILABLE BDE-000000-00.A64348 000000-00	-
39 - O RING BDE-B000020B04.A2 B000020B04	£12.17	£14.60
40 - O RING BDE-B000020A73.A0 B000020A73	£3.80	£4.56
41 - O RING BDE-B000020A63.A1 B000020A63	£3.80	£4.56
42 - NO LONGER AVAILABLE BDE-000000-00.A64349 000000-00	-
43 - GRIP BDE-C450262A01.A0 C450262A01	£30.08	£36.10
44 - O RING BDE-B000020A48.A3 B000020A48	£3.80	£4.56
45 - BUSH BDE-D465283A01.A3 D465283A01	£144.10	£172.92
46 - NO LONGER AVAILABLE BDE-000000-00.A64357 000000-00	-
47 - O RING BDE-B000020A69.A1 B000020A69	£3.80	£4.56
48 - NO LONGER AVAILABLE BDE-000000-00.A64358 000000-00	-
49 - NO LONGER AVAILABLE BDE-000000-00.A64359 000000-00	-
50 - SCREW BDE-B000028B30.A0 B000028B30	£5.88	£7.06
51 - SCREW BDE-B000028B20.A2 B000028B20	£3.80	£4.56
52 - NO LONGER AVAILABLE BDE-000000-00.A64350 000000-00	-
53 - NO LONGER AVAILABLE BDE-000000-00.A64351 000000-00	-
54 - NO LONGER AVAILABLE BDE-000000-00.A64352 000000-00	-
55 - NO LONGER AVAILABLE BDE-000000-00.A64353 000000-00	-
56 - NO LONGER AVAILABLE BDE-000000-00.A64354 000000-00	-
57 - NO LONGER AVAILABLE BDE-000000-00.A64355 000000-00	-
58 - NO LONGER AVAILABLE BDE-000000-00.A64356 000000-00	-
59 - SPIROL PIN BDE-B000026A05.A2 B000026A05	£3.30	£3.96
60 - RING BDE-B000021C01.A18 B000021C01	£1.50	£1.80
61 - TRIGGER BDE-D565442A01.A0 D565442A01	£135.36	£162.43
62 - NO LONGER AVAILABLE BDE-000000-00.A64360 000000-00	-
63 - PIN BDE-C620424A01.A1 C620424A01	£12.17	£14.60
64 - NO LONGER AVAILABLE BDE-000000-00.A64361 000000-00	-
65 - WASHER BDE-C565180A01.A1 C565180A01	£17.48	£20.97
66 - LOCK NUT BDE-B000023B03.A0 B000023B03	£4.69	£5.63
67 - SCREW BDE-B000028E14.A1 B000028E14	£3.80	£4.56
68 - NO LONGER AVAILABLE BDE-000000-00.A64362 000000-00	-
69 - NO LONGER AVAILABLE BDE-000000-00.A64363 000000-00	-
70 - NO LONGER AVAILABLE BDE-000000-00.A64364 000000-00	-
71 - LOCK NUT BDE-B000023B02.A7 B000023B02	£3.30	£3.96
72 - NO LONGER AVAILABLE BDE-000000-00.A64365 000000-00	-
73 - NO LONGER AVAILABLE BDE-000000-00.A64366 000000-00	-
74 - SCREW BDE-B000028A11.A0 B000028A11	£4.69	£5.63
75 - NO LONGER AVAILABLE BDE-000000-00.A64367 000000-00	-
76 - RING BDE-B000021C01.A19 B000021C01	£1.50	£1.80
77 - PIN BDE-C216424A01.A6 C216424A01	-
78 - NO LONGER AVAILABLE BDE-000000-00.A64368 000000-00	-
79 - TIP RUBBER BDE-C790667K01 C790667K01	£37.35	£44.82
80 - NO LONGER AVAILABLE BDE-000000-00.A64369 000000-00	-
81 - SCREW BDE-B000028B01.A8 B000028B01	£10.85	£13.02
82 - NO LONGER AVAILABLE BDE-000000-00.A64370 000000-00	-
83 - NO LONGER AVAILABLE BDE-000000-00.A64371 000000-00	-
84 - WASHER SPRING BDE-B000022A02.A0 B000022A02	£3.30	£3.96
85 - NO LONGER AVAILABLE BDE-000000-00.A64372 000000-00	-
86 - SCREW BDE-B000028C03.A0 B000028C03	-
87 - HOLDER BDE-C790500K01 C790500K01	£393.38	£472.06
88 - NO LONGER AVAILABLE BDE-000000-00.A64373 000000-00	-
89 - NO LONGER AVAILABLE BDE-000000-00.A64374 000000-00	-
90 - PIN BDE-C620824A01.A0 C620824A01	£17.48	£20.97
91 - PULLEY BDE-C620820A01.A1 C620820A01	£7.85	£9.42
92 - SPRING BDE-C650842A01.A1 C650842A01	£16.03	£19.24
93 - NO LONGER AVAILABLE BDE-000000-00.A64375 000000-00	-
94 - NO LONGER AVAILABLE BDE-000000-00.A64376 000000-00	-
95 - NO LONGER AVAILABLE BDE-000000-00.A64377 000000-00	-
96 - WASHER SPRING BDE-B000022A02.A2 B000022A02	£3.30	£3.96
97 - HOOK BDE-C225884A01.A1 C225884A01	-
98 - WASHER SPRING BDE-B000022A02.A1 B000022A02	£3.30	£3.96
99 - SCREW BDE-B000028E04.A2 B000028E04	£3.80	£4.56
100 - NO LONGER AVAILABLE BDE-000000-00.A64378 000000-00	-
101 - NO LONGER AVAILABLE BDE-000000-00.A64379 000000-00	-
102 - BUSHING BDE-C790747K01 C790747K01	£18.91	£22.69
103 - SCREW BDE-B000028B03.A2 B000028B03	-
104 - SCREW BDE-B000028E05.A0 B000028E05	£3.80	£4.56
105 - LOCK NUT BDE-B000023B02.A6 B000023B02	£3.30	£3.96
106 - NO LONGER AVAILABLE BDE-000000-00.A64380 000000-00	-
107 - NO LONGER AVAILABLE BDE-000000-00.A64381 000000-00	-
108 - CAP BDE-D565123A02.A2 D565123A02	£414.90	£497.88
109 - PISTON SA BDE-D565202A02.A0 D565202A02	£283.82	£340.58
110 - NO LONGER AVAILABLE BDE-000000-00.A64382 000000-00	-
111 - NO LONGER AVAILABLE BDE-000000-00.A64383 000000-00	-
112 - NO LONGER AVAILABLE BDE-000000-00.A64384 000000-00	-
113 - NO LONGER AVAILABLE BDE-000000-00.A64385 000000-00	-
114 - VALVE BDE-D565360A02.A1 D565360A02	£200.77	£240.92
115 - NO LONGER AVAILABLE BDE-000000-00.A64386 000000-00	-
116 - NO LONGER AVAILABLE BDE-000000-00.A64387 000000-00	-
117 - NO LONGER AVAILABLE BDE-000000-00.A64388 000000-00	-
118 - NO LONGER AVAILABLE BDE-000000-00.A64389 000000-00	-
119 - BUSH BDE-D465283A01.A2 D465283A01	£144.10	£172.92
120 - NO LONGER AVAILABLE BDE-000000-00.A64390 000000-00	-
