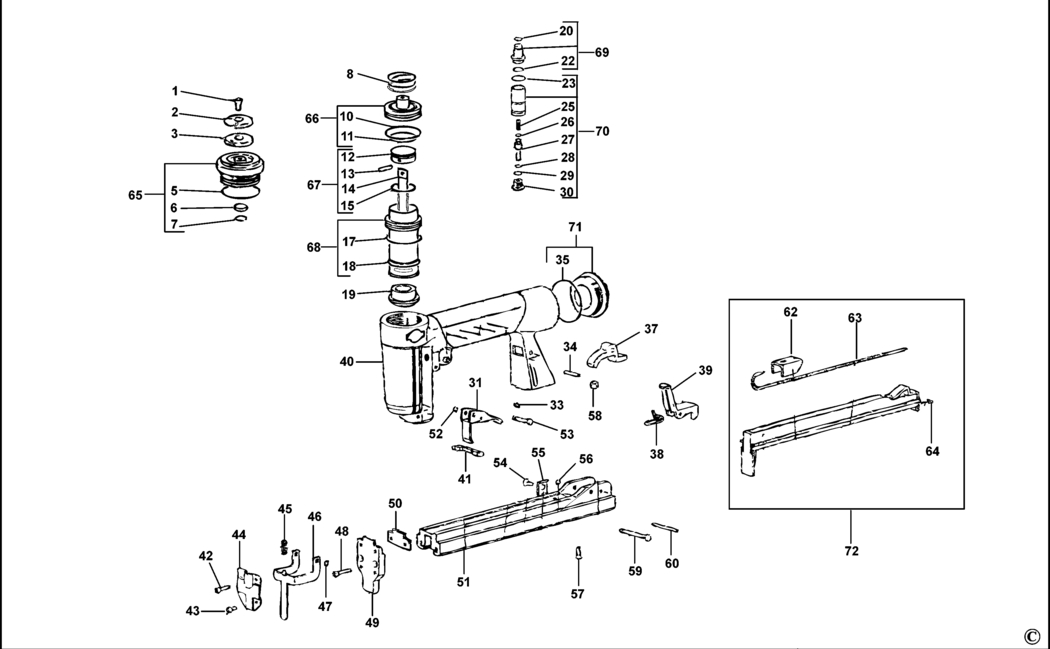

1 - SCREW
BDE-B000028A04.A10
B000028A04
|
-
|
|
|
|
2 - DEFLECTOR
BDE-C416100A01.A1
C416100A01
|
-
|
|
|
|
3 - NO LONGER AVAILABLE
BDE-000000-00.A30530
000000-00
|
-
|
|
|
|
5 - O RING
BDE-B000020A36.A10
B000020A36
|
-
|
|
|
|
6 - INSERT
BDE-C216160A01.A6
C216160A01
|
-
|
|
|
|
7 - O RING
BDE-B000020A19.A1
B000020A19
|
£3.30
|
£3.96
|
|
|
8 - SPRING
BDE-C016200A01.A7
C016200A01
|
-
|
|
|
|
10 - O RING
BDE-B000020A35.A1
B000020A35
|
£2.21
|
£2.65
|
|
|
11 - O RING
BDE-B000020A31.A0
B000020A31
|
£2.71
|
£3.25
|
|
|
12 - NO LONGER AVAILABLE
BDE-000000-00.A30531
000000-00
|
-
|
|
|
|
13 - PIN
BDE-B000025A06.A5
B000025A06
|
-
|
|
|
|
14 - BLADE
BDE-C610225A09
C610225A09
|
£80.98
|
£97.18
|
|
|
15 - O RING
BDE-B000020A29.A6
B000020A29
|
-
|
|
|
|
17 - O RING
BDE-B000020A35.A2
B000020A35
|
£2.21
|
£2.65
|
|
|
18 - O RING
BDE-B000020A22.A1
B000020A22
|
£2.71
|
£3.25
|
|
|
19 - BUMPER
BDE-C016244A01.A0
C016244A01
|
-
|
|
|
|
20 - O RING
BDE-B000020A17.A3
B000020A17
|
£3.30
|
£3.96
|
|
|
22 - O RING
BDE-B000020A01.A6
B000020A01
|
-
|
|
|
|
23 - O RING
BDE-B000020A03.A6
B000020A03
|
£3.22
|
£3.86
|
|
|
25 - SPRING
BDE-C216340A01.A0
C216340A01
|
£7.85
|
£9.42
|
|
|
26 - O RING
BDE-B000020A14.A0
B000020A14
|
-
|
|
|
|
27 - NO LONGER AVAILABLE
BDE-000000-00.A30536
000000-00
|
-
|
|
|
|
28 - O RING
BDE-B000020A14.A1
B000020A14
|
-
|
|
|
|
29 - O RING
BDE-B000020A18.A4
B000020A18
|
£3.22
|
£3.86
|
|
|
30 - NO LONGER AVAILABLE
BDE-000000-00.A30532
000000-00
|
-
|
|
|
|
31 - NO LONGER AVAILABLE
BDE-000000-00.A30533
000000-00
|
-
|
|
|
|
33 - NO LONGER AVAILABLE
BDE-000000-00.A30534
000000-00
|
-
|
|
|
|
34 - NO LONGER AVAILABLE
BDE-000000-00.A30535
000000-00
|
-
|
|
|
|
35 - O RING
BDE-B000020A36.A9
B000020A36
|
-
|
|
|
|
37 - NO LONGER AVAILABLE
BDE-000000-00.A30537
000000-00
|
-
|
|
|
|
38 - SPRING
BDE-C016761A01.A5
C016761A01
|
£10.57
|
£12.68
|
|
|
39 - NO LONGER AVAILABLE
BDE-000000-00.A129664
000000-00
|
-
|
|
|
|
41 - PLATE
BDE-C016483B01.A3
C016483B01
|
-
|
|
|
|
42 - SCREW
BDE-B000028B06.A1
B000028B06
|
-
|
|
|
|
43 - SCREW
BDE-B000028B01.A5
B000028B01
|
£10.85
|
£13.02
|
|
|
44 - COVER
BDE-C416681B01
C416681B01
|
£19.90
|
£23.88
|
|
|
45 - SPRING
BDE-C216661B01.A2
C216661B01
|
-
|
|
|
|
46 - GUARD
BDE-C610600B01
C610600B01
|
£37.35
|
£44.82
|
|
|
47 - RING
BDE-B000021C01.A17
B000021C01
|
£1.50
|
£1.80
|
|
|
48 - SCREW
BDE-B000028B04.A1
B000028B04
|
£12.17
|
£14.60
|
|
|
49 - PLATE
BDE-C610542B09
C610542B09
|
£192.14
|
£230.57
|
|
|
50 - NO LONGER AVAILABLE
BDE-000000-00.A129665
000000-00
|
-
|
|
|
|
51 - GUIDE
BDE-C416722A02
C416722A02
|
£135.36
|
£162.43
|
|
|
52 - RING
BDE-B000021C01.A16
B000021C01
|
£1.50
|
£1.80
|
|
|
53 - PIN
BDE-C216424A01.A2
C216424A01
|
-
|
|
|
|
54 - SCREW
BDE-B000028A04.A8
B000028A04
|
-
|
|
|
|
55 - NO LONGER AVAILABLE
BDE-000000-00.A129666
000000-00
|
-
|
|
|
|
56 - RING
BDE-B000021C01.A15
B000021C01
|
£1.50
|
£1.80
|
|
|
57 - NO LONGER AVAILABLE
BDE-000000-00.A129667
000000-00
|
-
|
|
|
|
58 - LOCK NUT
BDE-B000023B02.A1
B000023B02
|
£3.30
|
£3.96
|
|
|
59 - PIN
BDE-C416763A01.A0
C416763A01
|
£3.70
|
£4.44
|
|
|
60 - SPIROL PIN
BDE-B000026A05.A7
B000026A05
|
£3.30
|
£3.96
|
|
|
62 - PUSHER
BDE-C416860A03
C416860A03
|
£30.08
|
£36.10
|
|
|
63 - SPRING
BDE-C216842A01.A1
C216842A01
|
-
|
|
|
|
64 - HOOK
BDE-C225884A01.A4
C225884A01
|
-
|
|
|
|
65 - NO LONGER AVAILABLE
BDE-000000-00.A129668
000000-00
|
-
|
|
|
|
66 - NO LONGER AVAILABLE
BDE-000000-00.A129669
000000-00
|
-
|
|
|
|
67 - PISTON SA
BDE-D610226A09
D610226A09
|
£131.95
|
£158.34
|
|
|
68 - NO LONGER AVAILABLE
BDE-000000-00.A129670
000000-00
|
-
|
|
|
|
69 - TUBE SA
BDE-D416302A01.A4
D416302A01
|
-
|
|
|
|
70 - NO LONGER AVAILABLE
BDE-000000-00.A129671
000000-00
|
-
|
|
|
|
71 - BUSHING
BDE-D216283A01.A10
D216283A01
|
-
|
|
|
|
72 - MAGAZINE SA
BDE-D416984A64
D416984A64
|
£383.48
|
£460.17
|
|
