Bostitch ML15SIC-80/25B Type 0 Stapler Spare Parts

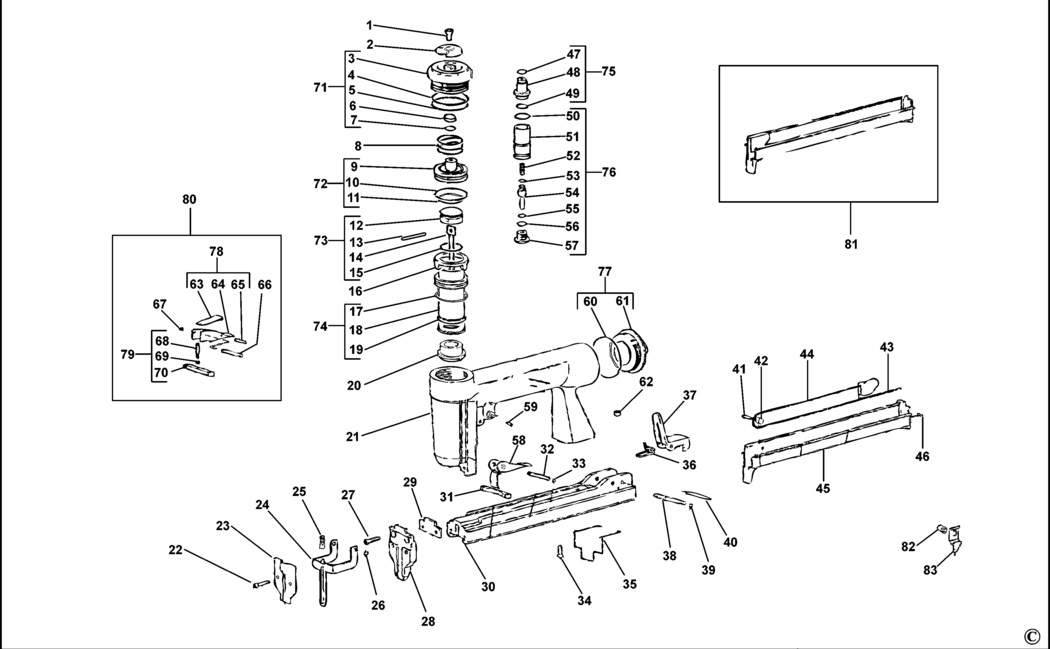

An exploded drawing and spare parts listing for the Bostitch ML15SIC-80/25B Type 0 Stapler

	Ex VAT	Inc VAT
1 - SCREW BDE-B000028A10 B000028A10	£3.30	£3.96
2 - DEFLECTOR BDE-C425100A01 C425100A01	£24.39	£29.27
3 - CAP SA BDE-D425123A01.A1 D425123A01	£204.32	£245.18
4 - O RING BDE-B000020A40.A3 B000020A40	£3.30	£3.96
5 - O RING BDE-B000020A39.A1 B000020A39	£2.78	£3.34
6 - PELLET BDE-C225160A01 C225160A01	£10.85	£13.02
7 - O RING BDE-B000020A04.A0 B000020A04	£3.30	£3.96
8 - SPRING BDE-C016200A01.A6 C016200A01	-
9 - VALVE BDE-D425202A01.A1 D425202A01	£93.62	£112.35
10 - O RING BDE-B000020A36.A12 B000020A36	-
11 - O RING BDE-B000020A33 B000020A33	£2.78	£3.34
12 - PISTON BDE-C425220A01 C425220A01	£41.24	£49.49
13 - PIN BDE-B000025A12 B000025A12	£5.88	£7.06
14 - BLADE BDE-C425225A06 C425225A06	£108.20	£129.84
15 - O RING BDE-B000020A31.A2 B000020A31	£2.71	£3.25
16 - RING BDE-C425242A01 C425242A01	£41.24	£49.49
17 - O RING BDE-B000020A39.A2 B000020A39	£2.78	£3.34
18 - CYLINDER SA BDE-D425241A01.A1 D425241A01	£112.86	£135.43
19 - O RING BDE-B000020A24 B000020A24	£3.30	£3.96
20 - BUMPER BDE-C225244A01 C225244A01	£45.14	£54.17
22 - SCREW BDE-B000028B07 B000028B07	£3.30	£3.96
23 - COVER BDE-C225681B01 C225681B01	£25.70	£30.84
24 - SPRING BDE-C216661B01.A1 C216661B01	-
25 - CONTACT BDE-C225600B01 C225600B01	£38.80	£46.56
26 - RING BDE-B000021C01.A22 B000021C01	£1.50	£1.80
27 - SCREW BDE-B000028A02.A2 B000028A02	£3.30	£3.96
28 - PLATE BDE-C225542B01 C225542B01	£131.95	£158.34
29 - HOLDER BDE-C425500A02 C425500A02	£30.08	£36.10
30 - GUIDE BDE-C425722A08 C425722A08	£144.10	£172.92
31 - PLATE BDE-C228483A01 C228483A01	£24.39	£29.27
32 - PIN BDE-C620424A01.A2 C620424A01	£12.17	£14.60
33 - RING BDE-B000021C01.A23 B000021C01	£1.50	£1.80
34 - SCREW BDE-B000028A09 B000028A09	£4.69	£5.63
35 - CLIP BDE-C425987A01 C425987A01	£25.70	£30.84
36 - SPRING BDE-C016761A01.A4 C016761A01	£10.57	£12.68
37 - LEVER RELEASE BDE-C425760A01 C425760A01	£19.90	£23.88
38 - PIN BDE-C416763A01.A5 C416763A01	£3.70	£4.44
39 - RING BDE-B000021C01.A25 B000021C01	£1.50	£1.80
40 - SPIROL PIN BDE-B000026A05.A1 B000026A05	£3.30	£3.96
41 - PIN BDE-C216824A01 C216824A01	£14.57	£17.48
42 - PULLEY BDE-C216820A01 C216820A01	£16.03	£19.24
43 - SPRING BDE-C216842A01.A0 C216842A01	-
44 - PUSHER BDE-C216860A04 C216860A04	£30.08	£36.10
45 - MAGAZINE SA BDE-D425984A02.A0 D425984A02	£319.22	£383.07
46 - HOOK BDE-C225884A01.A0 C225884A01	-
47 - O RING BDE-B000020A17.A2 B000020A17	£3.30	£3.96
48 - TUBE SA BDE-D416302A01.A10 D416302A01	-
49 - O RING BDE-B000020A01.A5 B000020A01	-
50 - O RING BDE-B000020A03.A7 B000020A03	£3.22	£3.86
51 - CONTROL SA BDE-D425361B03.A0 D425361B03	£135.36	£162.43
52 - SPRING BDE-C216340A01.A3 C216340A01	£7.85	£9.42
53 - O RING BDE-B000020A14.A2 B000020A14	-
54 - CONTROL SA BDE-D425345B01 D425345B01	£63.87	£76.64
55 - O RING BDE-B000020A14.A3 B000020A14	-
56 - O RING BDE-B000020A18.A5 B000020A18	£3.22	£3.86
57 - NO LONGER AVAILABLE BDE-000000-00.A64013 000000-00	-
58 - TRIGGER BDE-C425431B01 C425431B01	£45.14	£54.17
59 - SPIROL PIN BDE-B000026A15 B000026A15	£3.30	£3.96
60 - O RING BDE-B000020A36.A13 B000020A36	-
61 - BUSHING BDE-D425283A01.A0 D425283A01	£108.20	£129.84
62 - LOCK NUT BDE-B000023B02.A8 B000023B02	£3.30	£3.96
63 - LEVER BDE-C425403B02 C425403B02	£18.91	£22.69
64 - TRIGGER BDE-D425441B01.A1 D425441B01	£59.41	£71.29
65 - PIN BDE-C230405A01.A0 C230405A01	£17.48	£20.97
66 - PIN BDE-C216424A01.A5 C216424A01	-
67 - RING BDE-B000021C01.A24 B000021C01	£1.50	£1.80
68 - PIN BDE-C425486B01 C425486B01	£16.03	£19.24
69 - NUT BDE-C425487B01 C425487B01	£12.17	£14.60
70 - PLATE BDE-D425484B01.A1 D425484B01	£78.12	£93.74
71 - CAP SA BDE-D425123A01.A0 D425123A01	£204.32	£245.18
72 - VALVE BDE-D425202A01.A0 D425202A01	£93.62	£112.35
72 - DRIVER SA BDE-D425226A06.A0 D425226A06	£174.63	£209.56
73 - DRIVER SA BDE-D425226A06.A1 D425226A06	£174.63	£209.56
74 - CYLINDER SA BDE-D425241A01.A0 D425241A01	£112.86	£135.43
75 - TUBE SA BDE-D416302A01.A11 D416302A01	-
76 - CONTROL SA BDE-D425361B03.A1 D425361B03	£135.36	£162.43
77 - BUSHING BDE-D425283A01.A1 D425283A01	£108.20	£129.84
78 - TRIGGER BDE-D425441B01.A0 D425441B01	£59.41	£71.29
79 - PLATE BDE-D425484B01.A0 D425484B01	£78.12	£93.74
80 - TRIGGER BDE-D425444B02 D425444B02	£144.10	£172.92
81 - MAGAZINE SA BDE-D425984A02.A1 D425984A02	£319.22	£383.07
82 - SCREW BDE-B000028A03.A0 B000028A03	£3.80	£4.56
83 - CLIP BDE-C416990A02.A1 C416990A02	-

Attribute Name	Value
Brand	Bostitch
