Bostitch S3297 Type REV 0 Stapler Spare Parts

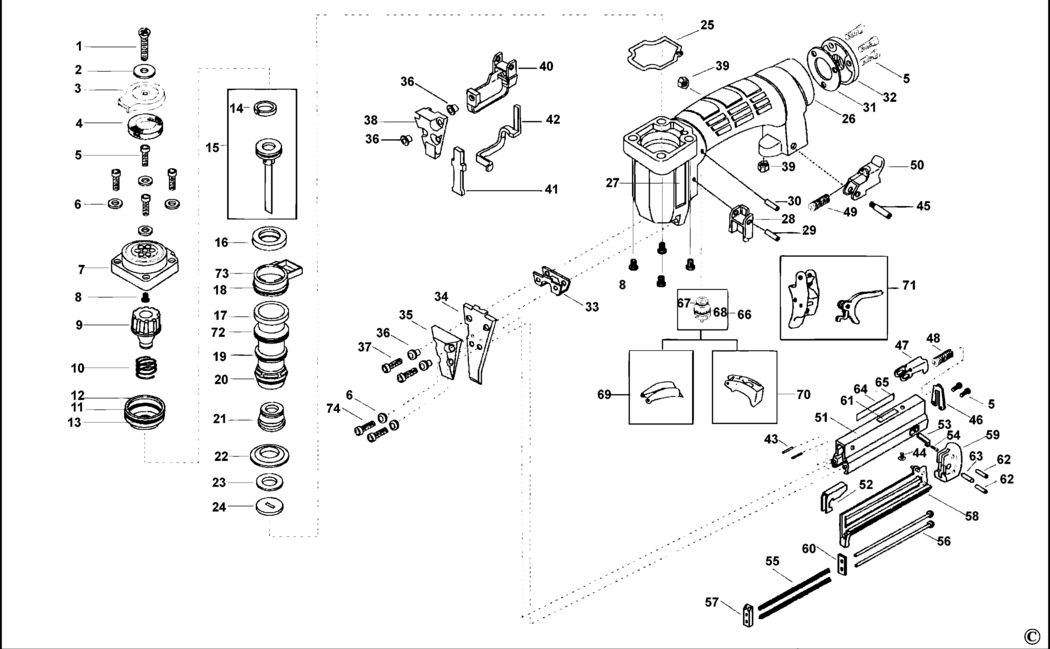

An exploded drawing and spare parts listing for the Bostitch S3297 Type REV 0 Stapler

	Ex VAT	Inc VAT
1 - SCREW BDE-100297.A10 100297	£1.50	£1.80
2 - WASHER SPECIAL BDE-S32030.A1 S32030	£1.50	£1.80
3 - COVER BDE-S32032.A9 S32032	£10.85	£13.02
4 - MUFFLER BDE-S32045.A1 S32045	£2.26	£2.71
5 - SCREW BDE-100260.A16 100260	£1.50	£1.80
6 - WASHER SPECIAL BDE-S32186.A9 S32186	£1.50	£1.80
7 - CAP BDE-T32010.A0 T32010	£24.39	£29.27
8 - INSERT BDE-S32011.A15 S32011	£1.50	£1.80
9 - BUMPER BDE-T32007.A0 T32007	£3.30	£3.96
10 - VALVE SPRING BDE-9R198719.A1 9R198719	£2.26	£2.71
11 - O RING BDE-108572.A1 108572	£7.85	£9.42
12 - KIT BDE-9R198720.A9 9R198720	£34.00	£40.80
13 - O RING BDE-MRG035020.A9 MRG035020	£16.03	£19.24
14 - PISTON RING BDE-S32109.A17 S32109	£12.17	£14.60
15 - NO LONGER AVAILABLE BDE-000000-00.A64502 000000-00	-
16 - SEAL BDE-T32031.A10 T32031	£1.50	£1.80
17 - CYLINDER BDE-S32208.A8 S32208	£24.39	£29.27
18 - O RING BDE-RG161210.A16 RG161210	£1.50	£1.80
19 - SEAL BDE-T32080.A10 T32080	£1.42	£1.70
20 - O RING BDE-100353.A34 100353	£1.50	£1.80
21 - NO LONGER AVAILABLE BDE-000000-00.A64503 000000-00	-
22 - PLATE BDE-S32187.A1 S32187	£17.48	£20.97
23 - WASHER SPECIAL BDE-S32001.A9 S32001	£1.50	£1.80
24 - NO LONGER AVAILABLE BDE-000000-00.A64504 000000-00	-
25 - GASKET BDE-T32046.A0 T32046	£1.50	£1.80
26 - FRAME BDE-T32008A.A10 T32008A	£74.15	£88.98
27 - NO LONGER AVAILABLE BDE-000000-00.A64505 000000-00	-
28 - STOP BDE-106173.A7 106173	£2.26	£2.71
29 - PIN BDE-100298.A26 100298	£1.50	£1.80
30 - PIN BDE-102549.A22 102549	£1.50	£1.80
31 - GASKET BDE-S32141.A10 S32141	£12.17	£14.60
32 - END CAP BDE-S32140.A0 S32140	£14.57	£17.48
33 - PLATE BDE-S32017A.A1 S32017A	£9.41	£11.29
34 - NO LONGER AVAILABLE BDE-000000-00.A64506 000000-00	-
35 - COVER BDE-S32182.A4 S32182	£3.30	£3.96
36 - SPACER BDE-S32184.A1 S32184	£1.50	£1.80
37 - SCREW BDE-100258.A14 100258	£1.50	£1.80
38 - GUARD BDE-S32121.A4 S32121	£14.57	£17.48
39 - NUT M4 BDE-MHE4070-100.A46 MHE4070-100	£1.50	£1.80
40 - GUIDE BDE-S32122A.A0 S32122A	£24.39	£29.27
41 - ARM BDE-S32120.A0 S32120	£5.88	£7.06
42 - CONTACT BDE-S32127.A6 S32127	£4.69	£5.63
43 - PIN BDE-110071.A9 110071	£1.50	£1.80
44 - SCREW BDE-100364.A4 100364	£1.50	£1.80
45 - PIN BDE-S32066.A0 S32066	£17.48	£20.97
46 - PLATE BDE-S32072.A5 S32072	£2.71	£3.25
47 - LATCH BDE-S32009.A1 S32009	£25.70	£30.84
48 - SPRING COMPRESSION BDE-T27160.A1 T27160	£3.80	£4.56
49 - SPRING COMPRESSION BDE-S32024.A1 S32024	£1.50	£1.80
50 - HANDLE BDE-S32025.A5 S32025	£10.57	£12.68
51 - NO LONGER AVAILABLE BDE-000000-00.A64507 000000-00	-
52 - NO LONGER AVAILABLE BDE-000000-00.A64508 000000-00	-
53 - STOP BDE-S32177.A4 S32177	£1.50	£1.80
54 - SCREW BDE-MSC4070-8.A0 MSC4070-8	£1.50	£1.80
55 - SPRING BDE-S32065.A5 S32065	£1.42	£1.70
56 - ROD BDE-S32061A.A1 S32061A	£78.12	£93.74
57 - NO LONGER AVAILABLE BDE-000000-00.A64509 000000-00	-
58 - NO LONGER AVAILABLE BDE-000000-00.A64510 000000-00	-
59 - END CAP BDE-S32063.A4 S32063	£16.03	£19.24
60 - WASHER BDE-S32178.A1 S32178	£4.69	£5.63
61 - NO LONGER AVAILABLE BDE-000000-00.A64511 000000-00	-
62 - SPIROL PIN BDE-100263.A12 100263	£1.42	£1.70
63 - SPIROL PIN BDE-100264.A4 100264	£1.42	£1.70
64 - NO LONGER AVAILABLE BDE-000000-00.A64512 000000-00	-
65 - LABEL BDE-159914.A6 159914	-
66 - VALVE KIT BDE-TVA5.A0 TVA5	£65.52	£78.62
67 - O RING BDE-86459.A11 86459	£1.50	£1.80
68 - O RING BDE-106967.A1 106967	£1.50	£1.80
69 - TRIGGER BDE-N50082A.A1 N50082A	£3.30	£3.96
70 - KIT BDE-SEQ6.A24 SEQ6	£10.85	£13.02
71 - TRIGGER BDE-DTK1.A3 DTK1	£30.08	£36.10
72 - O RING BDE-100817.A11 100817	£1.50	£1.80
73 - NO LONGER AVAILABLE BDE-000000-00.A64513 000000-00	-
74 - SCREW BDE-105235.A2 105235	£1.50	£1.80

Attribute Name	Value
Brand	Bostitch
