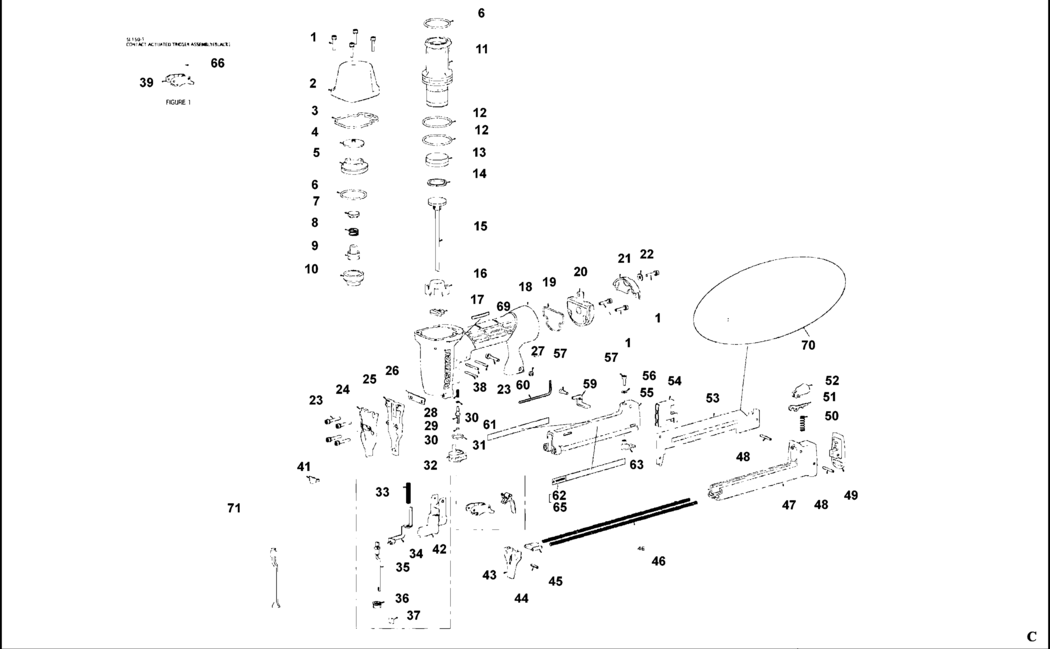

An exploded drawing and spare parts listing for the Bostitch SL150-1 Type REV 0 Stapler
Ex VAT Inc VAT
1 - SCREW BDE-121051.A6 121051 £1.50 £1.80
2 - NO LONGER AVAILABLE BDE-000000-00.A31235 000000-00 -
3 - SEAL BDE-113337.A1 113337 -
4 - SEAL BDE-160186.A7 160186 £1.42 £1.70
5 - VALVE BDE-160187.A5 160187 £1.42 £1.70
6 - O RING BDE-101058.A11 101058 £1.42 £1.70
7 - SEAL BDE-120989.A4 120989 £1.42 £1.70
8 - SPRING BDE-120991.A8 120991 £1.42 £1.70
9 - INSERT BDE-120032.A0 120032 £1.42 £1.70
10 - DIAPHRAGM BDE-120027.A1 120027 -
11 - SLEEVE BDE-120028.A6 120028 £10.57 £12.68
12 - O RING BDE-105816.A3 105816 £1.50 £1.80
13 - SEAL BDE-120061.A1 120061 £1.42 £1.70
14 - PISTON RING BDE-S32109.A21 S32109 £12.17 £14.60
15 - PISTON BDE-173898.A1 173898 £43.02 £51.63
16 - BUMPER BDE-171415.A2 171415 -
17 - DRIVER BDE-121030.A1 121030 -
18 - NO LONGER AVAILABLE BDE-000000-00.A31236 000000-00 -
19 - SEAL BDE-121035.A13 121035 £4.58 £5.49
20 - CAP BDE-175414.A6 175414 -
21 - DEFLECTOR BDE-121032.A1 121032 -
22 - NO LONGER AVAILABLE BDE-000000-00.A31237 000000-00 -
23 - SCREW BDE-121052.A3 121052 £1.50 £1.80
24 - NO LONGER AVAILABLE BDE-000000-00.A31238 000000-00 -
25 - NOSE BDE-121282.A0 121282 -
26 - PLATE BDE-121279.A2 121279 -
27 - NUT M4 BDE-MHE4070-100.A72 MHE4070-100 £1.50 £1.80
28 - SPRING COMPRESSION BDE-N86115.A4 N86115 £1.42 £1.70
29 - VALVE BDE-121029.A5 121029 £1.42 £1.70
30 - O RING BDE-MRG002514.A33 MRG002514 £4.69 £5.63
31 - O RING BDE-850144.A5 850144 £7.85 £9.42
32 - HOUSING BDE-121005.A8 121005 £2.21 £2.65
33 - SPRING BDE-121024.A11 121024 -
34 - BRACKET BDE-120022.A1 120022 -
35 - NO LONGER AVAILABLE BDE-000000-00.A31239 000000-00 -
36 - SCREW BDE-120024.A7 120024 -
37 - FOOT BDE-120056.A7 120056 -
38 - PIN BDE-100298.A21 100298 £1.50 £1.80
39 - KIT BDE-CNTK1.A3 CNTK1 £5.88 £7.06
40 - KIT SA BDE-SEQ4.A0 SEQ4 £7.18 £8.62
41 - PLUG BDE-121013.A6 121013 -
42 - NO LONGER AVAILABLE BDE-000000-00.A31240 000000-00 -
43 - TIP BDE-160189.A2 160189 £15.63 £18.76
44 - PIN BDE-160190.A0 160190 -
45 - PUSHER BDE-158736.A2 158736 -
46 - SPRING BDE-174359.A1 174359 -
48 - PIN BDE-159968.A4 159968 -
49 - BUMPER BDE-167188.A0 167188 -
50 - NO LONGER AVAILABLE BDE-000000-00.A31241 000000-00 -
51 - LATCH BDE-116933.A5 116933 -
52 - LATCH BDE-167189.A2 167189 -
53 - CORE BDE-160188.A0 160188 -
54 - PUSHER BDE-119279.A0 119279 -
55 - PUSHER BDE-175649.A1 175649 -
56 - WASHER BDE-MPW4.A5 MPW4 £1.50 £1.80
57 - SCREW BDE-MSC4070-8.A5 MSC4070-8 £1.50 £1.80
59 - STOP BDE-116941.A1 116941 -
60 - NO LONGER AVAILABLE BDE-000000-00.A31242 000000-00 -
61 - NO LONGER AVAILABLE BDE-000000-00.A31243 000000-00 -
62 - WARNING LABEL BDE-158612.A3 158612 £1.50 £1.80
63 - STOP BDE-121284.A3 121284 -
64 - NO LONGER AVAILABLE BDE-000000-00.A31244 000000-00 -
65 - NO LONGER AVAILABLE BDE-000000-00.A31245 000000-00 -
66 - SPRING BDE-100387.A32 100387 £1.50 £1.80
67 - NO LONGER AVAILABLE BDE-000000-00.A31247 000000-00 -
69 - NO LONGER AVAILABLE BDE-000000-00.A31248 000000-00 -
70 - CORE BDE-167191.A0 167191 -
71 - NO LONGER AVAILABLE BDE-000000-00.A31246 000000-00 -
