Bostitch SL1838BC-E Type REV C Pneumatic Stapler Spare Parts

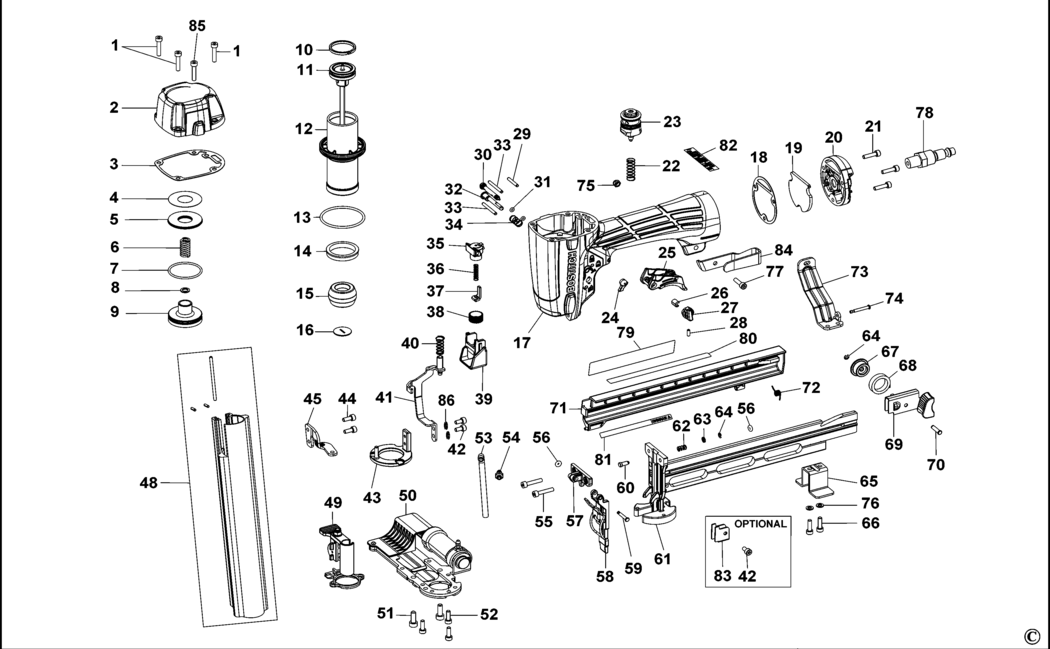

An exploded drawing and spare parts listing for the Bostitch SL1838BC-E Type REV C Pneumatic Stapler

	Ex VAT	Inc VAT
1 - SCREW BDE-182237.A2 182237	£1.50	£1.80
2 - CAP SA BDE-9R207412.A2 9R207412	£16.03	£19.24
3 - GASKET BDE-175682.A5 175682	£1.50	£1.80
4 - PLATE BDE-N905958.A8 N905958	£1.51	£1.81
5 - SEAL BDE-180446.A2 180446	£1.50	£1.80
6 - SPRING BDE-180447.A13 180447	£1.50	£1.80
7 - O RING BDE-180448.A2 180448	£1.50	£1.80
8 - WASHER BDE-180449.A8 180449	£1.50	£1.80
9 - BODY BDE-180450-S.A3 180450-S	£1.50	£1.80
10 - PISTON RING BDE-N905972.A6 N905972	£2.26	£2.71
11 - PISTON SA BDE-180597 180597	£9.41	£11.29
12 - CYLINDER BDE-180458.A3 180458	£2.78	£3.34
13 - O RING BDE-180459.A5 180459	£1.50	£1.80
14 - SEAL BDE-180460.A4 180460	£1.50	£1.80
15 - BUMPER BDE-180461.A6 180461	£1.50	£1.80
16 - GUIDE BDE-180599 180599	£1.50	£1.80
17 - HOUSING BDE-188596 188596	£47.08	£56.49
18 - GASKET BDE-180463.A5 180463	£1.50	£1.80
19 - FILTER BDE-182235.A5 182235	£1.50	£1.80
20 - CAP BDE-180465.A7 180465	£5.88	£7.06
21 - SCREW BDE-MSC4070-16.A5 MSC4070-16	£1.50	£1.80
22 - SPRING BDE-180476.A0 180476	£1.50	£1.80
24 - BUTTON LOCK-ON BDE-184518.A4 184518	£1.50	£1.80
25 - TRIGGER BDE-184513.A5 184513	£7.18	£8.62
26 - BUSHING BDE-184508.A4 184508	£1.50	£1.80
27 - BUTTON BDE-184506.A4 184506	£1.50	£1.80
28 - SCREW BDE-180484.A0 180484	£1.50	£1.80
29 - PIN BDE-180475.A12 180475	£1.50	£1.80
30 - PIN BDE-184519.A5 184519	£2.26	£2.71
31 - O RING BDE-MRG002514.A1 MRG002514	£4.69	£5.63
32 - PIN BDE-184507.A5 184507	£3.80	£4.56
33 - PIN BDE-174345.A11 174345	£1.50	£1.80
34 - SPRING BDE-180481.A11 180481	£1.50	£1.80
35 - GUIDE BDE-180514.A6 180514	£1.50	£1.80
36 - SPRING BDE-180513.A3 180513	£1.50	£1.80
37 - ARM BDE-180510.A6 180510	£1.50	£1.80
38 - ADJUSTER BDE-180509.A3 180509	£1.50	£1.80
39 - BRACKET BDE-188579 188579	£1.50	£1.80
40 - SPRING BDE-188667 188667	£1.50	£1.80
41 - ARM LINK BDE-188595 188595	£7.18	£8.62
42 - SCREW BDE-MSC4070-8.A20 MSC4070-8	£1.50	£1.80
43 - CONTACT PLATE BDE-188592 188592	£12.17	£14.60
44 - SCREW BDE-MSC4070-10.A18 MSC4070-10	£1.50	£1.80
45 - BRACKET BDE-188587 188587	£1.50	£1.80
48 - MAGAZINE BDE-188699 188699	£19.90	£23.88
49 - SLIDER SA BDE-188650 188650	£7.18	£8.62
50 - CYLINDER SA BDE-188660 188660	£38.80	£46.56
51 - SCREW BDE-188625.A0 188625	£1.50	£1.80
52 - SCREW BDE-MSC4070-12.A17 MSC4070-12	£1.50	£1.80
53 - TUBE BDE-188642.A0 188642	£1.50	£1.80
54 - COUPLING BDE-188636.A1 188636	£1.50	£1.80
55 - SCREW BDE-100260.A14 100260	£1.50	£1.80
56 - O RING BDE-174073.A11 174073	£1.50	£1.80
57 - HINGE BDE-188585 188585	£5.88	£7.06
58 - LATCH BDE-188663 188663	£12.17	£14.60
59 - PIN BDE-188628.A0 188628	£1.50	£1.80
60 - LOCK PIN BDE-188594 188594	£1.50	£1.80
61 - NOSE SA BDE-188598 188598	£44.14	£52.97
62 - SPRING BDE-180492.A3 180492	£1.50	£1.80
63 - SPACER BDE-180493.A0 180493	£1.50	£1.80
64 - CIRCLIP BDE-180494.A6 180494	£1.50	£1.80
65 - PLATE BDE-188637 188637	£1.50	£1.80
66 - SCREW BDE-188705 188705	£1.50	£1.80
67 - BUSHING BDE-188633 188633	£1.50	£1.80
68 - SPRING COMPRESSION BDE-188632.A1 188632	£1.50	£1.80
69 - PAWL BDE-188664 188664	£7.18	£8.62
70 - PIN BDE-188634 188634	£1.50	£1.80
71 - COVER BDE-188638 188638	£2.78	£3.34
72 - SPRING TORSION BDE-188696 188696	£1.50	£1.80
73 - BRACKET BDE-188593 188593	£2.78	£3.34
74 - PIN BDE-188704 188704	£1.50	£1.80
75 - NUT M4 BDE-MHE4070-100.A0 MHE4070-100	£1.50	£1.80
76 - WASHER BDE-N905878.A12 N905878	-
77 - SCREW BDE-188626.A2 188626	£1.50	£1.80
78 - PARTIAL SUPPORT - ONLY PARTS LISTED AVAILABLE BDE-000000-05.A205 000000-05	-
79 - LABEL BDE-159921 159921	£1.50	£1.80
80 - LABEL BDE-188601 188601	£1.50	£1.80
81 - LABEL BDE-181919 181919	£1.50	£1.80
82 - LABEL BDE-188602 188602	£1.50	£1.80
83 - GUIDE BDE-188605 188605	£1.50	£1.80
84 - HOOK BDE-188695 188695	£1.50	£1.80
85 - SCREW BDE-179805 179805	£1.50	£1.80
86 - WASHER BDE-188706 188706	£1.50	£1.80

Attribute Name	Value
Brand	Bostitch
