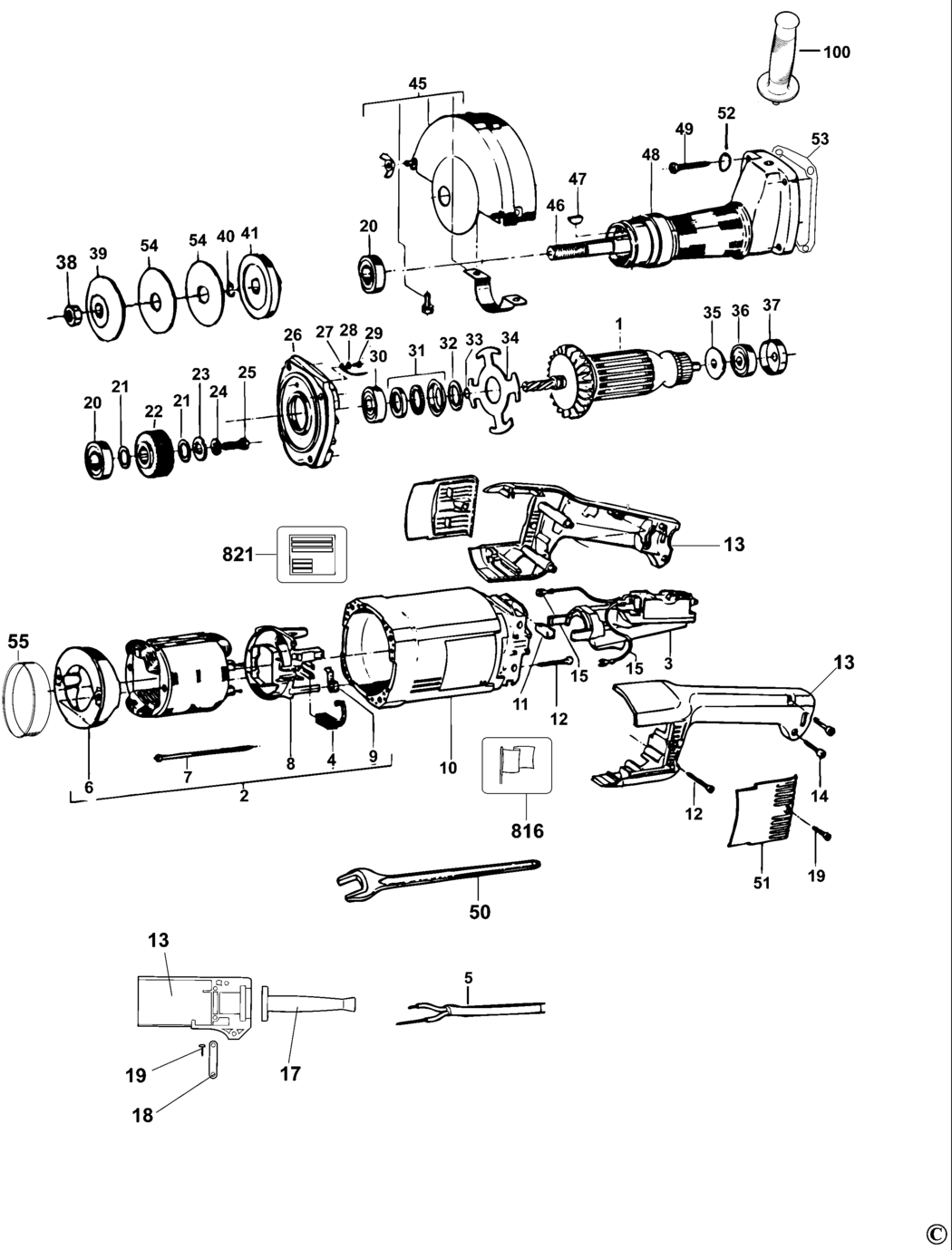

An exploded drawing and spare parts listing for the Dewalt DW882 Type 2 Straight Grinder
Ex VAT Inc VAT
1 - REPAIR KIT GB BDE-N102229.A2 N102229 £414.90 £497.88
2 - REPAIR KIT GB BDE-N102229.A3 N102229 £414.90 £497.88
3 - SWITCH GB BDE-949411-00.A2 949411-00 -
4 - BRUSH CUT OFF GB BDE-940160-01.A20 940160-01 £12.17 £14.60
5 - CORDSET GB BDE-330085-04.A1 330085-04 £12.17 £14.60
6 - BAFFLE BDE-931073-00.A65 931073-00 £1.42 £1.70
7 - SCREW BDE-N412453.A9 N412453 £1.50 £1.80
8 - BRUSH PLATE SA BDE-935746.A27 935746 £18.42 £22.10
9 - SPRING BDE-931076-00.A38 931076-00 £1.42 £1.70
10 - FIELDCASE BDE-948134-08.A1 948134-08 £17.48 £20.97
11 - SHOCK ABSORBER BDE-930934-00.A117 930934-00 £1.50 £1.80
12 - SCREW BDE-931297-00.A124 931297-00 £1.50 £1.80
13 - HANDLE & COVER BDE-N097875.A45 N097875 -
14 - SCREW BDE-930284-01.A60 930284-01 £1.50 £1.80
15 - NO LONGER AVAILABLE BDE-000000-00.A30220 000000-00 -
17 - CORD PROTECTOR BDE-947964-01.A56 947964-01 £3.80 £4.56
18 - CORD CLAMP BDE-931477-00.A0 931477-00 £1.50 £1.80
19 - SCREW BDE-931469-02.A190 931469-02 £1.50 £1.80
20 - BEARING BDE-861721-12.A54 861721-12 £7.85 £9.42
21 - WASHER BDE-930594-00.A4 930594-00 £1.50 £1.80
22 - GEAR BDE-937986-00.A1 937986-00 £12.17 £14.60
23 - WASHER BDE-12952-00.A1 12952-00 £1.50 £1.80
24 - WASHER BDE-930834-00.A1 930834-00 £1.50 £1.80
25 - SCREW.TEMP BDE-860085-09.A11 860085-09 £1.50 £1.80
26 - GEARCASE COVER BDE-937984-01.A1 937984-01 £14.57 £17.48
27 - LEAD BDE-939484-00.A0 939484-00 £1.42 £1.70
28 - WASHER BDE-931798-00.A0 931798-00 £3.22 £3.86
29 - SCREW BDE-931797-00.A4 931797-00 £1.50 £1.80
30 - BEARING BDE-330003-14.A86 330003-14 £7.85 £9.42
31 - SEAL SA BDE-931067-00.A40 931067-00 £1.50 £1.80
32 - SPACER BDE-931062.A104 931062 £1.50 £1.80
33 - O RING BDE-930028-00.A308 930028-00 £1.50 £1.80
34 - FLANGE BDE-931066-00.A116 931066-00 £1.82 £2.19
35 - SPACER BDE-N174055.A54 N174055 £1.50 £1.80
36 - BEARING BDE-577745-00.A209 577745-00 £7.85 £9.42
37 - SLEEVE BDE-938332-00.A89 938332-00 £1.50 £1.80
38 - NUT BDE-8535-01.A0 8535-01 £4.69 £5.63
39 - FLANGE BDE-939547-00.A3 939547-00 £3.30 £3.96
40 - CIRCLIP BDE-8899-00.A3 8899-00 £1.50 £1.80
41 - FLANGE BDE-939519-00.A1 939519-00 £16.03 £19.24
45 - GUARD SA BDE-400731-01.A3 400731-01 £165.92 £199.11
46 - SPINDLE BDE-937982-01.A3 937982-01 £24.39 £29.27
47 - KEY BDE-940441-00.A27 940441-00 £1.50 £1.80
48 - CASTING SA BDE-948122-03.A0 948122-03 £126.63 £151.96
49 - SCREW BDE-940267-00.A3 940267-00 £1.50 £1.80
50 - SPANNER BDE-939948-00.A4 939948-00 £10.85 £13.02
51 - COVER BDE-933364-02.A28 933364-02 £1.50 £1.80
52 - WASHER BDE-930248-00.A22 930248-00 £1.50 £1.80
53 - GASKET BDE-940443-00.A0 940443-00 £3.80 £4.56
54 - SHOCK ABSORBER BDE-939488-00.A3 939488-00 £3.30 £3.96
55 - NO LONGER AVAILABLE BDE-000000-00.A30222 000000-00 -
100 - SIDE HANDLE BDE-573115-00.A83 573115-00 £2.78 £3.34
821 - NO LONGER AVAILABLE GB BDE-000000-00.A30221 000000-00 -
