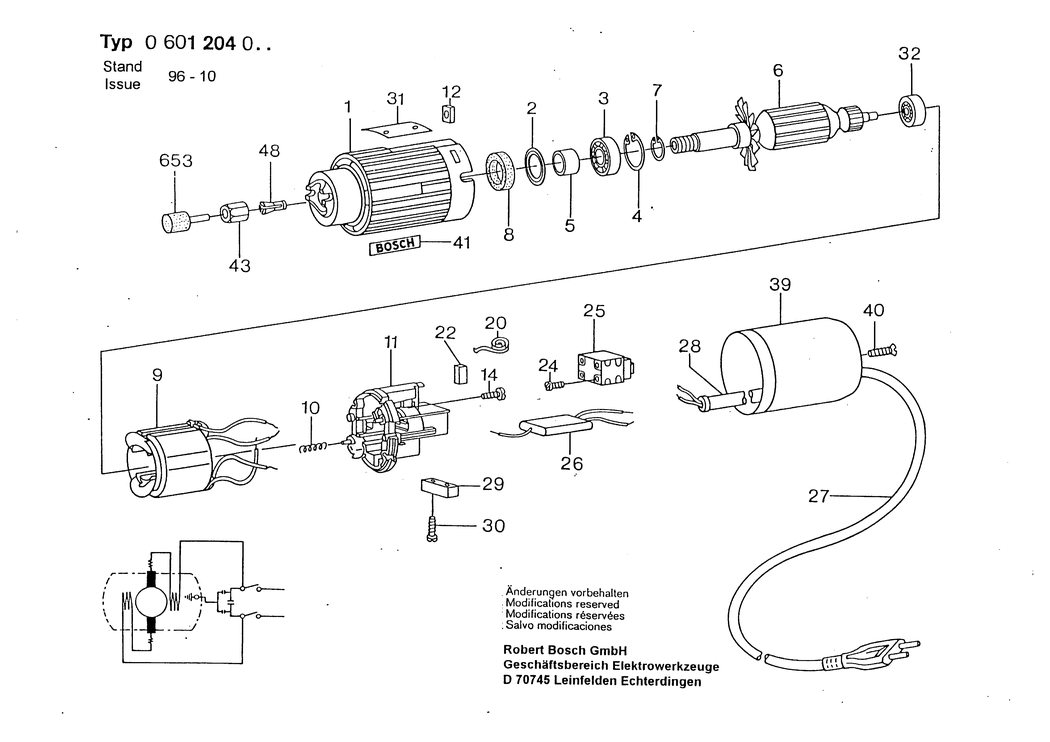

1 - MOTOR HOUSING
BSD-2605102058.A2
2605102058
|
-
|
|
|
|
2 - CUPPED WASHER
BSD-2600500033.A74
2600500033
|
£2.61
|
£3.13
|
|
|
3 - GROOVE BALL BEARING dia 8 MM
BSD-2600905005.A0
2600905005
|
-
|
|
|
|
4 - RETAINING CLIP DIN 472-32x1.2 MM
BSD-2916660013.A347
2916660013
|
£2.16
|
£2.59
|
|
|
5 - BUSHING
BSD-2600300062.A17
2600300062
|
-
|
|
|
|
6 - ARMATURE 220V
BSD-2604010355.A1
2604010355
|
-
|
|
|
|
7 - RETAINING CLIP DIN 471-15x1-FSt
BSD-2916650006.A547
2916650006
|
£1.75
|
£2.10
|
|
|
8 - FELT WASHER
BSD-2600108033.A31
2600108033
|
£1.75
|
£2.10
|
|
|
9 - FIELD 220V
BSD-2604220251.A11
2604220251
|
-
|
|
|
|
10 - COMPRESSION SPRING
BSD-2604611024.A127
2604611024
|
£2.16
|
£2.59
|
|
|
11 - COMMUTATOR END SHIELD
BSD-2605808900.A9
2605808900
|
-
|
|
|
|
12 - SQUARE NUT M4
BSD-2603320001.A24
2603320001
|
£1.75
|
£2.10
|
|
|
14 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8
BSD-2910021122.A503
2910021122
|
£2.16
|
£2.59
|
|
|
20 - SPIRAL SPRING
BSD-1604652004.A239
1604652004
|
£2.61
|
£3.13
|
|
|
22 - CARBON BRUSH
BSD-1604321900.A215
1604321900
|
-
|
|
|
|
24 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A295
2603410001
|
£1.75
|
£2.10
|
|
|
25 - ON-OFF SWITCH
BSD-2607200048.A43
2607200048
|
-
|
|
|
|
26 - SUPPRESSION CAPACITOR
BSD-2607329056.A11
2607329056
|
-
|
|
|
|
27 - ELEC. CABLE W/CONNECTION CH 2.65m 2 x 1.0mm H05 VV-F
BSD-2604460053.A42
2604460053
|
-
|
|
|
|
28 - GROMMET dia8.3-dia9.4x95 MM
BSD-2600703011.A277
2600703011
|
£2.80
|
£3.36
|
|
|
28 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A1152
2600703012
|
£2.80
|
£3.36
|
|
|
28 - GROMMET dia7.6-dia8.2x95 MM
BSD-2600703013.A222
2600703013
|
£2.61
|
£3.13
|
|
|
29 - CABLE CLIP
BSD-2601035001.A117
2601035001
|
£1.75
|
£2.10
|
|
|
30 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A1882
2910211019
|
£1.75
|
£2.10
|
|
|
31 - NAMEPLATE
BSD-160111A3H3.A576
160111A3H3
|
£2.61
|
£3.13
|
|
|
32 - GROOVE BALL BEARING 6x19x6
BSD-1900905019.A75
1900905019
|
£14.91
|
£17.89
|
|
|
39 - HOUSING COVER
BSD-2600508028.A21
2600508028
|
-
|
|
|
|
40 - REC CT-SUNK TAPPING SCREW BZ 3.9x19 DIN 7972
BSD-2910601020.A80
2910601020
|
-
|
|
|
|
41 - MANUFACTURER'S NAMEPLATE
BSD-1601110013.A81
1601110013
|
-
|
|
|
|
43 - UNION NUT SW 14
BSD-2603312001.A4
2603312001
|
-
|
|
|
|
48 - COLLET dia 6 MM / dia 8 MM
BSD-2608570065.A20
2608570065
|
-
|
|
|
|
48 - COLLET dia 6.4 MM=1/4/dia 8 MM
BSD-2608570066.A11
2608570066
|
£12.45
|
£14.94
|
|
|
48 - COLLET dia 3MM
BSD-2608570067.A1
2608570067
|
-
|
|
|
|
48 - COLLET dia 3.2MM.1/8
BSD-2608570068.A5
2608570068
|
-
|
|
|
|
49 - SHIM
BSD-2600150003.A227
2600150003
|
£2.16
|
£2.59
|
|
|
50 - SHIM 0.2 MM
BSD-2600101655.A65
2600101655
|
-
|
|
|
|
50 - SHIM 0.3 MM
BSD-2600101656.A116
2600101656
|
-
|
|
|
|
50 - SHIM 0.5 MM
BSD-2600101657.A65
2600101657
|
-
|
|
|
|
52 - SHIM 0.1 MM
BSD-1600102626.A76
1600102626
|
£2.16
|
£2.59
|
|
|
650 - SINGLE-HEAD ENG. WRENCH
BSD-1689005026.A4
1689005026
|
-
|
|
|
|
651 - STRAIGHT PIN 4x60 MM
BSD-2603101035.A166
2603101035
|
£2.80
|
£3.36
|
|
|
653 - ABRASIVE PENCIL dia 6 MM
BSD-2608620012.A13
2608620012
|
£5.47
|
£6.56
|
|
|
653 - ABRASIVE PENCIL dia6.4 MM=1/4
BSD-2608620013.A10
2608620013
|
-
|
|
|
|
653 - ABRASIVE PENCIL dia 6 MM
BSD-2608620014.A13
2608620014
|
£5.80
|
£6.96
|
|
|
653 - ABRASIVE PENCIL dia6.4 MM=1/4
BSD-2608620015.A10
2608620015
|
-
|
|
|
|
655 - WHETSTONE
BSD-1607929000.A27
1607929000
|
-
|
|
|
