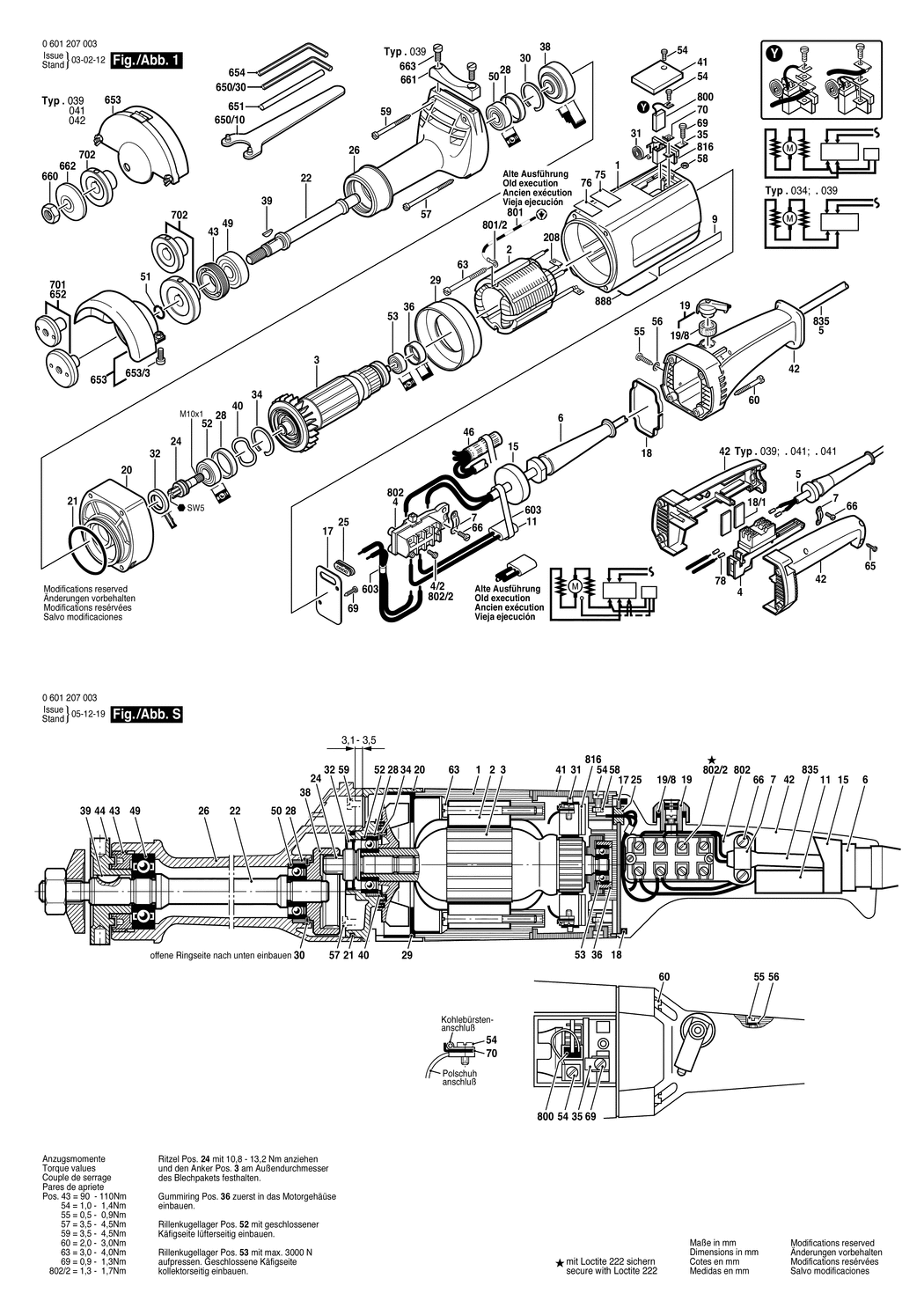

1 - MOTOR HOUSING
BSD-3605108088.A8
3605108088
|
-
|
|
|
|
2 - POLE SHOE 100-110V
BSD-1604220123.A1
1604220123
|
-
|
|
|
|
2 - TERMINAL LUG 1.5-4x4
BSD-1901350003.A212
1901350003
|
£1.75
|
£2.10
|
|
|
3 - ARMATURE 100-110V
BSD-1604011237.A0
1604011237
|
-
|
|
|
|
6 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A1015
3600703011
|
£2.80
|
£3.36
|
|
|
7 - FASTENING CLAMP
BSD-1601302013.A47
1601302013
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601110005.A33
1601110005
|
-
|
|
|
|
11 - SUPPRESSION FILTER
BSD-1607328034.A500
1607328034
|
£4.26
|
£5.11
|
|
|
15 - SEAL
BSD-1600113002.A254
1600113002
|
£1.75
|
£2.10
|
|
|
17 - COVER PLATE
BSD-1601037006.A55
1601037006
|
-
|
|
|
|
18 - PROFILE STRIP 3.4x7x240 MM
BSD-1601014005.A195
1601014005
|
-
|
|
|
|
19 - CONTROL LEVER
BSD-1602026041.A94
1602026041
|
-
|
|
|
|
19/8 - FELT WASHER
BSD-1600205019.A150
1600205019
|
£1.75
|
£2.10
|
|
|
20 - INTERMEDIATE BEARING
BSD-1605820212.A3
1605820212
|
-
|
|
|
|
21 - O-RING 55x3 MM
BSD-1900210152.A63
1900210152
|
£3.72
|
£4.47
|
|
|
22 - GRINDING SPINDLE M14
BSD-1603160035.A3
1603160035
|
-
|
|
|
|
24 - PINION Z=10
BSD-1606300003.A4
1606300003
|
-
|
|
|
|
25 - GROMMET
BSD-1600306001.A417
1600306001
|
£2.61
|
£3.13
|
|
|
26 - SPINDLE BEARING
BSD-1605806365.A4
1605806365
|
-
|
|
|
|
28 - RUBBER RING 7 MM
BSD-1600206020.A80
1600206020
|
£1.75
|
£2.10
|
|
|
29 - AIR-DEFLECTOR RING
BSD-1600502009.A51
1600502009
|
-
|
|
|
|
30 - RETAINING RING
BSD-1600116004.A56
1600116004
|
-
|
|
|
|
31 - SPIRAL SPRING
BSD-1604652006.A164
1604652006
|
£1.75
|
£2.10
|
|
|
32 - ROTARY SHAFT LIP SEAL
BSD-1600290008.A243
1600290008
|
£2.61
|
£3.13
|
|
|
34 - SPRING RETAINING RING DIN 472 38X1.5MM
BSD-2916660017.A124
2916660017
|
£4.26
|
£5.11
|
|
|
35 - TAB WASHER
BSD-1601030022.A268
1601030022
|
£1.75
|
£2.10
|
|
|
36 - RUBBER RING
BSD-1600206015.A5
1600206015
|
£2.16
|
£2.59
|
|
|
36 - RUBBER BUSHING
BSD-1600502006.A38
1600502006
|
£1.75
|
£2.10
|
|
|
38 - INTERNAL GEAR Z=41
BSD-1606334000.A4
1606334000
|
-
|
|
|
|
39 - WOODRUFF KEY DIN 6888-4x5-ST60-2
BSD-1900023006.A19
1900023006
|
£2.61
|
£3.13
|
|
|
40 - SPRING WASHER dia27.5x38.4 MM
BSD-1600150007.A126
1600150007
|
£1.75
|
£2.10
|
|
|
41 - SEALING CAP
BSD-3605500063.A83
3605500063
|
£4.26
|
£5.11
|
|
|
42 - HANDLE
BSD-1605132079.A58
1605132079
|
-
|
|
|
|
43 - THREADED RING
BSD-1603344005.A3
1603344005
|
£27.23
|
£32.68
|
|
|
49 - GROOVE BALL BEARING 17x47x14
BSD-1900900352.A193
1900900352
|
£27.23
|
£32.68
|
|
|
50 - GROOVE BALL BEARING 10x35x11
BSD-1600905025.A109
1600905025
|
-
|
|
|
|
51 - RETAINING RING 16 DIN 9045
BSD-2916600009.A48
2916600009
|
£1.75
|
£2.10
|
|
|
52 - GROOVE BALL BEARING 15x35x11
BSD-1900905234.A12
1900905234
|
£31.64
|
£37.97
|
|
|
53 - GROOVE BALL BEARING
BSD-1600900029.A198
1600900029
|
-
|
|
|
|
54 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A1283
2910021118
|
£1.75
|
£2.10
|
|
|
55 - TAPPING SCREW DIN 7971-BZ2.9x13
BSD-2910211006.A775
2910211006
|
£1.75
|
£2.10
|
|
|
56 - PLAIN WASHER DIN 433-3.2-ST 50
BSD-2916011005.A635
2916011005
|
£1.75
|
£2.10
|
|
|
57 - TAPPING SCREW B4.8x85 MM
BSD-1603429001.A123
1603429001
|
-
|
|
|
|
58 - HEX NUT DIN 934 -M4-m-8
BSD-2915011005.A593
2915011005
|
£1.75
|
£2.10
|
|
|
59 - TAPPING SCREW B4.8x72.5 MM
BSD-1603435013.A10
1603435013
|
£2.16
|
£2.59
|
|
|
60 - TAPPING SCREW DIN 7971-ST4.8x25-F
BSD-2910211036.A256
2910211036
|
£1.75
|
£2.10
|
|
|
63 - TAPPING SCREW B4.8x57.5 MM
BSD-1603429000.A4
1603429000
|
£1.75
|
£2.10
|
|
|
66 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A1282
2910021118
|
£1.75
|
£2.10
|
|
|
69 - TAPPING SCREW DIN 7971-BZ3.5x13
BSD-2910211011.A275
2910211011
|
£1.75
|
£2.10
|
|
|
650/10 - PIN-TYPE FACE-WRENCH
BSD-1607950061.A2
1607950061
|
£5.42
|
£6.50
|
|
|
650/30 - OFFSET SCREWDRIVER DIN 911;SW6
BSD-1907950007.A418
1907950007
|
£5.30
|
£6.36
|
|
|
651 - HOLDING PIN
BSD-3603101005.A16
3603101005
|
£5.30
|
£6.36
|
|
|
652 - ROUND NUT dia 51.5x20 MM. M14
BSD-1603345036.A5
1603345036
|
£14.91
|
£17.89
|
|
|
653/3 - PROTECTIVE COVER dia 140 MM
BSD-1605510106.A3
1605510106
|
-
|
|
|
|
653/3 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x18-8.8
BSD-2910141240.A171
2910141240
|
£1.32
|
£1.58
|
|
|
654 - OFFSET SCREWDRIVER DIN 911;SW6
BSD-1907950007.A414
1907950007
|
£5.30
|
£6.36
|
|
|
701 - ROUND NUT dia 65x20 MM. M14
BSD-1603345034.A3
1603345034
|
£23.14
|
£27.77
|
|
|
702 - CLAMPING FLANGE dia 65x16 MM
BSD-1605703065.A5
1605703065
|
-
|
|
|
|
800 - CARBON-BRUSH SET
BSD-1607014106.A42
1607014106
|
£18.96
|
£22.75
|
|
|
801 - CONNECTING CABLE
BSD-1604440004.A145
1604440004
|
-
|
|
|
|
802 - SWITCH KIT
BSD-1607000034.A87
1607000034
|
-
|
|
|
|
802/2 - PAN HEAD SCREW DIN 85-AM4x8-4.8
BSD-2910091118.A481
2910091118
|
£1.75
|
£2.10
|
|
|
816 - BRUSH HOLDER
BSD-3604336012.A63
3604336012
|
£5.58
|
£6.70
|
|
|
835 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F
BSD-1607000228.A569
1607000228
|
£23.86
|
£28.63
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A570
160111A3H3
|
£2.61
|
£3.13
|
|
