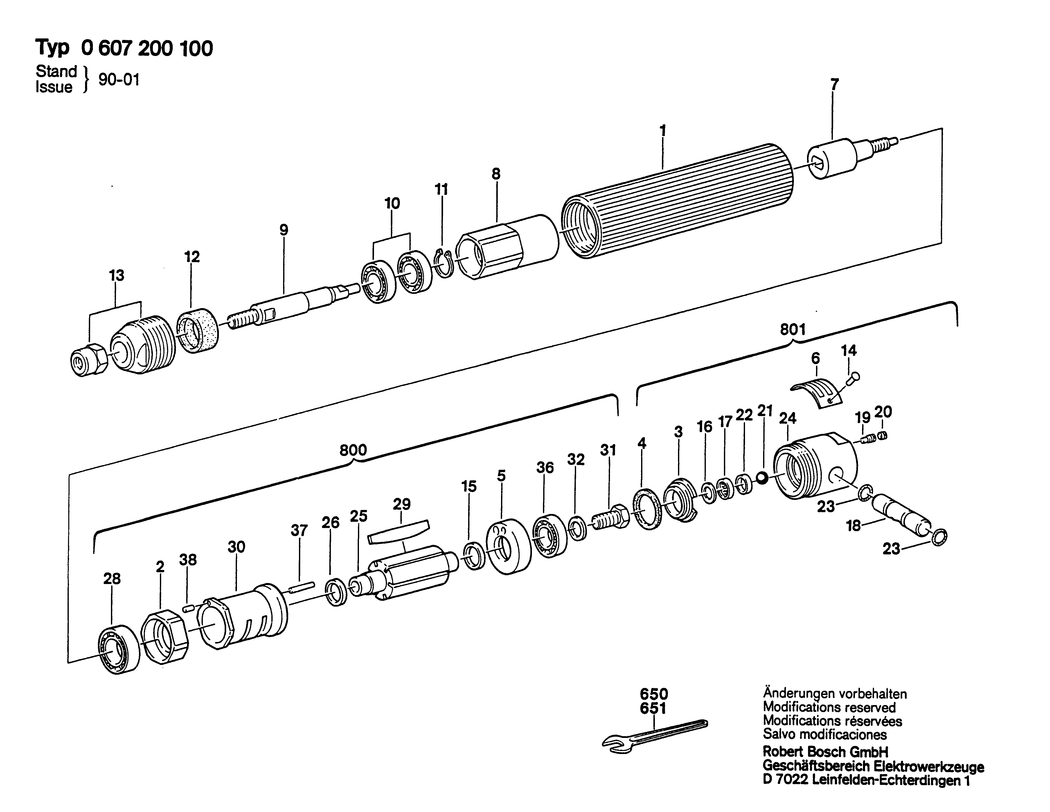

1 - MOTOR HOUSING
BSD-2605110044.A0
2605110044
|
-
|
|
|
2 - BACKUP RING
BSD-2600501028.A0
2600501028
|
-
|
|
|
3 - THRUST MEMBER
BSD-2600521011.A1
2600521011
|
-
|
|
|
4 - SEAL RING
BSD-2600209011.A1
2600209011
|
-
|
|
|
5 - BACKUP RING
BSD-2600501027.A1
2600501027
|
-
|
|
|
6 - NAMEPLATE
BSD-160111A3HF.A330
160111A3HF
|
£3.72
|
£4.47
|
|
7 - DRIVING PIN
BSD-2606455001.A1
2606455001
|
-
|
|
|
8 - INTERMEDIATE PIECE
BSD-2600328011.A1
2600328011
|
-
|
|
|
9 - GRINDING SPINDLE
BSD-2603121027.A1
2603121027
|
-
|
|
|
10 - GROOVE BALL BEARING 10x22x6
BSD-3600905003.A4
3600905003
|
-
|
|
|
11 - SPRING RETAINING RING DIN 471-10x1MM-FSt
BSD-2916650001.A166
2916650001
|
£2.61
|
£3.13
|
|
12 - SILENCER
BSD-2600501020.A0
2600501020
|
-
|
|
|
13 - THREADED SLEEVE
BSD-2603344009.A0
2603344009
|
-
|
|
|
14 - GROOVED NAIL
BSD-3603133000.A552
3603133000
|
£2.61
|
£3.13
|
|
15 - SPACER RING
BSD-2600202014.A43
2600202014
|
£11.30
|
£13.56
|
|
16 - SHIM WASHER 0.1 MM
BSD-2600100401.A7
2600100401
|
-
|
|
|
17 - STRAINER
BSD-2600002006.A6
2600002006
|
£4.26
|
£5.11
|
|
18 - SWITCHING PIN
BSD-2603103013.A0
2603103013
|
-
|
|
|
19 - SET SCREW M 4x8 DIN 417-5.8
BSD-2912051118.A1
2912051118
|
-
|
|
|
20 - SET SCREW M 4x4 DIN 551-5.8
BSD-2912031114.A0
2912031114
|
-
|
|
|
21 - BALL 7.5 MM IIIDIN5401-ST
BSD-1903230024.A12
1903230024
|
£2.80
|
£3.36
|
|
22 - SEAL RING
BSD-2600206004.A24
2600206004
|
£7.36
|
£8.83
|
|
23 - SEAL RING
BSD-2600210012.A0
2600210012
|
-
|
|
|
24 - VALVE BODY
BSD-2605110058.A1
2605110058
|
-
|
|
|
25 - ROTOR
BSD-2604090007.A1
2604090007
|
-
|
|
|
26 - SPACER RING
BSD-2600202013.A149
2600202013
|
£8.67
|
£10.41
|
|
28 - GROOVE BALL BEARING 9x24x7 MM
BSD-3600905039.A38
3600905039
|
£12.04
|
£14.45
|
|
29 - ROTOR LAMELLA
BSD-2601073007.A1
2601073007
|
-
|
|
|
30 - STATOR
BSD-2605110098.A0
2605110098
|
-
|
|
|
31 - HEX SCREW DIN 933-M5x8-8.8
BSD-2911061150.A15
2911061150
|
£2.61
|
£3.13
|
|
32 - PLAIN WASHER DIN 433-5.3-ST
BSD-2916011011.A74
2916011011
|
£1.75
|
£2.10
|
|
36 - BALL BEARING 7x19x6
BSD-2600905032.A1651
2600905032
|
£5.30
|
£6.36
|
|
37 - STRAIGHT PIN 2 H 8x8 DIN 7
BSD-2917500035.A0
2917500035
|
-
|
|
|
38 - STRAIGHT PIN DIN 7-2h8x4-ST
BSD-2917570032.A2
2917570032
|
£2.16
|
£2.59
|
|
650 - SINGLE-HEAD ENG. WRENCH DIN 894 SW10
BSD-1907950504.A3
1907950504
|
£12.04
|
£14.45
|
|
651 - SINGLE-HEAD ENG. WRENCH SW 14
BSD-1907950508.A42
1907950508
|
£14.91
|
£17.89
|
|
652 - WHETSTONE
BSD-1607929000.A9
1607929000
|
-
|
|
|
661 - COLLET
BSD-2608570060.A0
2608570060
|
-
|
|
|
662 - HOSE FITTING
BSD-2603386001.A6
2603386001
|
£7.36
|
£8.83
|
|
800 - PNEUMATIC MOTOR
BSD-2607219023.A0
2607219023
|
-
|
|
|
801 - VALVE HOUSING
BSD-2607415000.A1
2607415000
|
-
|
|
|
