Festool RO 125 FEQ 230V / 493660 Spare Parts

Festool RO 125 FEQ 230V / 493660 Spare Parts
Home Details Reviews Delivery

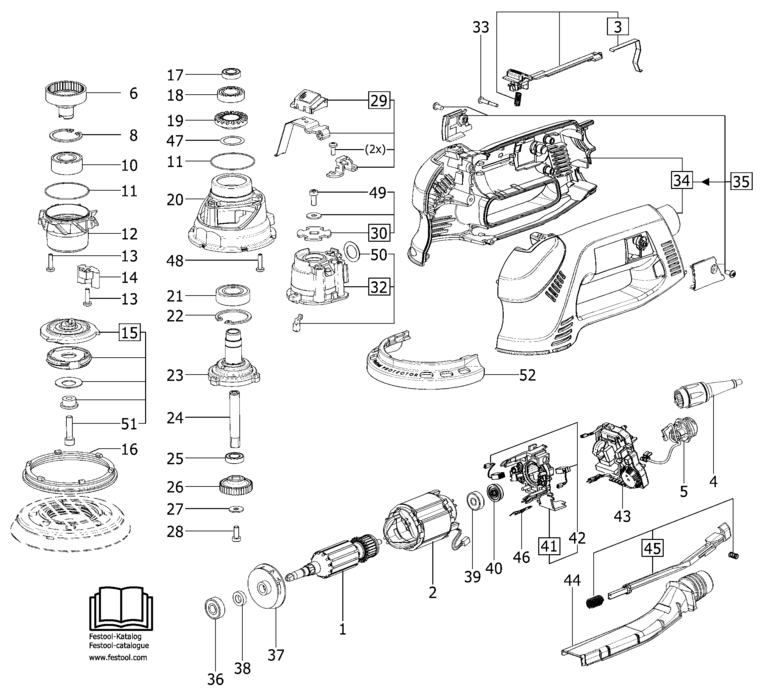

An exploded diagram and spare parts listing for the Festool RO 125 FEQ 230V / 493660
Ex VAT Inc VAT
1 - ARMATURE 230 V FSP-492631.A0 492631 £71.53 £85.84
2 - FIELD ASSEMBLY 230 V FSP-492632.A2 492632 £43.33 £52.00
3 - SWITCH LINKAGE FSP-492628.A4 492628 £27.86 £33.43
4 - PLUG IT-CABLE FSP-203914.A92 203914 -
5 - SOCKET HOUSING 230 V FSP-491528.A0 491528 £8.68 £10.42
6 - RING GEAR FSP-463361.A3 463361 £27.92 £33.51
8 - SNAP RING FSP-401246.A3 401246 £2.00 £2.40
10 - BALL BEARING FSP-401118.A2 401118 £33.02 £39.62
11 - O-RING FSP-400737.A4 400737 £2.00 £2.40
12 - CAM FSP-463293.A3 463293 £32.19 £38.63
13 - RAISED-HEAD SCREW M4 X 16 FSP-219075.A128 219075 £2.00 £2.40
14 - COUNTER BALANCE FSP-467819.A4 467819 £3.98 £4.78
15 - FLANGE FSP-492621.A0 492621 £35.18 £42.22
16 - SEALING LIP FSP-463357.A4 463357 £7.92 £9.51
17 - BALL BEARING FSP-400582.A5 400582 £13.59 £16.31
18 - BALL BEARING FSP-400745.A0 400745 £18.13 £21.76
19 - RING GEAR FSP-463360.A4 463360 £11.22 £13.47
20 - GEAR COVER FSP-463291.A4 463291 £27.92 £33.51
21 - BALL BEARING FSP-400743.A7 400743 £10.06 £12.07
22 - SNAP RING FSP-771483.A37 771483 £2.00 £2.40
23 - ECCENTRIC DISK FSP-463358.A0 463358 £43.47 £52.16
24 - GEAR SHAFT FSP-463363.A0 463363 £20.34 £24.41
25 - BALL BEARING FSP-400748.A7 400748 £13.15 £15.78
26 - GEAR FSP-463362.A4 463362 £6.88 £8.25
27 - TENSION DISC M5 FSP-400649.A4 400649 £2.00 £2.40
28 - SCREW M5 X 12 FSP-400797.A1 400797 £2.00 £2.40
29 - CATCH FSP-492624.A4 492624 £27.58 £33.10
30 - TOOTH DISC FSP-492623.A0 492623 £20.59 £24.71
32 - GEAR HOUSING FSP-492622.A4 492622 £38.82 £46.58
33 - RAISED-HEAD SCREW 3.5 X 22 MM FSP-400174.A23 400174 £2.00 £2.40
34 - HOUSING FSP-493783.A0 493783 £43.33 £52.00
35 - COVER FSP-492626.A0 492626 £23.08 £27.70
36 - BALL BEARING FSP-400626.A2 400626 £5.98 £7.18
37 - FAN FSP-487498.A9 487498 £4.57 £5.48
38 - SPACER PIECE FSP-463830.A4 463830 £2.00 £2.40
39 - BALL BEARING FSP-228672.A139 228672 £4.41 £5.29
40 - SOLENOID RING FSP-444018.A14 444018 £2.00 £2.40
41 - BRUSH HOLDER (PAIR) 230V FSP-493471.A2 493471 £17.85 £21.42
42 - SHUT-OFF BRUSH (PAIR) FSP-492629.A11 492629 £10.67 £12.80
43 - ELECTRONIC 230 V FSP-492398.A2 492398 £94.91 £113.89
44 - CHANNEL CLEANTEC FSP-10966697.A4 10966697 £3.44 £4.13
45 - PUSHER FSP-492630.A0 492630 £21.33 £25.60
46 - SPRING CONTACT FSP-465202.A0 465202 £2.00 £2.40
47 - SHIM RING FSP-400855.A4 400855 £2.00 £2.40
48 - RAISED-HEAD SCREW M4 X 10 FSP-228738.A5 228738 £2.00 £2.40
49 - SCREW M5 X 12 FSP-400797.A0 400797 £2.00 £2.40
50 - SEALING RING FSP-465566.A4 465566 £2.00 £2.40
51 - CHEESE HEAD SCREW M6 X 25 FSP-400796.A4 400796 £2.00 £2.40
52 - PROTECTOR FSP-493912.A0 493912 £11.82 £14.18
