Festool RO 150 E 230V / 489868 Spare Parts

Festool RO 150 E 230V / 489868 Spare Parts
Home Details Reviews Delivery

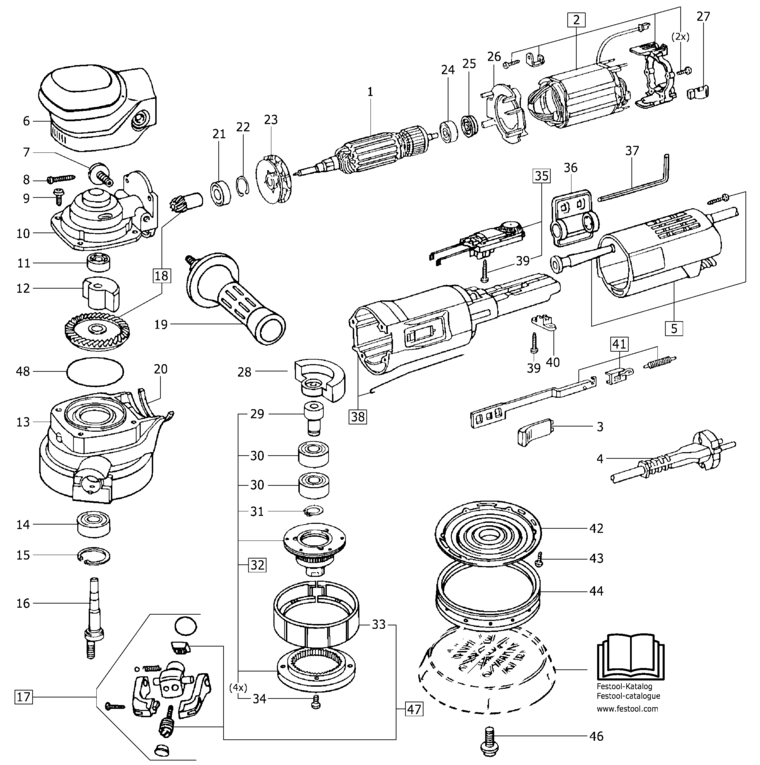

An exploded diagram and spare parts listing for the Festool RO 150 E 230V / 489868
Ex VAT Inc VAT
1 - ARMATURE 230 V FSP-492456.A4 492456 £69.78 £83.74
2 - FIELD ASSEMBLY 230 V FSP-487791.A5 487791 £41.13 £49.36
3 - SLIDE SWITCH FSP-446002.A3 446002 £2.00 £2.40
4 - CABLE EU FSP-457410.A52 457410 £25.08 £30.09
5 - CAP FSP-487674.A19 487674 £23.70 £28.44
6 - HOOD FSP-487424.A5 487424 £12.72 £15.27
7 - PLASTIC SCREW FSP-435103.A3 435103 £2.00 £2.40
8 - RAISED-HEAD SCREW 3.5 X 25 MM FSP-400233.A16 400233 £2.00 £2.40
9 - RAISED-HEAD SCREW M4 X 10 FSP-400234.A1 400234 £2.00 £2.40
10 - GEAR HOUSING FSP-446277.A7 446277 £30.79 £36.95
11 - BALL BEARING FSP-228715.A38 228715 £4.72 £5.66
12 - WEIGHT FSP-457184.A4 457184 £19.24 £23.09
13 - HOUSING FSP-444914.A4 444914 £45.40 £54.48
14 - BALL BEARING FSP-400065.A12 400065 £8.56 £10.27
15 - SNAP RING FSP-401246.A39 401246 £2.00 £2.40
16 - ECCENTRIC SHAFT FSP-445171.A2 445171 £47.28 £56.74
17 - SWITCH FSP-487800.A10 487800 £38.56 £46.27
18 - GEAR FSP-486643.A6 486643 -
19 - AUXILIARY HANDLE FSP-487865.A18 487865 £7.94 £9.53
20 - NO LONGER AVAILABLE FSP-00000.A3102 00000 -
21 - BALL BEARING FSP-228746.A3 228746 £7.11 £8.53
22 - SNAP RING FSP-204471.A15 204471 £2.00 £2.40
23 - FAN FSP-485108.A7 485108 £4.37 £5.24
24 - BALL BEARING FSP-228672.A135 228672 £4.41 £5.29
25 - SOLENOID RING FSP-444018.A11 444018 £2.00 £2.40
26 - AIR GUIDE WASHER FSP-442901.A22 442901 £4.18 £5.02
27 - SHUT-OFF BRUSH (PAIR) FSP-492629.A13 492629 £10.67 £12.80
28 - NO LONGER AVAILABLE FSP-00000.A3101 00000 -
29 - BEARING BOLT FSP-451633.A3 451633 £29.85 £35.82
30 - BALL BEARING FSP-400048.A26 400048 £7.18 £8.62
31 - SNAP RING FSP-200619.A36 200619 £2.00 £2.40
32 - GEAR FSP-489161.A10 489161 £108.90 £130.68
33 - SWITCHING RING FSP-451886.A5 451886 £56.46 £67.75
34 - CHEESE HEAD SCREW M4 X 6 FSP-453584.A7 453584 £2.00 £2.40
35 - CONTROL ELECTRONICS 230 V FSP-487751.A8 487751 £96.31 £115.57
36 - KEY FASTENING FSP-446275.A6 446275 £2.00 £2.40
37 - SCREWDRIVER FSP-202752.A6 202752 £2.00 £2.40
38 - MOTOR HOUSING FSP-487792.A10 487792 £31.93 £38.32
39 - RAISED-HEAD SCREW 3.5 X 16 MM FSP-228663.A172 228663 £2.00 £2.40
40 - CABLE CLAMP FSP-439662.A14 439662 £2.00 £2.40
41 - SWITCH LINKAGE FSP-487794.A12 487794 £14.72 £17.67
42 - RUBBER COLLAR FSP-484561.A1 484561 -
43 - RAISED-HEAD SCREW M3 X 8 FSP-400235.A2 400235 £2.00 £2.40
44 - SEALING LIP FSP-444257.A7 444257 -
46 - SCREW FSP-401165.A37 401165 £2.00 £2.40
47 - SWITCHING RING FSP-492208.A7 492208 £65.69 £78.83
48 - O-RING 60 X 1.5 MM FSP-233066.A5 233066 £3.19 £3.83
