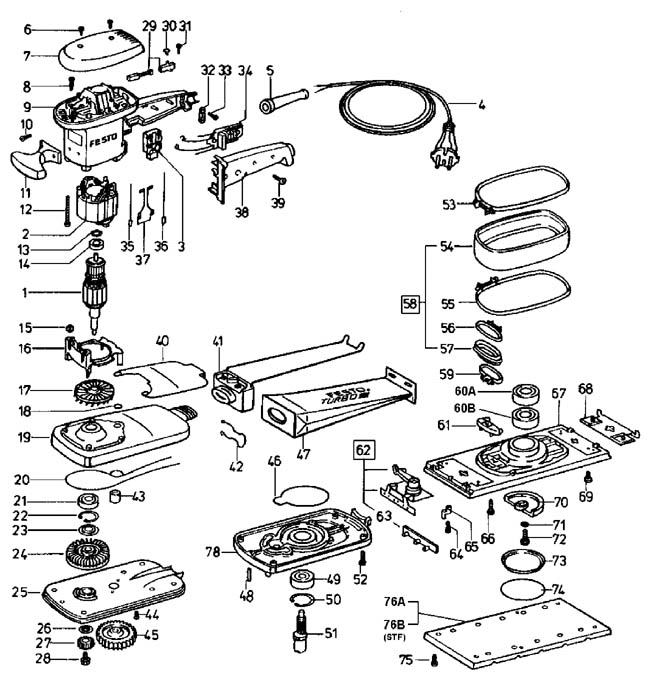

An exploded diagram and spare parts listing for the Festool RS 1 / 486852
Ex VAT Inc VAT
1 - ARMATURE 230 V FSP-492439.A2 492439 £71.53 £85.84
2 - FIELD ASSEMBLY 230 V FSP-492442.A2 492442 £55.39 £66.47
3 - SWITCH ATTACHMENT FSP-486317.A71 486317 £15.47 £18.56
4 - MAINS CABLE GB 240V FSP-441749.A77 441749 £25.08 £30.09
4 - CABLE EU FSP-457600.A16 457600 £25.08 £30.09
5 - CABLE CONDUIT FSP-432436.A28 432436 £2.00 £2.40
6 - RAISED-HEAD SCREW 3.5 X 10 MM FSP-219031.A181 219031 £2.00 £2.40
7 - CAP RS 3 FSP-451430.A12 451430 £6.46 £7.75
8 - RAISED-HEAD SCREW M4 X 20 FSP-228569.A67 228569 £2.00 £2.40
9 - MOTOR HOUSING FSP-487834.A35 487834 £38.68 £46.42
10 - RAISED-HEAD SCREW M4 X 12 FSP-400050.A13 400050 £2.00 £2.40
11 - GRIP FSP-483783.A3 483783 £9.15 £10.98
12 - RAISED-HEAD SCREW 4.0 X 40 MM FSP-219080.A17 219080 £2.00 £2.40
13 - COMPENSATING WASHER 14 X 21.8 X 0.3 MM FSP-203777.A53 203777 £2.00 £2.40
14 - BALL BEARING FSP-401524.A55 401524 £4.82 £5.78
15 - HEXAGON NUT M4 FSP-200715.A73 200715 £2.00 £2.40
16 - AIR GUIDE WASHER FSP-443109.A10 443109 £2.00 £2.40
17 - FAN FSP-436451.A0 436451 £2.00 £2.40
18 - ISOLATING DISC FSP-437102.A4 437102 £2.00 £2.40
19 - BEARING COVER FSP-439839.A4 439839 £62.14 £74.57
20 - PACKING CORD FSP-437499.A2 437499 £3.45 £4.14
21 - BALL BEARING FSP-228659.A44 228659 £7.68 £9.21
22 - SNAP RING FSP-401246.A50 401246 £2.00 £2.40
23 - CENTRIFUGAL WASHER FSP-437086.A3 437086 £2.00 £2.40
24 - FAN FSP-435496.A2 435496 £24.47 £29.36
25 - PLATE FSP-482524.A4 482524 £44.81 £53.77
26 - CENTRIFUGAL WASHER FSP-437064.A3 437064 £2.00 £2.40
27 - PINION FSP-442267.A4 442267 £31.44 £37.73
28 - HEXAGON SCREW M6 X 15 FSP-228517.A4 228517 £2.00 £2.40
29 - BRUSH HOLDER MIT KOHLE (PAAR) 230V FSP-488915.A9 488915 £19.04 £22.85
30 - RAISED-HEAD SCREW 3.5 X 10 MM FSP-219031.A180 219031 £2.00 £2.40
31 - CABLE CLAMP FSP-439288.A66 439288 £2.00 £2.40
32 - NO LONGER AVAILABLE FSP-00000.A4197 00000 -
33 - RAISED-HEAD SCREW 3.5 X 16 MM FSP-228663.A6 228663 £2.00 £2.40
34 - CAPACITOR FSP-436753.A7 436753 £12.76 £15.31
35 - FLEXIBLE LEAD FSP-434527.A13 434527 £2.00 £2.40
36 - FLEXIBLE LEAD FSP-434865.A14 434865 £2.00 £2.40
37 - PLUG-IN BRACKET FSP-443331.A20 443331 £2.00 £2.40
38 - COVER FSP-451402.A34 451402 £6.97 £8.36
39 - RAISED-HEAD SCREW 4.0 X 20 MM FSP-228567.A173 228567 £2.00 £2.40
40 - HEAT SCHIELD FSP-442232.A2 442232 £6.39 £7.67
41 - FILTER ADAPTER FSP-484542.A2 484542 £44.02 £52.82
42 - CLAMP FSP-434696.A3 434696 £10.92 £13.10
43 - NEEDLE BEARING FSP-410226.A4 410226 £17.57 £21.08
44 - RAISED-HEAD SCREW M4 X 10 FSP-228582.A19 228582 £2.00 £2.40
45 - GEAR FSP-485618.A5 485618 £25.08 £30.09
46 - PACKING CORD FSP-437292.A2 437292 £2.00 £2.40
47 - TURBO FILTER BAG FSP-483674.A1 483674 -
48 - CYLINDER PIN FSP-773881.A6 773881 £2.00 £2.40
49 - BALL BEARING FSP-228524.A3 228524 £12.38 £14.86
50 - SNAP RING FSP-401251.A2 401251 £2.00 £2.40
51 - ECCENTRIC SHAFT FSP-441381.A4 441381 £64.02 £76.83
52 - RAISED-HEAD SCREW M5 X 25 FSP-228516.A1 228516 £2.00 £2.40
53 - CLIP FSP-410423.A2 410423 £6.88 £8.25
54 - COLLAR FSP-435475.A4 435475 £13.86 £16.63
55 - TERMINAL FSP-437884.A5 437884 £6.80 £8.16
56 - TERMINAL FSP-436965.A1 436965 £9.78 £11.73
57 - GAITER FSP-435490.A2 435490 £6.81 £8.17
58 - COLLAR SET FSP-483787.A1 483787 £31.57 £37.88
59 - TERMINAL FSP-436966.A2 436966 £5.43 £6.52
60 - BALL BEARING FSP-228523.A6 228523 £9.62 £11.55
61 - EXTRACTOR CONNECTOR FSP-483446.A2 483446 £4.75 £5.70
62 - FIXED ROD (PAAR) FSP-483786.A2 483786 £47.64 £57.17
63 - PLASTIC STRIPS FOR ABRASIVE TENSIONER FSP-483785.A1 483785 £7.78 £9.34
64 - FLAT HEAD SCREW M4 X 20 FSP-228514.A6 228514 £2.00 £2.40
65 - CAM FSP-437278.A0 437278 £2.00 £2.40
66 - RAISED-HEAD SCREW M5 X 20 DIN 7985 FSP-774568.A0 774568 £2.00 £2.40
67 - PLATE FSP-440469.A0 440469 £67.91 £81.49
68 - CLAMPING PLATE FSP-486333.A2 486333 £7.06 £8.47
69 - RAISED-HEAD SCREW M4 X 8 FSP-228735.A4 228735 £2.00 £2.40
70 - WEIGHT FSP-441059.A2 441059 £31.50 £37.80
71 - SPRING DISC FSP-200765.A22 200765 £2.00 £2.40
72 - CHEESE HEAD SCREW M6 X 18 FSP-223541.A1 223541 £2.00 £2.40
73 - CAP FSP-435510.A2 435510 £11.65 £13.98
74 - O-RING FSP-228551.A0 228551 £2.00 £2.40
75 - RAISED-HEAD SCREW M4 X 10 FSP-400606.A3 400606 £2.00 £2.40
76 - SANDING PAD FSP-483679.A3 483679 £28.20 £33.84
76 - SANDING PAD FSP-489629.A0 489629 £25.47 £30.56
77 - GEAR HOUSING FSP-435509.A4 435509 £63.85 £76.62
