Festool RS 3 Version A / 567408 Spare Parts

Festool RS 3 Version A / 567408 Spare Parts
Home Details Reviews Delivery

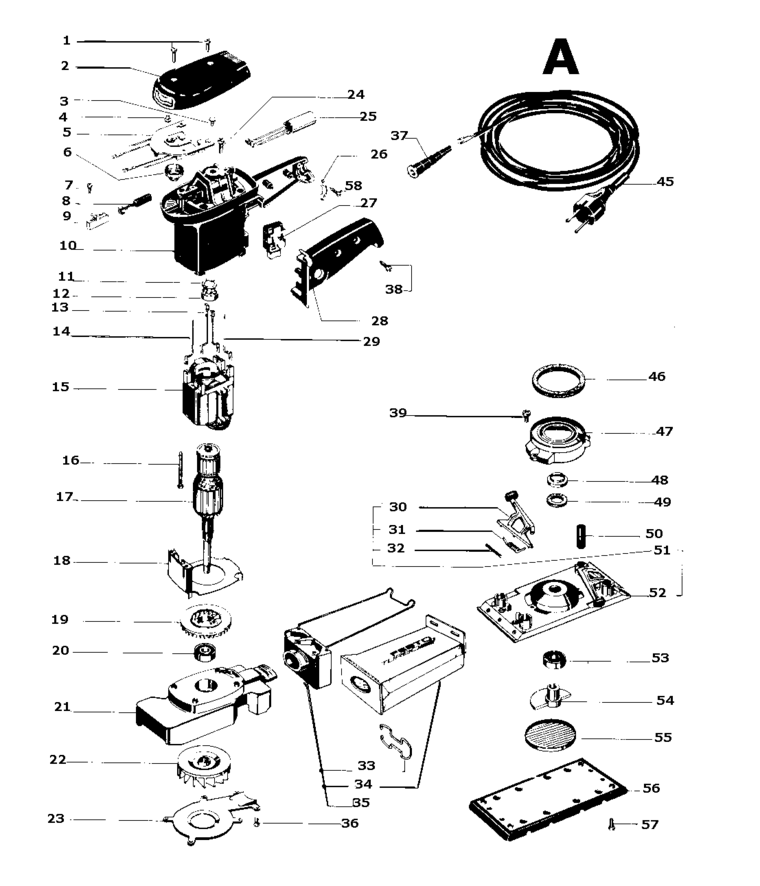

An exploded diagram and spare parts listing for the Festool RS 3 Version A / 567408
Ex VAT Inc VAT
1 - RAISED-HEAD SCREW 3.5 X 10 MM FSP-219031.A293 219031 £2.00 £2.40
2 - CAP RS 3 FSP-451430.A18 451430 £6.46 £7.75
7 - RAISED-HEAD SCREW 3.5 X 10 MM FSP-219031.A294 219031 £2.00 £2.40
8 - BRUSH (PAIR) 220-230V FSP-489018.A6 489018 £10.18 £12.21
9 - NO LONGER AVAILABLE FSP-00000.A4492 00000 -
10 - MOTOR HOUSING FSP-487834.A37 487834 £38.68 £46.42
11 - COMPENSATING WASHER 14 X 21.8 X 0.3 MM FSP-203777.A57 203777 £2.00 £2.40
12 - BALL BEARING FSP-401524.A74 401524 £4.82 £5.78
13 - NO LONGER AVAILABLE FSP-00000.A4493 00000 -
14 - FLEXIBLE LEAD FSP-434527.A14 434527 £2.00 £2.40
15 - FIELD ASSEMBLY 230 V FSP-493158.A3 493158 £54.54 £65.45
16 - RAISED-HEAD SCREW 4 X 50 MM FSP-228707.A61 228707 £2.00 £2.40
17 - ARMATURE 230V FSP-493160.A11 493160 £105.82 £126.99
18 - AIR GUIDE WASHER FSP-434430.A50 434430 £2.00 £2.40
19 - FAN FSP-441731.A0 441731 £3.19 £3.83
20 - BALL BEARING FSP-401601.A48 401601 £7.62 £9.14
21 - NO LONGER AVAILABLE FSP-00000.A4494 00000 -
22 - NO LONGER AVAILABLE FSP-00000.A4495 00000 -
23 - PLATE FSP-438717.A0 438717 £3.81 £4.57
24 - RAISED-HEAD SCREW M4 X 20 FSP-228569.A51 228569 £2.00 £2.40
25 - CAPACITOR FSP-436753.A1 436753 £12.76 £15.31
26 - CABLE CLAMP FSP-439288.A37 439288 £2.00 £2.40
27 - SWITCH ATTACHMENT FSP-486317.A102 486317 £15.47 £18.56
28 - COVER FSP-451403.A1 451403 £6.30 £7.56
29 - FLEXIBLE LEAD FSP-434865.A10 434865 £2.00 £2.40
30 - CLAMP LEVER FSP-482039.A4 482039 £30.56 £36.67
31 - TORSION SPRING FSP-434588.A18 434588 £2.00 £2.40
32 - PIN FSP-434528.A0 434528 £2.00 £2.40
33 - CLAMP FSP-434696.A1 434696 £10.92 £13.10
34 - TURBO FILTER BAG FSP-487779.A44 487779 £10.00 £12.00
35 - TURBO FILTER BAG SET FSP-487780.A5 487780 £22.73 £27.28
36 - RAISED-HEAD SCREW M4 X 8 FSP-228570.A30 228570 £2.00 £2.40
37 - CABLE CONDUIT FSP-432436.A17 432436 £2.00 £2.40
38 - RAISED-HEAD SCREW 4.0 X 20 MM FSP-228567.A219 228567 £2.00 £2.40
39 - RAISED-HEAD SCREW M4 X 10 FSP-228586.A1 228586 £2.00 £2.40
45 - MAINS CABLE GB 240V FSP-441749.A64 441749 £25.08 £30.09
45 - CABLE EU FSP-457600.A1 457600 £25.08 £30.09
46 - SEALING RING FSP-434525.A0 434525 £5.99 £7.19
47 - DUST EXTRACTION ATTACHMENT FSP-438293.A4 438293 £2.00 £2.40
48 - CENTRIFUGAL WASHER FSP-438173.A0 438173 £1.63 £1.96
49 - NO LONGER AVAILABLE FSP-00000.A4496 00000 -
50 - NO LONGER AVAILABLE FSP-00000.A4497 00000 -
51 - PLATE FSP-483874.A0 483874 £65.65 £78.78
52 - PLATE FSP-483874.A1 483874 £65.65 £78.78
53 - BALL BEARING FSP-228756.A4 228756 £8.99 £10.79
54 - CAM FSP-451089.A12 451089 £27.32 £32.79
55 - CAP FSP-435290.A15 435290 £2.00 £2.40
56 - SANDING PAD FSP-483905.A17 483905 £25.47 £30.56
56 - SANDING PAD FSP-489630.A12 489630 £20.92 £25.10
57 - RAISED-HEAD SCREW M4 X 10 FSP-228733.A24 228733 £2.00 £2.40
58 - RAISED-HEAD SCREW 3.5 X 16 MM FSP-228663.A55 228663 £2.00 £2.40
