Festool RS 400 E / 486612 Spare Parts

Festool RS 400 E / 486612 Spare Parts
Home Details Reviews Delivery

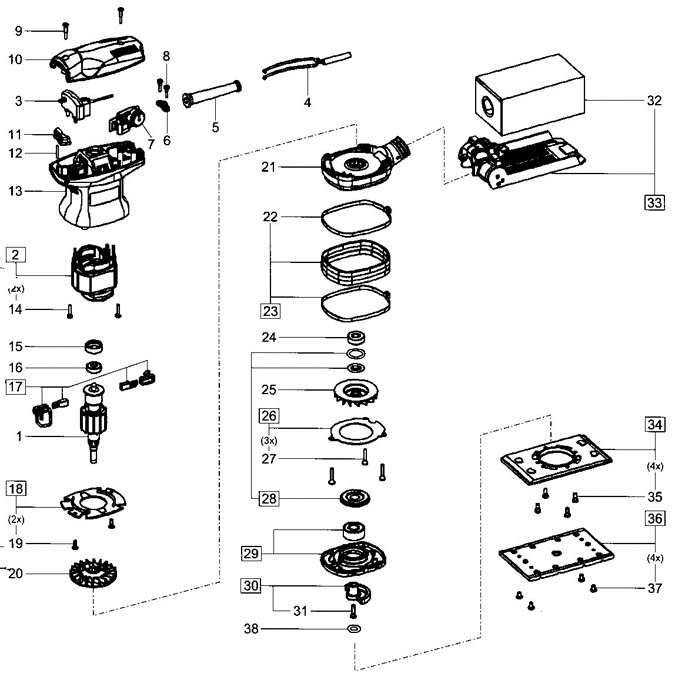

An exploded diagram and spare parts listing for the Festool RS 400 E / 486612
Ex VAT Inc VAT
1 - ARMATURE 120V FSP-493163.A5 493163 £60.66 £72.79
1 - ARMATURE 230 V FSP-493162.A1 493162 £60.66 £72.79
2 - FIELD ASSEMBLY FSP-489526.A6 489526 £43.88 £52.66
2 - FIELD ASSEMBLY 230 V FSP-489211.A1 489211 £43.33 £52.00
3 - SWITCH MODUL FSP-488631.A4 488631 £16.84 £20.21
4 - CABLE EU FSP-457599.A6 457599 £28.95 £34.74
5 - CABLE CONDUIT FSP-451265.A10 451265 £1.63 £1.96
6 - CABLE CLAMP FSP-439288.A59 439288 £2.00 £2.40
7 - ELECTRONIC 120V FSP-489498.A4 489498 £37.53 £45.04
7 - CONTROL ELECTRONICS 230 V FSP-488630.A14 488630 £37.42 £44.91
8 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-228584.A64 228584 £2.00 £2.40
9 - RAISED-HEAD SCREW 3.5 X 25 MM FSP-228725.A32 228725 £2.00 £2.40
10 - CAP FSP-489193.A4 489193 £5.93 £7.12
11 - SWITCHING JACK FSP-450967.A11 450967 £2.00 £2.40
12 - CYLINDER PIN FSP-223518.A26 223518 £2.00 £2.40
13 - MOTOR HOUSING FSP-450112.A4 450112 £13.29 £15.95
14 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-228584.A63 228584 £2.00 £2.40
15 - RUBBER RING FSP-450508.A33 450508 £2.00 £2.40
16 - BALL BEARING FSP-228672.A18 228672 £4.41 £5.29
17 - BRUSH HOLDER PAIR. 230 V/MACHINE PRODUCTION BEFORE 2000 FSP-489632.A37 489632 £11.02 £13.22
18 - AIR GUIDE WASHER FSP-489213.A34 489213 £18.09 £21.71
19 - RAISED-HEAD SCREW 3.5 X 10 MM FSP-219031.A164 219031 £2.00 £2.40
20 - FAN FSP-450138.A5 450138 £2.00 £2.40
21 - BEARING COVER FSP-450115.A4 450115 £26.58 £31.89
22 - CLAMPING STRAP FSP-453707.A35 453707 £9.98 £11.98
23 - COLLAR FSP-489184.A2 489184 £26.45 £31.74
24 - BALL BEARING FSP-401525.A43 401525 £4.72 £5.66
25 - FAN FSP-450129.A14 450129 -
26 - PLATE FSP-489185.A23 489185 £25.96 £31.15
27 - RAISED-HEAD SCREW 4.0 X 30 MM FSP-400528.A10 400528 £2.00 £2.40
28 - CENTRIFUGAL WASHER FSP-489186.A6 489186 £16.10 £19.32
29 - PLATE FSP-489187.A9 489187 £55.82 £66.99
30 - CAM FSP-489214.A1 489214 £38.18 £45.81
31 - RAISED-HEAD SCREW M4 X 12 FSP-400290.A21 400290 £2.00 £2.40
32 - TURBO FILTER BAG FSP-489128.A19 489128 £9.09 £10.91
33 - TURBO FILTER BAG SET TFS - RS 400 FSP-489129.A11 489129 £20.92 £25.10
34 - PLATE FSP-489215.A4 489215 £31.32 £37.58
35 - RAISED-HEAD SCREW M4 X 10 FSP-228738.A25 228738 £2.00 £2.40
36 - SANDING PAD FSP-489252.A6 489252 £16.66 £19.99
37 - RAISED-HEAD SCREW M4 X 10 FSP-400663.A32 400663 £2.00 £2.40
38 - WASHER FSP-400585.A5 400585 £1.63 £1.96
