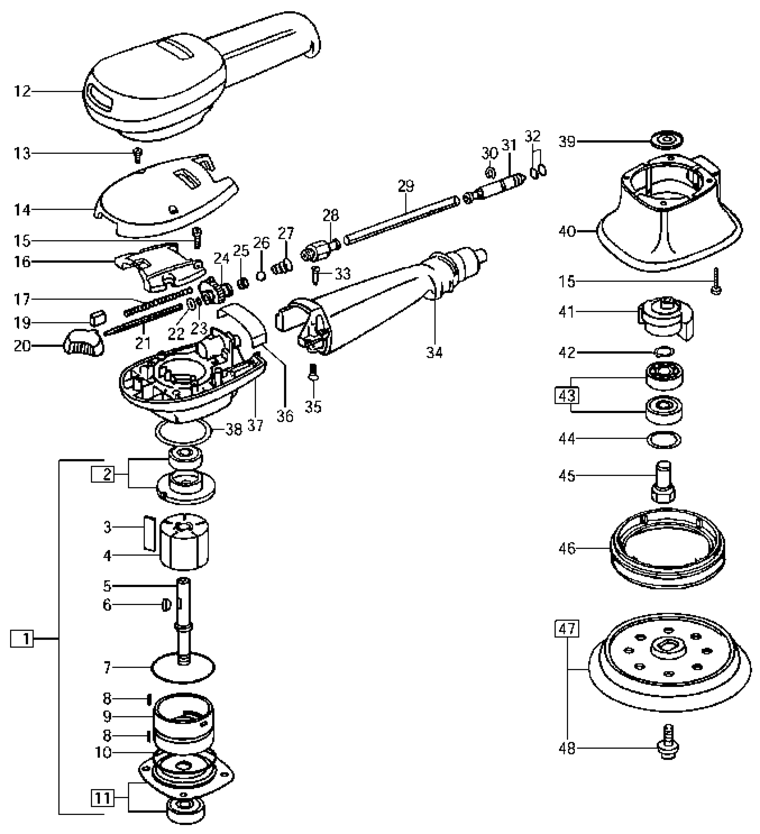

An exploded diagram and spare parts listing for the Festool LEX 150/7/G/50 / 692093
Ex VAT Inc VAT
1 - MOTOR FSP-491592.A11 491592 £278.98 £334.78
2 - MOTOR COVER FSP-630103.A12 630103 £47.99 £57.59
3 - LAMELLA (5 SET) FSP-491615.A24 491615 £24.83 £29.80
4 - ROTOR FSP-491593.A6 491593 £42.02 £50.43
5 - SHAFT FSP-720089.A12 720089 £27.32 £32.79
6 - WOODRUFF KEY FSP-466338.A1 466338 £2.00 £2.40
7 - O-RING FSP-217178.A8 217178 £5.50 £6.60
8 - SLEEVE FSP-773627.A14 773627 £2.00 £2.40
9 - BUSH FSP-720418.A12 720418 £48.70 £58.44
10 - O-RING 60 X 1.5 MM FSP-233066.A13 233066 £3.19 £3.83
11 - HOUSING COVER FSP-630109.A8 630109 £59.02 £70.83
12 - CASING FSP-447175.A8 447175 £43.62 £52.35
13 - RAISED-HEAD SCREW 4.0 X 16 MM FSP-228713.A74 228713 £2.00 £2.40
14 - CAP FSP-463536.A14 463536 £3.14 £3.77
15 - RAISED-HEAD SCREW 4.0 X 20 MM FSP-228567.A120 228567 £2.00 £2.40
16 - WEIGHT FSP-462876.A13 462876 £13.98 £16.77
17 - PRESSURE SPRING FSP-720247.A6 720247 £2.00 £2.40
19 - SLIP PIECE FSP-720476.A7 720476 £2.00 £2.40
20 - ROTARY KNOB FSP-720477.A8 720477 £2.00 £2.40
21 - SWITCH LINKAGE FSP-720475.A8 720475 £2.87 £3.44
22 - WASHER FSP-720602.A4 720602 £2.00 £2.40
23 - O-RING FSP-200904.A18 200904 £2.00 £2.40
24 - PISTON FSP-720478.A6 720478 £2.00 £2.40
25 - O-RING FSP-206490.A12 206490 £2.00 £2.40
26 - BALL FSP-410290.A17 410290 £4.81 £5.77
27 - PRESSURE SPRING FSP-463317.A10 463317 £2.00 £2.40
28 - PIPE FSP-449396.A7 449396 £9.15 £10.98
29 - HOSE FSP-10014022.A0 10014022 £4.31 £5.17
30 - SNAP RING FSP-203270.A5 203270 £2.00 £2.40
31 - COMPRESSED AIR TUBE FSP-10014028.A8 10014028 £19.71 £23.65
32 - O-RING 6 X 1 MM PERBUNAN FSP-204118.A5 204118 £2.00 £2.40
33 - RAISED-HEAD SCREW 4.0 X 16 MM FSP-228713.A75 228713 £2.00 £2.40
34 - NO LONGER AVAILABLE FSP-00000.A3221 00000 -
35 - FLAT HEAD SCREW 4.0 X 10 MM FSP-400014.A14 400014 £2.00 £2.40
36 - TRANSPARENCY FSP-720617.A12 720617 £2.00 £2.40
37 - HOUSING FSP-491566.A7 491566 £46.72 £56.07
38 - SEALING RING FSP-720246.A13 720246 £2.00 £2.40
39 - NILOS RING FSP-782082.A4 782082 £6.42 £7.71
40 - DUST EXTRACTION ATTACHMENT FSP-463326.A12 463326 £3.32 £3.98
41 - CAM FSP-490554.A0 490554 £64.89 £77.87
42 - SNAP RING FSP-200619.A27 200619 £2.00 £2.40
43 - BALL BEARING FSP-400048.A23 400048 £7.18 £8.62
44 - WASHER FSP-443660.A4 443660 £2.00 £2.40
45 - BEARING BOLT FSP-720438.A21 720438 £25.83 £31.00
46 - COLLAR FSP-703070.A11 703070 £10.48 £12.58
47 - SANDING PAD FSP-202458.A25 202458 £33.56 £40.27
48 - SCREW FSP-401165.A79 401165 £2.00 £2.40
