Festool SSU 200 EB / 768421 Spare Parts

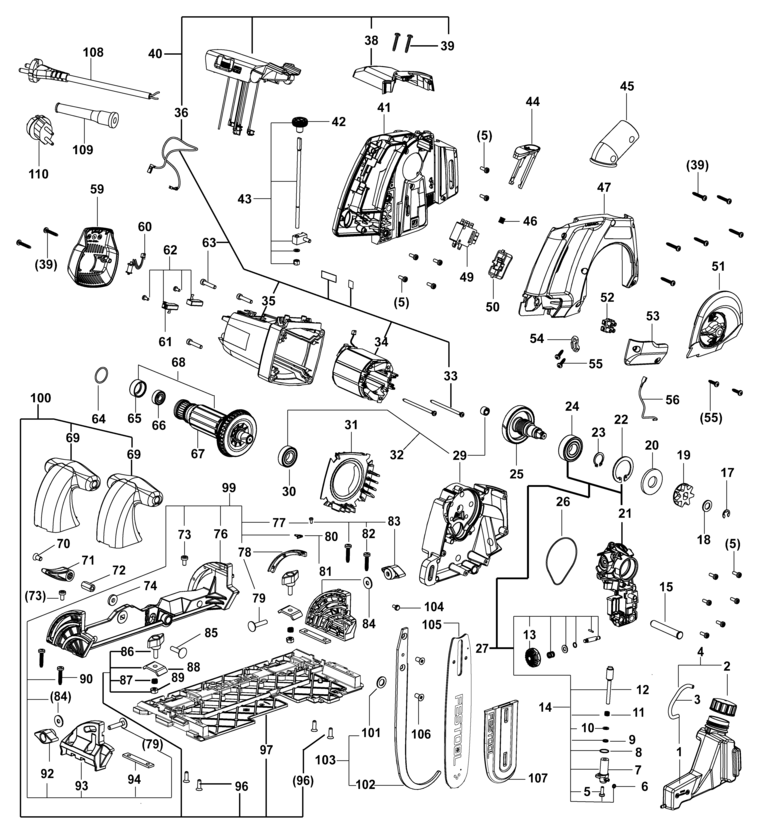

An exploded diagram and spare parts listing for the Festool SSU 200 EB / 768421

	Ex VAT	Inc VAT
1 - CONTAINER FSP-637891.A0 637891	£8.55	£10.26
2 - FILLER CAP FSP-768423.A0 768423	£7.56	£9.07
3 - HOSE FSP-778912.A0 778912	£2.00	£2.40
4 - TANK FSP-769403.A3 769403	£16.72	£20.06
5 - SCREW FSP-614456.A5 614456	£2.00	£2.40
6 - O-RING FSP-638584.A5 638584	£2.00	£2.40
7 - PUMP BODY FSP-638581.A5 638581	£14.10	£16.92
8 - O-RING FSP-638582.A0 638582	£2.00	£2.40
9 - O-RING FSP-779056.A5 779056	£2.00	£2.40
10 - WASHER FSP-638580.A0 638580	£2.00	£2.40
11 - SPRING FSP-637956.A0 637956	£2.00	£2.40
12 - SHAFT FSP-637789.A0 637789	£32.47	£38.96
13 - WHEEL FSP-768398.A3 768398	£2.00	£2.40
14 - PUMP FSP-769397.A0 769397	£52.19	£62.63
15 - TENONS FSP-637900.A5 637900	£4.08	£4.90
17 - SNAP RING FSP-615478.A2 615478	£2.00	£2.40
18 - WASHER FSP-832610.A2 832610	£2.00	£2.40
19 - CHAIN WHEEL FSP-638592.A3 638592	£19.61	£23.53
20 - SEALING RING FSP-638590.A0 638590	£2.00	£2.40
21 - BEARING COVER FSP-768424.A5 768424	£106.36	£127.63
22 - SNAP RING FSP-623941.A3 623941	£11.08	£13.30
23 - SNAP RING FSP-614796.A0 614796	£2.00	£2.40
24 - BEARING FSP-632815.A2 632815	£6.39	£7.67
25 - SPINDLE FSP-638577.A5 638577	£61.31	£73.57
26 - O-RING FSP-200973.A25 200973	£2.00	£2.40
27 - GEAR HOUSING FSP-769398.A5 769398	£82.49	£98.99
29 - GEAR HOUSING FSP-768422.A5 768422	£82.83	£99.40
30 - BEARING FSP-638956.A3 638956	£11.01	£13.21
31 - AIR DUCT FSP-768399.A2 768399	£4.59	£5.51
32 - GEAR HOUSING FSP-769396.A5 769396	£57.74	£69.29
33 - SCREW 4.0 X 70 MM FSP-614777.A12 614777	£2.00	£2.40
34 - FIELD ASSEMBLY FSP-628174.A0 628174	£65.07	£78.08
35 - MOTOR HOUSING FSP-10164929.A4 10164929	£15.34	£18.41
36 - CABLE CONDUIT FSP-10167584.A2 10167584	-
38 - HOUSING COVER FSP-768403.A3 768403	£8.51	£10.21
39 - SCREW 4.0 X 25 MM FSP-614772.A5 614772	£2.00	£2.40
40 - MOTOR HOUSING FSP-10553612.A1 10553612	£122.79	£147.35
41 - GRIP FSP-768445.A0 768445	-
42 - WHEEL FSP-768397.A2 768397	£2.00	£2.40
43 - TENSIONER FSP-769392.A3 769392	£21.21	£25.45
44 - KEY FSP-768388.A1 768388	£2.00	£2.40
45 - EXTRACTION ADAPTER FSP-768816.A2 768816	£5.90	£7.08
46 - PRESSURE SPRING FSP-654035.A5 654035	£2.00	£2.40
47 - GRIP FSP-10213021.A0 10213021	£42.88	£51.45
49 - BRAKE SWITCH FSP-463970.A3 463970	£19.83	£23.80
50 - SWITCH BUTTON FSP-768389.A1 768389	£2.00	£2.40
51 - COVER FSP-768431.A5 768431	£35.36	£42.43
52 - TERMINAL FSP-621139.A7 621139	£6.39	£7.67
53 - HANDLE COVER FSP-768387.A3 768387	£5.24	£6.29
54 - CLIP FSP-619112.A12 619112	£2.00	£2.40
55 - SCREW 4 X 16 MM FSP-625697.A2 625697	£2.00	£2.40
56 - HOOK-UP WIRE FSP-638678.A0 638678	£3.20	£3.84
59 - CAP FSP-10212214.A2 10212214	£6.37	£7.64
60 - COIL SHELL FSP-10130169.A5 10130169	£5.87	£7.04
61 - CARBON SET FSP-627044.A2 627044	£37.32	£44.78
62 - BRUSH HOLDER WITH BRUSHES (PAIR) FSP-769394.A5 769394	£35.31	£42.37
63 - SCREW M5 X 25 FSP-614860.A3 614860	£2.00	£2.40
64 - O-RING FSP-614992.A6 614992	£2.00	£2.40
65 - BEARING RING FSP-438613.A78 438613	£2.00	£2.40
66 - BALL BEARING FSP-779129.A3 779129	£3.20	£3.84
67 - ARMATURE FSP-638683.A5 638683	£105.82	£126.99
68 - ARMATURE SET FSP-10553610.A0 10553610	£105.82	£126.99
69 - AUXILIARY HANDLE FSP-768392.A2 768392	£16.37	£19.64
70 - SCREW M6 X 12 FSP-614327.A7 614327	£2.00	£2.40
71 - LEVER FSP-768220.A4 768220	£2.00	£2.40
72 - NUT FSP-638597.A1 638597	£2.00	£2.40
73 - SCREW M5 X 10 FSP-614858.A3 614858	£2.00	£2.40
74 - WASHER FSP-614475.A4 614475	£2.00	£2.40
76 - SUPPORT FSP-768426.A1 768426	£58.60	£70.32
77 - SCREW FSP-637849.A7 637849	£2.00	£2.40
78 - SCALE FSP-768395.A3 768395	£4.58	£5.49
79 - SCREW FSP-60403776.A4 60403776	-
80 - INDICATOR FSP-777824.A2 777824	£2.00	£2.40
81 - SWIVELING SEGMENT FSP-768393.A3 768393	£7.70	£9.24
82 - RAISED-HEAD SCREW 5.0 X 25 MM FSP-400686.A12 400686	£2.00	£2.40
83 - WING NUT FSP-768439.A2 768439	£2.00	£2.40
84 - WASHER FSP-625662.A5 625662	£2.00	£2.40
85 - SCREW M6 X 25 FSP-614405.A4 614405	£2.00	£2.40
86 - BUTTERFLY SCREW FSP-768233.A1 768233	£2.00	£2.40
87 - PRESSURE SPRING FSP-595478.A5 595478	£2.00	£2.40
88 - LUG SUPPORT FSP-633016.A6 633016	£5.38	£6.45
89 - NUT M6 FSP-614469.A4 614469	£2.00	£2.40
93 - SWIVELING SEGMENT FSP-768394.A3 768394	£7.70	£9.24
94 - LAMELLA FSP-637331.A4 637331	£2.00	£2.40
96 - FLAT HEAD SCREW M5X25 DIN 2043 FSP-401171.A2 401171	£2.00	£2.40
97 - TABLE FOR HAND-HELD CIRCULAR SAWS FSP-768450.A1 768450	£70.73	£84.88
99 - SUPPORT. COMPLETE FSP-769399.A1 769399	£62.50	£75.00
100 - SLIDE. COMPL. FSP-769400.A4 769400	£72.10	£86.52
103 - COVER. COMPLETE FSP-769371.A3 769371	£41.79	£50.15
104 - SCREW 4.0 X 80 MM FSP-615391.A2 615391	£2.00	£2.40
105 - BLADE FSP-769066.A0 769066	£46.58	£55.89
106 - SCREW M6 X 12 FSP-614327.A6 614327	£2.00	£2.40
107 - COVER FSP-768432.A0 768432	£17.51	£21.01
108 - MAINS CABLE FSP-638677.A2 638677	£50.00	£60.00
109 - NOZZLE AGAINST BENDING FSP-630328.A3 630328	£5.38	£6.45
111 - ADAPTER PLUG FSP-767469.A12 767469	-

Attribute Name	Value
Brand	Festool
