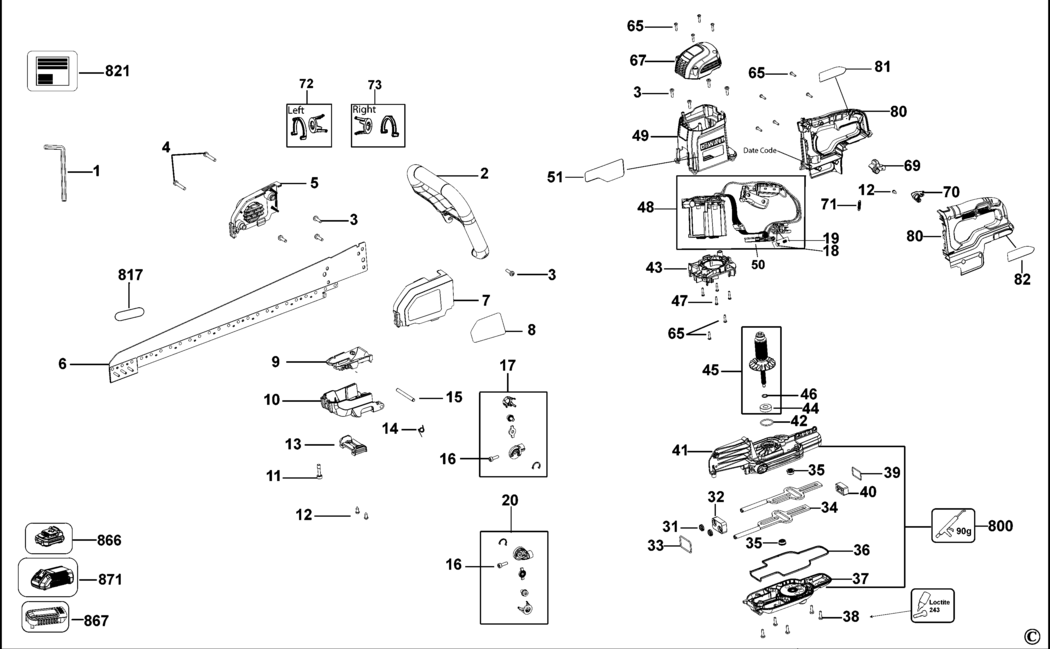

1 - HEX KEY
BDE-322929.A78
322929
|
-
|
|
|
|
2 - LOOP HANDLE
BDE-N097478.A0
N097478
|
£30.08
|
£36.10
|
|
|
3 - SCREW TORX
BDE-324007-11.A86
324007-11
|
£1.50
|
£1.80
|
|
|
4 - SCREW.TEMP
BDE-330019-21.A3
330019-21
|
£1.50
|
£1.80
|
|
|
5 - COVER RH
BDE-N077126.A0
N077126
|
£3.80
|
£4.56
|
|
|
6 - BAR
BDE-N233860.A1
N233860
|
£80.98
|
£97.18
|
|
|
7 - COVER LH
BDE-N096981.A6
N096981
|
£3.80
|
£4.56
|
|
|
8 - LABEL
BDE-N217152.A0
N217152
|
£1.50
|
£1.80
|
|
|
9 - FUNNEL
BDE-N201132.A6
N201132
|
£2.78
|
£3.34
|
|
|
10 - CAP
BDE-N455836.A1
N455836
|
£18.91
|
£22.69
|
|
|
11 - SCREW
BDE-N125628.A6
N125628
|
£1.50
|
£1.80
|
|
|
13 - GRIP
BDE-N127049.A0
N127049
|
£1.50
|
£1.80
|
|
|
14 - SPRING TORSION
BDE-N119853.A6
N119853
|
£1.82
|
£2.19
|
|
|
15 - PIN
BDE-N095820.A0
N095820
|
£4.69
|
£5.63
|
|
|
16 - SCREW
BDE-N141827.A0
N141827
|
£1.50
|
£1.80
|
|
|
17 - CLAMP SA RH
BDE-N915019.A1
N915019
|
£18.91
|
£22.69
|
|
|
18 - BLOCK
BDE-N122099.A44
N122099
|
£1.50
|
£1.80
|
|
|
19 - SPRING
BDE-N119679.A4
N119679
|
£1.50
|
£1.80
|
|
|
20 - CLAMP SA LH
BDE-N915018.A5
N915018
|
£24.39
|
£29.27
|
|
|
31 - SEAL
BDE-N093430.A5
N093430
|
£4.69
|
£5.63
|
|
|
32 - BEARING Front
BDE-N077123.A0
N077123
|
£12.17
|
£14.60
|
|
|
33 - O RING
BDE-323711-41.A10
323711-41
|
£1.50
|
£1.80
|
|
|
34 - SHAFT
BDE-N233863.A1
N233863
|
£74.15
|
£88.98
|
|
|
35 - BEARING SA
BDE-N233864.A5
N233864
|
£12.17
|
£14.60
|
|
|
36 - SEAL
BDE-N093431.A1
N093431
|
£3.80
|
£4.56
|
|
|
37 - GEARCASE Grey
BDE-N570074.A1
N570074
|
£87.82
|
£105.39
|
|
|
38 - SCREW TORX
BDE-324007-11.A44
324007-11
|
£1.50
|
£1.80
|
|
|
39 - O RING
BDE-577744-00.A43
577744-00
|
£1.82
|
£2.19
|
|
|
40 - BEARING Rear
BDE-N077124.A6
N077124
|
£7.18
|
£8.62
|
|
|
41 - GEARCASE SA
BDE-N558736.A1
N558736
|
£108.20
|
£129.84
|
|
|
42 - O RING
BDE-N165967.A1
N165967
|
£1.50
|
£1.80
|
|
|
43 - BAFFLE FAN
BDE-N483231.A1
N483231
|
£7.85
|
£9.42
|
|
|
44 - BEARING
BDE-330003-64.A6
330003-64
|
£4.69
|
£5.63
|
|
|
45 - ARMATURE SA
BDE-N483240.A1
N483240
|
£110.62
|
£132.74
|
|
|
46 - CIRCLIP
BDE-N138859.A2
N138859
|
£1.50
|
£1.80
|
|
|
47 - SCREW
BDE-90611830.A25
90611830
|
£1.50
|
£1.80
|
|
|
48 - STATOR SA
BDE-N483264.A1
N483264
|
£258.10
|
£309.72
|
|
|
49 - MOTOR HOUSING SA
BDE-N483241.A1
N483241
|
£19.90
|
£23.88
|
|
|
50 - MODULE
BDE-N390703.A1
N390703
|
£174.63
|
£209.56
|
|
|
51 - LABEL
BDE-N467271.A1
N467271
|
£3.30
|
£3.96
|
|
|
65 - SCREW
BDE-330065-08.A159
330065-08
|
£1.50
|
£1.80
|
|
|
67 - END CAP SA
BDE-N483242.A1
N483242
|
£9.41
|
£11.29
|
|
|
69 - SWITCH LOCK OFF
BDE-N092849.A6
N092849
|
£2.78
|
£3.34
|
|
|
70 - CABLE GUIDE
BDE-N113779.A1
N113779
|
£3.80
|
£4.56
|
|
|
71 - SPRING TORSION
BDE-N097616.A6
N097616
|
£1.50
|
£1.80
|
|
|
72 - BLADE CLAMP
BDE-N515547.A0
N515547
|
£7.18
|
£8.62
|
|
|
73 - BLADE CLAMP
BDE-N515548.A2
N515548
|
£7.18
|
£8.62
|
|
|
80 - HANDLE SA
BDE-N483243.A1
N483243
|
£41.24
|
£49.49
|
|
|
81 - LABEL R/H
BDE-N459249.A9
N459249
|
£1.82
|
£2.19
|
|
|
82 - LABEL
BDE-N459248.A2
N459248
|
£1.82
|
£2.19
|
|
|
800 - GREASE 90 GMS
BDE-870889-02.A347
870889-02
|
£7.85
|
£9.42
|
|
|
817 - LABEL
BDE-N381771.A0
N381771
|
£1.50
|
£1.80
|
|
