Fein DSK 658-5 (50Hz 230V) / 72023400224 Spare Parts

Fein DSK 658-5 ⡐Hz 230V) / 72023400224 Spare Parts

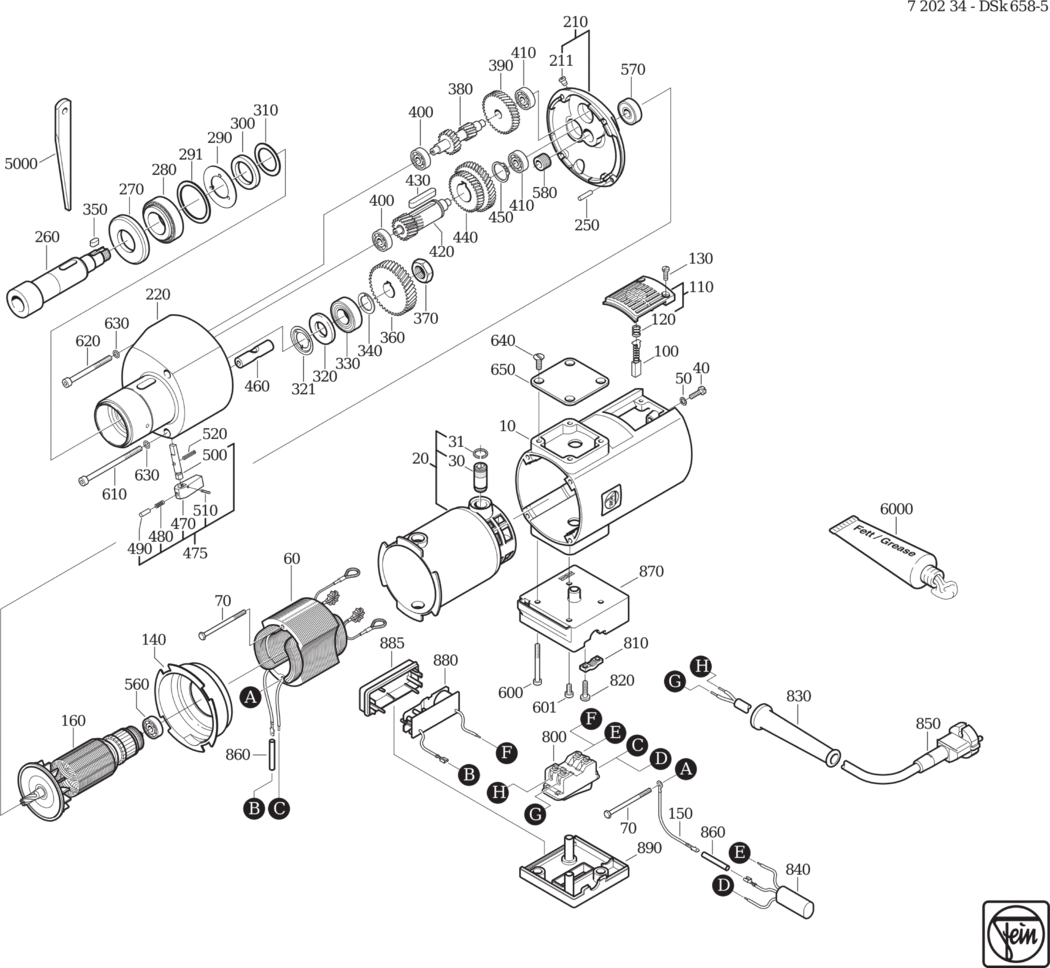

An exploded diagram and spare parts listing for the Fein DSK 658-5 (50Hz 230V) / 72023400224

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903101015.A11 31903101015	£245.13	£294.16
20 - HOUSING FEI-31913017010.A3 31913017010	£60.68	£72.81
30 - BRUSH HOLDER FEI-30712050004.A8 30712050004	£6.65	£7.98
31 - CIRCLIP FEI-42615135005.A2 42615135005	£1.60	£1.92
40 - CYLINDER HEAD SCREW FEI-43002105055.A0 43002105055	-
50 - CIRCLIP M5 FEI-42443004057.A379 42443004057	£1.60	£1.92
60 - STATOR FEI-51266001224.A0 51266001224	-
70 - HEXAGON SOCKET SCREW FEI-43001004042.A47 43001004042	£2.69	£3.23
100 - CARBON BRUSH (SOLD SINGLY) FEI-30711070008.A8 30711070008	£9.45	£11.34
110 - COVER FEI-32427037016.A11 32427037016	£19.12	£22.95
120 - SPIRAL SPRING FEI-30901199001.A11 30901199001	£1.60	£1.92
130 - CYLINDER HEAD SCREW FEI-43002034043.A2 43002034043	£1.60	£1.92
140 - AIR GUIDE RING FEI-31428052003.A2 31428052003	£6.23	£7.48
150 - CONNECTING CABLE FEI-30719257016.A0 30719257016	£4.59	£5.51
160 - ARMATURE FEI-53266001226.A0 53266001226	-
210 - INTERMEDIATE GEAR BOX FEI-31506169005.A6 31506169005	£127.08	£152.50
211 - NIPPLE FEI-32131028004.A9 32131028004	-
220 - GEARBOX HOUSING FEI-31508116002.A6 31508116002	£296.19	£355.43
250 - STRAIGHT PIN FEI-40201038008.A4 40201038008	-
260 - SHAFT FEI-33402038004.A4 33402038004	£192.48	£230.97
270 - SEALING RING FEI-32612050000.A0 32612050000	£29.77	£35.72
280 - TAPERED ROLLER BEARING FEI-41713003002.A2 41713003002	-
290 - DISC FEI-32408164007.A2 32408164007	£7.02	£8.42
291 - DISC FEI-32408175000.A2 32408175000	£3.29	£3.95
300 - FELT RING FEI-30601061000.A0 30601061000	-
310 - DISC FEI-32408173008.A2 32408173008	£1.60	£1.92
320 - FELT RING FEI-30601060001.A6 30601060001	£1.60	£1.92
321 - DISC FEI-32411067002.A0 32411067002	£1.60	£1.92
330 - GROOVED BALL BEARING FEI-41701015024.A6 41701015024	-
340 - DISC FEI-32408168006.A4 32408168006	£1.60	£1.92
350 - FEATHER KEY FEI-40221027003.A6 40221027003	£1.60	£1.92
360 - GEAR-WHEEL FEI-33665012003.A5 33665012003	£69.45	£83.34
370 - HEX NUT FEI-42003006001.A2 42003006001	£1.60	£1.92
380 - GEAR-WHEEL FEI-33811009002.A1 33811009002	-
390 - GEAR-WHEEL FEI-33657032004.A6 33657032004	£45.44	£54.53
400 - GROOVED BALL BEARING FEI-41701204010.A44 41701204010	£6.37	£7.64
410 - GROOVED BALL BEARING FEI-41701204010.A45 41701204010	£6.37	£7.64
420 - GEAR-WHEEL FEI-33765005009.A1 33765005009	-
430 - FEATHER KEY FEI-40221045004.A4 40221045004	-
440 - GEAR-WHEEL FEI-33811032004.A6 33811032004	-
450 - CIRCLIP FEI-42616009003.A23 42616009003	£1.60	£1.92
460 - BOLT FEI-30217186001.A1 30217186001	£24.43	£29.32
470 - LEVER FEI-32805052000.A5 32805052000	£32.78	£39.33
475 - LEVER FEI-32805052019.A1 32805052019	-
480 - SPIRAL SPRING FEI-30901202001.A0 30901202001	£1.60	£1.92
490 - BOLT FEI-30216086001.A2 30216086001	£7.56	£9.07
500 - BOLT FEI-30217191008.A5 30217191008	£33.74	£40.49
510 - CLAMPING SLEEVE FEI-40238007005.A26 40238007005	£1.60	£1.92
520 - CLAMPING SLEEVE FEI-40238011008.A4 40238011008	-
560 - GROOVED BALL BEARING FEI-41701204010.A43 41701204010	£6.37	£7.64
570 - GROOVED BALL BEARING FEI-41701207033.A66 41701207033	£10.15	£12.18
580 - SEALING RING FEI-32612057005.A2 32612057005	£10.81	£12.97
600 - CYLINDER HEAD SCREW FEI-43033018057.A13 43033018057	£1.60	£1.92
601 - CYLINDER HEAD SCREW FEI-43033008058.A17 43033008058	£1.60	£1.92
610 - CYLINDER HEAD SCREW M5X80 FEI-43035027056.A3 43035027056	£2.82	£3.38
620 - CYLINDER HEAD SCREW FEI-43035024055.A8 43035024055	£1.60	£1.92
630 - SEALING RING FEI-40611001002.A27 40611001002	£1.60	£1.92
640 - COUNTERSUNK SCREW FEI-43059012050.A0 43059012050	-
650 - PLATE FEI-32422070003.A0 32422070003	£27.22	£32.67
800 - SWITCH FEI-30701145009.A0 30701145009	£72.83	£87.40
810 - CABLE CLAMPING PIECE FEI-32431021007.A127 32431021007	£1.60	£1.92
820 - SHEET METAL SCREW 3 5X13 FEI-43046002005.A39 43046002005	-
830 - CABLE GROMMET FEI-31413142009.A69 31413142009	£1.60	£1.92
840 - CAPACITOR FEI-30722156016.A0 30722156016	£22.90	£27.48
850 - CABLE WITH PLUG FEI-30707247010.A0 30707247010	£24.39	£29.27
860 - INSULATING HOSE FEI-31413162007.A0 31413162007	£1.60	£1.92
870 - HOUSING FEI-31201056006.A0 31201056006	£16.16	£19.39
880 - ELECTRONICS FEI-30762059012.A0 30762059012	-
885 - COVER FEI-32429090013.A0 32429090013	£24.92	£29.90
890 - COVER FEI-31201057000.A0 31201057000	-
5000 - DRIFT KEYS FEI-63305003003.A10 63305003003	£10.56	£12.67
6000 - LUBRICANT CAN 0.850 kg FEI-32132007011.A0 32132007011	-

Attribute Name	Value
Brand	Fein
