Fein KBM 80 U (50/60Hz 220/230V) / 72703400230 Spare Parts

Fein KBM 80 U ⡐/60Hz 220/230V) / 72703400230 Spare Parts

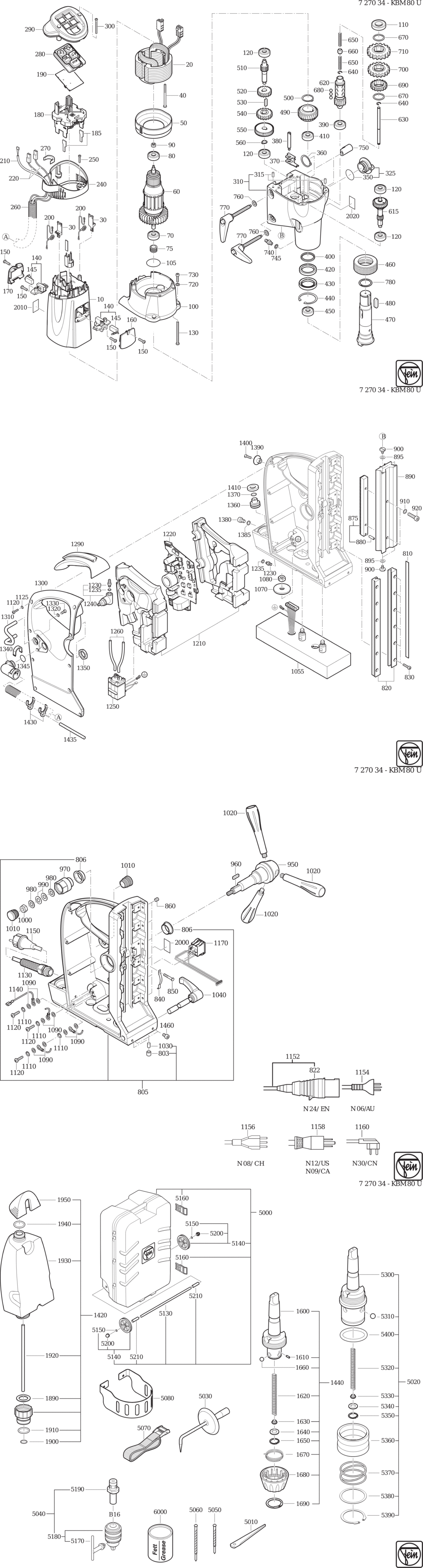

An exploded diagram and spare parts listing for the Fein KBM 80 U (50/60Hz 220/230V) / 72703400230

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903216000.A3 31903216000	-
20 - STATOR 50HZ230V FEI-51275002232.A5 51275002232	-
30 - BASE PLATE FEI-31428144005.A5 31428144005	£1.60	£1.92
40 - SCREW FEI-43072011008.A14 43072011008	-
50 - AIR GUIDE RING FEI-31428141000.A17 31428141000	£5.95	£7.14
60 - ARMATURE Z=6 FEI-53275004230.A1 53275004230	-
70 - GROOVED BALL BEARING FEI-41701213220.A3 41701213220	£10.67	£12.80
75 - SEALING RING FEI-32612128000.A2 32612128000	-
80 - GROOVED BALL BEARING FEI-41701210230.A3 41701210230	£13.94	£16.73
90 - RING MAGNET FEI-32172011004.A0 32172011004	£10.15	£12.18
100 - INTERMEDIATE GEAR BOX FEI-31506373000.A3 31506373000	-
105 - SEALING RING FEI-40612128007.A16 40612128007	£1.60	£1.92
110 - GROOVED BALL BEARING FEI-41701222016.A9 41701222016	-
120 - GROOVED BALL BEARING FEI-41701004015.A24 41701004015	£6.83	£8.20
130 - SCREW FEI-43072001009.A10 43072001009	-
140 - BRUSH HOLDER 220-230V 50/60HZ FEI-30712090019.A11 30712090019	£23.51	£28.21
145 - CARBON BRUSH (SOLD SINGLY) 220-230V 50/60HZ FEI-30711137006.A8 30711137006	£14.48	£17.37
150 - SCREW FEI-43070027000.A9 43070027000	-
160 - COVER FEI-32427118006.A12 32427118006	£4.37	£5.24
170 - COVER FEI-32427117008.A10 32427117008	£4.37	£5.24
180 - ELECTRONICS 110V-230V 50/60HZ FEI-30762396990.A3 30762396990	£456.29	£547.55
185 - PRESSURE PIECE FEI-31415104000.A3 31415104000	-
190 - ELECTRONICS FEI-30762366990.A4 30762366990	£70.90	£85.08
200 - CHOKE FEI-30764128009.A0 30764128009	-
210 - CONNECTING CABLE FEI-30719662010.A2 30719662010	-
220 - CONNECTING CABLE FEI-30719667010.A4 30719667010	-
240 - HOUSING FEI-31207264000.A3 31207264000	-
250 - SCREW FEI-43070031003.A73 43070031003	£1.60	£1.92
260 - PROTECTIVE HOSE FEI-31414063000.A1 31414063000	-
270 - TERMINAL FEI-30240275000.A3 30240275000	-
280 - SWITCH INSERT FEI-32816067000.A4 32816067000	-
290 - COVER FEI-32429133000.A1 32429133000	-
300 - SCREW FEI-43070012008.A4 43070012008	£1.60	£1.92
310 - GEARBOX HOUSING FEI-31508258000.A1 31508258000	-
315 - STRAIGHT PIN FEI-40201034009.A2 40201034009	-
325 - SWITCH PUSHBUTTON FEI-32805208010.A2 32805208010	-
350 - SEALING RING FEI-40612168000.A3 40612168000	-
360 - CIRCLIP FEI-42616015003.A38 42616015003	£1.60	£1.92
370 - LINK FEI-32714090000.A4 32714090000	-
380 - SET SCREW FEI-30217349000.A4 30217349000	-
390 - GROOVED BALL BEARING FEI-41701010010.A76 41701010010	£8.58	£10.30
400 - SEALING RING FEI-40608078000.A2 40608078000	-
410 - GROOVED BALL BEARING FEI-41701113059.A4 41701113059	-
420 - SEALING RING FEI-40608074000.A3 40608074000	-
430 - SEALING RING FEI-40608026009.A9 40608026009	-
440 - CIRCLIP FEI-42616004000.A19 42616004000	£2.37	£2.84
450 - GROOVED BALL BEARING FEI-41701116050.A2 41701116050	-
460 - NUT FEI-42015068000.A3 42015068000	-
470 - SHAFT FEI-33402054000.A0 33402054000	-
480 - FEATHER KEY FEI-40222011002.A3 40222011002	-
490 - GEAR-WHEEL Z=23 FEI-33669026000.A4 33669026000	£44.86	£53.83
500 - CIRCLIP 28X1 5 FEI-42616076000.A32 42616076000	-
510 - SHAFT Z=10 FEI-33717038000.A3 33717038000	-
520 - GEAR-WHEEL Z=13 FEI-33617061000.A3 33617061000	-
530 - FEATHER KEY FEI-40221067009.A39 40221067009	£5.66	£6.79
540 - GEAR-WHEEL Z=22 FEI-33617060000.A2 33617060000	-
550 - GEAR-WHEEL Z=29 FEI-33665056000.A1 33665056000	-
560 - CIRCLIP FEI-42616006007.A0 42616006007	£1.60	£1.92
615 - SHAFT TOOTHED Z=10/35 FEI-33765020010.A2 33765020010	£188.18	£225.81
620 - SHAFT TOOTHED Z=12 FEI-33769002000.A3 33769002000	-
630 - SELECTOR SHAFT FEI-30217348000.A1 30217348000	-
640 - CIRCLIP FEI-42634022000.A13 42634022000	£1.60	£1.92
650 - SPIRAL SPRING FEI-30901374000.A5 30901374000	-
660 - SLEEVE FEI-30220062000.A9 30220062000	-
670 - CIRCLIP FEI-42643016008.A15 42643016008	£2.59	£3.11
680 - BALL FEI-41708025004.A19 41708025004	£1.60	£1.92
690 - GEAR-WHEEL Z=27 FEI-33617057000.A3 33617057000	-
700 - GEAR-WHEEL Z=36 FEI-33617058000.A2 33617058000	-
710 - GEAR-WHEEL Z=39 FEI-33617059000.A3 33617059000	-
720 - CIRCLIP M5 FEI-42443004057.A192 42443004057	£1.60	£1.92
730 - CYLINDER HEAD SCREW FEI-43035016053.A7 43035016053	-
740 - HOSE SOCKET FEI-41138025006.A76 41138025006	£8.40	£10.08
745 - SEALING RING FEI-40611012000.A1 40611012000	-
750 - BOLT FEI-30217347001.A6 30217347001	£48.72	£58.46
760 - DISC FEI-42401019085.A77 42401019085	£1.60	£1.92
770 - LEVER FEI-32170019000.A1 32170019000	-
780 - SEALING RING FEI-40608079000.A3 40608079000	-
803 - BUSH FEI-30507226001.A7 30507226001	£23.12	£27.74
805 - HOUSING FEI-31207266010.A1 31207266010	-
806 - BUSH FEI-31602089009.A60 31602089009	-
810 - PRESSURE PIECE FEI-33216054000.A6 33216054000	-
820 - GUIDE STRIP FEI-33218126000.A3 33218126000	-
830 - CYLINDER HEAD SCREW FEI-43035076041.A41 43035076041	£1.60	£1.92
840 - LEAF SPRING FEI-30904041001.A26 30904041001	£5.78	£6.94
850 - FILLISTER HEAD SCREW FEI-43041026994.A59 43041026994	-
860 - SET SCREW FEI-43058005056.A7 43058005056	-
875 - GEAR RACK FEI-33812008010.A2 33812008010	-
880 - CLAMPING SLEEVE FEI-40238051004.A11 40238051004	-
890 - GUIDE FEI-33218112007.A8 33218112007	£101.26	£121.51
895 - DISC FEI-42402017040.A4 42402017040	-
900 - CYLINDER HEAD SCREW FEI-43035006048.A5 43035006048	-
910 - CIRCLIP M6 FEI-42443005064.A45 42443005064	£1.60	£1.92
920 - CYLINDER HEAD SCREW FEI-43058021068.A5 43058021068	-
950 - SHAFT FEI-33717040000.A2 33717040000	-
960 - FEATHER KEY FEI-40221032009.A1 40221032009	-
970 - CLUTCH PART FEI-33412042000.A4 33412042000	-
980 - DISC FEI-42401019085.A76 42401019085	£1.60	£1.92
990 - CUP SPRING FEI-30905055000.A24 30905055000	-
1000 - HEX NUT FEI-42001009080.A14 42001009080	£1.60	£1.92
1010 - PLUG FEI-31420123000.A4 31420123000	-
1020 - HANDLE FEI-32119114014.A54 32119114014	£19.35	£23.22
1030 - ROLLER FEI-41709041004.A4 41709041004	-
1040 - LEVER FEI-32170020000.A6 32170020000	-
1055 - MAGNETIC FOOT FEI-33216052010.A2 33216052010	-
1070 - DISC FEI-32408419000.A10 32408419000	-
1080 - HEX NUT FEI-42001010103.A2 42001010103	-
1090 - DISC FEI-42404005048.A47 42404005048	£1.60	£1.92
1110 - LOCK WASHER FEI-42439013046.A102 42439013046	£1.60	£1.92
1120 - FILLISTER HEAD SCREW FEI-43064024043.A101 43064024043	-
1125 - CIRCLIP M4 FEI-42443003043.A215 42443003043	£1.60	£1.92
1130 - CABLE GROMMET FEI-31413230000.A4 31413230000	-
1140 - CONNECTING CABLE FEI-30719688010.A0 30719688010	-
1150 - CABLE WITH PLUG FEI-30707423010.A12 30707423010	-
1170 - SWITCH FEI-30701282010.A2 30701282010	-
1210 - EPP INSERT FEI-33904412000.A2 33904412000	-
1220 - ELECTRONICS 110V-230V 50/60HZ FEI-30762397990.A1 30762397990	£493.54	£592.25
1230 - HOSE SOCKET FEI-41138025006.A77 41138025006	£8.40	£10.08
1235 - SEALING RING FEI-40611012000.A2 40611012000	-
1240 - VALVE FEI-32716027010.A2 32716027010	-
1250 - PUMP FEI-92601024010.A1 92601024010	-
1260 - HOSE FEI-31414067000.A4 31414067000	-
1290 - HANDLE FEI-32119120000.A3 32119120000	-
1300 - COVER FEI-32429134000.A4 32429134000	-
1310 - CLAMP FEI-33216055000.A2 33216055000	-
1320 - CIRCLIP M5 FEI-42443004057.A193 42443004057	£1.60	£1.92
1330 - CYLINDER HEAD SCREW FEI-43033009052.A4 43033009052	£1.60	£1.92
1340 - SCREW CONNECTION FEI-30723054002.A11 30723054002	£36.50	£43.80
1345 - SEALING RING FEI-40612115003.A19 40612115003	£1.60	£1.92
1350 - NUT FEI-30723055006.A6 30723055006	-
1360 - BOLT FEI-30217354000.A4 30217354000	-
1370 - SEALING RING FEI-40612146003.A6 40612146003	-
1380 - CYLINDER HEAD SCREW FEI-43035119083.A0 43035119083	-
1385 - SEALING RING FEI-40611013000.A5 40611013000	-
1390 - BOLT FEI-30240276000.A2 30240276000	-
1400 - COUNTERSUNK SCREW FEI-43059015056.A1 43059015056	-
1410 - FILTER FEI-32901048000.A2 32901048000	-
1420 - CONTAINER FEI-32132030010.A3 32132030010	-
1430 - HOLDER FEI-33206050000.A2 33206050000	-
1435 - HOSE FEI-31414066000.A1 31414066000	-
1440 - QUICKIN OUTPUT FEI-63901039020.A2 63901039020	£242.55	£291.06
1460 - CYLINDER HEAD SCREW FEI-43035013058.A26 43035013058	£1.60	£1.92
1600 - SHAFT FEI-33401091000.A1 33401091000	-
1610 - CLAMPING SLEEVE FEI-40238065002.A16 40238065002	£1.60	£1.92
1620 - SPIRAL SPRING FEI-30901341000.A57 30901341000	£5.99	£7.19
1630 - SEALING RING FEI-30503145006.A62 30503145006	£3.52	£4.23
1640 - DISC FEI-32408389000.A33 32408389000	£1.60	£1.92
1650 - CIRCLIP FEI-42616075007.A17 42616075007	-
1660 - BALL FEI-41708025004.A20 41708025004	£1.60	£1.92
1670 - SPIRAL SPRING FEI-30907063003.A2 30907063003	£6.76	£8.11
1680 - CLAMPING SLEEVE FEI-30232045005.A17 30232045005	£37.81	£45.37
1690 - CIRCLIP FEI-42643009005.A7 42643009005	£3.40	£4.08
1890 - SEAL FEI-30605119005.A2 30605119005	-
1900 - SEALING RING FEI-40612025003.A3 40612025003	-
1910 - SEALING RING FEI-40612038007.A3 40612038007	£10.08	£12.10
1920 - HOSE FEI-31414065000.A4 31414065000	-
1930 - CONTAINER FEI-32132030000.A2 32132030000	-
1940 - SEALING RING FEI-40612169000.A2 40612169000	-
1950 - CAP FEI-31420122000.A3 31420122000	-
2000 - INFORMATION SIGN FEI-32214002000.A1 32214002000	-
2010 - STICKER FEI-32217406002.A30 32217406002	£1.60	£1.92
2020 - INFORMATION SIGN FEI-32217416000.A1 32217416000	-
5000 - TOOL BOX ASS. FEI-33901155020.A2 33901155020	£285.72	£342.87
5010 - DRIFT KEYS FEI-63305003003.A44 63305003003	£10.56	£12.67
5020 - QUICKIN MAX OUTPUT FEI-63901038020.A1 63901038020	£355.38	£426.46
5030 - HOOK F. CHIP REMOVAL FEI-64201001000.A6 64201001000	£61.87	£74.24
5040 - KEY-TYPE DRILL CHUCK WITH QUICKIN HOLDER FEI-63901023020.A1 63901023020	£106.82	£128.19
5050 - CENTERING PIN FEI-63134998310.A13 63134998310	£25.18	£30.21
5060 - CENTERING PIN FEI-63134998330.A3 63134998330	£25.68	£30.81
5070 - STRAP SAFETY FEI-32174008007.A81 32174008007	£33.23	£39.88
5080 - PROTECTIVE GRILLE FEI-31810259000.A5 31810259000	-
5130 - ROD FEI-33413064000.A0 33413064000	-
5140 - WHEEL SET FEI-32103043010.A2 32103043010	-
5160 - WIRE CLAMP FEI-30232050000.A26 30232050000	£10.78	£12.94
5170 - CHUCK KEY FEI-62914004007.A3 62914004007	£8.38	£10.05
5180 - KEY-TYPE DRILL CHUCKS FEI-63202037010.A2 63202037010	£97.35	£116.82
5190 - QUICKIN-ADAPTOR FEI-63901023002.A0 63901023002	£36.00	£43.20
5200 - DISC FEI-30240319000.A1 30240319000	-
5300 - SHAFT QUICK-IN MK3 FEI-33401092000.A4 33401092000	-
5310 - BALL FEI-41708025004.A21 41708025004	£1.60	£1.92
5320 - SPIRAL SPRING FEI-30901341000.A58 30901341000	£5.99	£7.19
5330 - SEALING RING FEI-30503145006.A61 30503145006	£3.52	£4.23
5340 - DISC FEI-32408389000.A32 32408389000	£1.60	£1.92
5350 - CIRCLIP FEI-42616075007.A18 42616075007	-
5360 - SLEEVE FEI-30503162000.A1 30503162000	-
5370 - SPIRAL SPRING FEI-30901385000.A3 30901385000	-
5380 - DISC FEI-32408439000.A4 32408439000	-
5390 - CIRCLIP FEI-42643018000.A3 42643018000	-
5400 - SEALING RING FEI-40608080000.A3 40608080000	-
6000 - LUBRICANT CAN 0.850KG FEI-32132007189.A9 32132007189	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A335 34130054061	-

Attribute Name	Value
Brand	Fein

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Fein KBM 80 U (50/60Hz 220/230V) / 72703400230 Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Fein KBM 80 U (50/60Hz 220/230V) / 72703400230 Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Fein KBM 80 U (50/60Hz 220/230V) / 72703400230 Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
