Fein Dustex 40 / 92023223010 Spare Parts

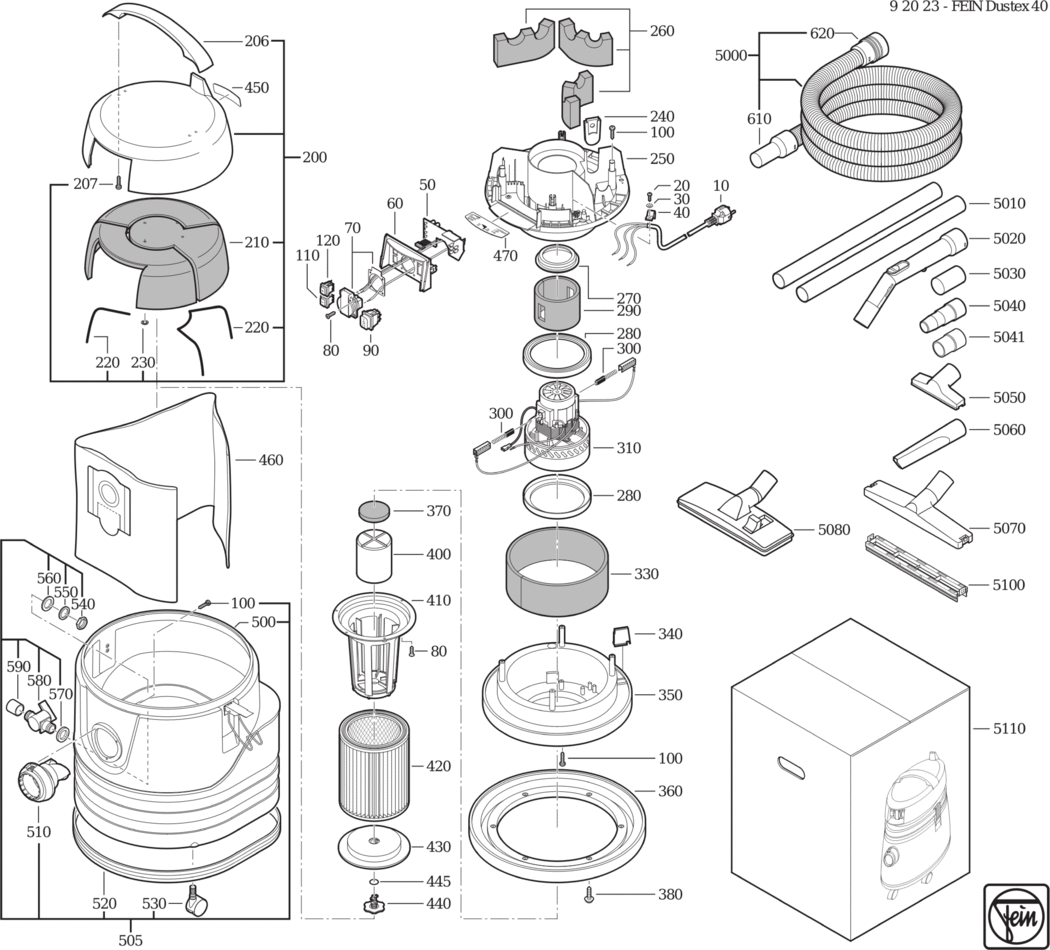

An exploded diagram and spare parts listing for the Fein Dustex 40 / 92023223010

	Ex VAT	Inc VAT
10 - CABLE FEI-31322816000.A1 31322816000	-
20 - SHEET METAL SCREW FEI-31322817000.A0 31322817000	-
30 - DISC FEI-31322818000.A3 31322818000	-
40 - TERMINAL FEI-31322819000.A0 31322819000	-
50 - ELECTRONICS FEI-31322821000.A2 31322821000	£175.68	£210.82
60 - HOUSING FEI-31322820000.A1 31322820000	£25.60	£30.72
70 - SOCKET FEI-31322736005.A2 31322736005	£42.72	£51.26
80 - COUNTERSUNK SCREW FEI-31322729002.A2 31322729002	-
90 - SWITCH FEI-31322822000.A1 31322822000	-
100 - SHEET METAL SCREW FEI-31322826000.A4 31322826000	-
110 - SWITCH FEI-31322824000.A2 31322824000	£19.08	£22.90
120 - SWITCH FEI-31322824000.A3 31322824000	£19.08	£22.90
200 - HOOD FEI-31322738016.A2 31322738016	-
206 - HANDLE FEI-31322858000.A2 31322858000	-
207 - SHEET METAL SCREW FEI-31322826000.A3 31322826000	-
210 - HOUSING INSERT FEI-31322740003.A2 31322740003	£14.48	£17.37
220 - SEAL FEI-31322739001.A0 31322739001	-
230 - CIRCLIP FEI-31322741002.A0 31322741002	£1.75	£2.10
240 - COVER FEI-31322825000.A2 31322825000	-
250 - PLATE FEI-31322742005.A4 31322742005	-
260 - FILTER FEI-31322743009.A0 31322743009	£3.98	£4.77
270 - SEALING RING FEI-31322833000.A0 31322833000	-
280 - SEAL FEI-31322745001.A4 31322745001	-
290 - FILTER FEI-31322746004.A0 31322746004	£7.20	£8.64
300 - CARBON BRUSH (SOLD SINGLY) FEI-31322834000.A0 31322834000	-
310 - MOTOR FEI-31322835000.A0 31322835000	£222.11	£266.53
330 - FILTER FEI-31322749000.A2 31322749000	£5.07	£6.08
340 - PLATE FEI-31322764005.A2 31322764005	-
350 - MOTOR HOUSING FEI-31322750002.A0 31322750002	-
360 - SEALING RING FEI-31322827000.A2 31322827000	-
370 - SEALING RING FEI-31322752004.A4 31322752004	-
380 - SHEET METAL SCREW FEI-31322828000.A1 31322828000	-
400 - FLOAT FEI-31322753008.A0 31322753008	-
410 - HOLDER FEI-31322754006.A4 31322754006	-
420 - FILTER CARTRIDGE FEI-31322765009.A0 31322765009	£84.98	£101.98
430 - PLATE FEI-31322755000.A0 31322755000	-
440 - STOP BUTTON FEI-31322756003.A2 31322756003	£5.02	£6.02
445 - SEALING RING FEI-31322859000.A1 31322859000	-
450 - TYPE PLATE FEIN DUSTEX 40 FEI-32208534010.A0 32208534010	-
460 - FILTER BAG FEI-31322811010.A0 31322811010	£138.18	£165.82
470 - N.A. FEI-32217418060.A0 32217418060	-
500 - CONTAINER FEI-31322836000.A0 31322836000	-
505 - CONTAINER FEI-31322836010.A2 31322836010	£251.72	£302.06
510 - HOSE CONNECTION FEI-31322759009.A2 31322759009	-
520 - DUST RING FEI-31322831000.A3 31322831000	-
530 - ROLLER FEI-31322762003.A4 31322762003	-
540 - NUT FEI-31322853000.A0 31322853000	-
550 - DISC FEI-31322854000.A2 31322854000	-
560 - SEALING RING FEI-31322855000.A0 31322855000	-
570 - SEALING RING FEI-31322856000.A2 31322856000	-
580 - STOPCOCK FEI-31322852000.A2 31322852000	-
590 - CAP FEI-31322857000.A0 31322857000	-
610 - HOSE SOCKET FEI-31322768004.A1 31322768004	£4.59	£5.51
620 - HOSE SOCKET FEI-31322769008.A3 31322769008	£4.40	£5.28
5000 - SUCTION HOSE FEI-31322767015.A3 31322767015	£77.77	£93.32
5010 - EXTENSION TUBE FEI-31322815000.A0 31322815000	-
5020 - HANDLE FEI-31322770010.A2 31322770010	£25.31	£30.37
5030 - CONNECTING PIECE FEI-31322771009.A0 31322771009	£10.15	£12.18
5040 - STEPPED COLLAR FEI-31322772002.A2 31322772002	£20.32	£24.38
5041 - CONNECTING PIECE FEI-31322807000.A2 31322807000	-
5050 - UPHOLSTERY NOZZLE FEI-31322773006.A0 31322773006	£11.32	£13.59
5060 - CREVICE NOZZLE FEI-31322774004.A2 31322774004	-
5070 - COMBINATION NOZZLE FEI-31322775008.A0 31322775008	£23.00	£27.60
5080 - FLOOR NOZZLE FEI-31322814000.A0 31322814000	-
5100 - INSERT RUBBER FEI-31322778003.A2 31322778003	-
5110 - CARDBOARD FEI-33903593000.A0 33903593000	-
9000 - OPERATING INSTRUCTIONS FEIN DUSTEX 25/40 FEI-34101115060.A1 34101115060	-
9010 - LIST OF SPARE PARTS FEIN DUSTEX 40 FEI-34151115010.A0 34151115010	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A403 34130054061	-
