Metabo Sliding CARRIAGE PK 255 / 0910052420 11 / - Spare Parts

Metabo Sliding CARRIAGE PK 255 / 0910052420 11 / - Spare Parts

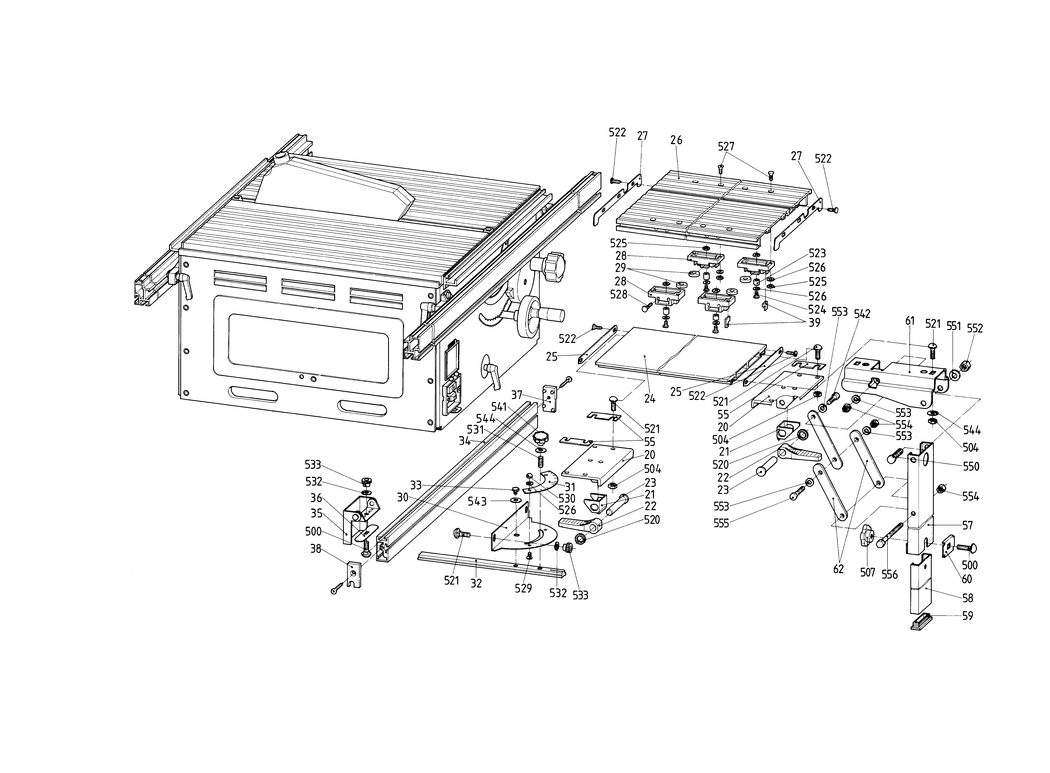

An exploded diagram and spare parts listing for the Metabo Sliding CARRIAGE PK 255 / 0910052420 11 / -
Ex VAT Inc VAT
20 - CLAMPING PLATE BL 3 5X98 MET-1482222869.A7 1482222869 £7.44 £8.93
21 - CLAMPING PLATE BL 1X26X91 MET-1392205620.A98 1392205620 £3.20 £3.84
22 - CAM LOCK LEVER MET-2390205484.A5 2390205484 £9.62 £11.54
23 - BOLT WITH HEAD MET-6632111175.A98 6632111175 £3.82 £4.59
24 - SUPPORT EXTRUSION 1550 MM MET-1383217381.A5 1383217381 -
25 - COVER PLATE BL 2 00X13 MET-1482222427.A7 1482222427 -
26 - CARRIAGE EXTRUSION 540 MM MET-1383222407.A7 1383222407 -
27 - HEAD PLATE BL 2 00X22X207 SCHIEBESCHLITT MET-1482222419.A0 1482222419 -
28 - GLIDER CARRIAGE MET-1381222302.A0 1381222302 £3.11 £3.73
29 - ROLLER SLIDING CARRIAGE RD 16X5 MET-1381222310.A8 1381222310 £3.82 £4.59
30 - ANGLE BRACKET BL 2 99X125 MET-1382221148.A4 1382221148 £14.71 £17.65
31 - ANGLE SCALE 1 00 2X0-45 GRAD MET-1142221132.A5 1142221132 £6.38 £7.65
32 - GUIDE RAIL 300 MM MET-1482221129.A4 1482221129 £22.61 £27.13
33 - HEX FIT BOLT MET-6104220876.A5 6104220876 £3.82 £4.59
34 - MITRE FENCE EXTRUSION 660 MM MET-1383222563.A5 1383222563 -
35 - FLIPSTOP MIT KLAPPE MET-2010200388.A2 2010200388 £8.37 £10.04
36 - GUIDE PLATE FLIPSTOP MET-1392201587.A5 1392201587 £1.50 £1.80
37 - END PIECE MET-2391201628.A5 2391201628 £4.76 £5.71
38 - END PIECE MET-2391203760.A16 2391203760 £3.20 £3.84
39 - FELT BRUSH 3 5X13X18 MET-9132222611.A6 9132222611 -
55 - SPACER PLATE BL 0 88X20X62 MET-1382222764.A4 1382222764 £1.50 £1.80
57 - SUPPORT LEG UPPER MET-1010222687.A0 1010222687 £49.88 £59.86
58 - SUPPORT LEG LOWER BL 1 MET-1382222713.A3 1382222713 £17.07 £20.48
59 - LAMELLAR PLUG 60X25 VL SCHWARZ MET-1391019971.A4 1391019971 £3.20 £3.84
60 - CLAMPING PLATE BL 2 99X39X50 STÜTZBEIN MET-1482222729.A3 1482222729 -
61 - JOINT PLATE SUPPORT LEG BL 2 MET-1482222664.A3 1482222664 -
62 - JOINT RAIL BD 2 99X24X122 MET-1482222672.A11 1482222672 -
500 - CUP SQUARE NECK SCREW MET-6110000608.A58 6110000608 £1.50 £1.80
504 - FLANGE NUT MET-6209114230.A147 6209114230 £1.50 £1.80
507 - WING NUT M 6 MET-7005155791.A2 7005155791 £3.82 £4.59
520 - STARLOCK MET-7016050711.A30 7016050711 £1.50 £1.80
521 - CUP SQUARE NECK SCREW MET-6110000594.A14 6110000594 £1.50 £1.80
522 - FILLISTER HEAD SCREW MET-6172001830.A28 6172001830 £1.50 £1.80
523 - SPACER SLEEVE RD 5 4/4X10 MET-6442120283.A0 6442120283 -
524 - RAISED CHEESE HEAD SCREW M 4X20 VERZ. MET-6123084703.A15 6123084703 £1.50 £1.80
525 - HEXAGONAL LOCK NUT MET-141130930.A24 141130930 £1.50 £1.80
526 - WASHER MET-141150010.A94 141150010 £1.50 £1.80
527 - COUNTERSUNK SCREW MET-141118780.A1 141118780 £1.50 £1.80
528 - COUNTERSUNK SCREW MET-6132175169.A11 6132175169 £1.50 £1.80
529 - CROSS RECESSED FLAT HEAD SCREW M 4X8 VER MET-6131001531.A7 6131001531 -
530 - CAP NUT M 4 VERZ. MET-6201001437.A10 6201001437 £1.50 £1.80
531 - HEX. SOCKET SET SCREW FLAT PT M 6X20 VE MET-141124480.A6 141124480 £2.94 £3.53
532 - WASHER MET-141151940.A240 141151940 £1.50 £1.80
533 - KNURLED NUT MET-6241125058.A49 6241125058 £3.20 £3.84
541 - STARKNOB NUT M 6 (DIN 934) VERZINKT MET-7000025466.A0 7000025466 £3.20 £3.84
542 - CAP SCREW MET-6121023081.A2 6121023081 £1.50 £1.80
544 - WASHER MET-141150130.A74 141150130 £1.50 £1.80
550 - CAP SCREW MET-141113990.A10 141113990 £3.20 £3.84
551 - WASHER MET-141151340.A152 141151340 £1.50 £1.80
552 - HEXAGON NUT PREV. TORQUE TYPE MET-6202002305.A168 6202002305 £1.50 £1.80
553 - CUP SPRING MET-141155660.A35 141155660 £1.50 £1.80
554 - HEXAGONAL LOCK NUT MET-141130650.A188 141130650 £3.20 £3.84
555 - CAP SCREW MET-141113890.A17 141113890 £3.20 £3.84
556 - HEXAGON HEAD SCREW MET-141122690.A2 141122690 -
