Metabo BAE 75 / 00375180 / CH 230V Spare Parts

Home Details Reviews Delivery

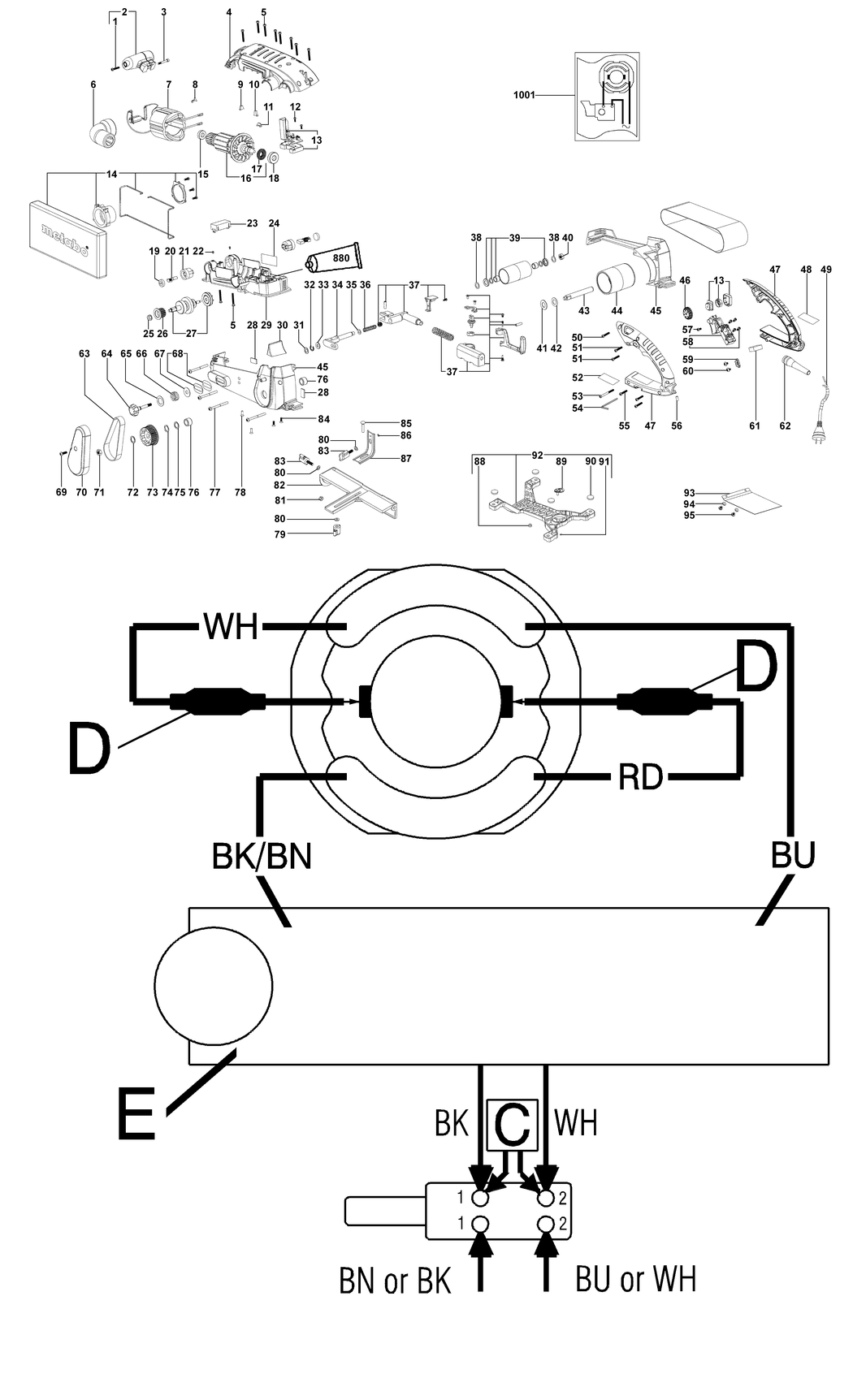

An exploded diagram and spare parts listing for the Metabo BAE 75 / 00375180 / CH 230V

	Ex VAT	Inc VAT
1 - FILLISTER HEAD SCREW MET-141123690.A0 141123690	-
2 - SIDE SUPPORT HANDLE COMPL. MET-316044330.A0 316044330	£11.78	£14.13
3 - CAP SCREW MET-141123700.A1 141123700	£2.94	£3.53
4 - MOTOR HOUSING COVER MET-343397370.A1 343397370	£26.35	£31.62
5 - FILLISTER HEAD SCREW MET-141123730.A0 141123730	-
6 - ADAPTOR MET-344098610.A0 344098610	£6.38	£7.65
7 - FIELD COIL COMPL. 230V MET-311011060.A0 311011060	£86.42	£103.71
8 - RUBBER STOPPER 1 MET-343397410.A0 343397410	-
9 - RUBBER STOPPER 2 MET-343397420.A1 343397420	-
10 - RUBBER STOPPER 3 MET-343397430.A0 343397430	-
11 - RUBBER STOPPER 4 MET-343397440.A1 343397440	-
12 - FILLISTER HEAD SCREW MET-141110460.A184 141110460	£1.50	£1.80
13 - ELECTRONIC UNIT MET-343081750.A1 343081750	-
14 - DUST BAG CPL. MET-316044120.A0 316044120	£19.18	£23.02
15 - BALL BEARING 10X22X6 MET-176112160.A2 176112160	£17.55	£21.06
16 - MOTOR ASSEMBLY 230V MET-310009580.A1 310009580	£100.42	£120.50
17 - SEALING WASHER MET-343397460.A0 343397460	£1.50	£1.80
18 - BALL BEARING 12X28X8 MET-143114800.A6 143114800	£17.55	£21.06
19 - BRUSH HOLDER MET-343397480.A0 343397480	-
20 - CARBON BRUSH SET MET-316044100.A0 316044100	£17.55	£21.06
21 - BRUSH HOLDER CPL. MET-316044110.A0 316044110	-
22 - GRUB SCREW 3X5 TX8 MET-341704360.A0 341704360	-
23 - COVER MET-343397470.A0 343397470	-
24 - RATING PLATE MET-338121670.A0 338121670	-
25 - CLAMPING NUT M8 MET-341032040.A1 341032040	-
26 - BELT PULLEY SMALL MET-341201030.A1 341201030	£11.78	£14.13
27 - DRIVE SHAFT COMPL. MET-316044130.A0 316044130	£68.35	£82.02
28 - BUTTING PLATE MET-343380320.A0 343380320	-
29 - MOTOR HOUSING MET-343397380.A0 343397380	£22.96	£27.55
30 - HANDLE MET-343397450.A0 343397450	£2.94	£3.53
31 - WASHER 9X17X0 MET-339007230.A0 339007230	-
32 - CIRCLIP MET-141155400.A26 141155400	£1.50	£1.80
33 - WASHER 7/64X5/8X1/16 MET-339007260.A1 339007260	-
34 - SHAFT MET-341540180.A1 341540180	-
35 - WASHER MET-141152070.A15 141152070	£1.50	£1.80
36 - PRESSURE SPRING MET-342003600.A1 342003600	-
37 - CLAMPING DEVICE COMPL. MET-316044140.A1 316044140	£51.54	£61.85
38 - WASHER 10 2 X 14 MET-141153920.A338 141153920	£1.50	£1.80
39 - ROLLER COMPL. MET-316044300.A0 316044300	£42.65	£51.18
40 - HEX NUT W.FLANGE M8X1 MET-341102170.A0 341102170	-
41 - FELT RING 12X22X2 MET-143115210.A1 143115210	£1.50	£1.80
42 - WASHER 12X24X0 MET-339007270.A0 339007270	£1.50	£1.80
43 - SPINDLE MET-341147940.A0 341147940	£13.63	£16.36
44 - ROLLER COMPL. MET-316044310.A1 316044310	£48.88	£58.66
45 - HOUSING COVER MET-315417190.A1 315417190	-
46 - SELECTOR MET-343397560.A0 343397560	-
47 - HANDLE 2 PART MET-343397400.A0 343397400	£26.35	£31.62
48 - PART NOT NEEDED MET-399999990.A1429 399999990	-
49 - CABLE W. SEV SOCKET MET-344498120.A0 344498120	-
50 - FILLISTER HEAD SCREW MET-141123770.A1 141123770	-
51 - FILLISTER HEAD SCREW MET-141123760.A3 141123760	-
52 - RATING PLATE MET-338052160.A1 338052160	-
53 - FILLISTER HEAD SCREW MET-141123790.A1 141123790	-
54 - HEXAGONAL KEY MET-344161540.A9 344161540	£3.20	£3.84
55 - FILLISTER HEAD SCREW MET-141123690.A1 141123690	-
56 - RUBBER PLUG 5X10 MET-344098590.A1 344098590	-
57 - FILLISTER HEAD SCREW MET-141123710.A0 141123710	-
58 - SWITCH MET-343408970.A1 343408970	£48.88	£58.66
59 - CABLE CLIP MET-339134160.A0 339134160	-
60 - FILLISTER HEAD SCREW MET-141123720.A10 141123720	-
61 - CONDENSER MET-343254540.A0 343254540	-
62 - CABLE SLEEVE MET-344101140.A118 344101140	£3.82	£4.59
63 - TOOTHED BELT S5M285 MET-344260310.A0 344260310	£15.41	£18.49
64 - ADJUSTING SCREW MET-341704370.A1 341704370	-
65 - WASHER 16 2X20X0 MET-339007200.A0 339007200	-
66 - PRESSURE SPRING MET-342003590.A0 342003590	-
67 - WASHER 8 5X24X0 MET-339007220.A1 339007220	-
68 - GUIDE SHEET MET-339134150.A1 339134150	-
69 - FILLISTER HEAD SCREW MET-141123800.A4 141123800	-
70 - BELT GUARD MET-343397390.A1 343397390	-
71 - HEXAGONAL NUT MET-141131010.A49 141131010	£1.50	£1.80
72 - WASHER 8 4X18X0 MET-339007250.A0 339007250	-
73 - BELT PULLEY MET-341201040.A0 341201040	£13.63	£16.36
74 - WAVE WASHER MET-143115220.A0 143115220	-
75 - WASHER 12X19X0 MET-339007240.A1 339007240	-
76 - NEEDLE SLEEVE MET-143115200.A0 143115200	-
77 - FILLISTER HEAD SCREW MET-141123740.A0 141123740	-
78 - FILLISTER HEAD SCREW MET-141119860.A56 141119860	£3.20	£3.84
79 - THUMB-NUT MET-341102180.A1 341102180	-
80 - WASHER MET-339011790.A1 339011790	-
81 - HEXAGONAL NUT MET-141130100.A39 141130100	£1.50	£1.80
82 - SHOE ASS`Y MET-316044340.A0 316044340	£48.88	£58.66
83 - THUMBSCREW MET-341704460.A1 341704460	-
84 - FILLISTER HEAD SCREW MET-141123760.A2 141123760	-
85 - FILLISTER HEAD SCREW MET-141123810.A1 141123810	-
86 - O-RING MET-143190060.A3 143190060	£1.50	£1.80
87 - ANGLE MET-339134220.A1 339134220	-
88 - RUBBER PLUG MET-344098620.A0 344098620	-
89 - SCREW MET-341704450.A0 341704450	£3.82	£4.59
90 - RUBBER FOOT MET-339040960.A0 339040960	-
91 - O-RING MET-143195250.A0 143195250	-
92 - FOOT COMPL. MET-316044320.A0 316044320	£48.88	£58.66
93 - SLIDING SHEET CPL. MET-341148030.A1 341148030	£8.37	£10.04
94 - SPRING WASHER MET-141150260.A10 141150260	£1.50	£1.80
95 - FILLISTER HEAD SCREW MET-141122220.A29 141122220	£3.20	£3.84
1001 - WIRING DIAGRAM 120-230V MET-338504910.A1 338504910	-

Attribute Name	Value
Brand	Metabo
