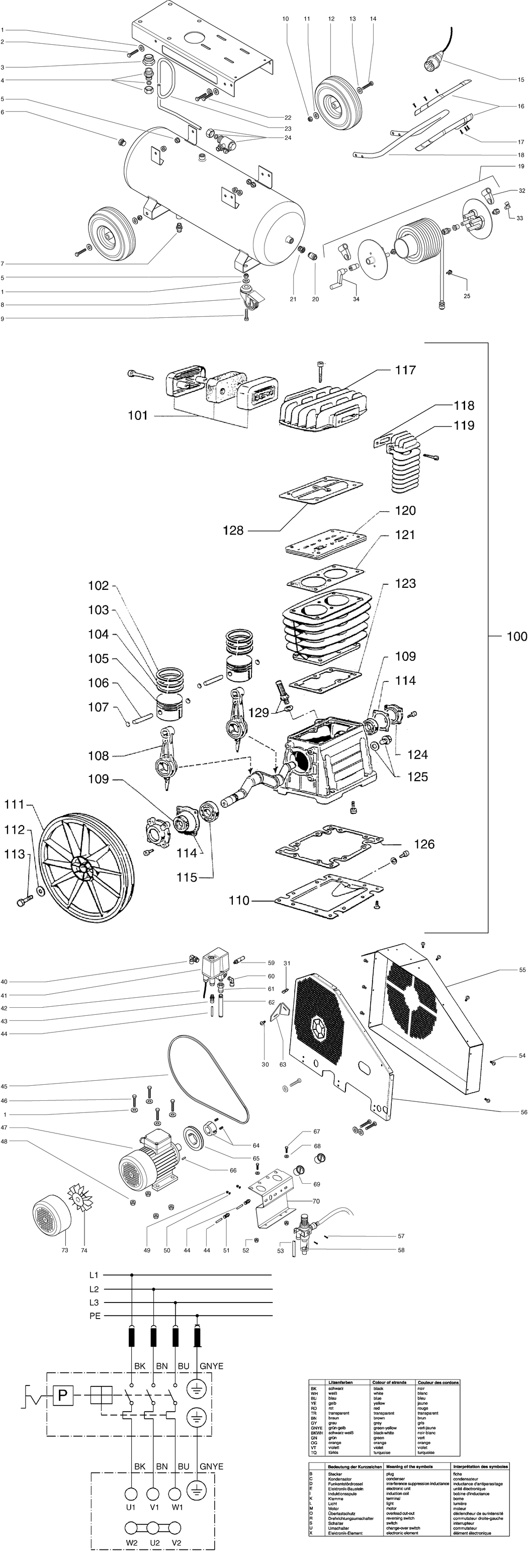

An exploded diagram and spare parts listing for the Metabo MEGA 500 D / 0010056004 11 / 3 / 400V/50Hz
Ex VAT Inc VAT
1 - WASHER MET-141150050.A103 141150050 £1.50 £1.80
2 - HEXAGON HEAD SCREW M 10X20 VERZ. MET-6103005270.A63 6103005270 -
3 - REDUCER NIPPL 3/4X1/2 NR. 241 / VERZ. MET-7871032658.A4 7871032658 -
4 - UNION R 1/2AG X RD 15 GERADE MET-7872027356.A4 7872027356 £9.82 £11.79
5 - HEX NUT MET-141132030.A151 141132030 £2.94 £3.53
6 - THREADED PLUG 1 NR.596 / VERZ. MET-7871675990.A6 7871675990 -
7 - DRAIN VALVE R 1/2 MET-7830029286.A6 7830029286 £28.45 £34.14
8 - SWIVEL PLATE CASTER RD 75X25 M.FESTSTELL MET-7271663832.A9 7271663832 £20.12 £24.14
9 - HEXAGON SOCKET HEAD CAP SCREW M 10X25 VE MET-6127609460.A11 6127609460 £1.50 £1.80
10 - HEXAGON NUT PREV. TORQUE TYPE MET-6202024139.A11 6202024139 £1.50 £1.80
11 - WASHER B 13 VERZ. MET-6305002508.A65 6305002508 £1.50 £1.80
12 - WHEEL PNEUMATIC TYRE RD 260/85 M.STAHLF MET-7270663825.A2 7270663825 £35.57 £42.68
13 - WASHER MET-6300016705.A3 6300016705 £1.50 £1.80
14 - HEXAGON HEAD SCRE M 12X80 VERZ. MET-6102024123.A3 6102024123 £1.50 £1.80
15 - CABLE RUBBER JACKET MET-8402415682.A15 8402415682 -
16 - HANDLE MET-1341630874.A19 1341630874 -
17 - CROSS RECD PAN HEAD TAP.SCREW ST 3 5X19 MET-6172039616.A0 6172039616 £1.50 £1.80
18 - HANDLE TUBE RDA 20X1 5X1231 GEBOGEN MET-1317677835.A17 1317677835 -
19 - HOSE COIL ASSEMBLY ET MET-1001678430.A14 1001678430 -
20 - QUICK CONNECTION COUPLING EURO 1/2 AG MET-7802009105.A24 7802009105 -
21 - REDUCER NIPPL 1X1/2 NR.241 / VERZ. MET-7871026968.A6 7871026968 -
22 - HEXAGON HEAD SCREW M 10X40 VERZ. MET-141124500.A4 141124500 -
23 - COPPER PIPE RD 15X1X1250 GEBOGEN MET-1317678300.A3 1317678300 £49.88 £59.86
24 - CHECK VALVE ELBOW TYP R 1/2X RD 15 M.G MET-1001193151.A0 1001193151 £41.44 £49.73
25 - HOSE CLAMP MET-1341645472.A1 1341645472 -
30 - FILLISTER HEAD SCREW MET-6172001830.A31 6172001830 £1.50 £1.80
31 - TIN NUT MET-6265167657.A12 6265167657 £2.60 £3.12
32 - BEARING BLOCK MET-1341634594.A1 1341634594 £3.11 £3.73
33 - ELBOW TAP CONNECTOR R 1/4A X 10MM M.O-R MET-7872675854.A28 7872675854 -
34 - CRANK MET-1341634608.A19 1341634608 £3.11 £3.73
40 - ELBOW TAP CONNECTOR R 1/4A X 10MM M.O-R MET-7872675854.A29 7872675854 -
41 - AUTOM. PRESSURE CONTROL SWITCH MDR 3/11- MET-8101182747.A4 8101182747 £105.54 £126.65
42 - CABLE RUBBER JACKET MET-8401664077.A14 8401664077 -
43 - RELIEF VALVE EV3 S MET-7834664121.A0 7834664121 -
44 - PLASTIC HOSE COMPL. MET-316061030.A6 316061030 £26.35 £31.62
45 - V-BELT SPA 1400 MET-7230663917.A6 7230663917 -
46 - HEXAGON SOCKET HEAD CAP SCREW M 10X35 VE MET-6127056666.A12 6127056666 -
47 - ELECTRIC MOTOR 400/3/50 2800UPM B3 /M.KL MET-8013677990.A1 8013677990 -
48 - FLANGE NUT M 10 MET-6209675984.A18 6209675984 £1.50 £1.80
49 - HEXAGONAL LOCK NUT MET-141130650.A181 141130650 £3.20 £3.84
50 - WASHER MET-141151940.A231 141151940 £1.50 £1.80
51 - TUBE FITTING 1/8X RD 6 GERADE-STECKBAR MET-7872722836.A8 7872722836 £7.04 £8.45
52 - FLANGE NUT MET-6209110995.A112 6209110995 £1.50 £1.80
53 - PLASTIC HOSE RD 6X2X100000 DRUCK./HITZEB MET-7851675935.A2 7851675935 -
54 - CROSS RECD PAN HEAD TAP.SCREW ST 4 2X13 MET-6172722847.A6 6172722847 -
55 - BELT GUARD COMPL. MET-1001729000.A2 1001729000 -
56 - PROTECTIVE GRATING REAR BL 1 MET-1312722360.A4 1312722360 -
57 - HEX HEAD SCREW MET-6103001127.A43 6103001127 £1.50 £1.80
58 - FILTER PRESSURE REGULATOR ASS` FR 1/4/0 MET-7820675821.A1 7820675821 -
59 - SAFETY VALVE R 1/4 11 BAR MET-7833009618.A4 7833009618 £54.94 £65.93
60 - ELBOW TAP CONNECTOR 1/4A X 6MM M.O-RING MET-7872663090.A21 7872663090 -
61 - TUBE FITTING 1/2I X 1/2A LÖSBAR MET-7871664190.A16 7871664190 -
62 - PIPE NIPPL 1/2X150 VERZINKT MET-7812052440.A6 7812052440 -
63 - CONNECTING PLATE BL 1 50X25 MET-1312722492.A3 1312722492 £8.62 £10.34
64 - LOCKING BUSH 1610-24 / NUT 8 MM TAPER MET-7243676007.A6 7243676007 -
65 - V-BELT PULLEY TBA 132-1-1610 MET-7240663966.A1 7240663966 -
66 - FEATHER KEY A 8X7X35 ET MET-6721608849.A13 6721608849 -
67 - HEXAGON HEAD SCREW MET-141114860.A34 141114860 £3.20 £3.84
68 - WASHER MET-141151340.A164 141151340 £1.50 £1.80
69 - INTEGRATED PRESSURE GAUGE RD 40 R1/8I 0 MET-1001697303.A6 1001697303 -
70 - RETENTION PLATE BL 2 00X262X276 MET-1312722506.A10 1312722506 -
73 - FAN COVER T 90 L-2 MET-1312714732.A0 1312714732 -
74 - FAN WING T 90 L-2 MET-1312714724.A3 1312714724 -
100 - COMPRESSOR PUMP B3800B M.LÜFTERRAD RD350 MET-1313663848.A2 1313663848 £293.94 £352.73
101 - AIR FILTER ET MET-7825156113.A12 7825156113 -
102 - PISTON RING RD 60X2 ET MET-1319164100.A7 1319164100 £36.59 £43.91
103 - PISTON RING RD 60X2 ET MET-1319164118.A7 1319164118 £42.65 £51.18
104 - OIL WIPING RING RD 60X3 ET MET-1319164126.A7 1319164126 £48.88 £58.66
105 - PISTON RD 60 ET MET-1319163766.A5 1319163766 -
106 - GUDGEON PIN RD 15X50 ET MET-1315163885.A5 1315163885 -
107 - CIRCLIP FOR BORES 15X1 ET MET-6401627241.A9 6401627241 -
108 - CONNECTING ROD ET MET-1319657378.A7 1319657378 £54.44 £65.33
109 - ROTARY SHAFT SEAL ET MET-7635157067.A1 7635157067 £11.20 £13.44
110 - HOUSING LID MET-1319720150.A0 1319720150 -
111 - FLYWHEEL RD 350 ET MET-1319678391.A5 1319678391 -
112 - WASHER 8 5X30X5 ET MET-1315166400.A20 1315166400 -
113 - CAP SCREW MET-6121000839.A49 6121000839 £1.50 £1.80
114 - PACKING BEARING CAP ET MET-1319157022.A15 1319157022 -
115 - DEEP GROOVE BALL BEARING 25X52X15 6205 MET-7100157076.A1 7100157076 -
117 - CYLINDER HEAD ET MET-1319655073.A5 1319655073 -
118 - PACKING AFTERCOOLER ET MET-1319151431.A4 1319151431 -
119 - AFTERCOOLER 11 LAMELLEN B3800B /ET MET-1319707448.A8 1319707448 £54.94 £65.93
120 - VALVE ASSEMBLY ET MET-1319155933.A3 1319155933 -
121 - PACKING VALVE PLATE ET MET-1319655146.A0 1319655146 -
123 - CYLINDER FOOT GASKET ET MET-1319657394.A5 1319657394 -
124 - BEARING CAP PINION END ET MET-1319157049.A0 1319157049 -
125 - OIL SIGHT GLASS 1/2 ET MET-1319155860.A3 1319155860 £9.82 £11.79
126 - PACKING HOUSING LID ET MET-1319657386.A0 1319657386 £26.85 £32.22
128 - CYLINDER HEAD GASKET ET MET-1319655138.A11 1319655138 -
129 - OIL WIPING SCREW 3/8 ET MET-1319655111.A6 1319655111 £17.95 £21.54
