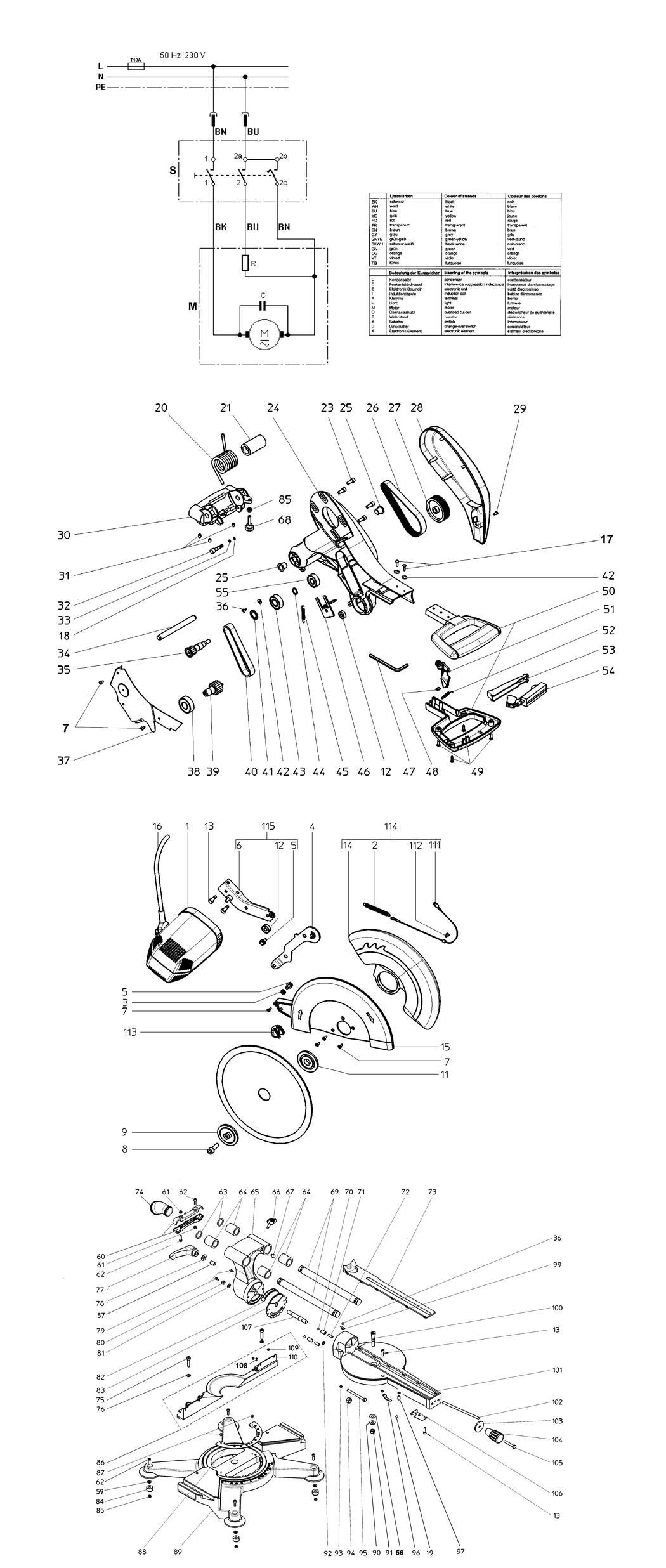

An exploded diagram and spare parts listing for the Metabo KGS 303 PLUS / 0103030000 12 / EU 230V
Ex VAT Inc VAT
1 - ELECTRIC MOTOR 1 8KW 230/1/50 MET-1010680618.A3 1010680618 -
2 - RETURN SPRING RDA 8X69X0 8 KGT501 MET-7051679711.A1 7051679711 £4.76 £5.71
3 - SLIDE BUSHING RDI 06 (F.3MM BLECH) MET-7637651433.A6 7637651433 £3.20 £3.84
4 - DREHBLECH KGS303 BL 2 50X45X179 MET-1382692043.A1 1382692043 £22.61 £27.13
5 - HEX. HEAD THREAD ROLLING SCREW MET-6143124744.A8 6143124744 £1.50 £1.80
6 - SHEET KGS303 BL 2 00X75X135 MET-1382692000.A5 1382692000 -
7 - COUNTERSUNK HEAD TAPPING SCREW MET-6174001900.A15 6174001900 £1.50 £1.80
8 - CAP SCREW MET-6121000839.A32 6121000839 £1.50 £1.80
9 - BLADE COLLAR OUTER MET-1482221900.A11 1482221900 £7.36 £8.83
11 - BLADE COLLAR INNER MET-1485221618.A24 1485221618 £17.55 £21.06
12 - DEEP GROOVE BALL BEARING 6X19X6 626 -2Z MET-7100047262.A1 7100047262 £5.62 £6.75
13 - CAP SCREW W.INTERNAL HEXAGON MET-6143075247.A2 6143075247 £3.20 £3.84
14 - RETRACTABLE BLADE GUARD SEILZUGPRINZIP K MET-1381691957.A4 1381691957 £22.96 £27.55
15 - DISC GUARD KGS303 MET-1380679821.A2 1380679821 £36.65 £43.98
16 - CABLE WITH PLUG 2X1 0X2336/2XKS KGS303 MET-8402680661.A1 8402680661 £17.07 £20.48
17 - FILLISTER HEAD SCREW MET-6172001830.A1 6172001830 £1.50 £1.80
18 - O-RING 4X2 5 80 SHORE A MET-7632609080.A1 7632609080 £1.50 £1.80
19 - STEEL BALL RD 12 KGT300 MET-7123716854.A1 7123716854 £3.20 £3.84
20 - TORSION SPRING RDI 33 KGS303 MET-7051680647.A6 7051680647 £7.04 £8.45
21 - BUSHING 30/12 3X54 KGS 303 MET-1381685795.A2 1381685795 £7.44 £8.93
23 - HEXAGON SOCKET HEAD CAP SCREW M 6X16 VER MET-6122151520.A2 6122151520 £3.20 £3.84
24 - KAPPARM KGS303 MET-1380679805.A5 1380679805 £50.13 £60.16
25 - SLIDE BUSHING 12X14X15 MIT BUND MET-7637685800.A1 7637685800 £3.82 £4.59
26 - POLY-RIB BELT MET-7233680626.A1 7233680626 £15.41 £18.49
27 - POLY-RIB PULLEY 7J / RDA 62 5X19 MET-1380679902.A3 1380679902 £22.40 £26.88
28 - BELT GUARD KGS303 MET-1381679922.A7 1381679922 £14.71 £17.65
29 - FILLISTER HEAD SCREW W. CROSS HEAD MET-6172001791.A11 6172001791 £1.50 £1.80
30 - SWIVEL CASTING KGS303 MET-1380679783.A1 1380679783 -
31 - GRUB SCREW W.INTERNAL HEXAGON MET-6164029245.A13 6164029245 £1.50 £1.80
32 - LOCKING PIN RD 10/6 4X40 KGS303 MET-1485681953.A3 1485681953 £5.62 £6.75
33 - O-RING 4 0X1 MET-1327064092.A7 1327064092 £3.11 £3.73
34 - SHAFT RD 12X124 KGS303 MET-1485681945.A4 1485681945 £5.38 £6.45
35 - SHAFT 14HTD5M15 RD25X70 5 KGS303 MET-1385680577.A0 1385680577 £22.40 £26.88
36 - FILLISTER HEAD SCREW MET-6172028215.A27 6172028215 £1.50 £1.80
37 - GUARD PLATE BL 1 00X141X262 MET-1482682088.A3 1482682088 £5.38 £6.45
38 - DEEP GROOVE BALL BEARING 17X40X12 6203-2 MET-143116240.A2 143116240 £7.44 £8.93
39 - SAW BLADE SPINDLE 20HTD5M15 RD31X57 5 KG MET-1385680593.A7 1385680593 £54.94 £65.93
40 - COGGED BELT MET-7231680580.A2 7231680580 £22.96 £27.55
41 - WASHER MET-1482680670.A8 1482680670 £1.50 £1.80
42 - WASHER MET-141150110.A4 141150110 £1.50 £1.80
43 - DEEP GROOVE BALL BEARING MET-7100136915.A27 7100136915 £9.62 £11.54
44 - SNAP RING MET-141180090.A56 141180090 £3.20 £3.84
45 - TENSION SPRING MET-7051074232.A22 7051074232 £3.20 £3.84
46 - SPINDLE LOCK MET-1482681839.A4 1482681839 £4.76 £5.71
47 - ALLEN HEXAGON KEY MET-9102016766.A7 9102016766 -
48 - RETAINING RING MET-141180020.A28 141180020 £1.50 £1.80
49 - FILLISTER HEAD SCREW W.FILL. HEAD SCREW MET-6186602763.A27 6186602763 £1.50 £1.80
50 - HANDLE KGS303 MET-1381679680.A3 1381679680 £19.18 £23.02
51 - HAUBENARRETIERUNG KGS303 MET-1381679930.A0 1381679930 £3.82 £4.59
52 - TENSION SPRING MET-7051074232.A21 7051074232 £3.20 £3.84
53 - CAP KGS303 MET-1381679698.A3 1381679698 £3.11 £3.73
54 - SWITCH ON/OF 2-POLIG UM 230V 10A KGS303 MET-8111680605.A2 8111680605 £63.36 £76.03
55 - DEEP GROOVE BALL BEARING MET-7100083463.A19 7100083463 -
56 - WASHER MET-141150050.A141 141150050 £1.50 £1.80
57 - SPACER SLEEVE MET-1485212970.A11 1485212970 £3.89 £4.67
59 - WASHER MET-6305002486.A8 6305002486 -
60 - STABILISATOR KGS303 MET-1380679880.A1 1380679880 -
61 - HEXAGONAL LOCK NUT MET-141130650.A203 141130650 £3.20 £3.84
62 - CAP SCREW MET-141113870.A45 141113870 £3.20 £3.84
63 - O-RING 22X2 MET-7632170119.A2 7632170119 £1.50 £1.80
64 - LINEAR BALL BEARING RD 25/35X40 TYP KH 2 MET-7121680658.A5 7121680658 £17.95 £21.54
65 - PIVOT KGS303 MET-1380679767.A6 1380679767 £41.44 £49.73
66 - THUMBSCREW MET-341111630.A21 341111630 £3.20 £3.84
67 - PLUG-IN BUFFER MET-2391203906.A1 2391203906 £1.50 £1.80
68 - KNURLED THUMB SCREW M 6X25 VERZ. MET-6143071144.A3 6143071144 £3.20 £3.84
69 - PISTON ROD RD 25X325 RANDSCHICHTGEHÄRTET MET-1385680631.A0 1385680631 £49.88 £59.86
70 - STEEL BALL RD 7 MET-7123148635.A2 7123148635 £1.50 £1.80
71 - LOCK BOLT MET-1485215979.A1 1485215979 £5.62 £6.75
72 - PRESSURE SPRING RDA=8 5 LO=25 MET-7051683751.A8 7051683751 £1.50 £1.80
73 - TABLE INSERT KGS303 MET-1381679949.A6 1381679949 -
74 - DUST EXTRACTION PORT RD 40/52 KGS303 MET-1381684080.A1 1381684080 -
75 - THREAD ROLLING SCREW M 8X35 - ST VERZ./G MET-6143076260.A2 6143076260 £3.82 £4.59
76 - SHIM RING 8X14X1 VERZ. MET-6306017266.A2 6306017266 £1.50 £1.80
77 - CLAMPING LEVER MET-7006028220.A1 7006028220 £19.18 £23.02
78 - WASHER B 13 VERZ. MET-6305002508.A102 6305002508 £1.50 £1.80
79 - HEXAGON SOCKET HEAD CAP SCREW MET-6121121296.A26 6121121296 £1.50 £1.80
80 - CAP NUT SELF-LOCKING MET-6208073395.A2 6208073395 £1.50 £1.80
81 - WASHER MET-6300686603.A11 6300686603 £1.50 £1.80
82 - ANGLE SCALE 0 08X14X96 48-0 0-48 GRAD MET-1142683519.A5 1142683519 -
83 - SHIM PLATE BL3 00 KGS303 MET-1482683769.A4 1482683769 £36.59 £43.91
84 - RUBBER FOOT RD 30X17 5 80 SHORE MET-7057208753.A12 7057208753 £3.20 £3.84
85 - HEXAGONAL NUT MET-141130100.A158 141130100 £1.50 £1.80
86 - FENCE ASSEMBLY ET MET-1010690141.A3 1010690141 -
87 - BLIND RIVET MUSHROOM HEAD 5X8 F FLACHRU MET-6621075371.A10 6621075371 -
88 - SHIM PLATE BL2 00 KGS303 MET-1482683505.A3 1482683505 £11.78 £14.13
89 - TABLE KGS303 MET-1380703986.A0 1380703986 £88.10 £105.72
90 - SAUCER SPRING MET-141150540.A14 141150540 £1.50 £1.80
91 - HEX NUT MET-141132030.A114 141132030 £2.94 £3.53
92 - HEXAGON THIN NUT MET-6205029131.A57 6205029131 £1.50 £1.80
93 - GLIDE PIECE MET-2391202772.A61 2391202772 £1.50 £1.80
94 - HEXAGON NUT PREV. TORQUE TYPE MET-6202024139.A2 6202024139 £1.50 £1.80
95 - HEXAGON HEAD SCREW M 8X85 VERZ. MET-6103122986.A8 6103122986 £3.20 £3.84
96 - POINTER BL 2 00X12X46 KGS303 MET-1482681979.A6 1482681979 £3.82 £4.59
97 - PRESSURE SPRING RDA=8 5 LO=17 MET-7051683611.A2 7051683611 £1.50 £1.80
99 - ANGLE POINTER BL 1 50X10X21 MET-1482681987.A4 1482681987 £3.20 £3.84
100 - DREHTELLERBOLZEN KGS303 RD 16/M10X63 MET-1385682006.A2 1385682006 £11.78 £14.13
101 - TURNTABLE KGT300 MET-1380703943.A3 1380703943 -
102 - CLAMPING ROD RD 8X185 5 KGS303 MET-1385682014.A8 1385682014 £4.76 £5.71
103 - WASHER RDA44XRDI9X4 KGS 303 MET-1485683840.A6 1485683840 £3.82 £4.59
104 - KNOB RED M8 EINSPRITZBUCHSE SCHWARZ MET-7006018305.A1 7006018305 -
105 - HEXAGON HEAD SCREW M 8X50 VERZ. MET-6103001216.A0 6103001216 £1.50 £1.80
106 - CLAMPING PLATE BL 2 00X35X68 MET-1482682029.A6 1482682029 £3.82 £4.59
107 - SWIVEL ARM BOLD RD 16 3/M12X122 KGS303 MET-1385681999.A8 1385681999 £17.55 £21.06
108 - HEX. SOCKET SET SCREW DOG PT. M 8X6 VER MET-6164686599.A2 6164686599 £1.50 £1.80
109 - CAP SCREW E M 5X12 - ST VERZ./GEWINDEFUR MET-6143075204.A1 6143075204 £1.50 £1.80
110 - TUBBING PLATE BL 2 99X59 MET-1382718891.A0 1382718891 -
111 - BLADE GUARD WIRE RD 1 2X286 MET-7238692053.A5 7238692053 £11.78 £14.13
112 - CROSS RECESSED FLAT HEAD SCREW M 4X8 VER MET-6131001531.A17 6131001531 -
113 - UNION 18X21 MET-7056691507.A3 7056691507 £6.38 £7.65
114 - RETRACTABLE BLADE GUARD MIT FEINDRAHTSEI MET-1010692063.A4 1010692063 -
115 - SPERRBLECH MIT LAGER KGS 303 MET-1010692012.A2 1010692012 £22.96 £27.55
