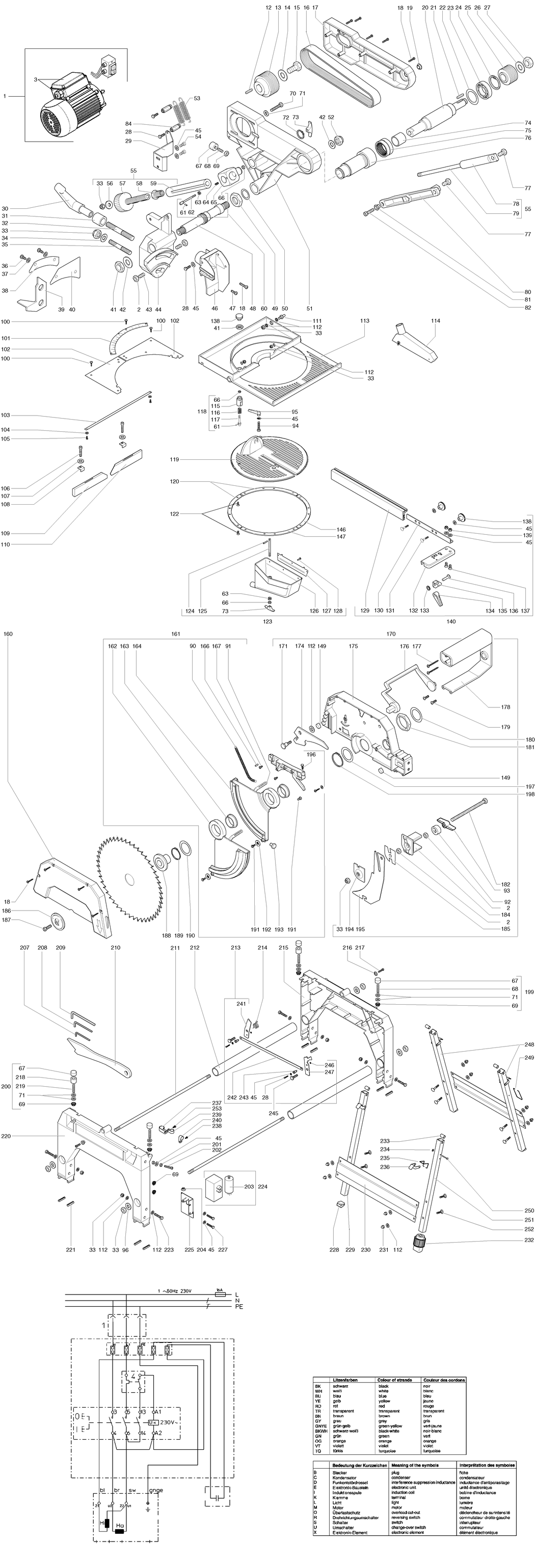

An exploded diagram and spare parts listing for the Metabo KGT 501 / 0102505018 12 / EU 230V
Ex VAT Inc VAT
1 - MOTOR COMB. MITRE/TABLE SAW 2 MET-1010693213.A1 1010693213 £170.22 £204.26
2 - HEXAGON THIN NUT MET-6205029131.A66 6205029131 £1.50 £1.80
3 - TERMINAL BOX ASSEMBLY KGT 501 BOSCO MET-1010718887.A2 1010718887 £15.41 £18.49
12 - PARALLEL KEY MET-6721059322.A33 6721059322 £1.50 £1.80
13 - POLY-RIB PULLEY MET-1385683339.A0 1385683339 £32.61 £39.13
14 - WASHER MET-6300016705.A1 6300016705 £1.50 £1.80
15 - HEX HEAD SCREW MET-6103680210.A1 6103680210 £3.11 £3.73
16 - POLY-RIB BELT MET-7233690559.A0 7233690559 -
17 - GEAR BOX COVER MET-1381208350.A2 1381208350 £11.20 £13.44
18 - SELF-TAP. FILL. H. SCREW MET-141122540.A3 141122540 £1.50 £1.80
19 - PLUG MET-1381120070.A2 1381120070 £1.50 £1.80
20 - SAW BLADE SPINDLE II MET-1385212158.A3 1385212158 -
21 - PARALLEL KEY MET-6721074089.A1 6721074089 -
22 - SHIM MET-6306132014.A0 6306132014 £1.50 £1.80
23 - BALL BEARING MET-7100010164.A2 7100010164 £8.70 £10.44
24 - RETAINING RING SHAFT MET-6401121364.A7 6401121364 -
25 - POLY-RIB PULLEY MET-1385683347.A2 1385683347 -
26 - WASHER MET-6300019984.A11 6300019984 £1.50 £1.80
27 - HEXAGON THIN NUT MET-6205088367.A0 6205088367 -
28 - HEX HEAD SCREW MET-6103001127.A37 6103001127 £1.50 £1.80
29 - HOLDER TENSION SPRING MET-1482680417.A1 1482680417 -
30 - CLAMPING LEVER MET-7006028220.A7 7006028220 £19.18 £23.02
31 - SPACER SLEEVE MET-1485212970.A4 1485212970 £3.89 £4.67
32 - PIN SCREW MET-6168142046.A0 6168142046 £4.64 £5.57
33 - HEXAGON NUT PREV. TORQUE TYPE MET-6202002305.A190 6202002305 £1.50 £1.80
34 - CUP SPRING MET-7053016795.A2 7053016795 £1.50 £1.80
35 - PIN SCREW MET-6168121243.A3 6168121243 £2.60 £3.12
36 - FILLISTER HEAD SCREW MET-6172028215.A24 6172028215 £1.50 £1.80
37 - WASHER MET-141150110.A21 141150110 £1.50 £1.80
38 - ANGLE SCALE 1 00 0-45 GRAD MET-1142209370.A1 1142209370 £3.89 £4.67
39 - POINTER MET-1482208521.A2 1482208521 £3.11 £3.73
40 - SWIVEL CASTING COVER PLATE MET-1482208254.A1 1482208254 £3.11 £3.73
41 - HEXAGON THIN NUT MET-6205028038.A1 6205028038 £1.50 £1.80
42 - WASHER MET-141156740.A16 141156740 £2.94 £3.53
43 - GRUB SCREW MET-6161029309.A26 6161029309 £1.50 £1.80
44 - SWIVEL CASTING KGT 501 MET-1380676016.A1 1380676016 £38.58 £46.30
45 - WASHER MET-141151940.A217 141151940 £1.50 £1.80
46 - EXHAUST NOZZLE MET-1381212013.A2 1381212013 £30.06 £36.07
47 - SELF-TAP. FILL. H. SCREW MET-141116840.A8 141116840 £1.50 £1.80
48 - MOTOR HEAD AXLE MET-1385209408.A1 1385209408 £36.59 £43.91
49 - CHECK NUT MET-1485209421.A2 1485209421 £6.19 £7.43
50 - SHIM MET-6306110550.A2 6306110550 £1.50 £1.80
51 - GEAR HOUSING MET-1390208053.A1 1390208053 -
52 - HEXAGON NUT PREV. TORQUE TYPE MET-6202128341.A5 6202128341 £1.50 £1.80
53 - TENSION SPRING MET-7051214220.A0 7051214220 £3.89 £4.67
54 - CAP SCREW MET-6127151537.A1 6127151537 £1.50 £1.80
55 - GUIDE ROD KGT 501 MET-1010680200.A2 1010680200 £56.63 £67.96
56 - WASHER MET-6307121334.A3 6307121334 £1.50 £1.80
57 - TURN HANDLE DEPTH OF CUT RD 49 MET-1485208425.A1 1485208425 £28.45 £34.14
58 - NUT MET-1485208395.A2 1485208395 £8.62 £10.34
59 - GUIDE ROD MET-1485208387.A1 1485208387 £40.73 £48.88
60 - GUIDE PIECE MET-1010130472.A3 1010130472 £45.80 £54.96
61 - TIGHTENING PIN MET-6503001681.A0 6503001681 £1.50 £1.80
62 - MANDREL RD 12X75 MET-1485208360.A1 1485208360 £8.70 £10.44
63 - PRESSURE SPRING MET-7051202931.A1 7051202931 £1.50 £1.80
64 - GRUB SCREW MET-6163121261.A5 6163121261 £1.50 £1.80
65 - GUIDE PIECE MET-1485208379.A2 1485208379 -
66 - HEXAGON THIN NUT MET-6205028046.A4 6205028046 £1.50 £1.80
67 - RUBBER-METAL ANTI-VIBR. MOUNT MET-7058028481.A1 7058028481 £4.76 £5.71
68 - GRUB SCREW MET-6162019358.A3 6162019358 £1.50 £1.80
69 - FLANGE NUT MET-6209114230.A129 6209114230 £1.50 £1.80
70 - HEX HEAD SCREW MET-6103121416.A0 6103121416 £1.54 £1.85
71 - WASHER MET-141150130.A87 141150130 £1.50 £1.80
72 - RETAINING RING SHAFT MET-6400121395.A0 6400121395 £1.50 £1.80
73 - THUMB-NUT MET-7005215360.A1 7005215360 £5.62 £6.75
74 - INNER RING MET-7104120150.A2 7104120150 £14.71 £17.65
75 - NEEDLE SLEEVE MET-7104120142.A1 7104120142 £17.07 £20.48
76 - BLADE SHAFT HUB MET-1385208061.A2 1385208061 £49.88 £59.86
77 - COLLAR SCREW MET-1485209480.A1 1485209480 £3.82 £4.59
78 - BOLT MET-1485208417.A2 1485208417 £12.36 £14.83
79 - AXLE RD 10X200 MET-1485208409.A1 1485208409 £11.78 £14.13
80 - PARALLEL ARM MET-1380213547.A3 1380213547 £17.07 £20.48
81 - CAM PLAT SW 17X13 /BOHRG. 6 MET-1485213534.A2 1485213534 £7.04 £8.45
82 - CAP SCREW MET-141113890.A20 141113890 £3.20 £3.84
84 - COLLAR SCREW RETURN SPRING MET-1485214239.A1 1485214239 £3.11 £3.73
90 - RETURN SPRING MET-7051693412.A0 7051693412 £3.89 £4.67
91 - ZUGBLECH KGT501 MET-1382693546.A2 1382693546 £7.04 £8.45
92 - SPACER SLEEVE MET-1485412910.A7 1485412910 £3.20 £3.84
93 - THUMB-NUT MET-7005135529.A31 7005135529 £3.20 £3.84
94 - HEX HEAD SCREW MET-6103001151.A4 6103001151 £1.50 £1.80
95 - CLAMPING LEVER MET-7006072385.A6 7006072385 £8.37 £10.04
96 - WASHER MET-6305002486.A42 6305002486 -
100 - FILLISTER HEAD SCREW W. CROSS HEAD MET-6172001791.A9 6172001791 £1.50 £1.80
101 - ANGLE SCALE 2X0-45 GRAD MET-1142209361.A2 1142209361 -
102 - COVER PLATE KGT501N MET-1382693538.A0 1382693538 -
103 - SCALE 0 50X13X273 0 MET-1142680307.A1 1142680307 £7.04 £8.45
104 - WASHER MET-6305052335.A3 6305052335 £1.50 £1.80
105 - FILLISTER HEAD SCREW MET-6172091014.A50 6172091014 £1.50 £1.80
106 - CAP SCREW MET-6143698341.A0 6143698341 £1.50 £1.80
107 - WASHER MET-141150020.A30 141150020 £1.50 £1.80
108 - FENCE CLAMP KGT 501 MET-1482680298.A2 1482680298 £8.62 £10.34
109 - STOP LEFT KGT 501 MET-1384680271.A2 1384680271 £19.18 £23.02
110 - FENCE RIGHT 25 MET-1384680280.A1 1384680280 £19.18 £23.02
111 - BOLT MET-1485208581.A2 1485208581 £7.04 £8.45
112 - WASHER MET-141151340.A143 141151340 £1.50 £1.80
113 - TABLE KGT501N MET-1380693310.A1 1380693310 £140.20 £168.24
114 - WHEEL GUARD COMPL. MET-316052430.A2 316052430 £17.55 £21.06
115 - SETTING CAM MET-1485208565.A1 1485208565 £26.85 £32.22
116 - PRESSURE SPRING MET-7051120161.A2 7051120161 £1.50 £1.80
117 - MANDREL RD 14X59 / M 6X15 MET-1485208557.A2 1485208557 £8.62 £10.34
118 - SETTING CAM ASSEMBL MET-1010130430.A0 1010130430 £26.85 £32.22
119 - TURNTABLE KGT501 MET-1380679600.A2 1380679600 -
120 - TURNTABLE RING FRONT MET-1380692151.A1 1380692151 -
122 - COUNTERSUNK SCREW MET-6132175169.A13 6132175169 £1.50 £1.80
123 - COVERING HOOD MET-1010126491.A1 1010126491 £22.40 £26.88
124 - CENTRE-GROOVED DOWEL PI MET-6501145678.A1 6501145678 £1.50 £1.80
125 - BOLT MET-1485208921.A1 1485208921 £4.76 £5.71
126 - COVERING HOOD SMALL MET-1381212480.A2 1381212480 £15.41 £18.49
127 - LOCATING PLATE BLADE GUARD MET-1482208912.A2 1482208912 -
128 - BLIND RIVET MUSHROOM HEAD MET-6621010474.A3 6621010474 £1.50 £1.80
129 - RIP FENCE EXTRUSION 570 MM MET-1383158458.A5 1383158458 £42.65 £51.18
130 - ANGLE KGT 501 MET-1383680260.A0 1383680260 £36.59 £43.91
131 - TRUSS HEAD SCREW MET-6110031325.A11 6110031325 £1.50 £1.80
132 - LOCKING ELEMENT MET-1382680053.A23 1382680053 £54.94 £65.93
133 - STARLOCK MET-7016050711.A33 7016050711 £1.50 £1.80
134 - CAM LOCK LEVER MET-2390205484.A11 2390205484 £9.62 £11.54
135 - CLAMPING PLATE BL 1X26X91 MET-1392205620.A75 1392205620 £3.20 £3.84
136 - BOLT WITH HEAD MET-6632111175.A64 6632111175 £3.82 £4.59
137 - COUNTERSUNK SCREW MET-6132087995.A27 6132087995 £1.50 £1.80
138 - KNURLED NUT MET-6241125058.A58 6241125058 £3.20 £3.84
139 - HEXAGONAL LOCK NUT MET-141130650.A171 141130650 £3.20 £3.84
140 - PARALLEL GUIDE KGT501/TKHS MET-1010680243.A1 1010680243 £71.39 £85.67
146 - TURNTABLE RING REAR RIGHT KGT501(NEU) MET-1380692364.A1 1380692364 £7.44 £8.93
147 - TURNTABLE RING REAR MET-1380692356.A1 1380692356 -
149 - COVER CAP KGT 501 MET-1381682397.A3 1381682397 £1.50 £1.80
160 - COVER SAW BLADE HOUSING MET-1390208134.A2 1390208134 £42.65 £51.18
161 - SAFETY GUARD KGT501N MET-1010693469.A0 1010693469 £56.63 £67.96
162 - RETRACTABLE BLADE GUARD TEIL 2 KGT501N MET-1380693506.A1 1380693506 -
163 - BUSHING KGT 501 MET-1381679728.A0 1381679728 £5.62 £6.75
164 - SAFETY GUARD PART1 KGT501N MET-1380693476.A1 1380693476 -
166 - CYLINDRICAL PIN MET-6502132685.A2 6502132685 £1.50 £1.80
167 - WIRE PIN MET-1395203130.A2 1395203130 £3.20 £3.84
170 - SAW BLADE HOUSING KGT 501 MET-1010680170.A1 1010680170 £56.63 £67.96
171 - BEARING BOLT MET-1395200611.A10 1395200611 £4.76 £5.71
174 - LEVER KGT 501 MET-1482680034.A1 1482680034 £14.71 £17.65
175 - SAW BLADE HOUSING KGT501 MET-1380679627.A1 1380679627 £49.88 £59.86
176 - BLADE GUARD LEVER MET-2390202787.A1 2390202787 £12.36 £14.83
177 - FILLISTER HEAD SCREW MET-6172121304.A1 6172121304 £1.50 £1.80
178 - HANDLE MET-1381208440.A0 1381208440 £14.71 £17.65
179 - SELF-TAPP. COUNTERS. SCREW MET-6174155800.A18 6174155800 £1.50 £1.80
180 - SHIM MET-6306121349.A1 6306121349 £1.50 £1.80
181 - HEX NUT FLAT MET-1485208085.A2 1485208085 £8.70 £10.44
182 - HEX HEAD SCREW MET-6103680164.A3 6103680164 £2.60 £3.12
184 - PRESSURE PIECE RIVING KNIFE MET-1390208207.A1 1390208207 £13.63 £16.36
185 - SHIM PLATE BL 0 5X42X35 MET-1382208982.A2 1382208982 £3.11 £3.73
186 - BLADE COLLAR OUTER MET-1485212147.A1 1485212147 £17.55 £21.06
187 - CAP SCREW MET-6121000839.A55 6121000839 £1.50 £1.80
188 - FLANGE MET-1485212139.A2 1485212139 £26.35 £31.62
189 - RETAINING RING MET-141180170.A24 141180170 £1.50 £1.80
190 - SHIM MET-6306079067.A0 6306079067 £1.50 £1.80
191 - FLAT HEADED SCREW MET-6125121282.A1 6125121282 £3.20 £3.84
192 - WHEEL MET-1381208482.A2 1381208482 -
193 - PLUG-IN BUFFER MET-2391203906.A14 2391203906 £1.50 £1.80
194 - PRESSURE PLATE RIVING KNIFE MET-1482208238.A2 1482208238 £3.11 £3.73
195 - RIVING KNIFE SMALL MET-1482208297.A2 1482208297 £26.35 £31.62
196 - SELF-TAPP. HEXAG. H. SCREW MET-141122680.A24 141122680 -
197 - SHIM MET-6306121357.A2 6306121357 £1.50 £1.80
198 - RETAINING RING SHAFT MET-6400121379.A3 6400121379 £1.50 £1.80
199 - RUBBER-METAL ANTI-VIBR. MOUN SEITENTEIL MET-1010131819.A1 1010131819 £5.38 £6.45
200 - RUBBER-METAL ANTI-VIBR. MOUNT KGT 501 MET-1010680235.A2 1010680235 £8.62 £10.34
201 - HEXAGONAL NUT MET-141130100.A207 141130100 £1.50 £1.80
202 - CAP SCREW MET-6127059207.A75 6127059207 £1.50 £1.80
203 - CONDENSER MET-8050120172.A1 8050120172 -
204 - FLANGE NUT MET-6209110995.A125 6209110995 £1.50 £1.80
207 - ALLEN HEXAGON KEY MET-9102017894.A1 9102017894 £1.50 £1.80
208 - ALLEN HEXAGON KEY MET-9102016766.A2 9102016766 -
209 - ALLEN HEXAGON KEY MET-9102043577.A2 9102043577 £4.76 £5.71
210 - PUSH STICK MET-343433180.A58 343433180 -
211 - THREADED ROD MET-1485676275.A1 1485676275 £8.70 £10.44
212 - CONNECTING TUBE MET-1383676262.A1 1383676262 -
213 - LOCK MET-1010130421.A2 1010130421 £17.07 £20.48
214 - COIL SPRING MET-7051208573.A3 7051208573 £7.04 £8.45
215 - SIDE PANEL RIGHT MET-1380676245.A2 1380676245 £76.70 £92.04
216 - BUSHING SIDE PANEL MET-1485208590.A2 1485208590 £4.64 £5.57
217 - CAP SCREW MET-141114060.A3 141114060 £3.20 £3.84
218 - SPACER RD20/6X27 MET-1381677385.A3 1381677385 £3.11 £3.73
219 - GRUB SCREW MET-6162148646.A2 6162148646 £3.20 £3.84
220 - SIDE PANEL LEFT MET-1380677411.A1 1380677411 £76.70 £92.04
221 - RUBBER FOOT MET-7057650880.A2 7057650880 £3.20 £3.84
223 - HEX HEAD SCREW MET-6102045619.A5 6102045619 -
224 - SWITCH ASSEMBLY 230V 50HZ M.KABEL+KONDEN MET-1010213300.A1 1010213300 -
225 - SWITCH PLATE MET-1382684845.A0 1382684845 £17.07 £20.48
227 - HEXAGON HEAD SCREW MET-141113290.A27 141113290 £1.50 £1.80
228 - LAMELLAR PLUG BLACK MET-1391059264.A3 1391059264 £1.50 £1.80
229 - LEG MET-1383676475.A1 1383676475 £22.40 £26.88
230 - RIDER KGT 501 MET-1383676491.A2 1383676491 £49.88 £59.86
231 - CAP NUT SELF-LOCKING MET-6208073395.A7 6208073395 £1.50 £1.80
232 - ADJUSTABLE FOOT ASSEMBLY VERSTELLBAR MET-2010200787.A19 2010200787 £22.61 £27.13
233 - SPACER SLEEVE MET-1485676500.A2 1485676500 £3.89 £4.67
234 - STARLOCK MET-7016122305.A8 7016122305 £1.50 £1.80
235 - SPRING CLIP MET-7051653690.A3 7051653690 £3.89 £4.67
236 - LATCH MET-1482653681.A0 1482653681 £7.04 £8.45
237 - FASTENING CLAMP MET-1381655616.A3 1381655616 -
238 - FILLISTER HEAD SCREW MET-6172001830.A19 6172001830 £1.50 £1.80
239 - CABLE CLIP MET-8242051328.A60 8242051328 £3.82 £4.59
240 - CABLE CLIP MET-8242680333.A0 8242680333 -
241 - LATCH REAR MET-1482208629.A1 1482208629 £3.89 £4.67
242 - FEED ROD LOCKING MET-1482208645.A1 1482208645 £7.04 £8.45
243 - THREADED BOLT MET-1485208603.A2 1485208603 £3.11 £3.73
245 - HEXAGON FIT BOLT MET-1485208611.A1 1485208611 £8.62 £10.34
246 - RETAINING RING MET-141180010.A3 141180010 -
247 - LATCH IN THE FRONT MET-1482208637.A2 1482208637 -
248 - LEG MET-1383653653.A2 1383653653 £22.40 £26.88
249 - RETAINING CLIP KGT 501 MET-1382680185.A3 1382680185 £3.82 £4.59
250 - MUSHROOM HEAD RIVET 5X40 MET-6622653042.A0 6622653042 £1.50 £1.80
251 - LEG MET-1383676467.A2 1383676467 -
252 - TRUSS HEAD SCREW MET-6110059297.A1 6110059297 £1.50 £1.80
253 - HEX HEAD SCREW MET-6143683522.A2 6143683522 -
256 - CAP SCREW MET-141121940.A0 141121940 £3.20 £3.84

Recently Viewed


x
Powered by kartris
