Metabo KGT 501 / 0102505018 13 / EU 230V Spare Parts

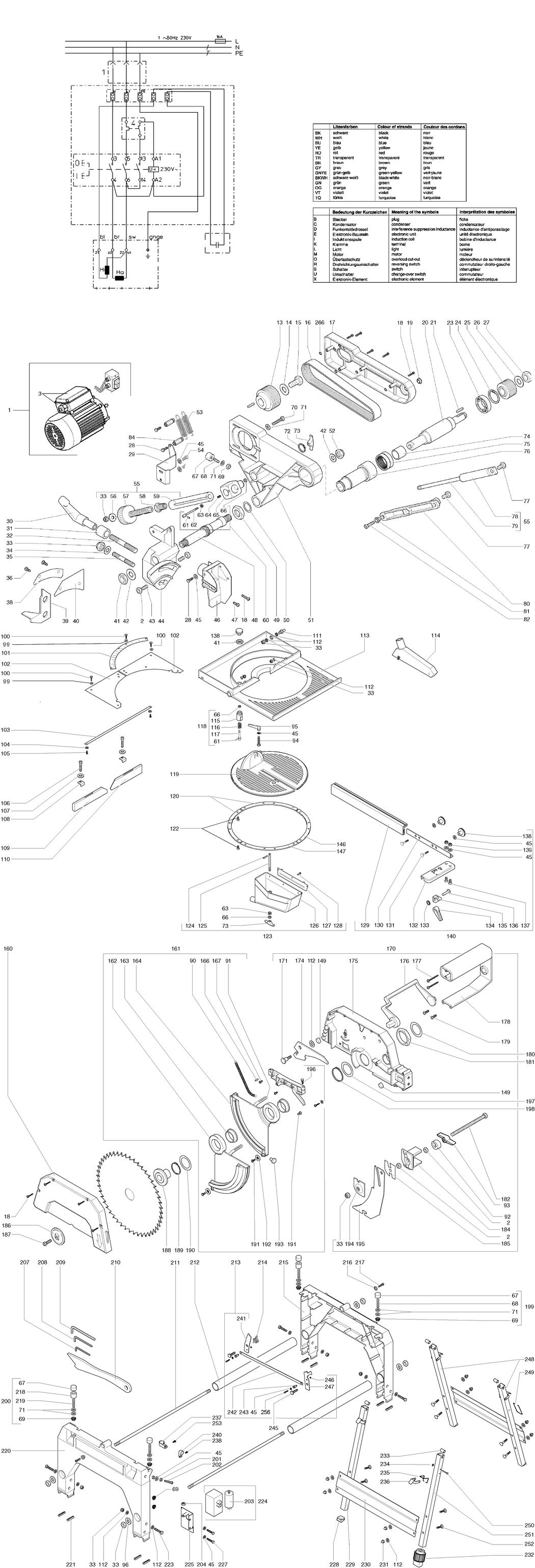

An exploded diagram and spare parts listing for the Metabo KGT 501 / 0102505018 13 / EU 230V

	Ex VAT	Inc VAT
1 - MOTOR COMB. MITRE/TABLE SAW 2 MET-1010693213.A0 1010693213	£170.22	£204.26
2 - HEXAGON THIN NUT MET-6205029131.A67 6205029131	£1.50	£1.80
3 - TERMINAL BOX ASSEMBLY KGT 501 BOSCO MET-1010718887.A1 1010718887	£15.41	£18.49
13 - POLY-RIB PULLEY MET-1385683339.A1 1385683339	£32.61	£39.13
14 - WASHER MET-6300016705.A0 6300016705	£1.50	£1.80
15 - HEX HEAD SCREW MET-6103680210.A0 6103680210	£3.11	£3.73
16 - POLY-RIB BELT MET-7233677390.A1 7233677390	£36.59	£43.91
17 - GEAR BOX COVER MET-1381208350.A3 1381208350	£11.20	£13.44
18 - SELF-TAP. FILL. H. SCREW MET-141122540.A4 141122540	£1.50	£1.80
19 - PLUG MET-1381120070.A1 1381120070	£1.50	£1.80
20 - SAW BLADE SPINDLE II MET-1385212158.A1 1385212158	£45.80	£54.96
21 - PARALLEL KEY MET-6721074089.A3 6721074089	£1.50	£1.80
23 - BALL BEARING MET-7100010164.A3 7100010164	£8.70	£10.44
24 - RETAINING RING SHAFT MET-6401121364.A5 6401121364	£1.50	£1.80
25 - POLY-RIB PULLEY MET-1385683347.A3 1385683347	£26.85	£32.22
26 - WASHER MET-6300019984.A12 6300019984	£1.50	£1.80
27 - HEXAGON THIN NUT MET-6205088367.A2 6205088367	£1.50	£1.80
28 - HEX HEAD SCREW MET-6103001127.A40 6103001127	£1.50	£1.80
29 - HOLDER TENSION SPRING MET-1482680417.A0 1482680417	-
30 - CLAMPING LEVER MET-7006028220.A5 7006028220	£19.18	£23.02
31 - SPACER SLEEVE MET-1485212970.A6 1485212970	£3.89	£4.67
32 - PIN SCREW MET-6168142046.A2 6168142046	£4.64	£5.57
33 - HEXAGON NUT PREV. TORQUE TYPE MET-6202002305.A192 6202002305	£1.50	£1.80
34 - CUP SPRING MET-7053016795.A0 7053016795	£1.50	£1.80
35 - PIN SCREW MET-6168121243.A1 6168121243	£2.60	£3.12
36 - FILLISTER HEAD SCREW MET-6172028215.A23 6172028215	£1.50	£1.80
37 - WASHER MET-141150110.A20 141150110	£1.50	£1.80
38 - ANGLE SCALE 1 00 0-45 GRAD MET-1142209370.A2 1142209370	£3.89	£4.67
39 - POINTER MET-1482208521.A1 1482208521	£3.11	£3.73
40 - SWIVEL CASTING COVER PLATE MET-1482208254.A0 1482208254	£3.11	£3.73
41 - HEXAGON THIN NUT MET-6205028038.A3 6205028038	£1.50	£1.80
42 - WASHER MET-141156740.A13 141156740	£2.94	£3.53
43 - GRUB SCREW MET-6161029309.A24 6161029309	£1.50	£1.80
44 - SWIVEL CASTING KGT 501 MET-1380676016.A3 1380676016	£38.58	£46.30
45 - WASHER MET-141151940.A213 141151940	£1.50	£1.80
46 - EXHAUST NOZZLE MET-1381212013.A4 1381212013	£30.06	£36.07
47 - SELF-TAP. FILL. H. SCREW MET-141116840.A6 141116840	£1.50	£1.80
48 - MOTOR HEAD AXLE MET-1385209408.A3 1385209408	£36.59	£43.91
49 - CHECK NUT MET-1485209421.A3 1485209421	£6.19	£7.43
50 - SHIM MET-6306110550.A1 6306110550	£1.50	£1.80
51 - GEAR HOUSING MET-1390208053.A0 1390208053	-
52 - HEXAGON NUT PREV. TORQUE TYPE MET-6202128341.A3 6202128341	£1.50	£1.80
53 - TENSION SPRING MET-7051214220.A2 7051214220	£3.89	£4.67
54 - CAP SCREW MET-6127151537.A0 6127151537	£1.50	£1.80
55 - GUIDE ROD KGT 501 MET-1010680200.A0 1010680200	£56.63	£67.96
56 - WASHER MET-6307121334.A4 6307121334	£1.50	£1.80
57 - TURN HANDLE DEPTH OF CUT RD 49 MET-1485208425.A3 1485208425	£28.45	£34.14
58 - NUT MET-1485208395.A0 1485208395	£8.62	£10.34
59 - GUIDE ROD MET-1485208387.A3 1485208387	£40.73	£48.88
60 - GUIDE PIECE MET-1010130472.A1 1010130472	£45.80	£54.96
61 - TIGHTENING PIN MET-6503001681.A2 6503001681	£1.50	£1.80
62 - MANDREL RD 12X75 MET-1485208360.A3 1485208360	£8.70	£10.44
63 - PRESSURE SPRING MET-7051202931.A2 7051202931	£1.50	£1.80
64 - GRUB SCREW MET-6163121261.A7 6163121261	£1.50	£1.80
65 - GUIDE PIECE MET-1485208379.A0 1485208379	-
66 - HEXAGON THIN NUT MET-6205028046.A0 6205028046	£1.50	£1.80
67 - RUBBER-METAL ANTI-VIBR. MOUNT MET-7058028481.A0 7058028481	£4.76	£5.71
68 - GRUB SCREW MET-6162019358.A5 6162019358	£1.50	£1.80
69 - FLANGE NUT MET-6209114230.A128 6209114230	£1.50	£1.80
70 - HEX HEAD SCREW MET-6103121416.A2 6103121416	£1.54	£1.85
71 - WASHER MET-141150130.A88 141150130	£1.50	£1.80
72 - RETAINING RING SHAFT MET-6400121395.A2 6400121395	£1.50	£1.80
73 - THUMB-NUT MET-7005215360.A3 7005215360	£5.62	£6.75
74 - INNER RING MET-7104120150.A3 7104120150	£14.71	£17.65
75 - NEEDLE SLEEVE MET-7104120142.A0 7104120142	£17.07	£20.48
76 - BLADE SHAFT HUB MET-1385208061.A0 1385208061	£49.88	£59.86
77 - COLLAR SCREW MET-1485209480.A0 1485209480	£3.82	£4.59
78 - BOLT MET-1485208417.A0 1485208417	£12.36	£14.83
79 - AXLE RD 10X200 MET-1485208409.A3 1485208409	£11.78	£14.13
80 - PARALLEL ARM MET-1380213547.A1 1380213547	£17.07	£20.48
81 - CAM PLAT SW 17X13 /BOHRG. 6 MET-1485213534.A0 1485213534	£7.04	£8.45
82 - CAP SCREW MET-141113890.A19 141113890	£3.20	£3.84
84 - COLLAR SCREW RETURN SPRING MET-1485214239.A3 1485214239	£3.11	£3.73
90 - RETURN SPRING MET-7051693412.A2 7051693412	£3.89	£4.67
91 - ZUGBLECH KGT501 MET-1382693546.A0 1382693546	£7.04	£8.45
92 - SPACER SLEEVE MET-1485412910.A5 1485412910	£3.20	£3.84
93 - THUMB-NUT MET-7005135529.A29 7005135529	£3.20	£3.84
94 - HEX HEAD SCREW MET-6103001151.A2 6103001151	£1.50	£1.80
95 - CLAMPING LEVER MET-7006072385.A8 7006072385	£8.37	£10.04
96 - WASHER MET-141150810.A0 141150810	£1.50	£1.80
99 - WASHER MET-141150010.A83 141150010	£1.50	£1.80
100 - FILLISTER HEAD SCREW W. CROSS HEAD MET-6172001791.A7 6172001791	£1.50	£1.80
101 - ANGLE SCALE 2X0-45 GRAD MET-1142209361.A1 1142209361	-
102 - COVER PLATE KGT501N MET-1382693538.A2 1382693538	-
103 - SCALE 0 50X13X273 0 MET-1142680307.A0 1142680307	£7.04	£8.45
105 - FILLISTER HEAD SCREW MET-6172091014.A51 6172091014	£1.50	£1.80
106 - CAP SCREW MET-6143698341.A2 6143698341	£1.50	£1.80
107 - WASHER MET-141150020.A27 141150020	£1.50	£1.80
108 - FENCE CLAMP KGT 501 MET-1482680298.A3 1482680298	£8.62	£10.34
109 - STOP LEFT KGT 501 MET-1384680271.A0 1384680271	£19.18	£23.02
110 - FENCE RIGHT 25 MET-1384680280.A3 1384680280	£19.18	£23.02
111 - BOLT MET-1485208581.A0 1485208581	£7.04	£8.45
112 - WASHER MET-141151340.A142 141151340	£1.50	£1.80
113 - TABLE KGT501N MET-1380693310.A2 1380693310	£140.20	£168.24
114 - WHEEL GUARD COMPL. MET-316052430.A0 316052430	£17.55	£21.06
115 - SETTING CAM MET-1485208565.A3 1485208565	£26.85	£32.22
116 - PRESSURE SPRING MET-7051120161.A1 7051120161	£1.50	£1.80
117 - MANDREL RD 14X59 / M 6X15 MET-1485208557.A0 1485208557	£8.62	£10.34
118 - SETTING CAM ASSEMBL MET-1010130430.A2 1010130430	£26.85	£32.22
119 - TURNTABLE KGT501 MET-1380679600.A1 1380679600	-
120 - TURNTABLE RING FRONT MET-1380692151.A0 1380692151	-
122 - COUNTERSUNK SCREW MET-6132175169.A15 6132175169	£1.50	£1.80
123 - COVERING HOOD MET-1010126491.A2 1010126491	£22.40	£26.88
124 - CENTRE-GROOVED DOWEL PI MET-6501145678.A3 6501145678	£1.50	£1.80
125 - BOLT MET-1485208921.A0 1485208921	£4.76	£5.71
126 - COVERING HOOD SMALL MET-1381212480.A0 1381212480	£15.41	£18.49
127 - LOCATING PLATE BLADE GUARD MET-1482208912.A1 1482208912	-
128 - BLIND RIVET MUSHROOM HEAD MET-6621010474.A1 6621010474	£1.50	£1.80
129 - RIP FENCE EXTRUSION 570 MM MET-1383158458.A7 1383158458	£42.65	£51.18
130 - ANGLE KGT 501 MET-1383680260.A2 1383680260	£36.59	£43.91
131 - TRUSS HEAD SCREW MET-6110031325.A12 6110031325	£1.50	£1.80
132 - LOCKING ELEMENT MET-1382680053.A25 1382680053	£54.94	£65.93
133 - STARLOCK MET-7016050711.A31 7016050711	£1.50	£1.80
134 - CAM LOCK LEVER MET-2390205484.A12 2390205484	£9.62	£11.54
135 - CLAMPING PLATE BL 1X26X91 MET-1392205620.A74 1392205620	£3.20	£3.84
136 - BOLT WITH HEAD MET-6632111175.A63 6632111175	£3.82	£4.59
137 - COUNTERSUNK SCREW MET-6132087995.A25 6132087995	£1.50	£1.80
138 - KNURLED NUT MET-6241125058.A59 6241125058	£3.20	£3.84
140 - PARALLEL GUIDE KGT501/TKHS MET-1010680243.A0 1010680243	£71.39	£85.67
146 - TURNTABLE RING REAR RIGHT KGT501(NEU) MET-1380692364.A0 1380692364	£7.44	£8.93
147 - TURNTABLE RING REAR MET-1380692356.A2 1380692356	-
149 - COVER CAP KGT 501 MET-1381682397.A1 1381682397	£1.50	£1.80
160 - COVER SAW BLADE HOUSING MET-1390208134.A3 1390208134	£42.65	£51.18
161 - SAFETY GUARD KGT501N MET-1010693469.A2 1010693469	£56.63	£67.96
162 - RETRACTABLE BLADE GUARD TEIL 2 KGT501N MET-1380693506.A2 1380693506	-
163 - BUSHING KGT 501 MET-1381679728.A2 1381679728	£5.62	£6.75
164 - SAFETY GUARD PART1 KGT501N MET-1380693476.A0 1380693476	-
166 - CYLINDRICAL PIN MET-6502132685.A0 6502132685	£1.50	£1.80
167 - WIRE PIN MET-1395203130.A1 1395203130	£3.20	£3.84
170 - SAW BLADE HOUSING KGT 501 MET-1010680170.A3 1010680170	£56.63	£67.96
171 - BEARING BOLT MET-1395200611.A11 1395200611	£4.76	£5.71
174 - LEVER KGT 501 MET-1482680034.A0 1482680034	£14.71	£17.65
175 - SAW BLADE HOUSING KGT501 MET-1380679627.A2 1380679627	£49.88	£59.86
176 - BLADE GUARD LEVER MET-2390202787.A0 2390202787	£12.36	£14.83
177 - FILLISTER HEAD SCREW MET-6172121304.A0 6172121304	£1.50	£1.80
178 - HANDLE MET-1381208440.A2 1381208440	£14.71	£17.65
179 - SELF-TAPP. COUNTERS. SCREW MET-6174155800.A16 6174155800	£1.50	£1.80
180 - SHIM MET-6306121349.A2 6306121349	£1.50	£1.80
181 - HEX NUT FLAT MET-1485208085.A0 1485208085	£8.70	£10.44
182 - HEX HEAD SCREW MET-6103680164.A1 6103680164	£2.60	£3.12
184 - PRESSURE PIECE RIVING KNIFE MET-1390208207.A0 1390208207	£13.63	£16.36
185 - SHIM PLATE BL 0 5X42X35 MET-1382208982.A1 1382208982	£3.11	£3.73
186 - BLADE COLLAR OUTER MET-1485212147.A0 1485212147	£17.55	£21.06
187 - CAP SCREW MET-6121000839.A56 6121000839	£1.50	£1.80
188 - FLANGE MET-1485212139.A3 1485212139	£26.35	£31.62
189 - RETAINING RING MET-141180170.A23 141180170	£1.50	£1.80
190 - SHIM MET-6306079067.A2 6306079067	£1.50	£1.80
191 - FLAT HEADED SCREW MET-6125121282.A0 6125121282	£3.20	£3.84
192 - WHEEL MET-1381208482.A1 1381208482	£1.50	£1.80
193 - PLUG-IN BUFFER MET-2391203906.A13 2391203906	£1.50	£1.80
194 - PRESSURE PLATE RIVING KNIFE MET-1482208238.A3 1482208238	£3.11	£3.73
195 - RIVING KNIFE SMALL MET-1482208297.A3 1482208297	£26.35	£31.62
196 - SELF-TAPP. HEXAG. H. SCREW MET-141122680.A26 141122680	-
197 - SHIM MET-6306121357.A1 6306121357	£1.50	£1.80
198 - RETAINING RING SHAFT MET-6400121379.A1 6400121379	£1.50	£1.80
199 - RUBBER-METAL ANTI-VIBR. MOUN SEITENTEIL MET-1010131819.A2 1010131819	£5.38	£6.45
200 - RUBBER-METAL ANTI-VIBR. MOUNT KGT 501 MET-1010680235.A3 1010680235	£8.62	£10.34
201 - HEXAGONAL NUT MET-141130100.A204 141130100	£1.50	£1.80
202 - CAP SCREW MET-6127059207.A76 6127059207	£1.50	£1.80
203 - CONDENSER MET-8050120172.A0 8050120172	-
204 - FLANGE NUT MET-6209110995.A126 6209110995	£1.50	£1.80
207 - ALLEN HEXAGON KEY MET-9102017894.A3 9102017894	£1.50	£1.80
208 - ALLEN HEXAGON KEY MET-9102016766.A0 9102016766	-
209 - ALLEN HEXAGON KEY MET-9102043577.A0 9102043577	£4.76	£5.71
210 - PUSH STICK MET-343433180.A60 343433180	-
211 - THREADED ROD MET-1485676275.A3 1485676275	£8.70	£10.44
212 - CONNECTING TUBE MET-1383676262.A2 1383676262	-
213 - LOCK MET-1010130421.A1 1010130421	£17.07	£20.48
214 - COIL SPRING MET-7051208573.A1 7051208573	£7.04	£8.45
215 - SIDE PANEL RIGHT MET-1380676245.A0 1380676245	£76.70	£92.04
216 - BUSHING SIDE PANEL MET-1485208590.A4 1485208590	£4.64	£5.57
217 - CAP SCREW MET-141114060.A5 141114060	£3.20	£3.84
218 - SPACER RD20/6X27 MET-1381677385.A1 1381677385	£3.11	£3.73
219 - GRUB SCREW MET-6162148646.A0 6162148646	£3.20	£3.84
220 - SIDE PANEL LEFT MET-1380677411.A3 1380677411	£76.70	£92.04
221 - RUBBER FOOT MET-7057650880.A3 7057650880	£3.20	£3.84
223 - HEX HEAD SCREW MET-6102045619.A3 6102045619	-
224 - SWITCH ASSEMBLY 230V 50HZ M.KABEL+KONDEN MET-1010213300.A0 1010213300	-
225 - SWITCH PLATE MET-1382684845.A1 1382684845	£17.07	£20.48
227 - HEXAGON HEAD SCREW MET-141113290.A25 141113290	£1.50	£1.80
228 - LAMELLAR PLUG BLACK MET-1391059264.A4 1391059264	£1.50	£1.80
229 - LEG MET-1383676475.A2 1383676475	£22.40	£26.88
230 - RIDER KGT 501 MET-1383676491.A1 1383676491	£49.88	£59.86
231 - CAP NUT SELF-LOCKING MET-6208073395.A5 6208073395	£1.50	£1.80
232 - ADJUSTABLE FOOT ASSEMBLY VERSTELLBAR MET-2010200787.A21 2010200787	£22.61	£27.13
233 - SPACER SLEEVE MET-1485676500.A0 1485676500	£3.89	£4.67
234 - STARLOCK MET-7016122305.A10 7016122305	£1.50	£1.80
235 - SPRING CLIP MET-7051653690.A1 7051653690	£3.89	£4.67
236 - LATCH MET-1482653681.A2 1482653681	£7.04	£8.45
237 - FASTENING CLAMP MET-1381655616.A5 1381655616	-
238 - FILLISTER HEAD SCREW MET-6172001830.A18 6172001830	£1.50	£1.80
240 - CABLE CLIP MET-8242680333.A2 8242680333	-
241 - LATCH REAR MET-1482208629.A2 1482208629	£3.89	£4.67
242 - FEED ROD LOCKING MET-1482208645.A2 1482208645	£7.04	£8.45
243 - THREADED BOLT MET-1485208603.A0 1485208603	£3.11	£3.73
245 - HEXAGON FIT BOLT MET-1485208611.A3 1485208611	£8.62	£10.34
246 - RETAINING RING MET-141180010.A4 141180010	-
247 - LATCH IN THE FRONT MET-1482208637.A1 1482208637	-
248 - LEG MET-1383653653.A1 1383653653	£22.40	£26.88
249 - RETAINING CLIP KGT 501 MET-1382680185.A2 1382680185	£3.82	£4.59
250 - MUSHROOM HEAD RIVET 5X40 MET-6622653042.A2 6622653042	£1.50	£1.80
251 - LEG MET-1383676467.A1 1383676467	-
252 - TRUSS HEAD SCREW MET-6110059297.A0 6110059297	£1.50	£1.80
253 - HEX HEAD SCREW MET-6143683522.A1 6143683522	-
256 - CAP SCREW MET-141121940.A1 141121940	£3.20	£3.84

Attribute Name	Value
Brand	Metabo

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Metabo KGT 501 / 0102505018 13 / EU 230V Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Metabo KGT 501 / 0102505018 13 / EU 230V Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Metabo KGT 501 / 0102505018 13 / EU 230V Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
