Metabo KS 216 M Lasercut / 0102160300 10 / EU 230V Spare Parts

Home Details Reviews Delivery

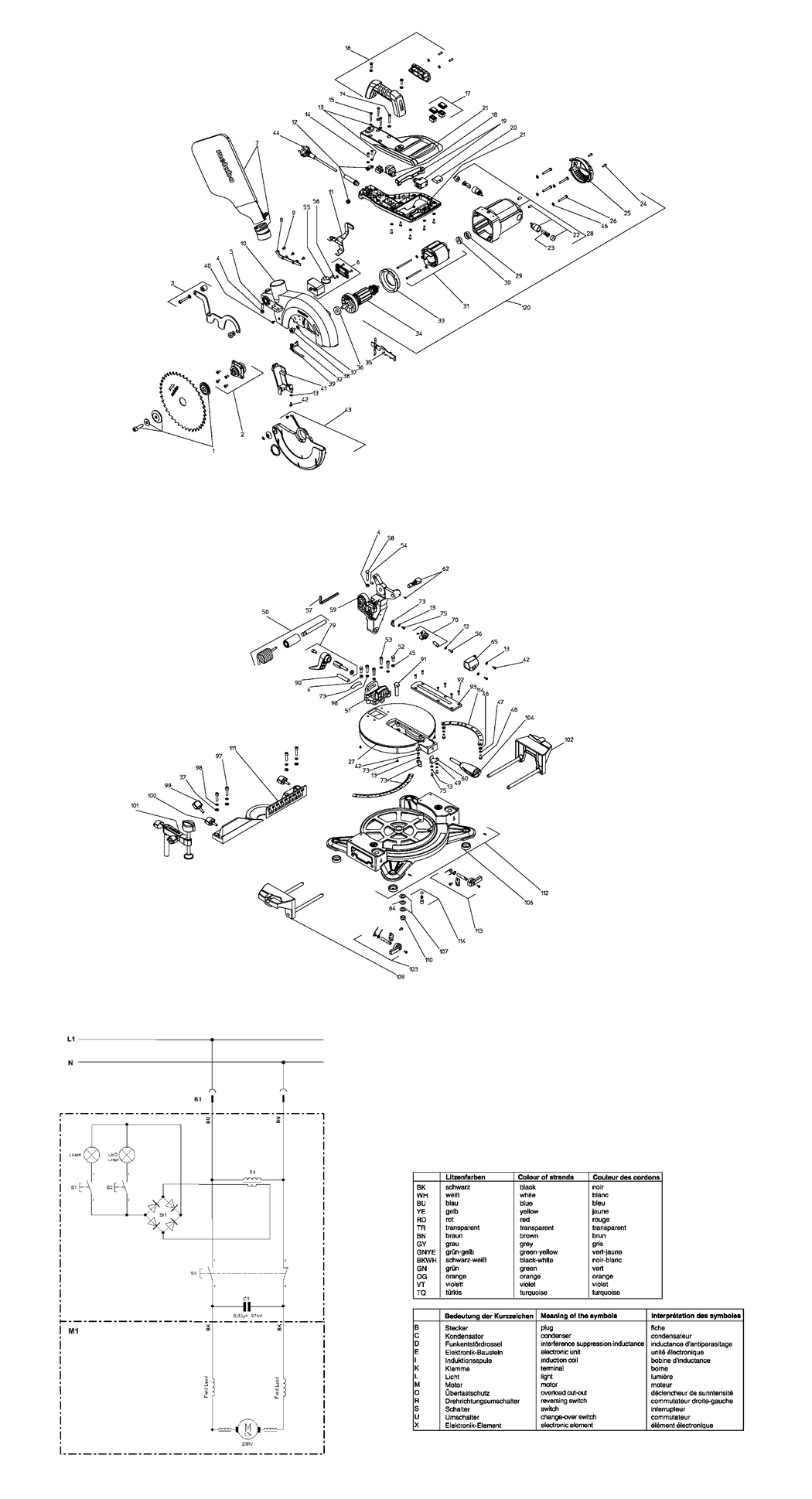

An exploded diagram and spare parts listing for the Metabo KS 216 M Lasercut / 0102160300 10 / EU 230V

	Ex VAT	Inc VAT
1 - FLANGE COMPL. MET-316060610.A17 316060610	£13.63	£16.36
2 - GEAR-BOX COMPL. MET-1010734602.A3 1010734602	-
3 - SWIVEL LEVER COMPL. MET-1010734130.A3 1010734130	£11.78	£14.13
4 - HEXAGONAL NUT MET-141130100.A72 141130100	£1.50	£1.80
5 - HEX. SOCKET SET SCREW FLAT PT M 6X20 VE MET-141124480.A25 141124480	£2.94	£3.53
6 - COVER LIGHTING COMPL. MET-1010735005.A3 1010735005	£9.62	£11.54
7 - DUST ETRACTION KIT COMPL. MET-1010734572.A3 1010734572	-
8 - COVER CABLE DUCT MET-1381734729.A2 1381734729	-
9 - CROSS RECESSED FLAT HEAD SCREW M 4X8 VER MET-6131001531.A24 6131001531	-
10 - WHEEL GUARD COMPL. MET-1010734580.A4 1010734580	£54.94	£65.93
11 - UNLOCK LEVER COMPL. MET-1010734548.A6 1010734548	-
12 - STRAIN RELIEF COMPL. MET-1010734157.A1 1010734157	-
13 - WASHER MET-141150010.A60 141150010	£1.50	£1.80
14 - CROSS RECD PAN HEAD TAP.SCREW ST 4 2X13 MET-6172722847.A10 6172722847	-
15 - FILLISTER HEAD SCREW MET-141111420.A4 141111420	-
16 - HANDLE COMPL. MET-1010734190.A9 1010734190	£6.38	£7.65
17 - SWITCH SET MET-1010734203.A2 1010734203	£5.62	£6.75
18 - POWER SUPPLY PACK MET-8106734071.A4 8106734071	£11.78	£14.13
19 - SWITCH COMPL. MET-1010734084.A3 1010734084	£7.04	£8.45
20 - CONDENSER MET-8050734103.A4 8050734103	£2.94	£3.53
21 - HANDLE COMPL. MET-1010734173.A5 1010734173	£22.61	£27.13
22 - CARBON BRUSH HOLDER COMPL. MET-1010733983.A3 1010733983	£3.20	£3.84
23 - CARBON BRUSH MET-1388734023.A3 1388734023	£6.36	£7.63
24 - FILLISTER HEAD SCREW MET-6172001821.A3 6172001821	£1.50	£1.80
25 - MOTOR COVER MET-1381733960.A3 1381733960	£22.96	£27.55
26 - FILLISTER HEAD SCREW MET-141116770.A6 141116770	£2.60	£3.12
27 - TURNTABLE COMPL. MET-1010735030.A0 1010735030	-
28 - MOTOR HOUSING COMPL. MET-1010734009.A4 1010734009	-
29 - RUBBER BUSHING MET-7057734846.A0 7057734846	£1.50	£1.80
30 - BALL BEARING 8X22X7 MET-143115700.A224 143115700	£4.76	£5.71
31 - STATOR MET-8014734040.A0 8014734040	-
32 - COUNTERSUNK HEAD TAPPING SCREW MET-6174001900.A7 6174001900	£1.50	£1.80
33 - AIR GUIDE COVER MET-1331734868.A3 1331734868	£1.50	£1.80
34 - ARMATURE MET-8014734881.A1 8014734881	£36.59	£43.91
35 - SPINDLE LOCK COMPL. MET-1010734815.A1 1010734815	£1.50	£1.80
36 - DEEP GROOVE BALL BEARING MET-143115740.A34 143115740	£6.38	£7.65
37 - WASHER MET-141151940.A38 141151940	£1.50	£1.80
38 - BEARING COMPL. MET-1010734807.A10 1010734807	-
39 - COVER SPRING MET-1381735660.A3 1381735660	-
40 - COUNTERSUNK HEAD TAPPING SCREW ST 2 9X9 MET-6174188961.A3 6174188961	-
41 - EXTRACTION CHANNEL MET-1381734770.A2 1381734770	£1.50	£1.80
42 - RAISED CHEESE HEAD SCREW MET-141124560.A3 141124560	£2.94	£3.53
43 - SAFETY GUARD COMPL. MET-1010734629.A4 1010734629	-
44 - CABLE WITH PLUG MET-8402734940.A1 8402734940	£13.63	£16.36
45 - HEXAGON THIN NUT MET-6205028046.A18 6205028046	£1.50	£1.80
46 - WASHER MET-141150020.A42 141150020	£1.50	£1.80
47 - SERRATED LOCK WASHER MET-141150420.A1 141150420	£1.50	£1.80
48 - CROSS RECD PAN HEAD TAP.SCREW MET-6172015687.A62 6172015687	£1.50	£1.80
49 - WASHER MET-141150110.A29 141150110	£1.50	£1.80
50 - MOTOR HEAD AXLE COMPL. MET-1010734661.A3 1010734661	£13.63	£16.36
51 - MOTOR BRACKET MET-1380735047.A1 1380735047	£9.62	£11.54
52 - HEX HEAD SCREW MET-6103001127.A19 6103001127	£1.50	£1.80
53 - CAP SCREW MET-141113870.A8 141113870	£3.20	£3.84
54 - GRUB SCREW MET-341701070.A7 341701070	£7.36	£8.83
55 - LED-LAMP MET-8602735010.A2 8602735010	£9.62	£11.54
56 - FILLISTER HEAD SCREW MET-141113040.A16 141113040	£1.51	£1.81
57 - ALLEN HEXAGON KEY MET-9102689833.A32 9102689833	£6.38	£7.65
58 - HEXAGON HEAD SCREW MET-141110290.A12 141110290	£3.20	£3.84
59 - MOTOR BRACKET COMPL. MET-1010734483.A1 1010734483	£30.06	£36.07
60 - CLAMPING PLATE MET-1482735076.A2 1482735076	-
62 - TRANSPORT LOCK COMPL. MET-1010734530.A4 1010734530	£2.94	£3.53
64 - LOCK WASHER MET-141150390.A7 141150390	£1.50	£1.80
65 - LASER HOUSING MET-1381735024.A1 1381735024	£1.50	£1.80
70 - LASER WITH HOLDER MET-1010734467.A4 1010734467	£11.78	£14.13
73 - SCALE SET COMPL. MET-1010734394.A1 1010734394	£2.94	£3.53
74 - CROSS RECD PAN HEAD TAP.SCREW ST 4 2X32 MET-6172006963.A0 6172006963	£1.50	£1.80
75 - RAISED CHEESE HEAD SCREW M 4X8 VERZ. DUO MET-141113040.A3013 141113040	£1.51	£1.81
79 - CLAMPING LEVER COMPL. MET-1010734360.A2 1010734360	£4.76	£5.71
90 - TIPPING AXIS MET-1385735061.A3 1385735061	-
91 - HEXAGON HEAD SCREW M 10X40 VERZ. MET-141124500.A14 141124500	-
92 - COUNTERSUNK SCREW MET-141112180.A55 141112180	£1.50	£1.80
93 - TABLE INSERT MET-1381734958.A2 1381734958	£2.94	£3.53
97 - CAP SCREW MET-141113890.A46 141113890	£3.20	£3.84
98 - SERRATED LOCK WASHER MET-141150410.A76 141150410	£3.20	£3.84
99 - THUMBSCREW MET-341111630.A13 341111630	£3.20	£3.84
100 - THUMBSCREW M6 X 12 MET-341112750.A10 341112750	£2.94	£3.53
101 - WORKPIECE HOLDER COMPL. MET-1010734351.A8 1010734351	-
102 - TABLE SIDE EXTENSION RIGHT MET-1010734300.A2 1010734300	-
103 - CLAMPING LEVER COMPL. LEFT MET-1010734335.A8 1010734335	£3.20	£3.84
104 - CONTROL GRIP COMPL. MET-1010734220.A0 1010734220	£4.76	£5.71
106 - FOOT SET MET-1010734114.A3 1010734114	-
107 - WASHER MET-141150050.A51 141150050	£1.50	£1.80
109 - TABLE SIDE EXTENSION LEFT MET-1010734270.A1 1010734270	-
110 - HEX NUT MET-141132030.A25 141132030	£2.94	£3.53
111 - STOP COMPL. MET-1010734980.A6 1010734980	£30.06	£36.07
112 - TABLE COMPL. MET-1010734246.A2 1010734246	£63.36	£76.03
113 - CLAMPING LEVER COMPL. RIGHT MET-1010734343.A3 1010734343	£3.20	£3.84
114 - LOCKING TABLE TRUNNION COMPL. MET-1010735056.A2 1010735056	-
120 - MOTOR ASSEMBLY 230V KS 216 MET-1010735595.A0 1010735595	£44.38	£53.26
