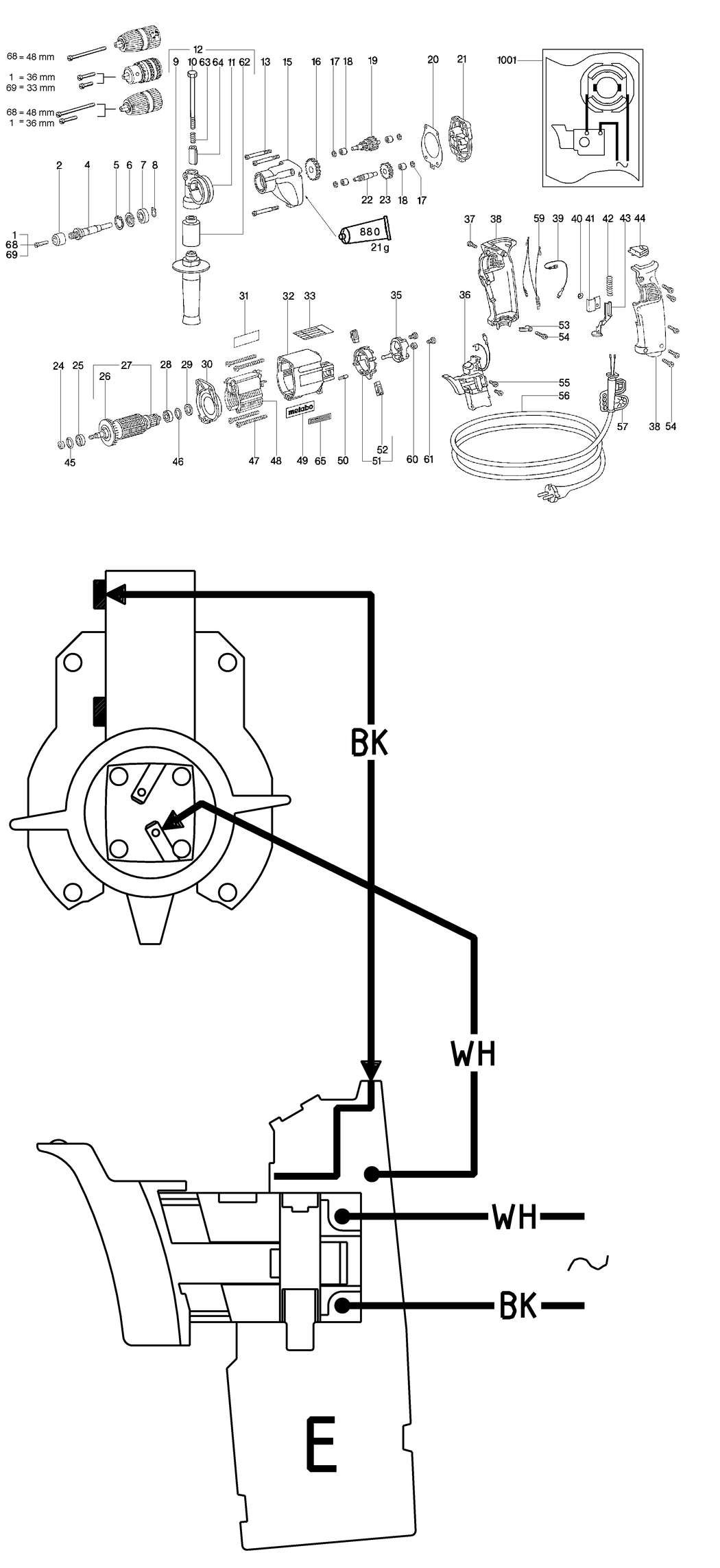

An exploded diagram and spare parts listing for the Metabo B E 622 S R+L / 00626420 / US 120V
Ex VAT Inc VAT
1 - CHEESE-HEAD SCREW MET-341701940.A69 341701940 £3.20 £3.84
2 - BIT RETAINING BUSH MET-631281000.A0 631281000 -
4 - SPINDLE MET-341602990.A0 341602990 £54.94 £65.93
5 - RETAINING RING MET-141181560.A9 141181560 £1.50 £1.80
6 - COVER PLATE MET-343362170.A0 343362170 £11.78 £14.13
7 - BALL BEARING 12X28X8 MET-143111440.A24 143111440 £26.35 £31.62
8 - RETAINING RING MET-141180060.A83 141180060 £1.50 £1.80
9 - HANDLE MET-314000550.A21 314000550 -
10 - HEXAGON HEAD SCREW MET-141121470.A1 141121470 £3.20 £3.84
11 - CLAMPING PIECE MET-343359780.A7 343359780 £7.36 £8.83
12 - SIDE SUPPORT HANDLE EXTRA LONG TYPE MET-631074000.A1 631074000 -
13 - TIGHT-FIT SCREW PLAST. 45 MET-341702180.A10 341702180 £3.20 £3.84
15 - GEAR HOUSING CPL. MET-316024070.A1 316024070 £51.54 £61.85
16 - SPUR GEAR MET-340011640.A9 340011640 £32.88 £39.45
17 - BUTTING WASHER MET-339001290.A2 339001290 £1.50 £1.80
18 - NEEDLE SLEEVE MET-143111430.A8 143111430 £7.36 £8.83
19 - INTERMEDIATE GEAR MET-316022930.A1 316022930 £60.03 £72.04
20 - GASKET MET-339210270.A1 339210270 £4.76 £5.71
21 - GEAR FLANGE CPL. MET-316022940.A0 316022940 £54.94 £65.93
22 - PINION SHAFT MET-340011630.A1 340011630 £42.65 £51.18
23 - SPUR GEAR MET-340011620.A9 340011620 £32.88 £39.45
24 - SEALING RING MET-343356500.A11 343356500 £1.50 £1.80
25 - BALL BEARING 8X22X7 MET-143114880.A196 143114880 £9.62 £11.54
26 - FAN CPL. MET-330001060.A9 330001060 £6.38 £7.65
27 - ARMATURE CPL. 115 V MET-310006220.A1 310006220 £67.04 £80.45
28 - BALL BEARING 6X19X6 MET-143115660.A142 143115660 £3.82 £4.59
29 - WASHER MET-141153400.A27 141153400 £3.20 £3.84
30 - INTERMEDIATE FLANGE MET-343361780.A10 343361780 £8.37 £10.04
31 - RATING PLATE MET-338027700.A0 338027700 £1.50 £1.80
32 - MOTOR HOUSING MET-315012320.A1 315012320 £32.88 £39.45
33 - INDICATION LABEL MET-338108580.A0 338108580 £4.64 £5.57
35 - PRESSURE PLATE CPL. MET-316021020.A9 316021020 £13.63 £16.36
36 - ELECTRONIC UNIT 120 V MET-343072460.A2 343072460 £68.35 £82.02
37 - SCREW MET-341702050.A131 341702050 £1.50 £1.80
38 - PISTOL GRIP MET-343362350.A1 343362350 £22.96 £27.55
39 - STRAND CPL. AWG18SW MET-344490150.A0 344490150 £3.82 £4.59
40 - CIRCLIP MET-141181760.A0 141181760 £1.50 £1.80
41 - COVER MET-339111020.A1 339111020 £1.50 £1.80
42 - PRESSURE SPRING MET-342001210.A9 342001210 £1.50 £1.80
43 - LOCKING CATCH MET-343362460.A10 343362460 £1.50 £1.80
44 - COVER MET-343361770.A0 343361770 £3.20 £3.84
45 - O-RING MET-143192570.A5 143192570 £3.20 £3.84
46 - O-RING MET-143192430.A37 143192430 £3.20 £3.84
47 - SELF-TAP. FILL. H. SCREW MET-141118260.A47 141118260 £1.50 £1.80
48 - FIELD COIL 115 V MET-311008880.A4 311008880 £68.35 £82.02
49 - M-LABEL 56X25 MET-338122370.A0 338122370 £3.20 £3.84
50 - INDEX BOLT MET-342001140.A13 342001140 £3.20 £3.84
51 - SETTING RING COMPL. R+L MET-316025770.A3 316025770 £26.35 £31.62
52 - BRUSH WITH HOLDER MET-316033740.A3 316033740 £19.18 £23.02
53 - CABLE CLIP MET-343362490.A0 343362490 £3.20 £3.84
54 - SCREW MET-141120340.A5 141120340 -
55 - FILLISTER HEAD SCREW MET-141116970.A47 141116970 £3.20 £3.84
56 - CABLE WITH UL-CSA-PLUG MET-344492750.A39 344492750 £22.61 £27.13
57 - CABLE SLEEVE MET-344100590.A58 344100590 £3.82 £4.59
59 - PART NOT NEEDED MET-399999990.A176 399999990 -
60 - INSULATING DISC MET-341052920.A0 341052920 £5.62 £6.75
61 - SELF-TAP. FILL. H. SCREW MET-141116840.A0 141116840 £1.50 £1.80
62 - EXTENSION MET-343370240.A0 343370240 £3.20 £3.84
63 - PRESSURE SPRING MET-342007800.A2 342007800 £3.20 £3.84
64 - LOCKING BUSHING MET-343364910.A2 343364910 £3.20 £3.84
65 - WARNING LABEL MET-338115880.A9 338115880 -
68 - CAP SCREW MET-341702790.A0 341702790 £4.76 £5.71
69 - CAP SCREW MET-341700990.A1 341700990 £4.76 £5.71
880 - GREASE 50GR 1.8oz MET-344130970.A26 344130970 £15.41 £18.49
1001 - DIAGRAM MET-338500130.A2 338500130 -
