1 - CHEESE-HEAD SCREW
MET-341701940.A79
341701940
|
£3.20
|
£3.84
|
|
|
2 - SELF-TAP. FILL. H. SCREW
MET-141118700.A4
141118700
|
£3.20
|
£3.84
|
|
|
3 - GASKET
MET-339210910.A4
339210910
|
£1.50
|
£1.80
|
|
|
4 - SPINDLE
MET-341603790.A3
341603790
|
£73.52
|
£88.23
|
|
|
5 - BALL BEARING 15X35X11
MET-143111520.A12
143111520
|
£22.61
|
£27.13
|
|
|
6 - CAP SCREW
MET-141111070.A6
141111070
|
£1.50
|
£1.80
|
|
|
7 - CONTROL KNOB CPL.
MET-316049410.A10
316049410
|
£22.96
|
£27.55
|
|
|
8 - GEAR COVER
MET-316032920.A3
316032920
|
£36.59
|
£43.91
|
|
|
9 - GEAR COVER
MET-316032790.A6
316032790
|
£71.39
|
£85.67
|
|
|
10 - CYLINDRICAL PIN
MET-141160350.A10
141160350
|
-
|
|
|
|
11 - RETAINING RING
MET-141180360.A6
141180360
|
£3.20
|
£3.84
|
|
|
12 - BALL BEARING 12X28X8
MET-143113860.A6
143113860
|
£17.55
|
£21.06
|
|
|
13 - WASHER
MET-141152150.A11
141152150
|
£3.20
|
£3.84
|
|
|
14 - SPINDLE WHEEL
MET-340003430.A5
340003430
|
£48.88
|
£58.66
|
|
|
15 - PRALLEL KEY
MET-141154910.A9
141154910
|
£1.50
|
£1.80
|
|
|
16 - GEAR SPINDLE
MET-340003410.A5
340003410
|
£61.08
|
£73.30
|
|
|
17 - GEAR CLUSTER
MET-340003420.A6
340003420
|
£63.36
|
£76.03
|
|
|
18 - GASKET
MET-339210850.A8
339210850
|
£4.76
|
£5.71
|
|
|
19 - RETAINING RING
MET-141180040.A25
141180040
|
£1.50
|
£1.80
|
|
|
20 - NEEDLE SLEEVE
MET-143111460.A23
143111460
|
£5.62
|
£6.75
|
|
|
21 - GEAR COVER
MET-316032800.A1
316032800
|
-
|
|
|
|
22 - BALL BEARING 10X26X8
MET-143111120.A33
143111120
|
£22.61
|
£27.13
|
|
|
23 - RETAINING RING
MET-141180350.A28
141180350
|
£3.20
|
£3.84
|
|
|
24 - ARMATURE CPL.120V
MET-310008310.A3
310008310
|
£79.43
|
£95.32
|
|
|
25 - BALL BEARING 8X22X7
MET-143115800.A128
143115800
|
£3.83
|
£4.60
|
|
|
26 - RUBBER BEARING
MET-344096020.A41
344096020
|
£3.20
|
£3.84
|
|
|
29 - INTERMEDIATE GEAR CPL.
MET-316032820.A8
316032820
|
£71.39
|
£85.67
|
|
|
30 - SELF-TAP FILL H SCREW
MET-141116020.A688
141116020
|
£3.20
|
£3.84
|
|
|
31 - D-HANDLE
MET-343377080.A8
343377080
|
£36.59
|
£43.91
|
|
|
32 - HALF WAVE SWITCH
MET-343407320.A0
343407320
|
£55.90
|
£67.08
|
|
|
33 - LEAD WIRE (SWITCH)
MET-344495120.A1
344495120
|
£15.41
|
£18.49
|
|
|
34 - LEAD WIRE (SWITCH)
MET-344494910.A0
344494910
|
£3.82
|
£4.59
|
|
|
35 - SUPPRESSOR
MET-343254180.A7
343254180
|
£8.37
|
£10.04
|
|
|
36 - DEPTH STOP
MET-341511630.A93
341511630
|
£6.38
|
£7.65
|
|
|
37 - SUPPORT HANDLE CPL.
MET-314000790.A12
314000790
|
£26.35
|
£31.62
|
|
|
38 - BAFFLE
MET-339150970.A27
339150970
|
£6.38
|
£7.65
|
|
|
39 - LEAD WIRE (SWITCH)
MET-344494900.A2
344494900
|
£4.76
|
£5.71
|
|
|
40 - RATING PLATE
MET-338042680.A0
338042680
|
£1.50
|
£1.80
|
|
|
42 - CARBON BRUSH
MET-316035080.A3
316035080
|
£26.35
|
£31.62
|
|
|
43 - BRUSH HOLDER ASSY
MET-316033220.A8
316033220
|
£22.61
|
£27.13
|
|
|
44 - PART NOT NEEDED
MET-399999990.A206
399999990
|
-
|
|
|
|
45 - FIELD COIL 230 V
MET-311010040.A9
311010040
|
£54.94
|
£65.93
|
|
|
46 - PART NOT NEEDED
MET-399999990.A207
399999990
|
-
|
|
|
|
47 - MOTOR HOUSING
MET-315012780.A33
315012780
|
£22.61
|
£27.13
|
|
|
48 - M-LABEL 08 52X22
MET-338122160.A379
338122160
|
£1.50
|
£1.80
|
|
|
49 - PART NOT NEEDED
MET-399999990.A205
399999990
|
-
|
|
|
|
50 - CABLE WITHOUT PLUG 110V
MET-344489670.A4
344489670
|
£36.59
|
£43.91
|
|
|
51 - CABLE SLEEVE
MET-344100970.A280
344100970
|
£3.20
|
£3.84
|
|
|
52 - LEAD WIRE (SWITCH)
MET-344494880.A3
344494880
|
£3.20
|
£3.84
|
|
|
54 - CHANGE-OVER SWITCH
MET-343407330.A5
343407330
|
£36.59
|
£43.91
|
|
|
55 - CABLE CLIP
MET-343362490.A10
343362490
|
£3.20
|
£3.84
|
|
|
56 - SELF-TAP. FILL. H. SCREW
MET-141117060.A585
141117060
|
£3.20
|
£3.84
|
|
|
57 - WASHER
MET-339000770.A5
339000770
|
£1.50
|
£1.80
|
|
|
58 - O-RING
MET-143195080.A3
143195080
|
-
|
|
|
|
880 - GREASE
MET-344131050.A12
344131050
|
£54.94
|
£65.93
|
|
|

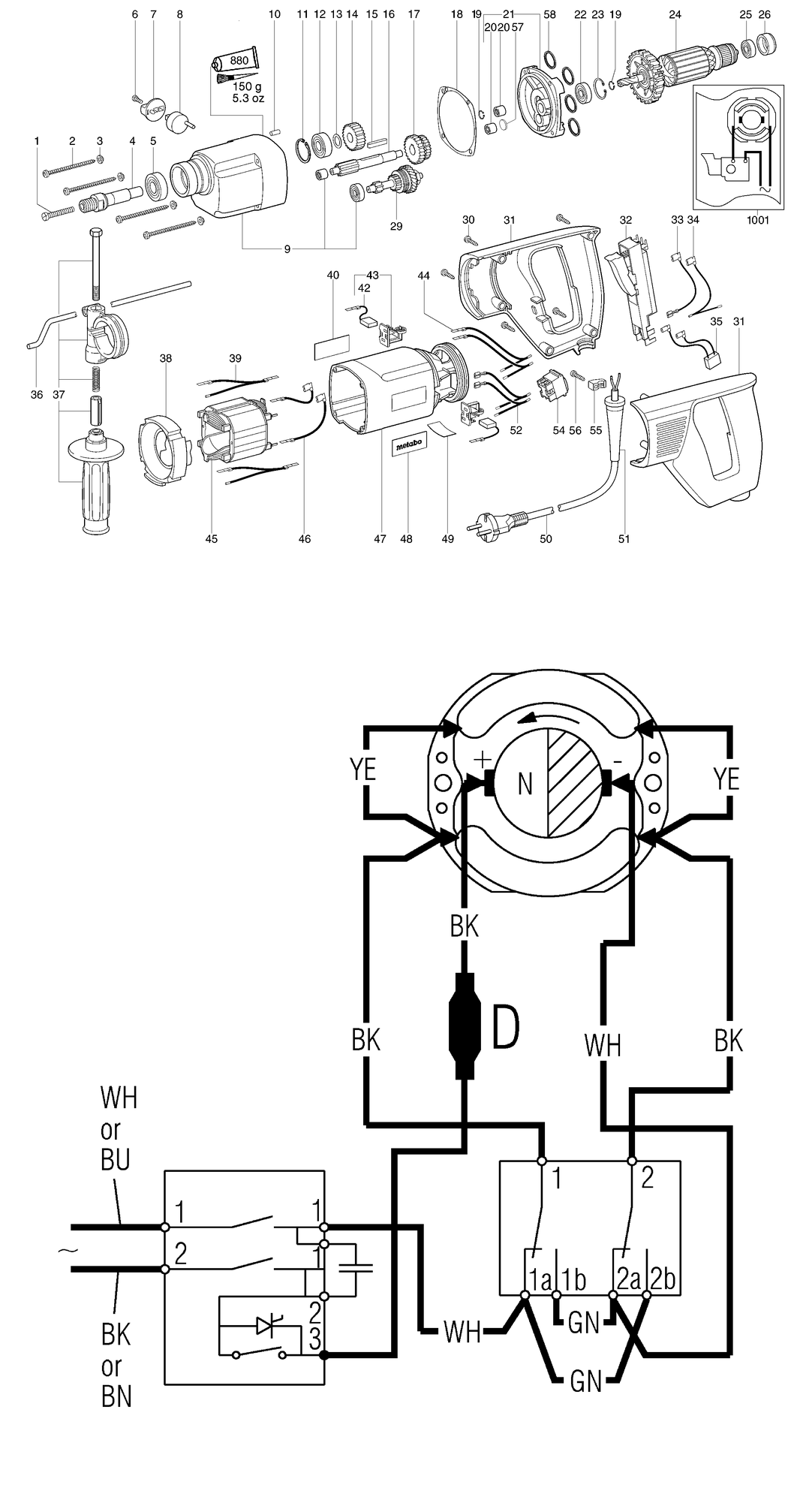

1001 - DIAGRAM
MET-338504180.A1
338504180
|
-
|
|
|
