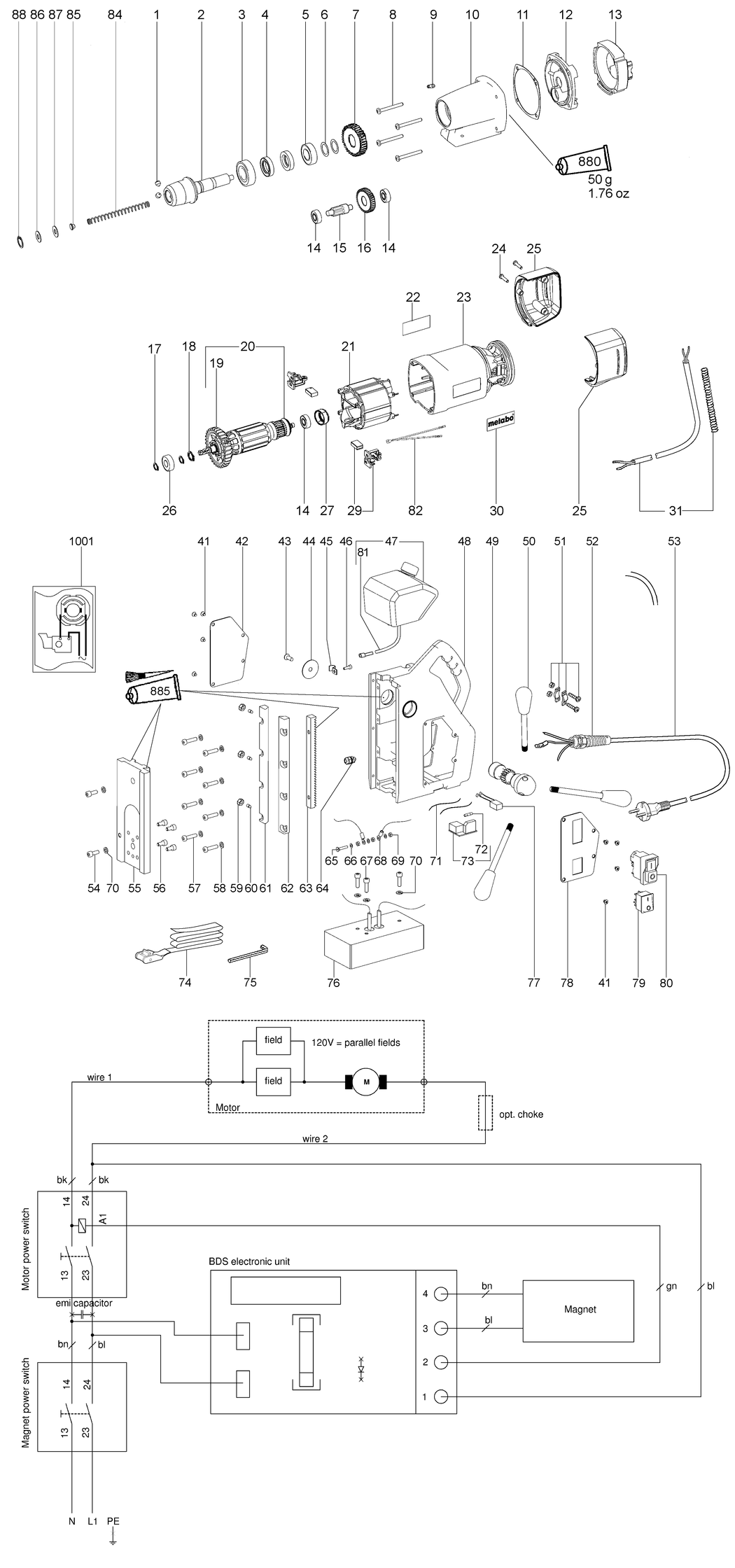

1 - SCREW
MET-141115080.A2
141115080
|
-
|
|
|
|
2 - SPINDLE
MET-341604110.A5
341604110
|
-
|
|
|
|
3 - BALL BEARING 20X42X12
MET-143112970.A2
143112970
|
£22.96
|
£27.55
|
|
|
4 - SHAFT SEALING RING
MET-143195280.A2
143195280
|
-
|
|
|
|
5 - BALL BEARING 17X35X10
MET-143111450.A6
143111450
|
£11.78
|
£14.13
|
|
|
6 - WASHER
MET-141151330.A6
141151330
|
£3.20
|
£3.84
|
|
|
7 - SPINDLE WHEEL
MET-340003370.A8
340003370
|
£48.88
|
£58.66
|
|
|
8 - SELF-TAP. FILL. H. SCREW
MET-141118810.A21
141118810
|
£1.50
|
£1.80
|
|
|
9 - NIPPLE
MET-341059420.A2
341059420
|
£7.44
|
£8.93
|
|
|
10 - GEAR HOUSING COMPL.
MET-316046860.A3
316046860
|
-
|
|
|
|
11 - GASKET
MET-339210850.A4
339210850
|
£4.76
|
£5.71
|
|
|
12 - GEAR COVER COMPL.
MET-316046870.A0
316046870
|
-
|
|
|
|
13 - BAFFLE
MET-339150970.A2
339150970
|
£6.38
|
£7.65
|
|
|
14 - BALL BEARING 8X22X7
MET-143115800.A153
143115800
|
£3.83
|
£4.60
|
|
|
15 - INTERMEDIATE GEAR
MET-340003380.A0
340003380
|
£48.88
|
£58.66
|
|
|
16 - INTERMEDIATE GEAR
MET-340012030.A8
340012030
|
£48.88
|
£58.66
|
|
|
17 - RETAINING RING
MET-141180040.A59
141180040
|
£1.50
|
£1.80
|
|
|
18 - RETAINING RING
MET-141180350.A7
141180350
|
£3.20
|
£3.84
|
|
|
19 - FAN W. PROT. GRID
MET-316032610.A13
316032610
|
£13.63
|
£16.36
|
|
|
20 - ARMATURE COMPL. 120V
MET-310009700.A1
310009700
|
£63.44
|
£76.13
|
|
|
21 - FIELD COIL W.FIELD COIL 230 V
MET-311011160.A0
311011160
|
£61.08
|
£73.30
|
|
|
22 - RATING PLATE
MET-338054670.A0
338054670
|
-
|
|
|
|
23 - MOTOR HOUSING
MET-315012780.A13
315012780
|
£22.61
|
£27.13
|
|
|
24 - SELF-TAP FILL H SCREW
MET-141116020.A362
141116020
|
£3.20
|
£3.84
|
|
|
25 - MOTOR CAP 2-PART
MET-343398680.A3
343398680
|
£13.63
|
£16.36
|
|
|
26 - BALL BEARING 10X26X8
MET-143111120.A38
143111120
|
£22.61
|
£27.13
|
|
|
27 - RUBBER BEARING
MET-344096020.A8
344096020
|
£3.20
|
£3.84
|
|
|
29 - BRUSH HOLDER CP 120V
MET-316032100.A4
316032100
|
£22.61
|
£27.13
|
|
|
30 - M-LABEL 08 52X22
MET-338122160.A183
338122160
|
£1.50
|
£1.80
|
|
|
31 - CABLE COMPL.
MET-344498580.A1
344498580
|
-
|
|
|
|
41 - COUNTERSUNK SCREW
MET-141123840.A6
141123840
|
£2.94
|
£3.53
|
|
|
42 - COVER SHEET
MET-339134730.A6
339134730
|
-
|
|
|
|
43 - COUNTERSUNK SCREW
MET-141112280.A5
141112280
|
£1.50
|
£1.80
|
|
|
44 - WASHER
MET-339007330.A2
339007330
|
£22.40
|
£26.88
|
|
|
45 - CABLE CLIP
MET-339134790.A6
339134790
|
£9.82
|
£11.79
|
|
|
46 - CAP SCREW
MET-141113590.A26
141113590
|
£3.20
|
£3.84
|
|
|
47 - COOLING LIQUID TANK COMPL.
MET-316046770.A0
316046770
|
£50.13
|
£60.16
|
|
|
48 - STATOR HOUSING COMPL.
MET-316046910.A7
316046910
|
£196.24
|
£235.49
|
|
|
49 - GEAR-WHEEL SHAFT
MET-340012670.A6
340012670
|
-
|
|
|
|
50 - HANDLE COMPL.
MET-314001240.A1
314001240
|
£26.85
|
£32.22
|
|
|
51 - STRESS RELIEVE
MET-341147980.A2
341147980
|
-
|
|
|
|
52 - CABLE SLEEVE
MET-344098630.A3
344098630
|
£26.35
|
£31.62
|
|
|
53 - CABLE W.UL/CSA-PLUG
MET-344498160.A1
344498160
|
-
|
|
|
|
54 - CAP SCREW
MET-141113850.A20
141113850
|
£3.20
|
£3.84
|
|
|
55 - SLIDING CARRIAGE
MET-315417400.A1
315417400
|
£196.24
|
£235.49
|
|
|
56 - CAP SCREW
MET-141113840.A19
141113840
|
£3.20
|
£3.84
|
|
|
57 - CAP SCREW
MET-141117050.A16
141117050
|
£1.50
|
£1.80
|
|
|
58 - WASHER
MET-141151930.A6
141151930
|
£1.50
|
£1.80
|
|
|
59 - PLAIN HEXAGON NUT
MET-141130030.A5
141130030
|
£1.50
|
£1.80
|
|
|
60 - GRUB SCREW
MET-141123910.A3
141123910
|
£1.50
|
£1.80
|
|
|
61 - GUIDE STRIP
MET-341148070.A2
341148070
|
£50.13
|
£60.16
|
|
|
62 - GUIDE STRIP
MET-341148080.A5
341148080
|
£50.13
|
£60.16
|
|
|
63 - RACK
MET-341148050.A5
341148050
|
-
|
|
|
|
64 - GLAND
MET-341148150.A5
341148150
|
£17.07
|
£20.48
|
|
|
65 - COUNTERSUNK SCREW
MET-141112090.A7
141112090
|
£1.50
|
£1.80
|
|
|
66 - LOCK WASHER
MET-141150350.A3
141150350
|
£1.50
|
£1.80
|
|
|
67 - CAP SCREW
MET-141113870.A11
141113870
|
£3.20
|
£3.84
|
|
|
68 - CABLE CONNECTOR
MET-142110140.A7
142110140
|
-
|
|
|
|
69 - HEXAGONAL NUT
MET-141130070.A9
141130070
|
£1.50
|
£1.80
|
|
|
70 - SPRING WASHER
MET-141150280.A28
141150280
|
£1.50
|
£1.80
|
|
|
71 - STRAND SET
MET-344498400.A2
344498400
|
£17.07
|
£20.48
|
|
|
72 - FUSE
MET-142110150.A0
142110150
|
£11.78
|
£14.13
|
|
|
73 - ELECTRONIC UNIT 50/60HZ
MET-343082210.A2
343082210
|
£42.65
|
£51.18
|
|
|
74 - TENSION BELT
MET-341148140.A4
341148140
|
£48.88
|
£58.66
|
|
|
75 - CRANKED WRENCH KEY
MET-344163630.A5
344163630
|
-
|
|
|
|
76 - MAGNET BLOCK
MET-341148040.A2
341148040
|
£170.22
|
£204.26
|
|
|
77 - SUPPRESSOR
MET-343254630.A2
343254630
|
£11.78
|
£14.13
|
|
|
78 - FACE SHEET METAL
MET-339134740.A1
339134740
|
-
|
|
|
|
79 - ON-OFF SWITCH 230 V
MET-343409320.A7
343409320
|
£13.63
|
£16.36
|
|
|
80 - ELECTRONIC SWITCH 120 V
MET-343409460.A2
343409460
|
£28.45
|
£34.14
|
|
|
81 - HOSE COMPL.
MET-316050840.A10
316050840
|
£22.96
|
£27.55
|
|
|
82 - STRAND
MET-344494680.A10
344494680
|
-
|
|
|
|
84 - PRESSURE SPRING
MET-342003900.A2
342003900
|
-
|
|
|
|
85 - PRESSURE PLATE
MET-341059810.A1
341059810
|
-
|
|
|
|
86 - WASHER
MET-339007740.A3
339007740
|
-
|
|
|
|
87 - RUBBER PACKING
MET-344099130.A5
344099130
|
-
|
|
|
|
88 - RETAINING RING
MET-141180830.A8
141180830
|
£3.20
|
£3.84
|
|
|
880 - GREASE 100G
MET-344130920.A277
344130920
|
£19.18
|
£23.02
|
|
|
885 - GREASE 50GR 1.8oz
MET-344130990.A10
344130990
|
£26.35
|
£31.62
|
|
|
1001 - WIRING DIAGRAM 120V
MET-338505290.A0
338505290
|
-
|
|
|
